Canton 18-302 - Oil Pan Big Block Chevy Mark 5 Gen 6 Full Length Sump Marine Pan

Canton  |  SKU: BGTF-18-302
$62500 $75000
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Canton 18-302 - Oil Pan Big Block Chevy Mark 5 Gen 6 Full Length Sump Marine Pan

Engine Oil Pan - Marine - Full Sump - 9 qt - 8 in Deep - Steel - Black Powder Coat - 1-Piece Seal - Gen V / Gen VI - Big Block Chevy - Each

Canton 18-302 Oil Pan Big Block Chevy Mark 5 Gen 6 Full Length Sump Marine Pan

This BBC High Capacity Marine Pan for Mark V Big Blocks with one piece rear seal. With a deep 8" full length sump it holds 9 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-301 pickup.

  • 14 ga. Steel Construction

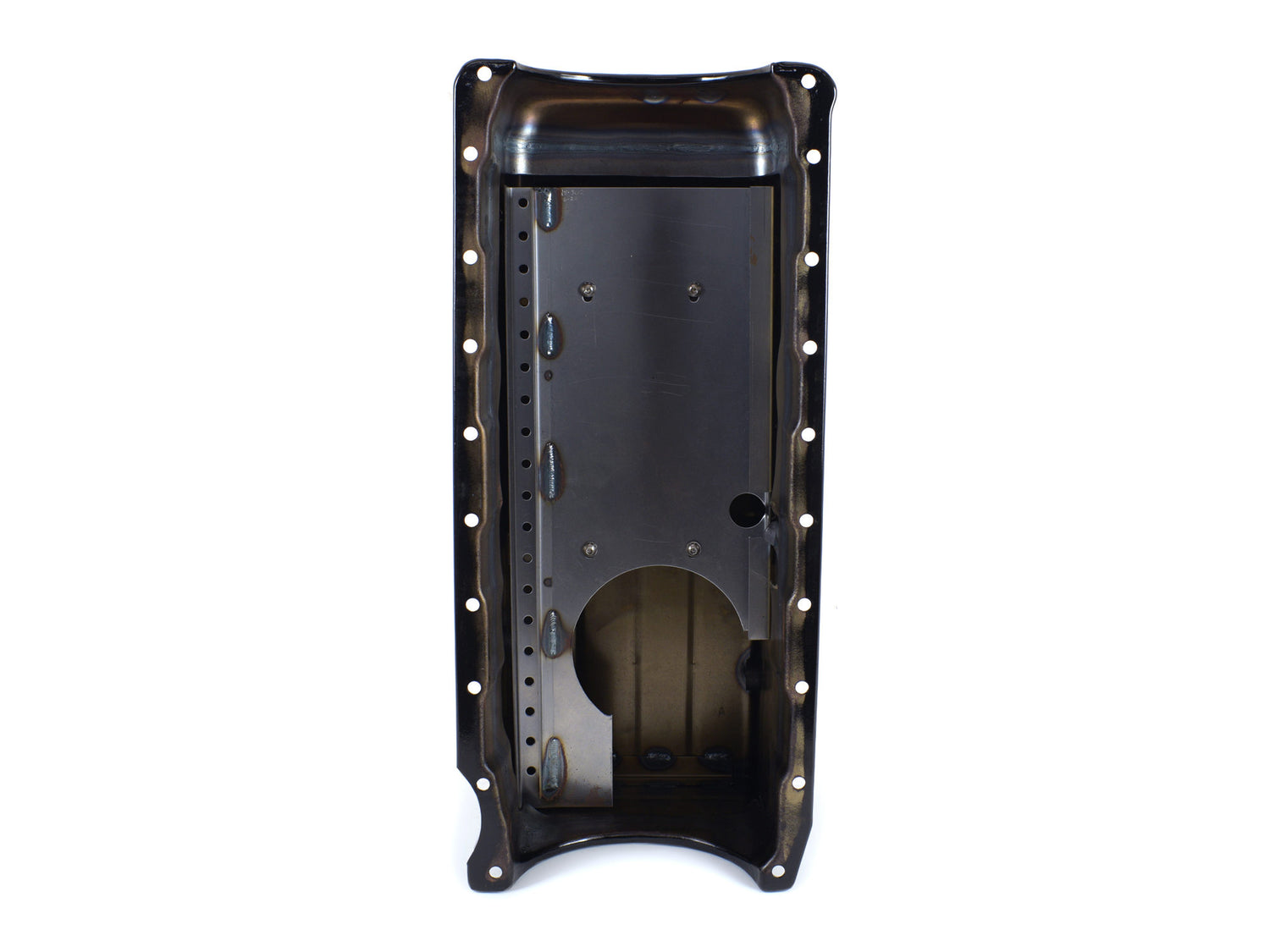

  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fittings
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Double Trap Door Baffles
Feature 1: 14 ga. Steel Construction
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Baffled: Yes
Gasket or Seal Included: No
Sump Depth: 8 inches
Stoke: 4.5 inches
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 18-301 - Our Stock Replacement Pickup
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: No
Hardware Included: No
Finish: Black Gloss Powdercoat
Capacity: 9 Quart System Capacity
Feature 6: Powder Coating & Brass Plugs For Corrosion Protection
Feature 5: Provision For our Pan Mounted Dipstick
Feature 4: 1/2" NPT Drain Fittings
