Canton 18-300 - Oil Pan For Big Block Chevy Mark 4 Full Length Sump Marine Oil Pan
Canton | SKU:
BGTF-18-300
Sale price
$59800
Regular price
$71760
Unit price
/
Unavailable
$119.60 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

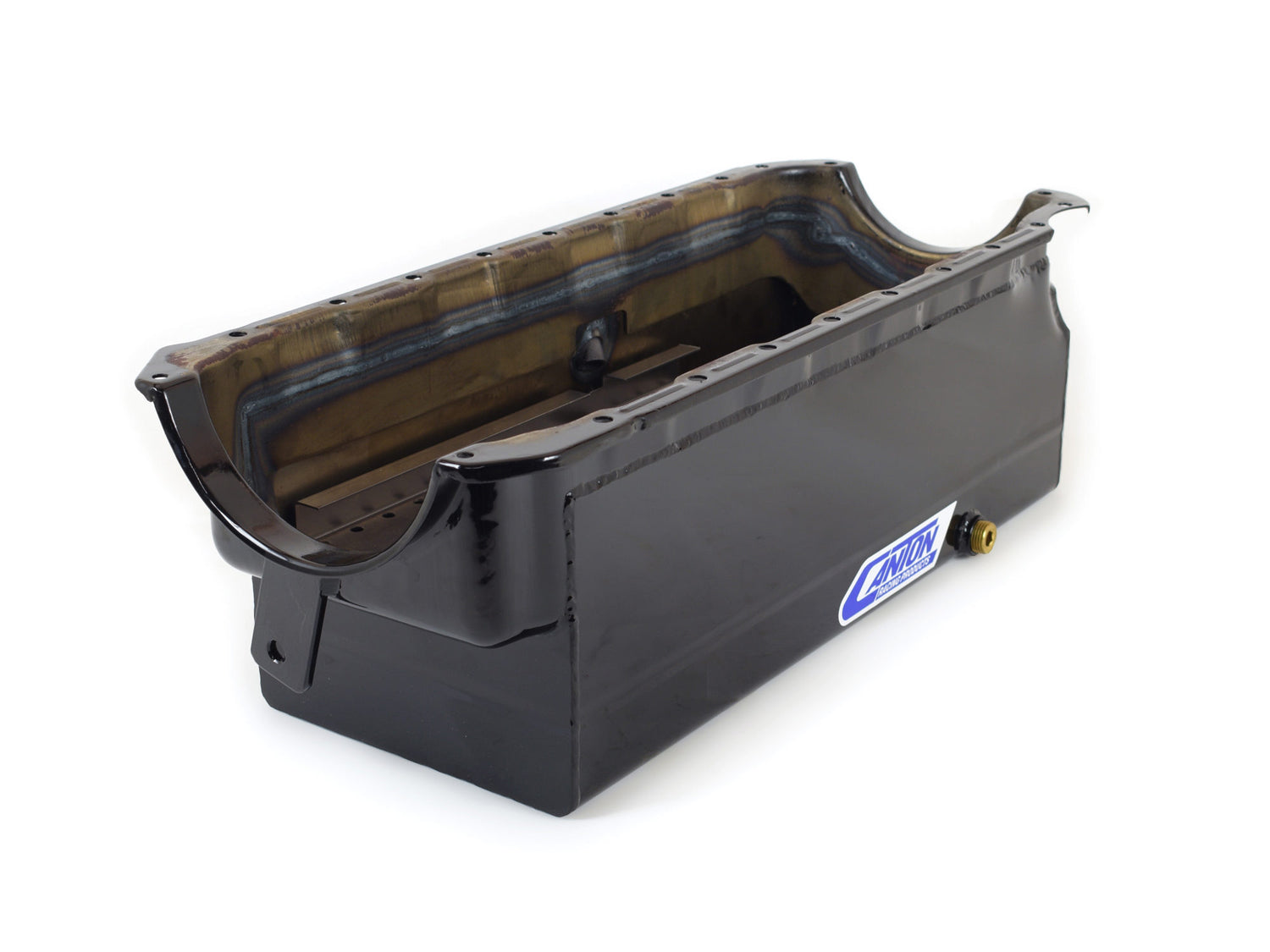

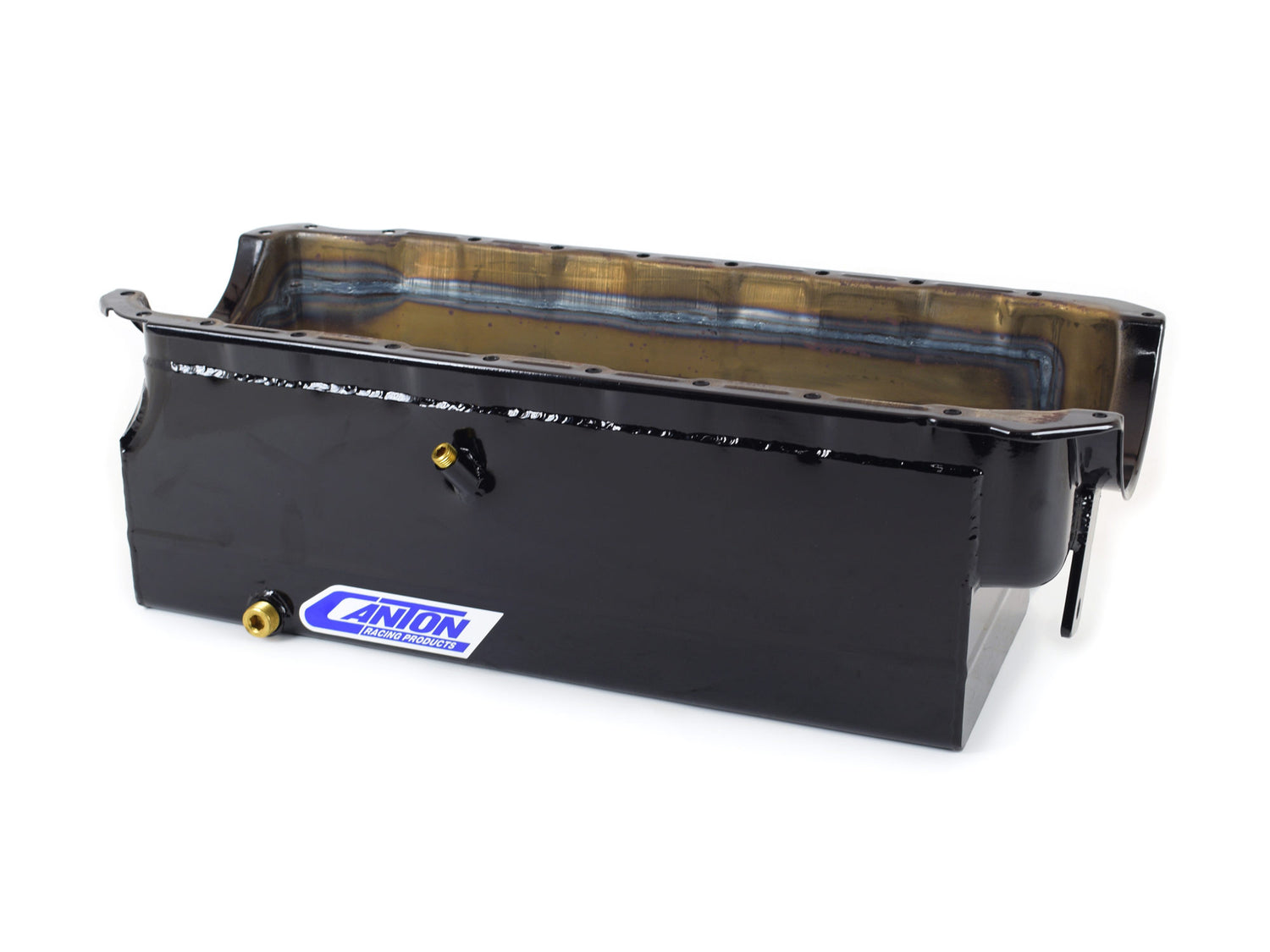

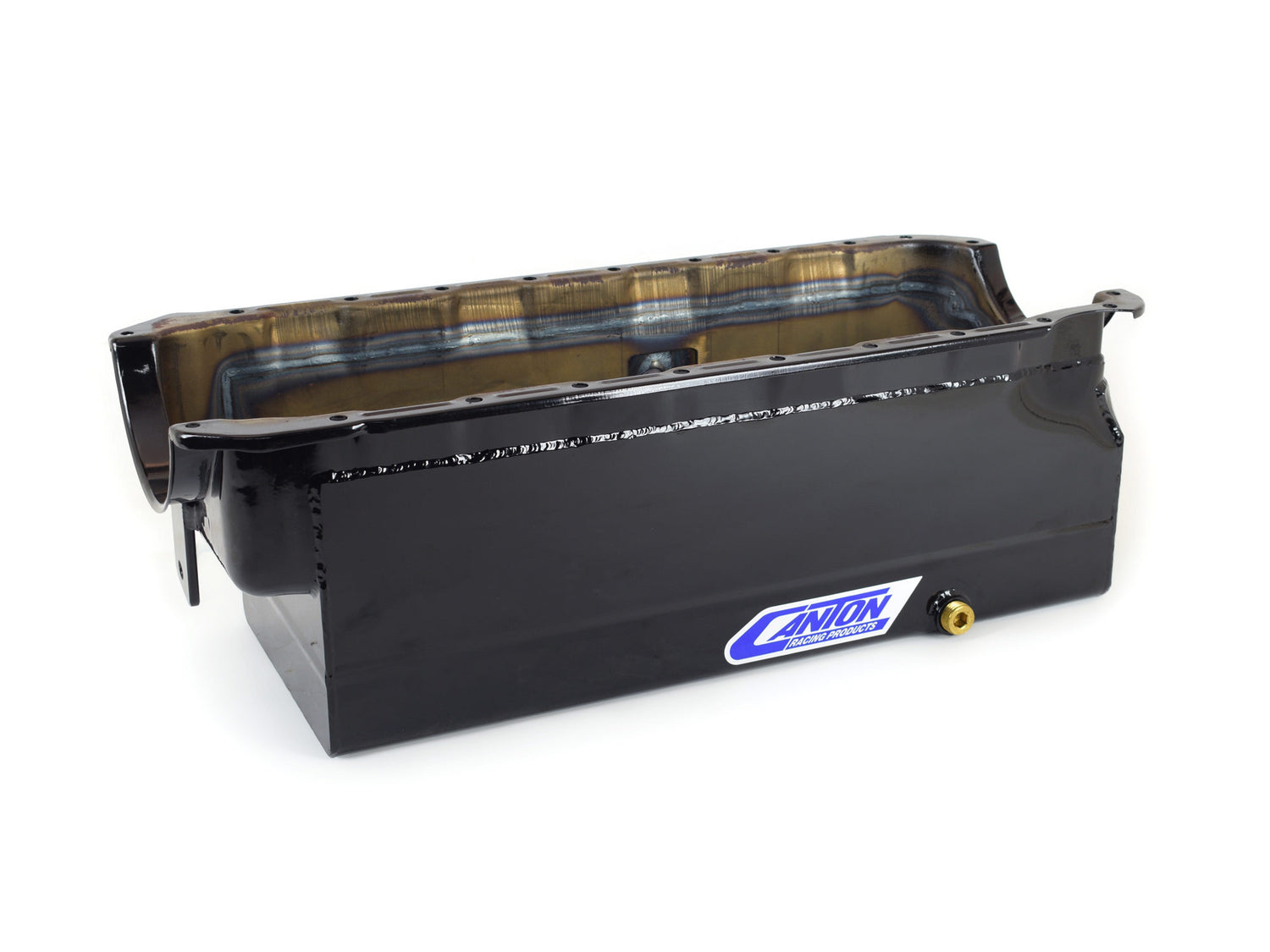

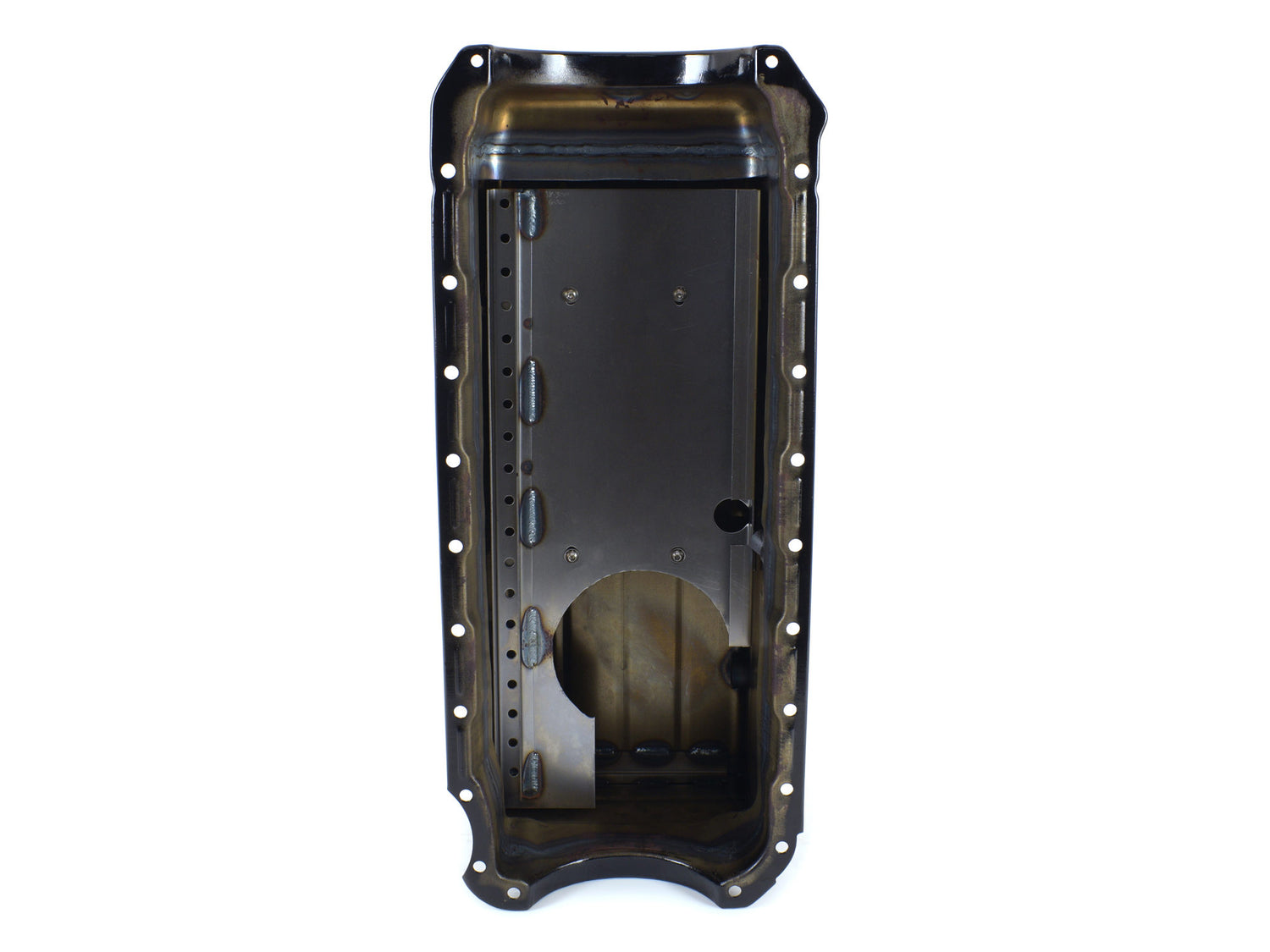

Canton 18-300 - Oil Pan For Big Block Chevy Mark 4 Full Length Sump Marine Oil Pan
Engine Oil Pan - Marine - Full Sump - 9 qt - 8 in Deep - Steel - Black Powder Coat - 2-Piece Seal - Big Block Chevy - Each
Canton 18-300 Oil Pan For Big Block Chevy Mark 4 Full Length Sump Marine Oil Pan
This BBC High Capacity Marine Pan is for Standard Big Blocks with 2 piece rear seals. With a deep 8" full length sump it holds 9 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-301 pickup.
- 9 qt Pan Capacity
- 14 ga. Steel Construction
- Double Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2" NPT Drain Fittings
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Double Trap Door Baffles
Feature 2: 14 ga. Steel Construction
Feature 1: 9 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Baffled: Yes
Gasket or Seal Included: No
Sump Depth: 8 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 - BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 18-301 - Our Stock Replacement Pickup
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: No
Hardware Included: No
Finish: Black Gloss Powdercoat
Capacity: 9 Quart System Capacity
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
