Canton 16-100T - Oil Pan Small Block Chevy S10 Truck Conversion 1 Piece Seal
Canton | SKU:
BGTF-16-100T
Sale price
$39900
Regular price
$47880
Unit price
/
Unavailable
$79.80 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

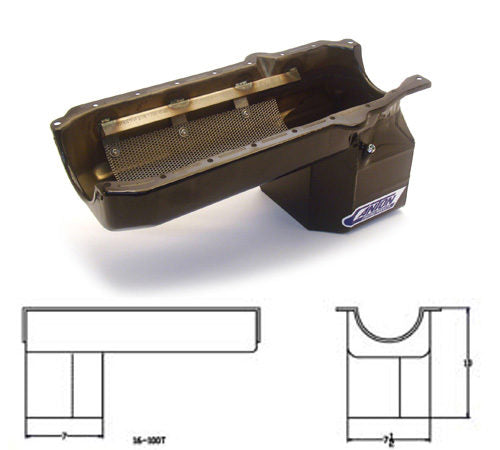

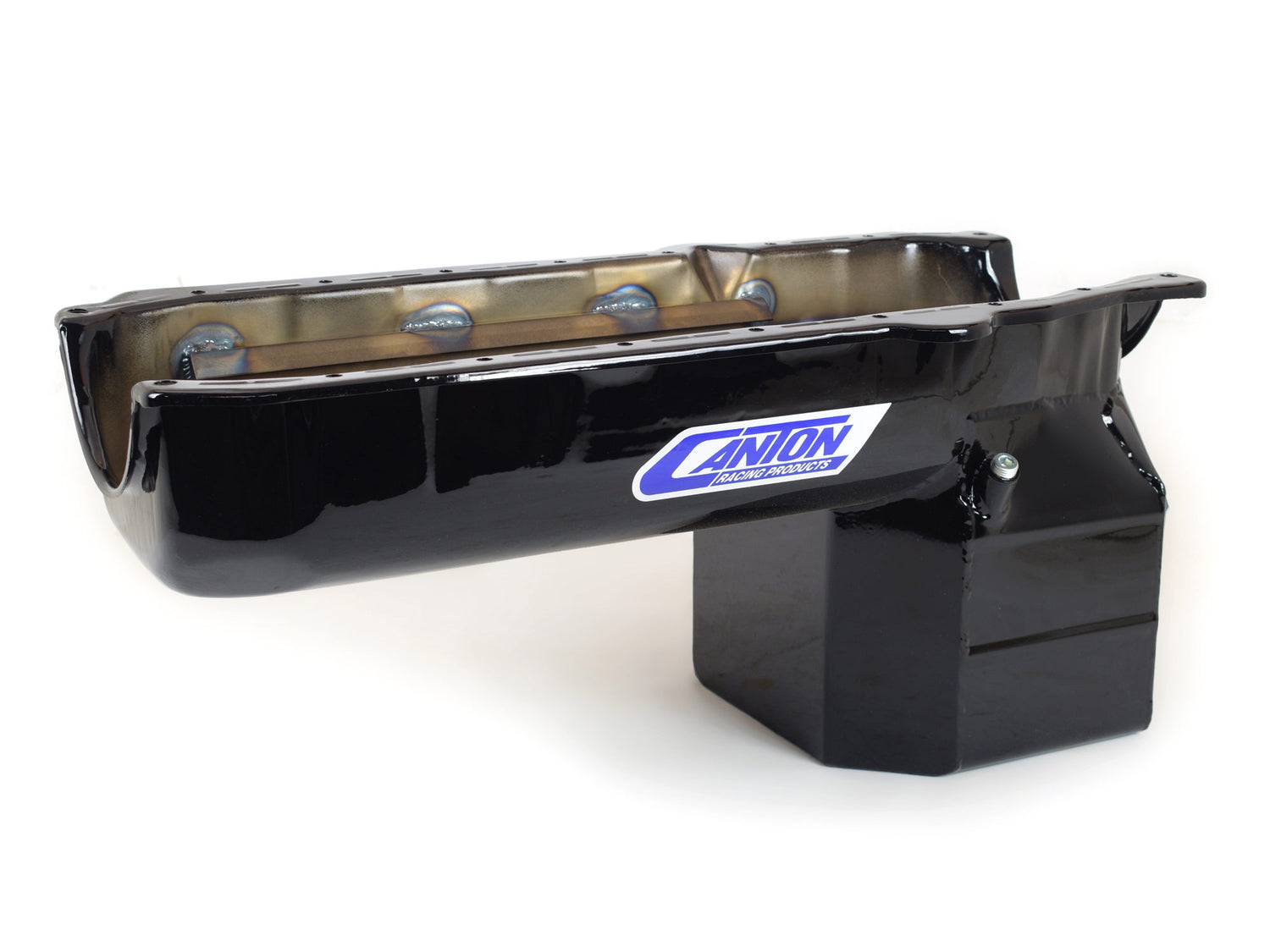

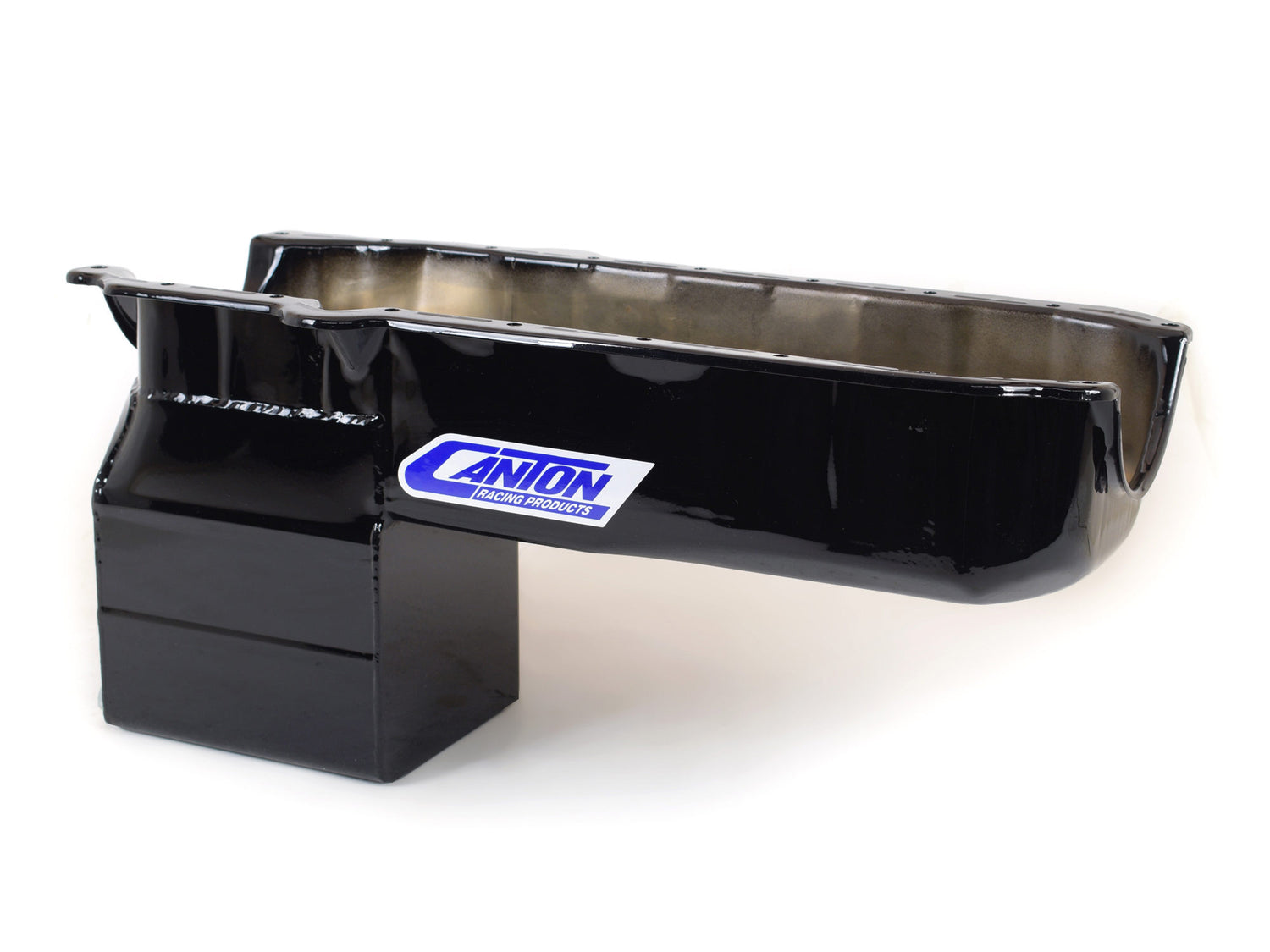

Canton 16-100T - Oil Pan Small Block Chevy S10 Truck Conversion 1 Piece Seal
Engine Oil Pan - Truck - Rear Sump - 7 qt - 10 in Deep - Steel - Cadmium - 1-Piece Seal - S-10 Engine Swap - Small Block Chevy - Each
Canton 16-100T Oil Pan Small Block Chevy S10 Truck Conversion 1 Piece Seal
This SBC S-10 V-8 conversion oil pan is for '86 and newer blocks with a one piece seal. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4x4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10" deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.
- 7 qt System Capacity
- Crank Scraper

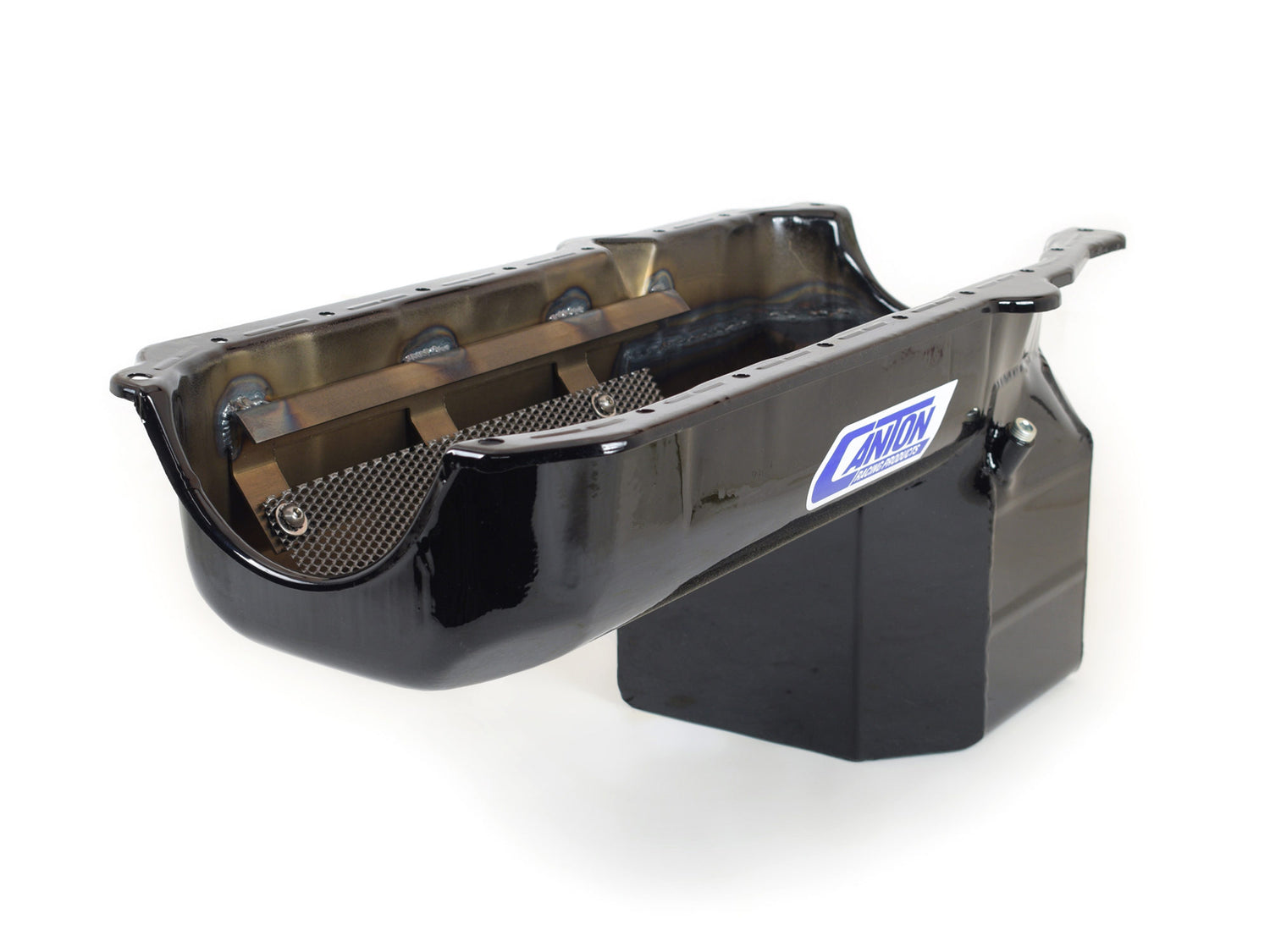

- Slosh Baffle

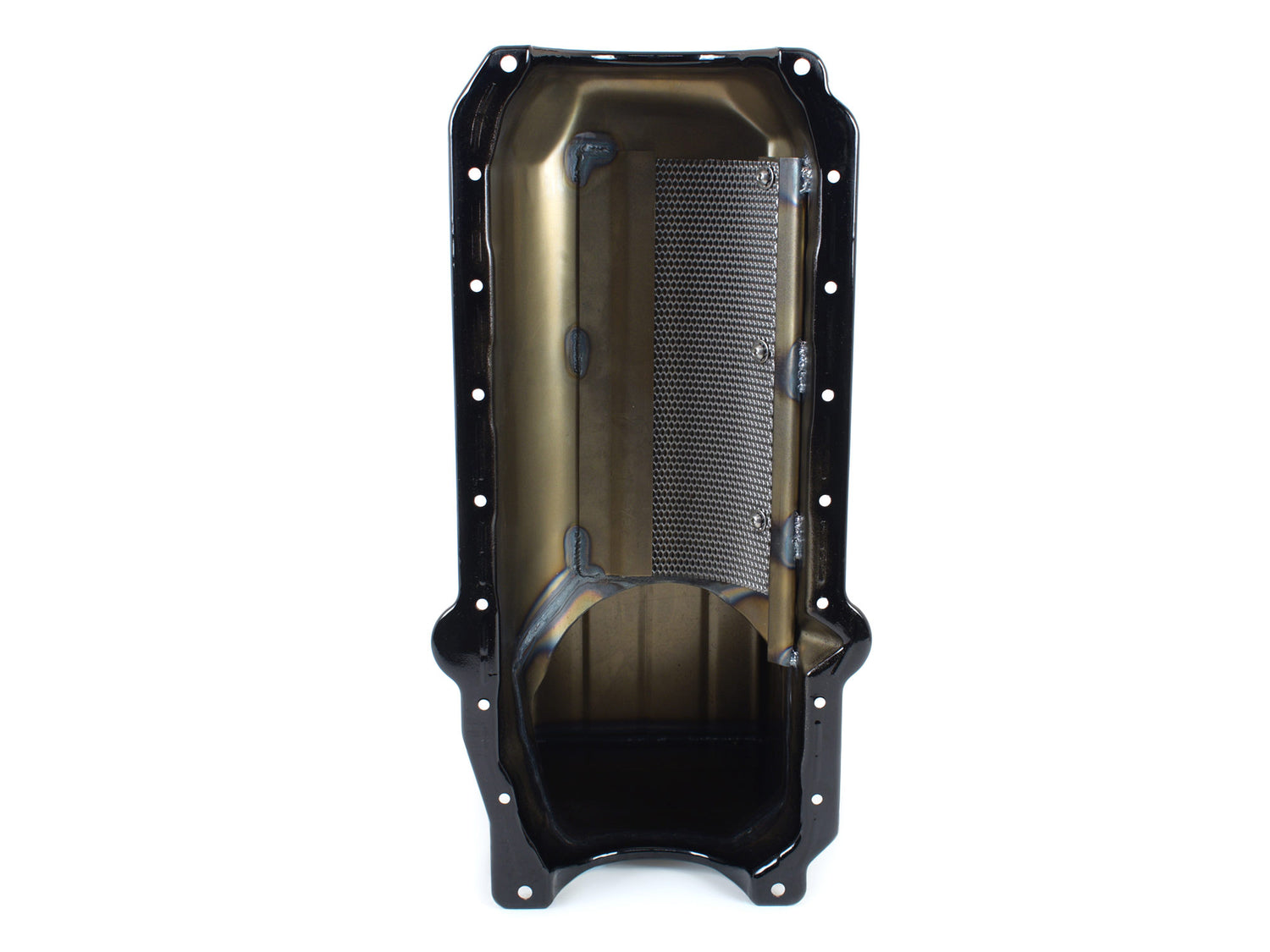

- Built In Screen Windage Tray
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 7.75 inches
Sump Depth: 10 inches
Stoke: 3.875 inches
Recommended Accessory 3: 88-100T ? SBC 86+ Oil Pan Gasket
Recommended Accessory 2: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Pickup Included: No
Material: Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Black Powdercoat
Feature 6: Magnetic Drain Plug
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 4: Built In Screen Windage Tray
Feature 3: Slosh Baffle
Feature 2: Crank Scraper
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
