Canton 15-820 - Oil Pan For Ford 332-428 FE Front T Sump Road Race Pan

Canton  |  SKU: BGTF-15-820
$47900 $57480


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Canton 15-820 - Oil Pan For Ford 332-428 FE Front T Sump Road Race Pan

Engine Oil Pan - Street / Strip / Road Race - Front Sump - 8 qt - 6 in Deep - Steel - Cadmium - Ford FE-Series - Each

Canton 15-820 Oil Pan For Ford 332-428 FE Front T Sump Road Race Pan

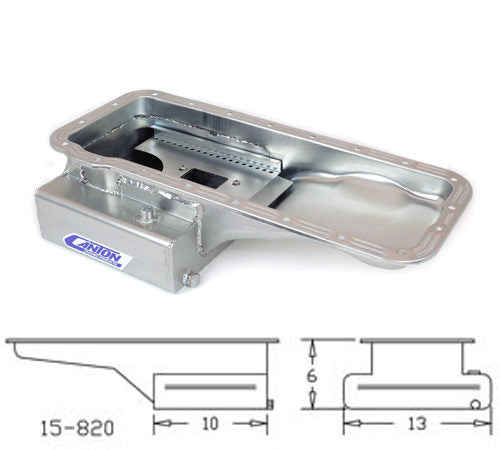

This front sump Ford 332-428FE road race pan is ideal for Mustangs or Cobra Kit Cars. It has a 6" deep, 13" wide by 10" long sump for an 8 quart system capacity. "T" style sump to increase capacity without losing ground clearance. This pan requires our 15-821 pickup for Melling oil pump M57HV.

  • 8 qt System Capacity
  • Diamond Shape Road Race Baffle Assembly With Six Trap Doors
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 13 inches
Sump Depth: 6 inches
Stoke: 4.125 inches
Recommended Accessory 4: 20-938 - Ford 332-428FE Screen Windage Tray
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-821 - Pickup 3/4" Dia. Inlet
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 8 Quart System Capacity
Finish: Silver Plating
Feature 6: Magnetic Drain Plug
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
Feature 1: 8 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
