Canton 15-810 - Oil Pan For Ford 332-428 FE High Capacity Front T Sump Street Pan
Canton | SKU:
BGTF-15-810
Sale price
$38900
Regular price
$46680
Unit price
/
Unavailable
$77.80 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

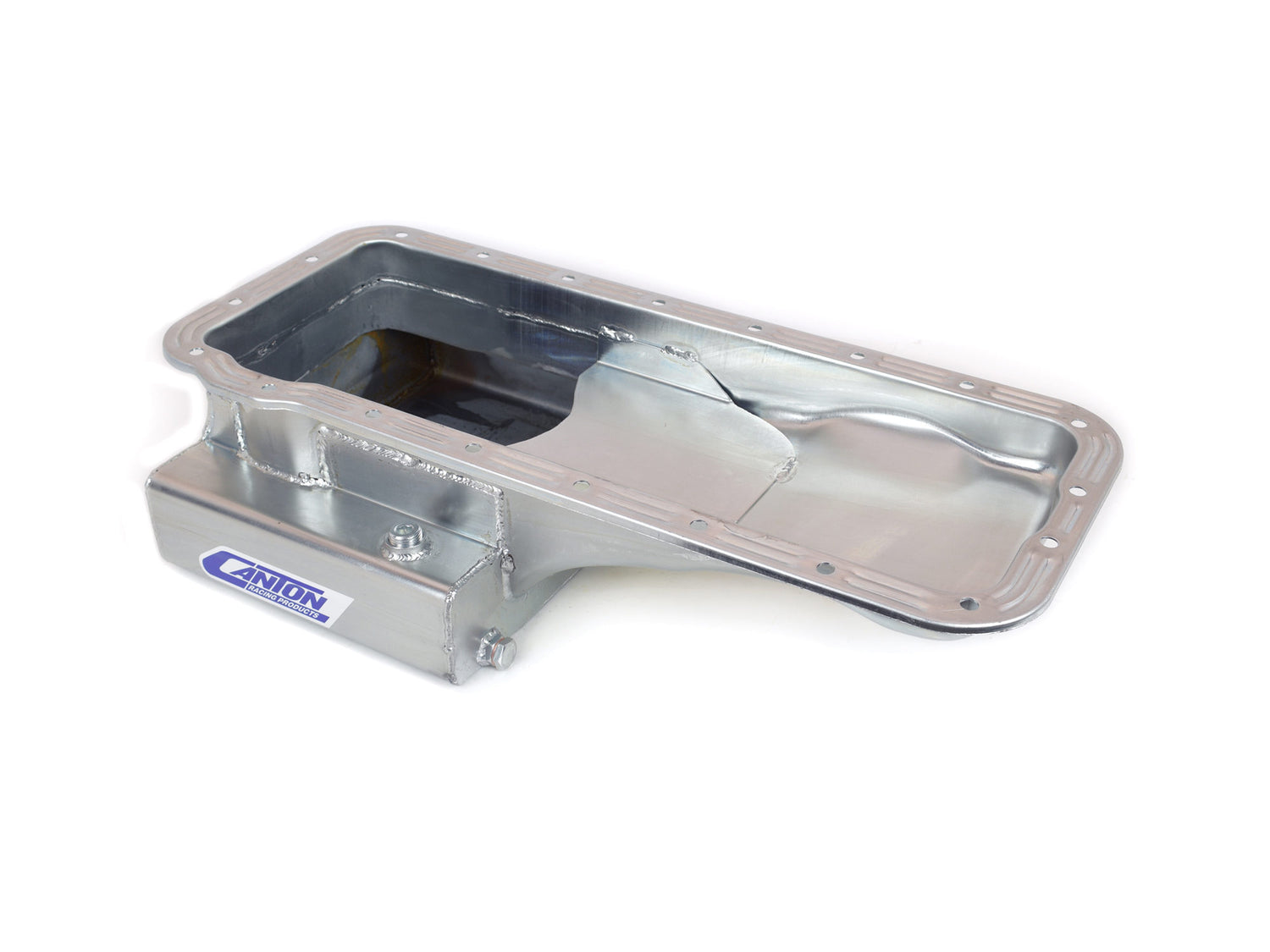

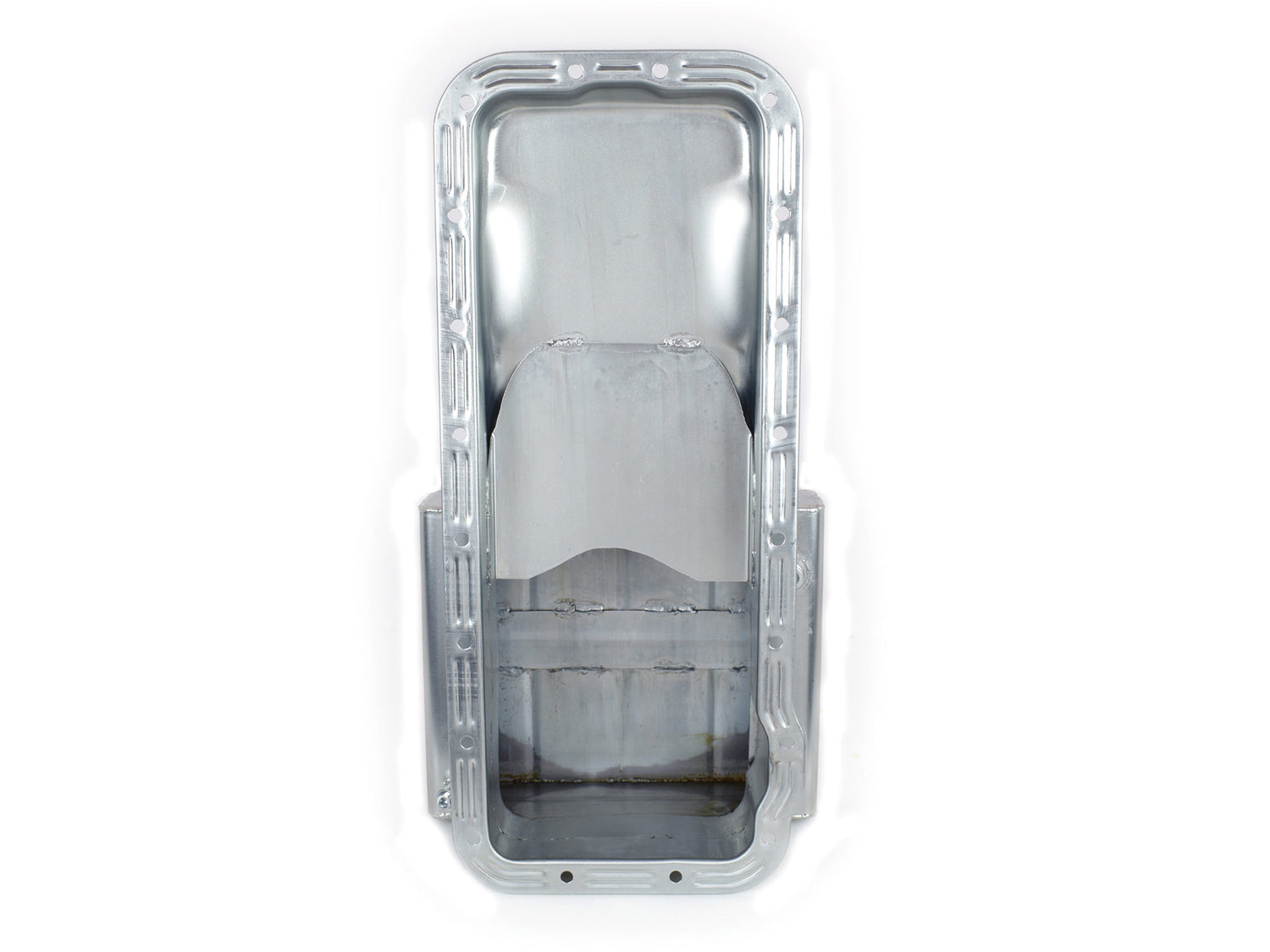

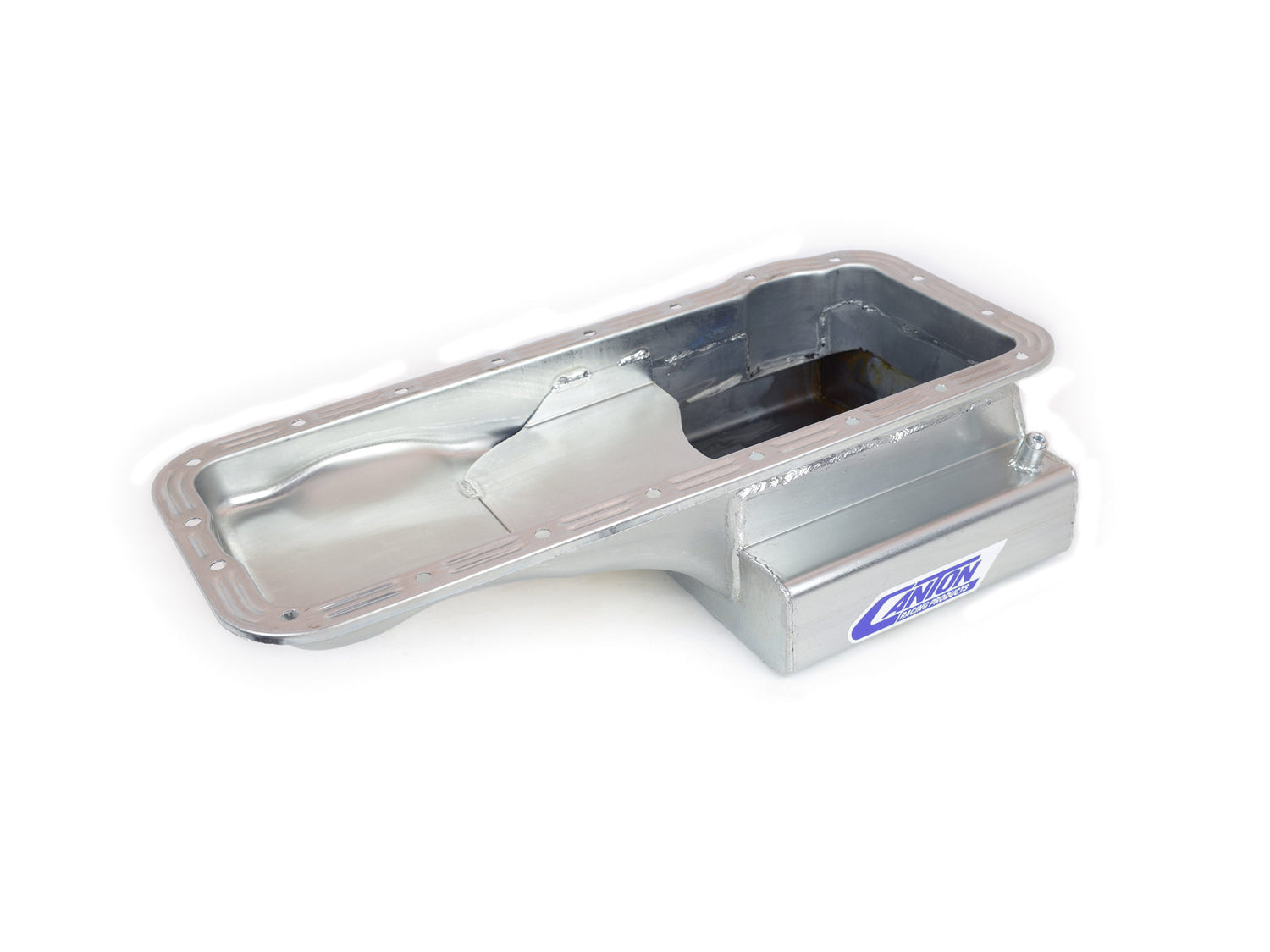

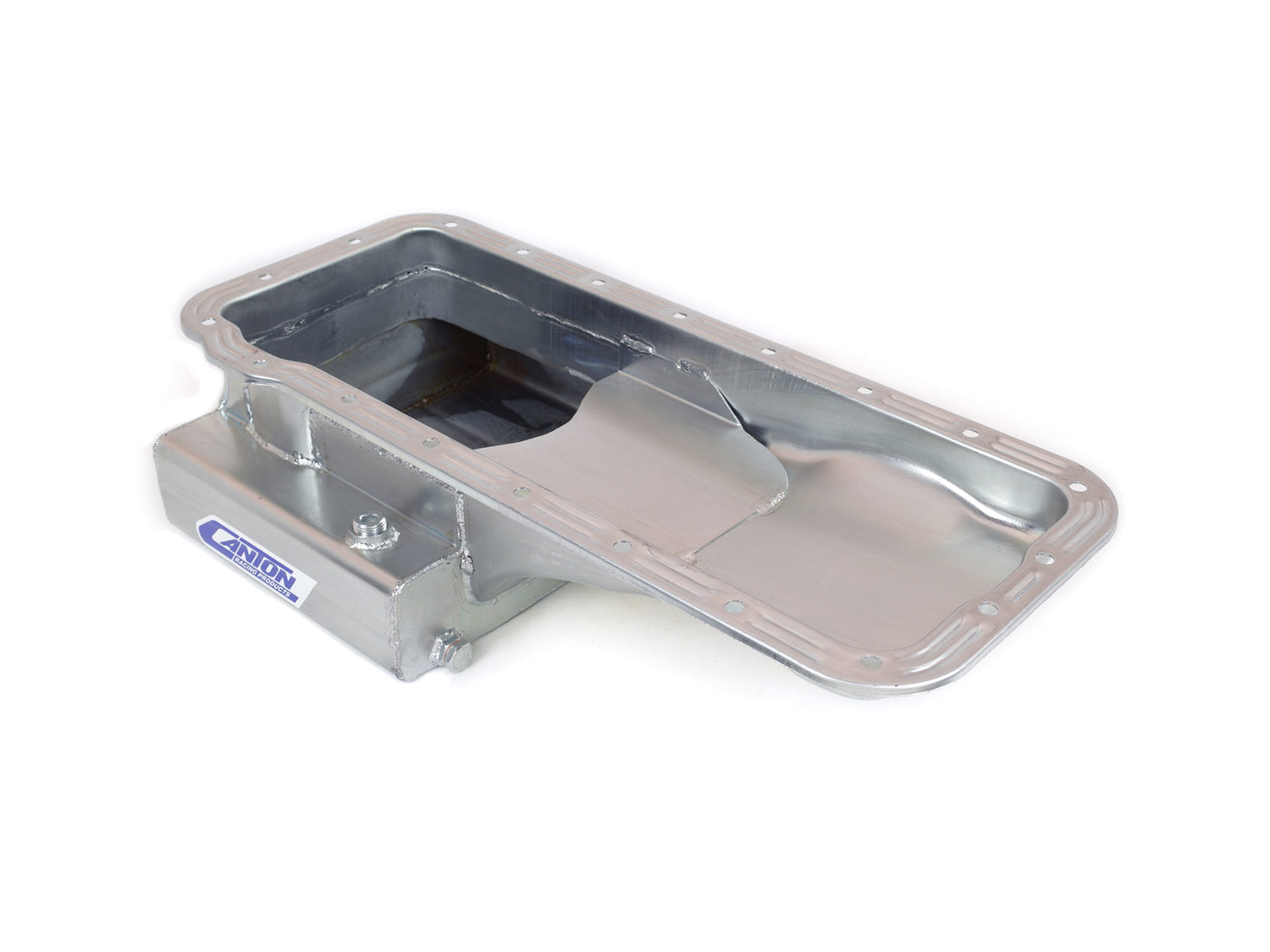

Canton 15-810 - Oil Pan For Ford 332-428 FE High Capacity Front T Sump Street Pan
Engine Oil Pan - Street / Strip / Road Race - Front Sump - 8 qt - 6 in Deep - Steel - Cadmium - Ford FE-Series - Each
Canton 15-810 Oil Pan For Ford 332-428 FE High Capacity Front T Sump Street Pan

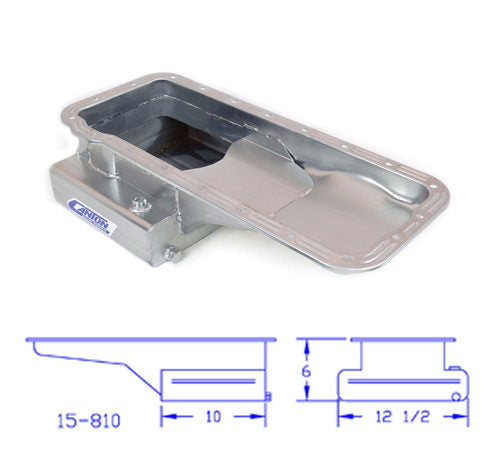

This high capacity front sump is for all Ford 332-428FE blocks. "T" style sump to increase capacity without losing ground clearance. It has a 6" deep, 12-1/2" wide by 10" long sump with a 8 quart system capacity. This pan requires our 15-811 pickup.
- 8 qt System Capacity
- Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Baffled: Yes
Kicked Out: Yes
Sump Width: 12.5 inches
Sump Depth: 6 inches
Stoke: 4.125 inches
Recommended Accessory 5: 88-800 - Ford 332-428FE Oil Pan Gasket
Recommended Accessory 4: 20-938 - Ford 332-428FE Screen Windage Tray
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-811 - Pickup 3/4" Dia. Inlet
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 8 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Provision For Our Pan Mounted Dipstick
Feature 3: 1/2" NPT Temperature Bung
Feature 2: Slosh Baffle
Feature 1: 8 qt System Capacity
Drain Plug Included: Yes
