Canton 15-784 - Oil Pan For Ford 4.6L 5.4L Road Race T Sump Pan
Canton | SKU:
BGTF-15-784
Sale price
$49800
Regular price
$59760
Unit price
/
Unavailable
$99.60 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

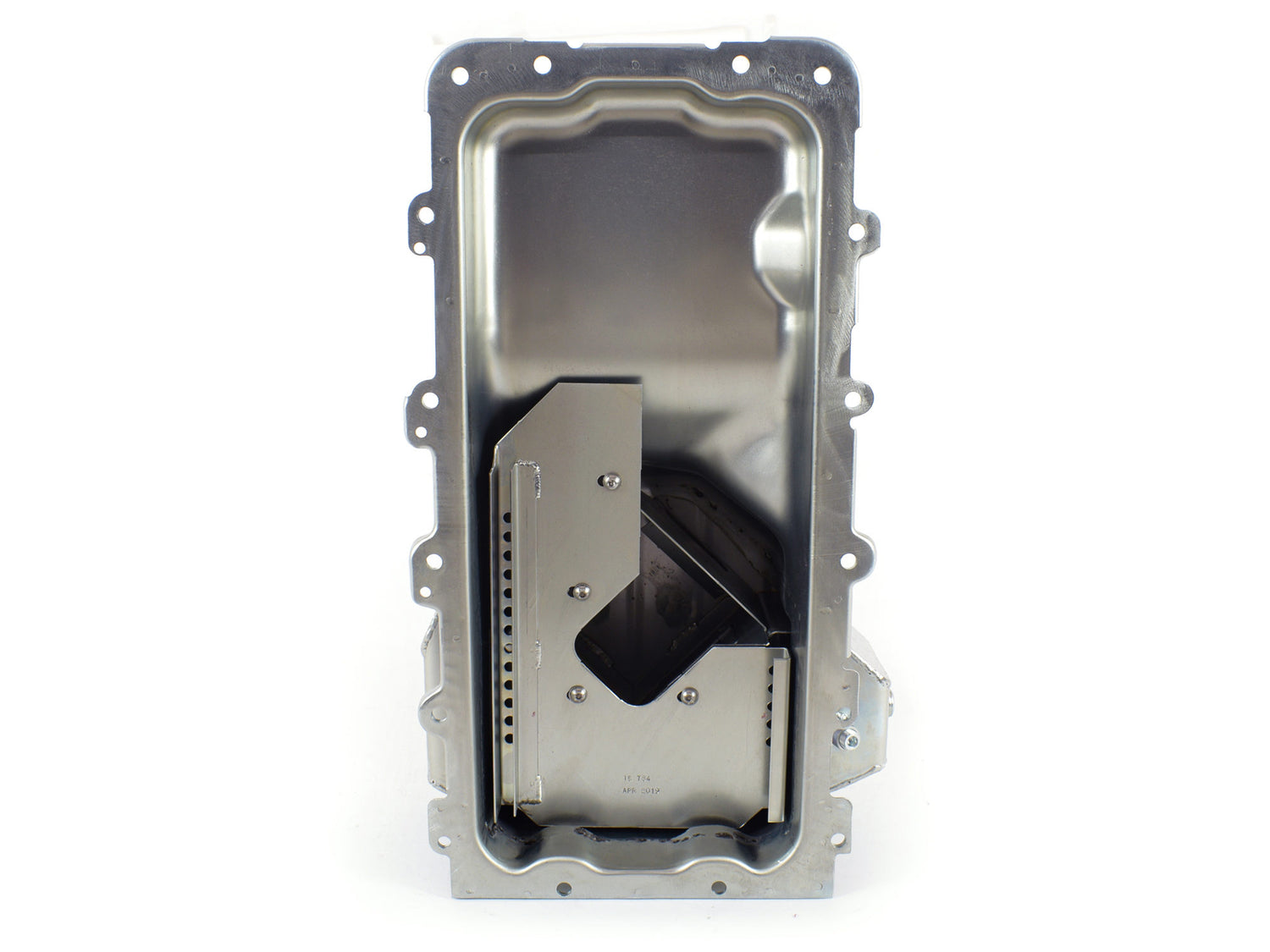

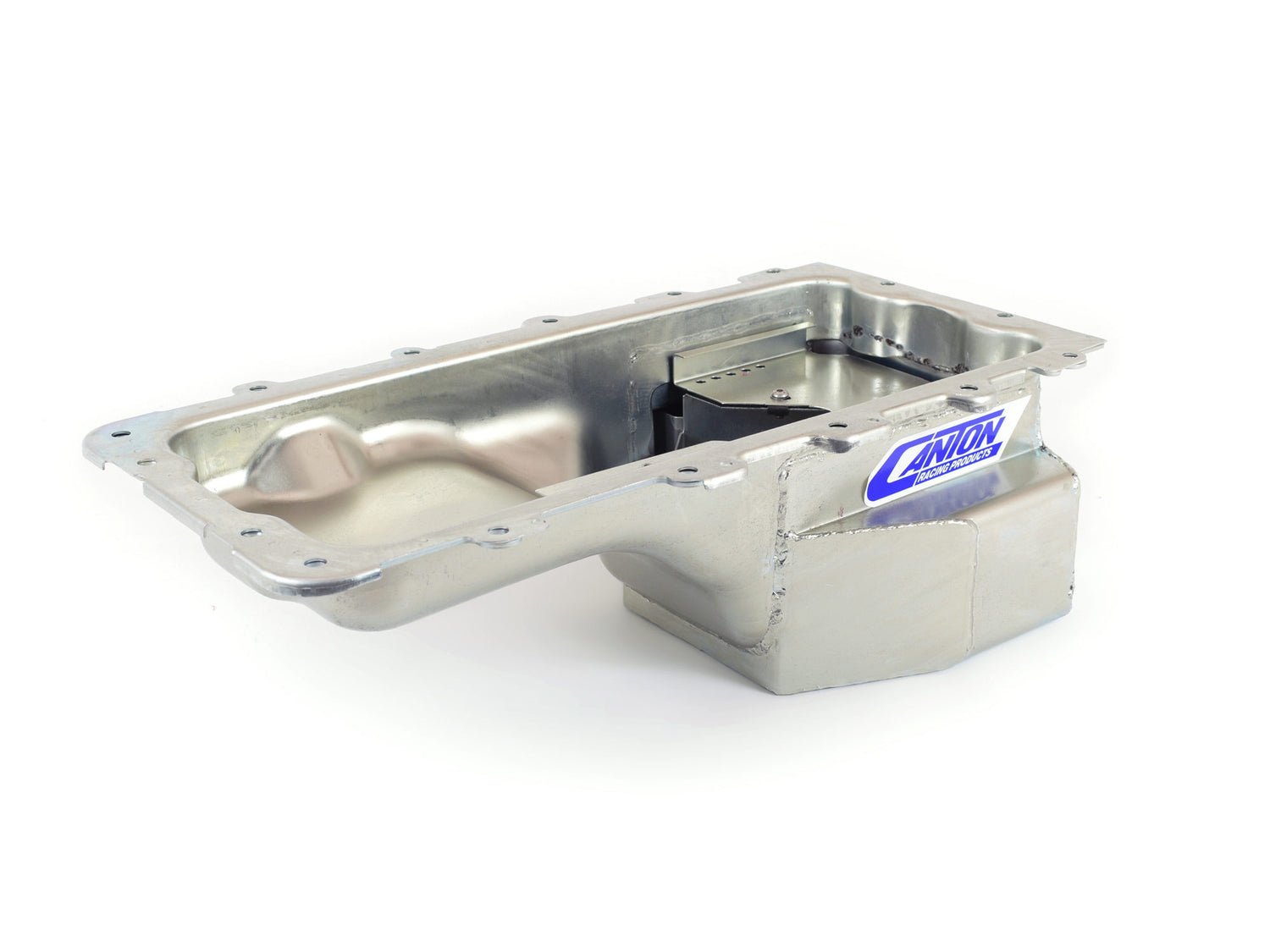

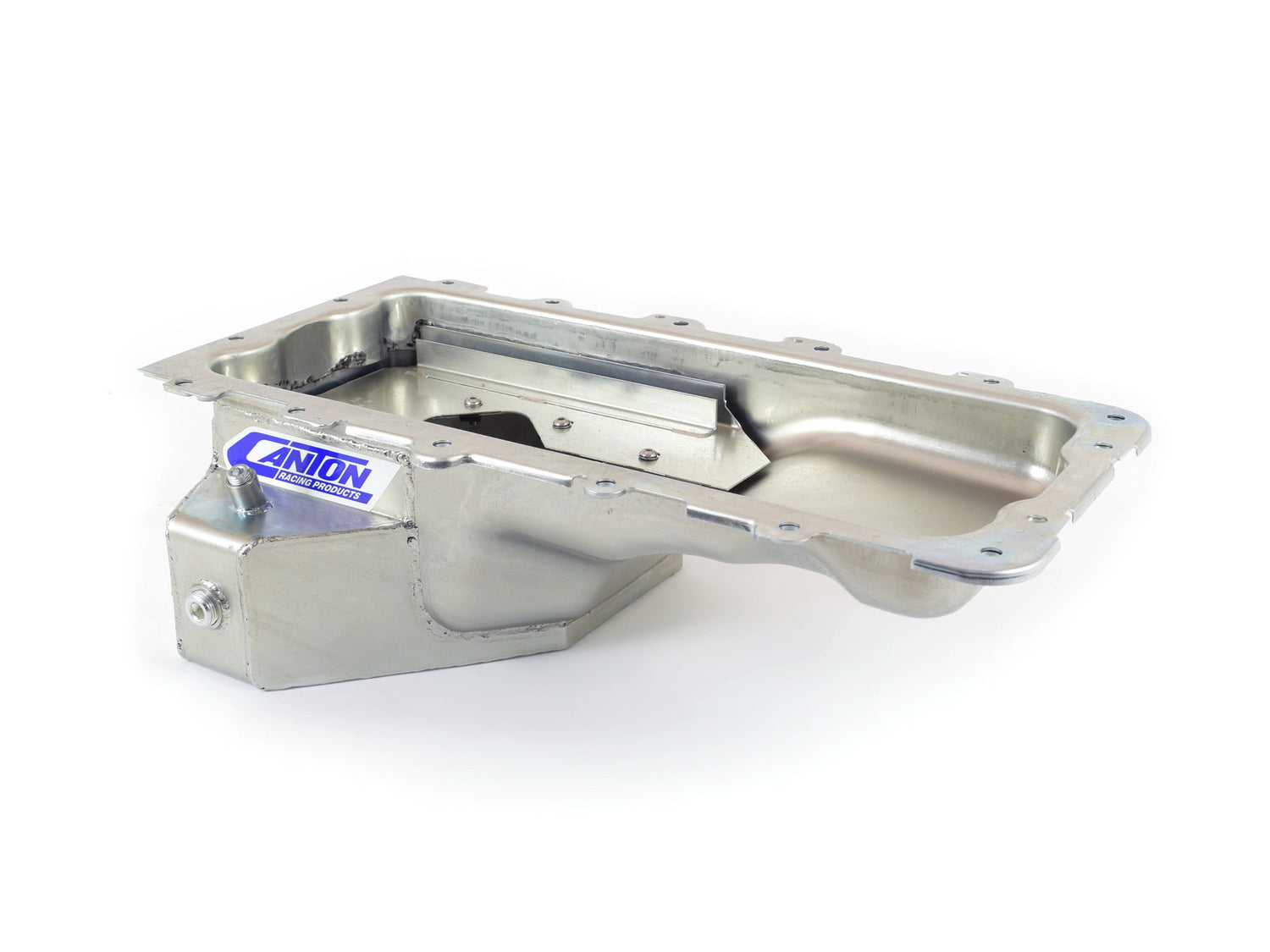

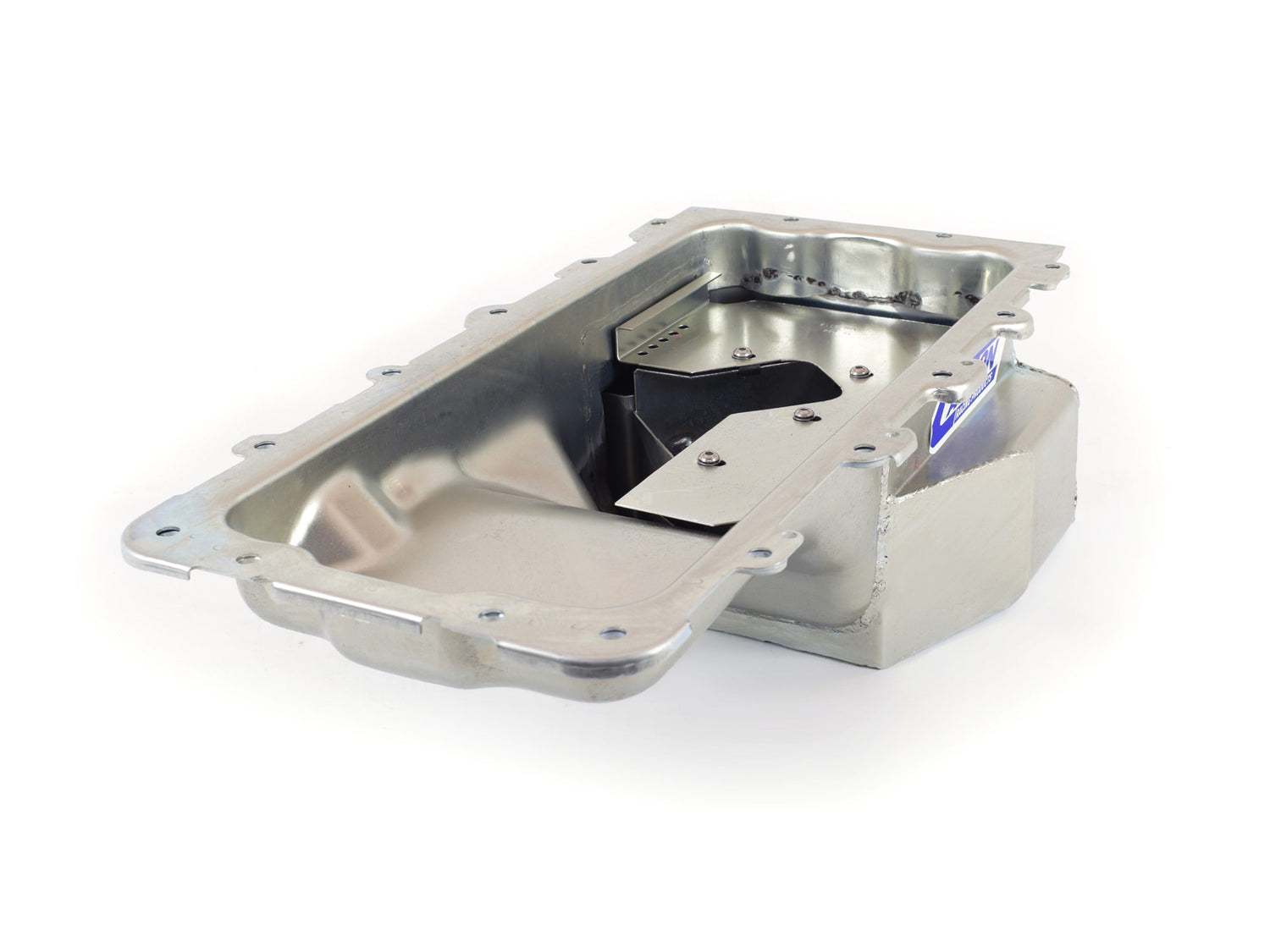

Canton 15-784 - Oil Pan For Ford 4.6L 5.4L Road Race T Sump Pan
Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 7 qt - 6.25 in Deep - Steel - Cadmium - Ford Modular - Each
Canton 15-784 Oil Pan For Ford 4.6L 5.4L Road Race T Sump Pan
This ?T? style modular rear sump road race oil pan is designed for Ford 4.6L/5.4L blocks in ?96-?04 & ?05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. Use Your OEM pickup for this pan.
- Uses stock pickup
- 7 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
- Provision for pan mounted dipstick
Baffled: Yes
Hardware Included: No
Sump Width: 12.75 inches
Sump Depth: 6.25 inches
Stoke: 106MM
Recommended Accessory 2: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 1: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Removable Windage/Anti-Slosh Baffle
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 1: Uses stock pickup * 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
