Canton 15-770 - Oil Pan Big Block Ford Fox Body Conversion Street Pan Rear Sump

Canton  |  SKU: BGTF-15-770
$41800 $50160
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

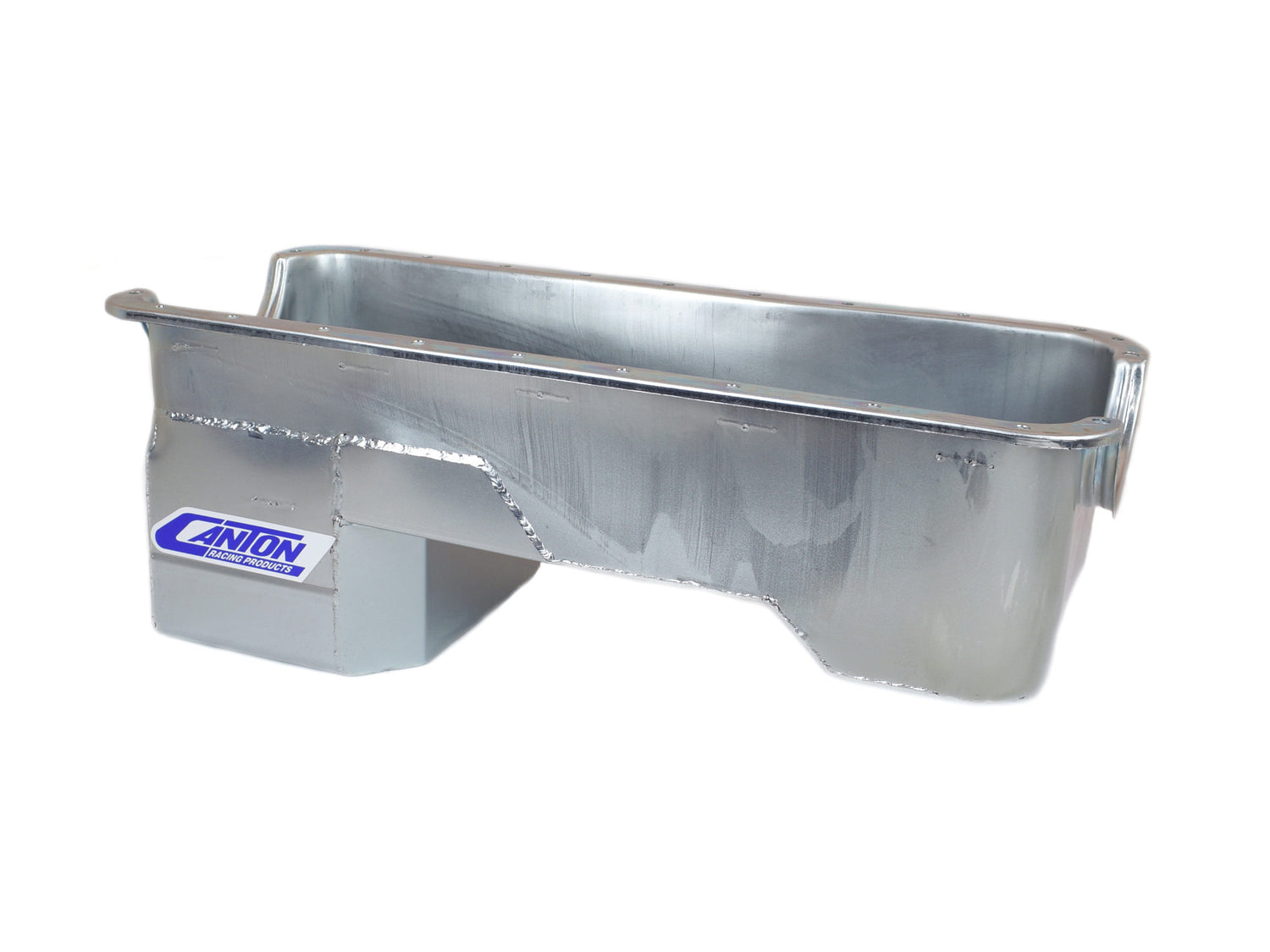

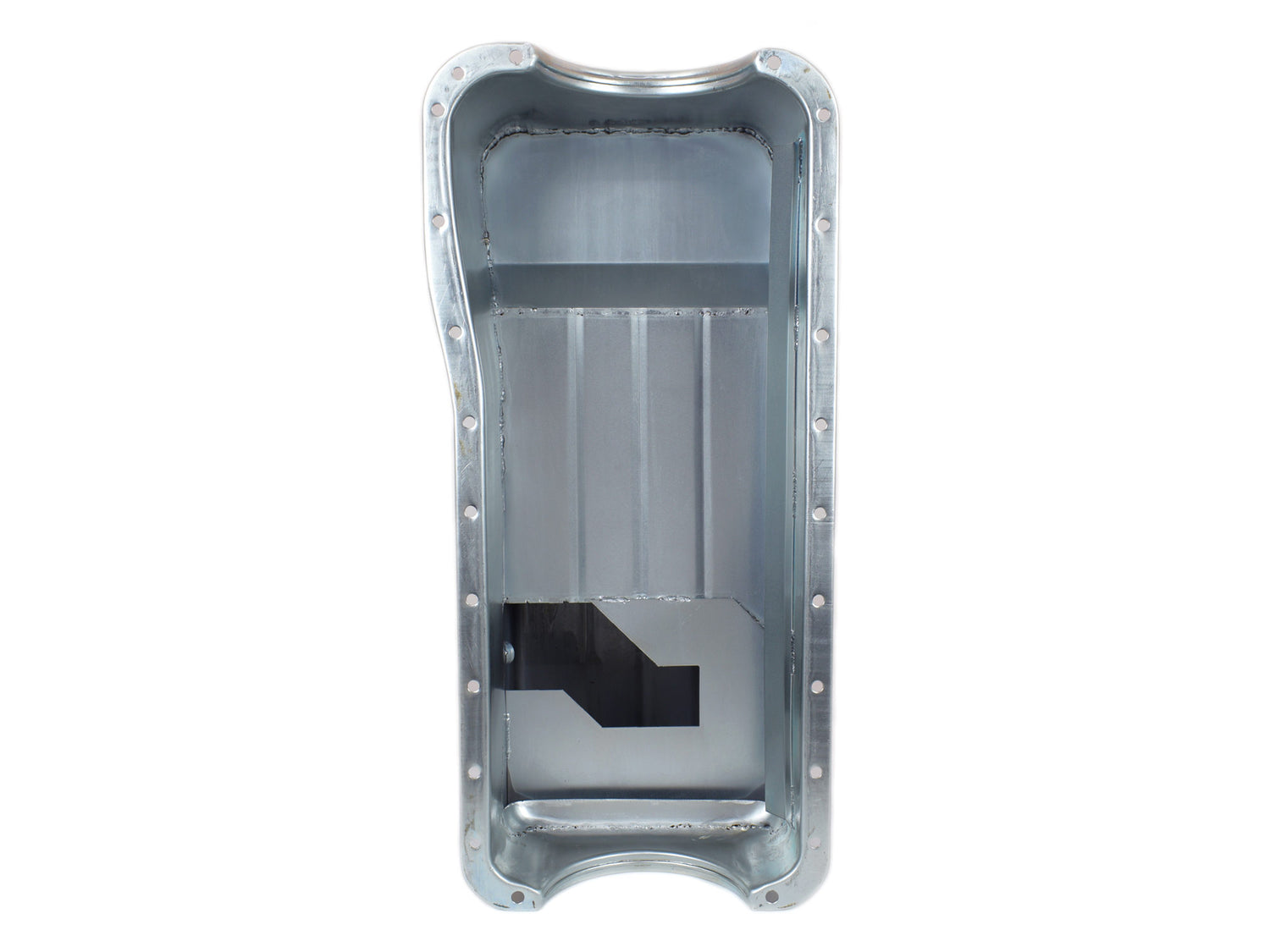

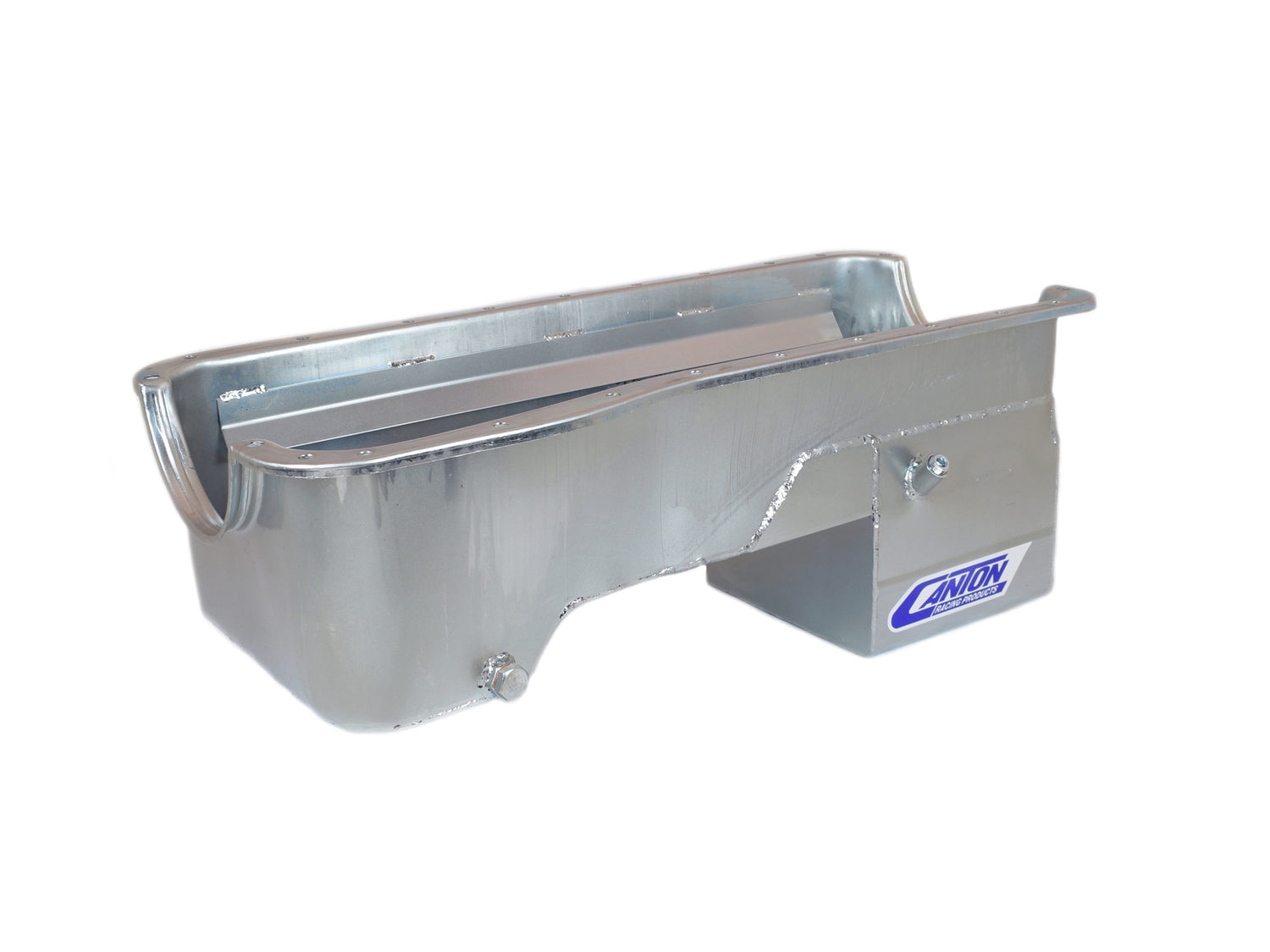

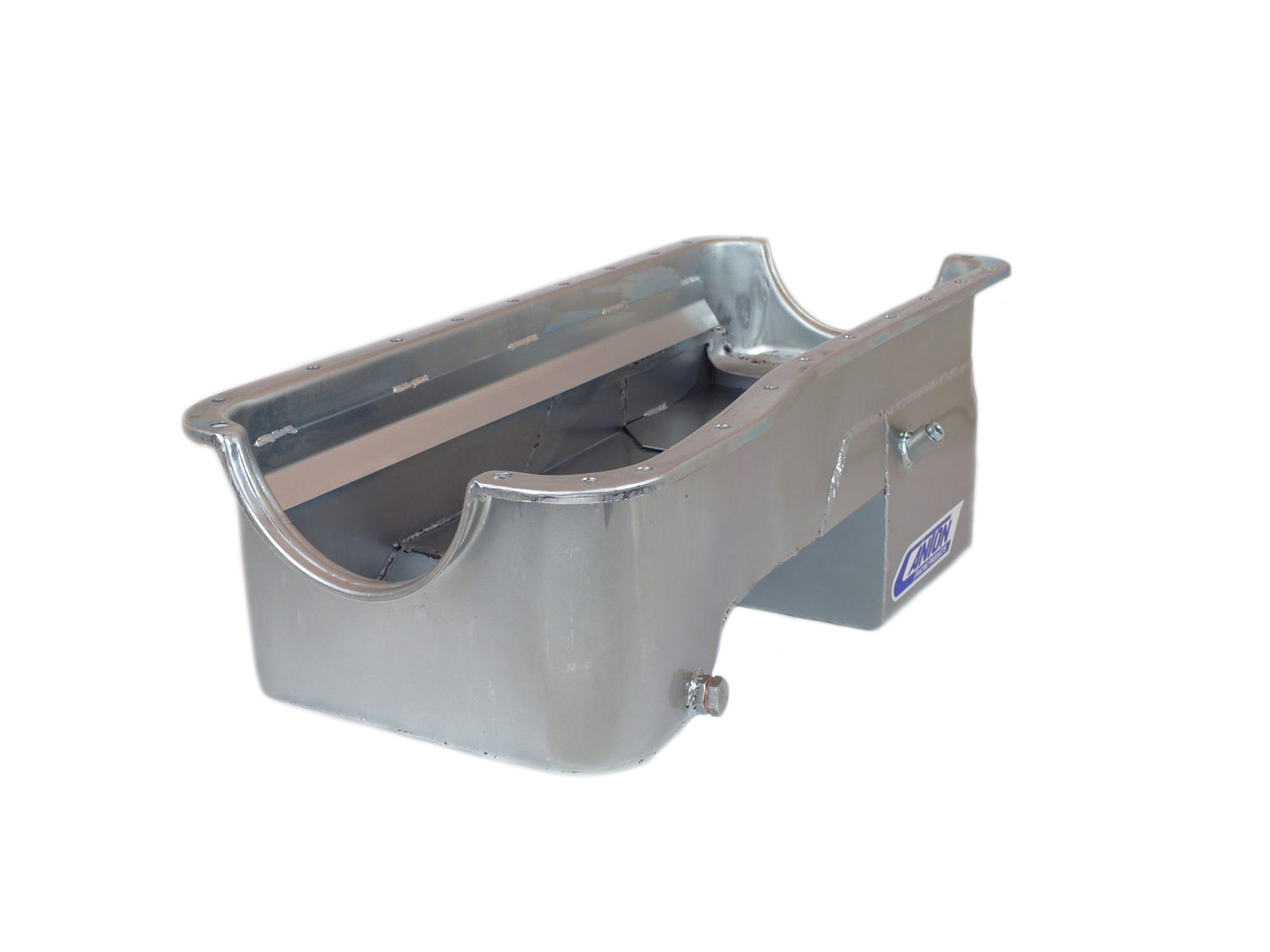

Canton 15-770 - Oil Pan Big Block Ford Fox Body Conversion Street Pan Rear Sump

Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 7 qt - 9 in Deep - Steel - Cadmium - Big Block Ford - Each

Canton 15-770 Oil Pan Big Block Ford Fox Body Conversion Street Pan Rear Sump

Rear sump for Ford 429-460 blocks for Fox Body Mustang conversions. It has a 9" deep by 7-1/2" long sump giving it a 7 quart system capacity. Note: This Ford 429-460 pan for '79 and up Mustang and '80 & up T-Bird chassis will require special motor mounts and may require modification when used in 79-80 Mustangs. Requires 15-771 pickup for Melling oil pump M84DHV or 15-777 pickup for use with our Main Support #21-066.

  • 7 qt System Capacity
  • Extra Deep Sump For Increased Oil Control & Capacity
  • Crank Scraper
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
Baffled: Yes
Material: 16 Gauge Steel
Sump Depth: 9 inches
Stoke: 4.5 inches
Recommended Accessory 8: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 5: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
Recommended Accessory 4: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
Recommended Accessory 3: 21-066 - Canton 429-460 Steel Main Support
Recommended Accessory 2: 15-777 - Pickup 3/4" Dia. Inlet for use with Canton Main Support
Recommended Accessory 1: 15-771 - Pickup 3/4" Dia. Inlet
Pickup Included: No
Kicked Out: No
Capacity: 7 Quart System Capacity
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 6: Magnetic Drain Plug
Feature 5: Provision For Our Pan Mounted Dipstick
Feature 4: Slosh Baffle
Feature 3: Crank Scraper
Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
Feature 1: 7 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
