Canton 15-766 - Oil Pan For Ford 429 460 Rear T Sump Road Race Cobra Pan

Canton  |  SKU: BGTF-15-766
$54800 $65760
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

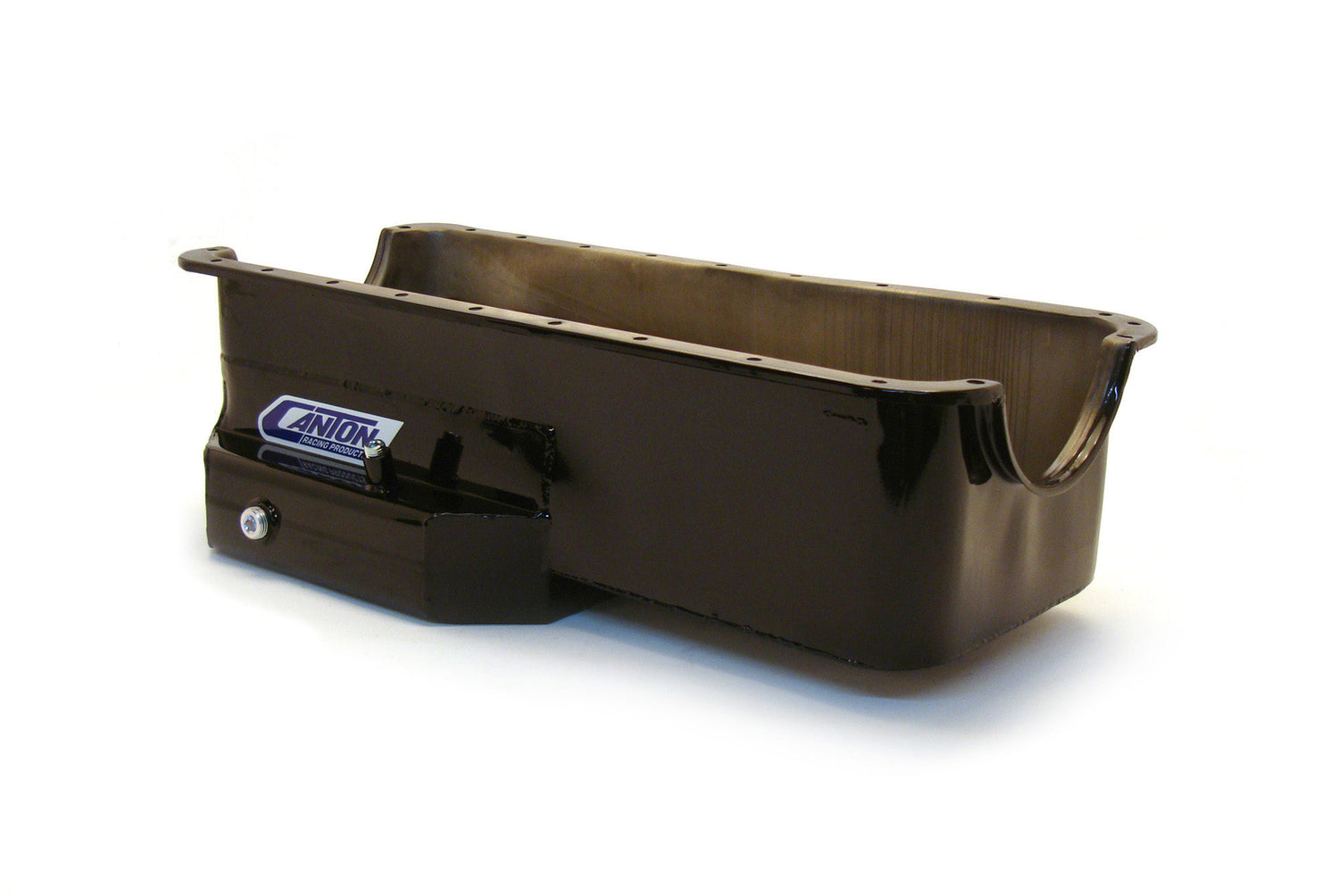

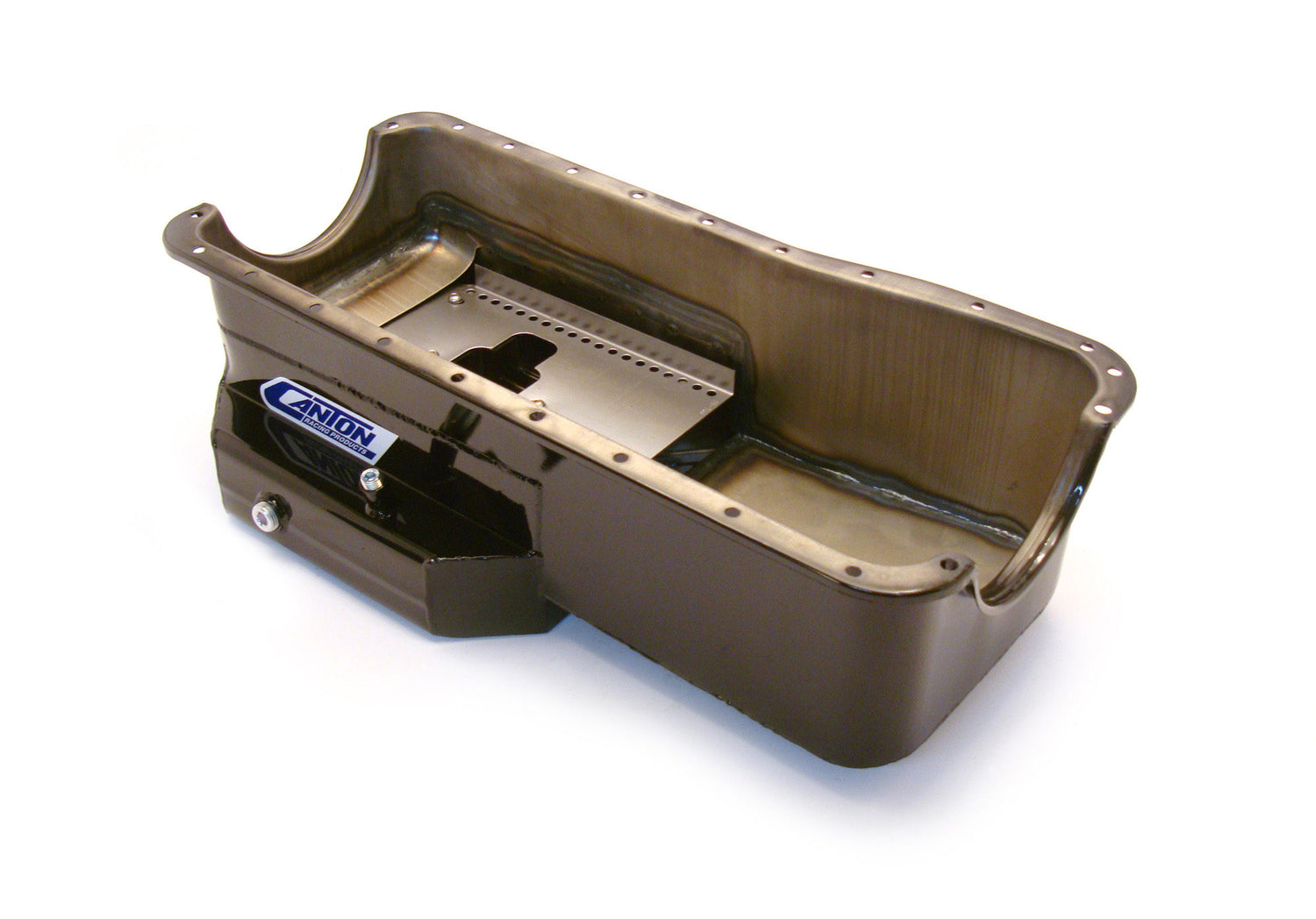

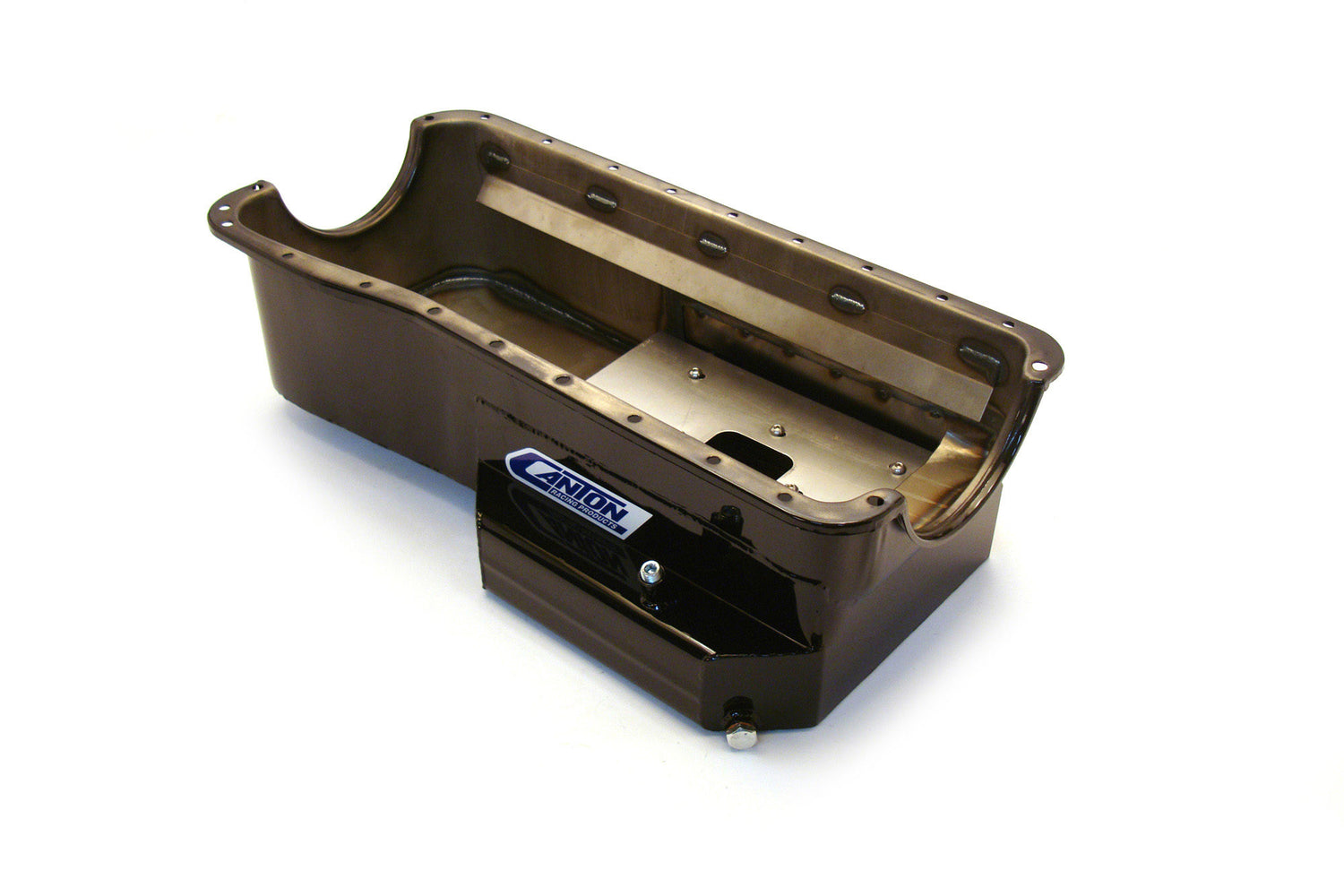

Canton 15-766 - Oil Pan For Ford 429 460 Rear T Sump Road Race Cobra Pan

Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 8 qt - 7.5 in Deep - Steel - Black Powder Coat - Cobra - Big Block Ford - Each

Canton 15-766 Oil Pan For Ford 429 460 Rear T Sump Road Race Cobra Pan

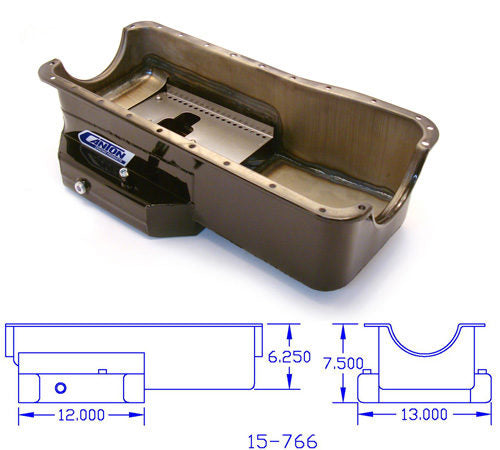

This "T" style rear sump oil pan is designed for Ford 429/460 blocks in Cobras. It has a 7.5? deep, 13? wide by 12? long sump, with an 8 qt system capacity. This pan requires our 15-767 pickup.

  • 8 qt System Capacity
  • Shallow "T" Sump Pan Fully Baffled For Road Race
  • Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Crank Scraper
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • Gloss Black Powder Coat Finish for Maximum Durability
Baffled: Yes
Gasket or Seal Included: No
Stoke: 4.5 inches
Recommended Accessory 7: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 4: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
Recommended Accessory 3: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
Recommended Accessory 2: 21-066 - Canton 429-460 Steel Main Support
Recommended Accessory 1: 15-767 - Pickup for 15-766 pan and M-84DHV Pump
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Finish: Black Powdercoat
Capacity: 8 Quart System Capacity
Feature 9: Gloss Black Powder Coat Finish for Maximum Durability
Feature 8: Magnetic Drain Plug
Feature 7: Provision For Our Pan Mounted Dipstick
Feature 6: 1/2" NPT Temperature Bung
Feature 5: Removable Windage/Anti-Slosh Baffle
Feature 4: Crank Scraper
Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 2: Shallow "T" Sump Pan Fully Baffled For Road Race
Feature 1: 8 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
