Canton 15-680 - Oil Pan For Ford 351W Front Sump Road Race Pan

Canton  |  SKU: BGTF-15-680
$49600 $59520
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

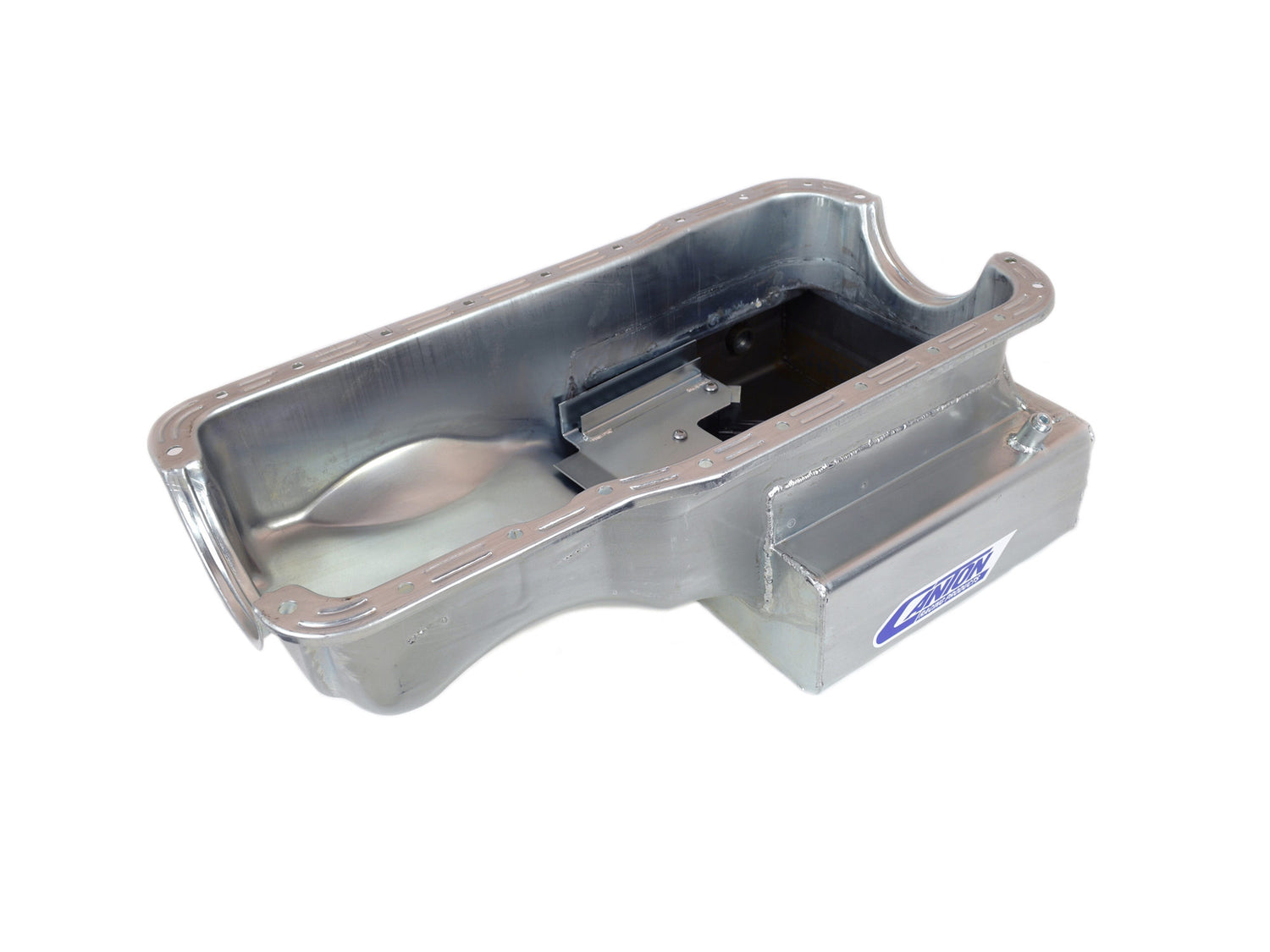

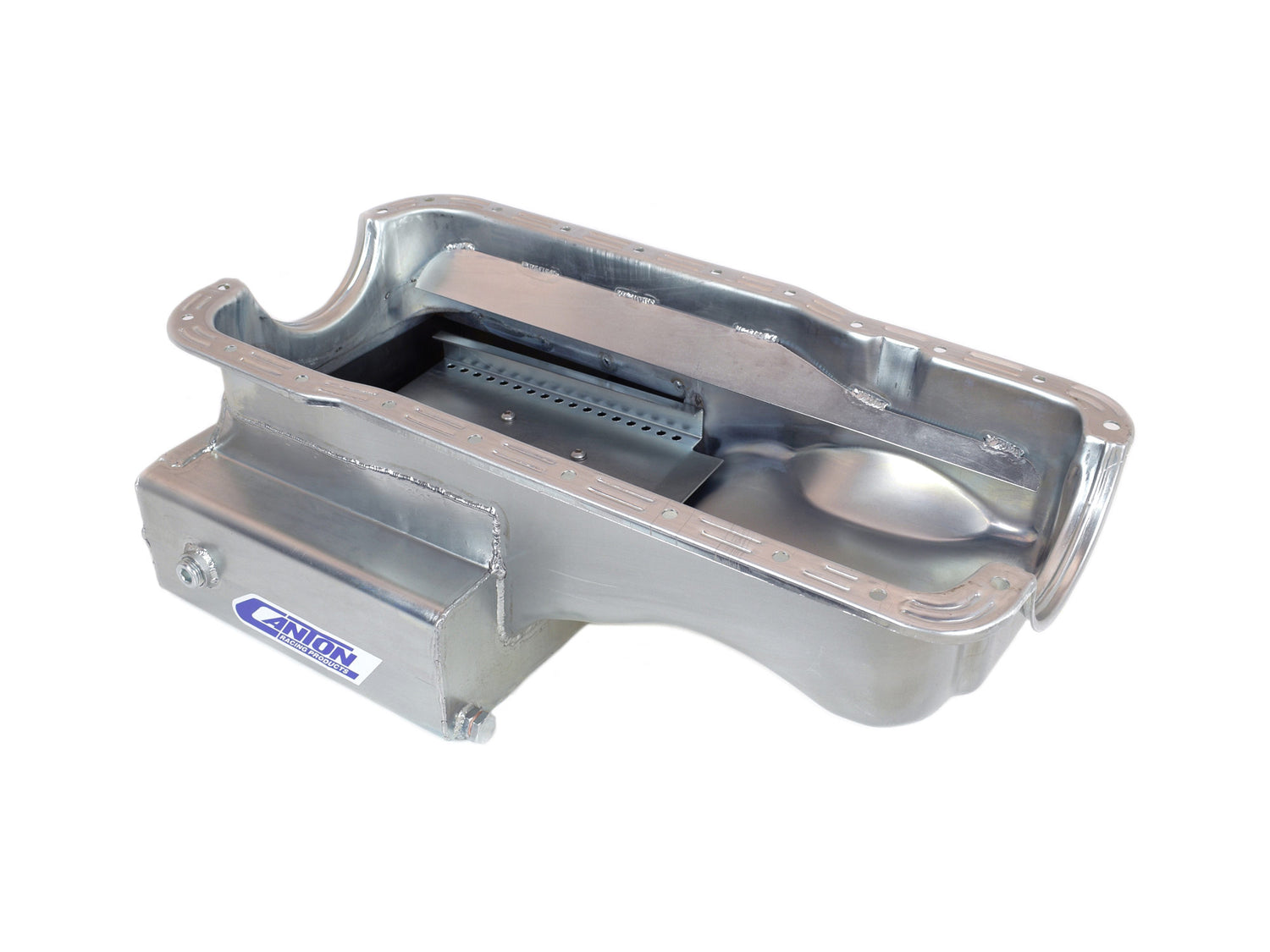

Canton 15-680 - Oil Pan For Ford 351W Front Sump Road Race Pan

Engine Oil Pan - Street / Strip / Road Race - Front Sump - 9 qt - 8 in Deep - Steel - Cadmium - Small Block Ford - Each

Canton 15-680 Oil Pan For Ford 351W Front Sump Road Race Pan

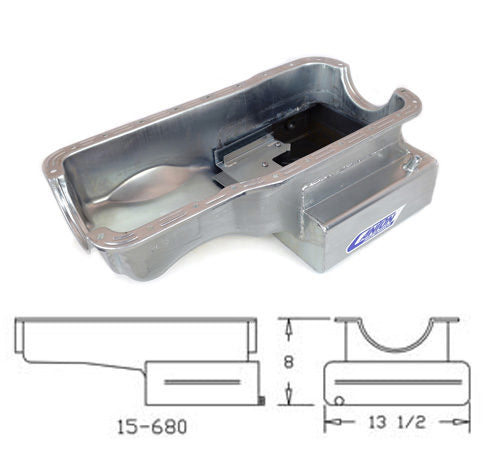

This front sump road race pan is for Ford 351 Windsor blocks. It has an 8" deep, 13-1/2" wide front sump with a 9 qt. system capacity. Will work with stock & aftermarket starters. This pan requires our 15-661 pickup.

  • 9 qt System Capacity

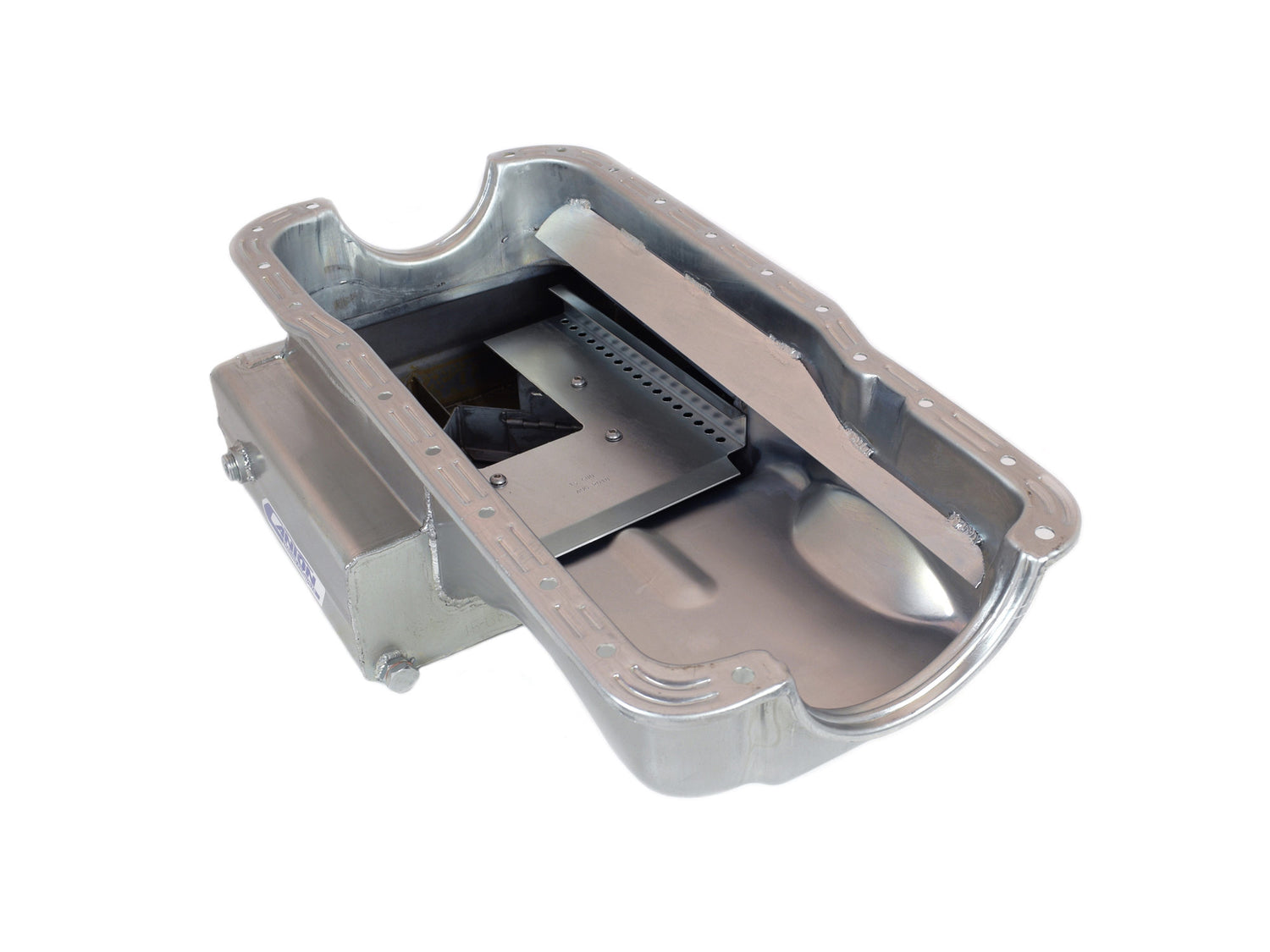

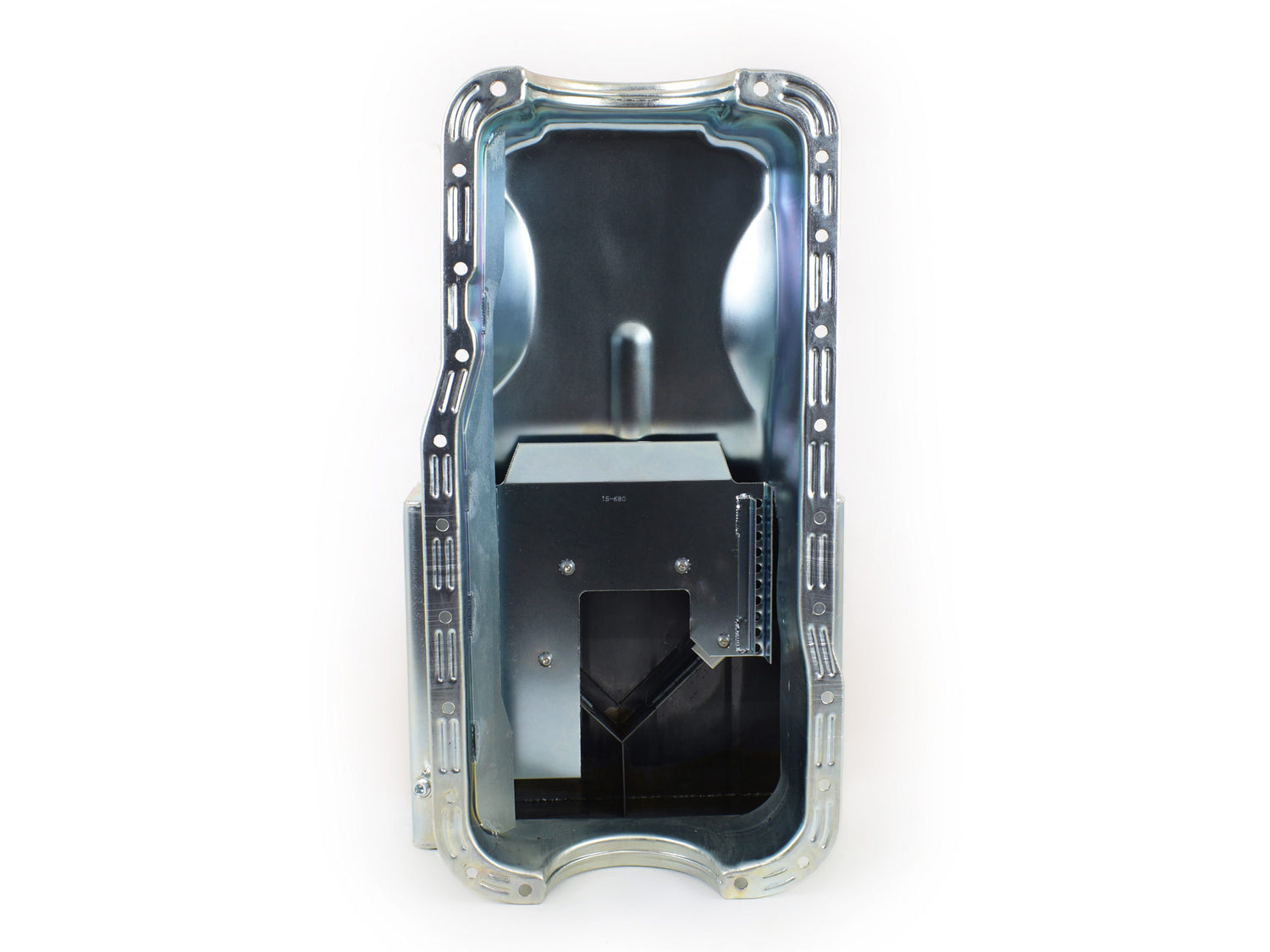

  • Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Crank Scraper
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 13.5 inches
Sump Depth: 8 inches
Stoke: 4.0 inches
Recommended Accessory 4: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 15-661 - Pickup with 3/4" Dia. Inlet
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 9 Quart System Capacity
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: Provision For Our Pan Mounted Dipstick
Feature 5: 1/2" NPT Temperature Bung
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Crank Scraper
Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
Feature 1: 9 qt System Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
