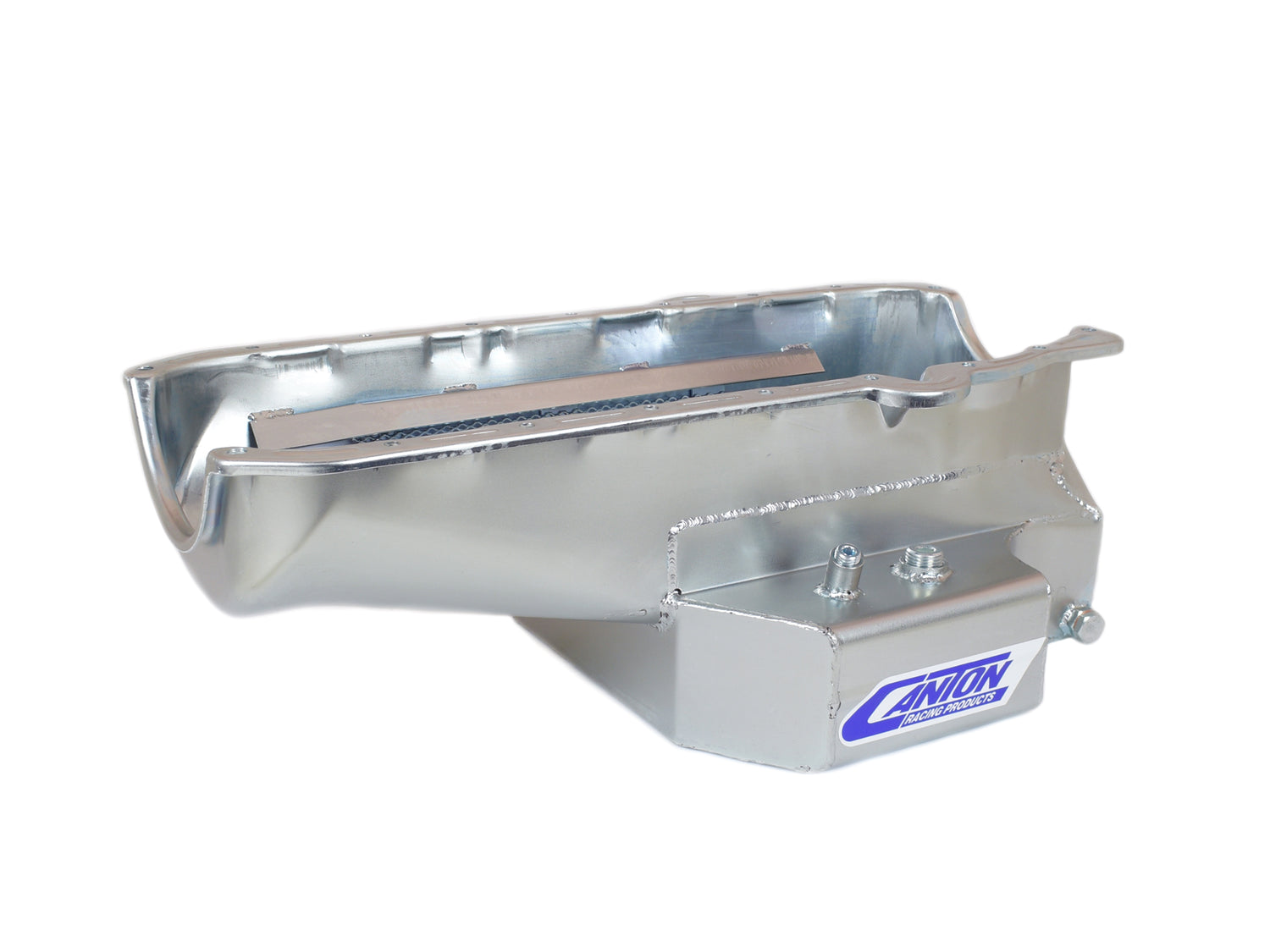

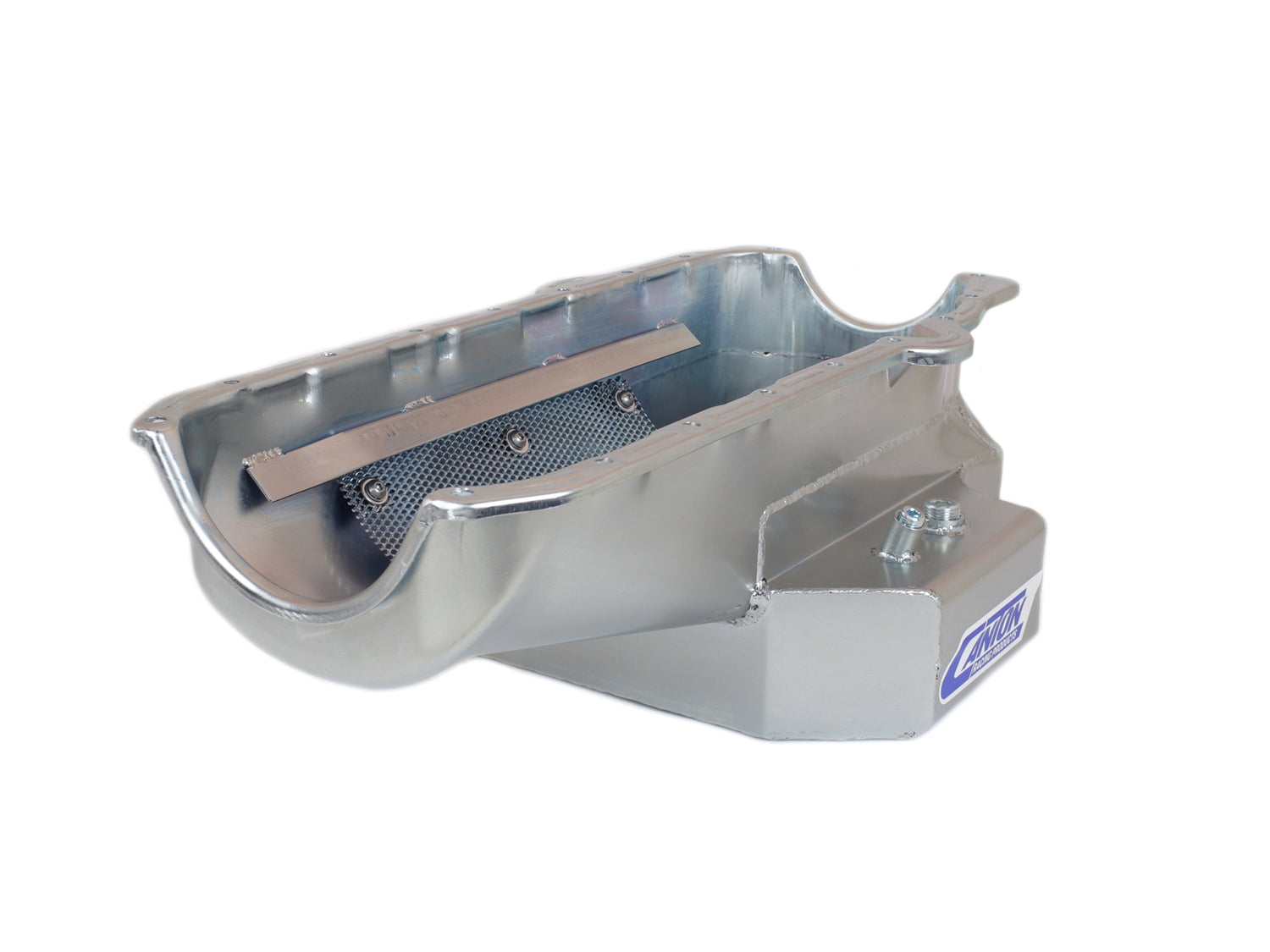

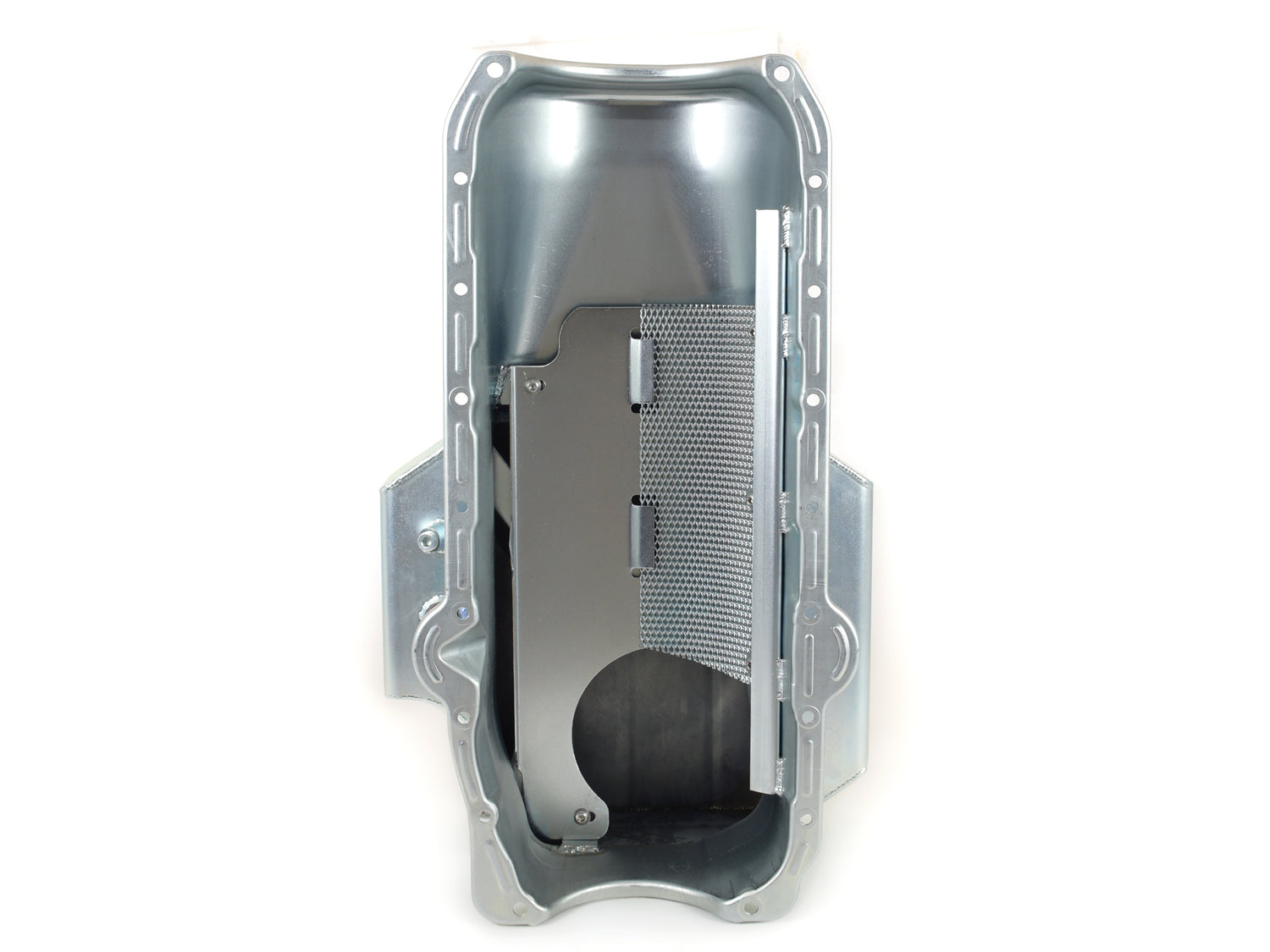

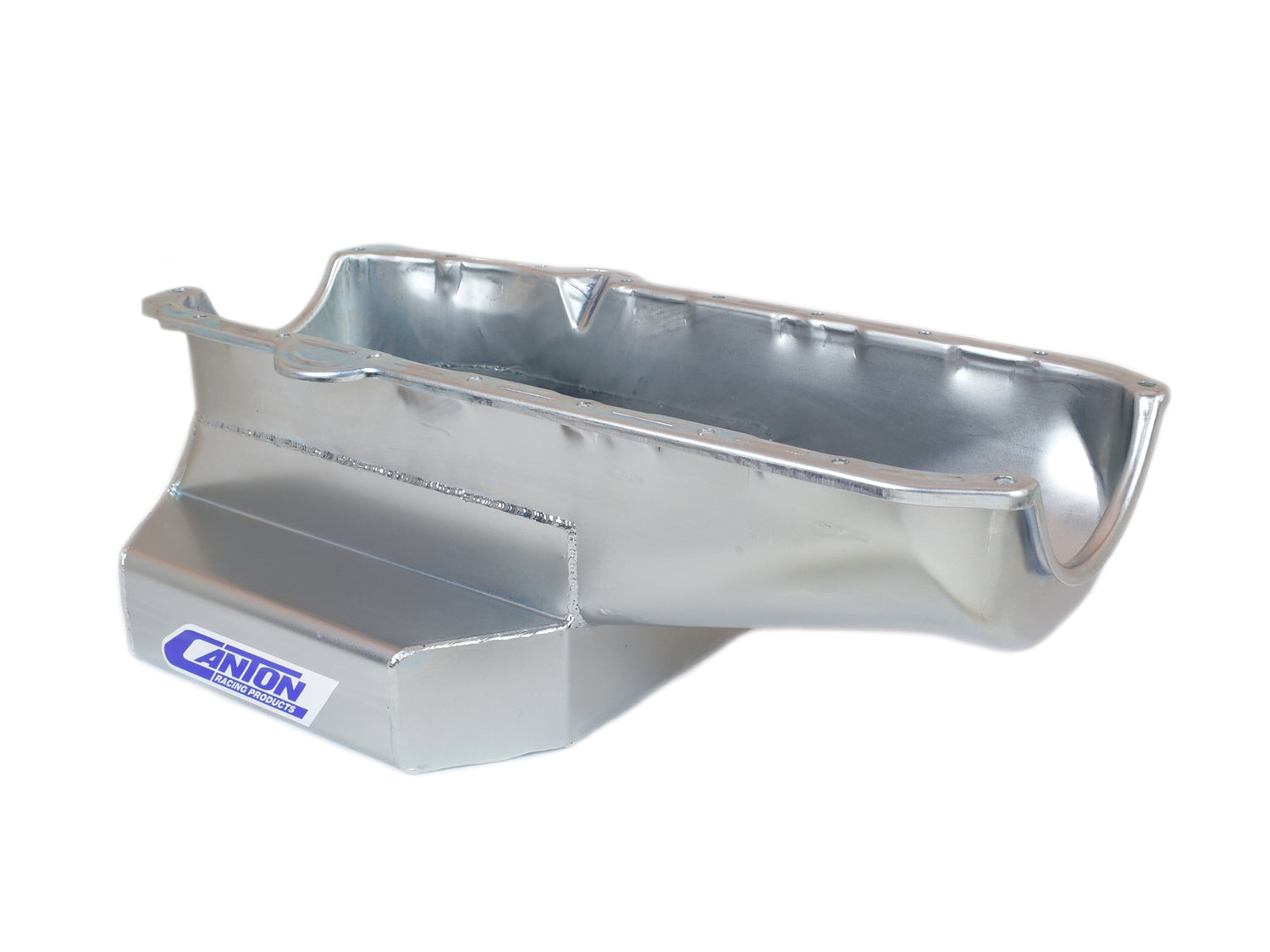

Canton 15-260 - Oil Pan Small Block Chevy 12 Inch Long Sump Pre-1980 Road Race Pan
Canton 15-260 Oil Pan Small Block Chevy 12 Inch Long Sump Pre-1980 Road Race Pan
This SBC road race pan is for pre-?80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity. This pan requires one of our pickups.
- 8 qt System Capacity
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Baffled: Yes
Material: 16 Gauge Steel
Sump Width: 10.5 inches
Sump Depth: 7.5 inches
Stoke: 3.75 inches
Recommended Accessory 8: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Pickup Included: No
Kicked Out: Yes
Capacity: 8 Quart System Capacity
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 5: Provision for Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Bolt in Windage Tray
Feature 2: Crank Scraper
Feature 1: Trap Door Baffle for Oil Control
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
