Canton 15-240 - Oil Pan Small Block Chevy Corvette Pre-1980 Road Race Pan
Canton | SKU:
BGTF-15-240
Sale price
$51500
Regular price
$61800
Unit price
/
Unavailable
$103.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

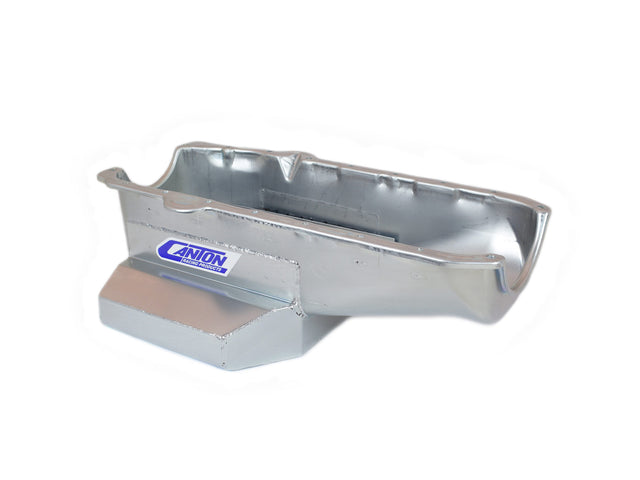

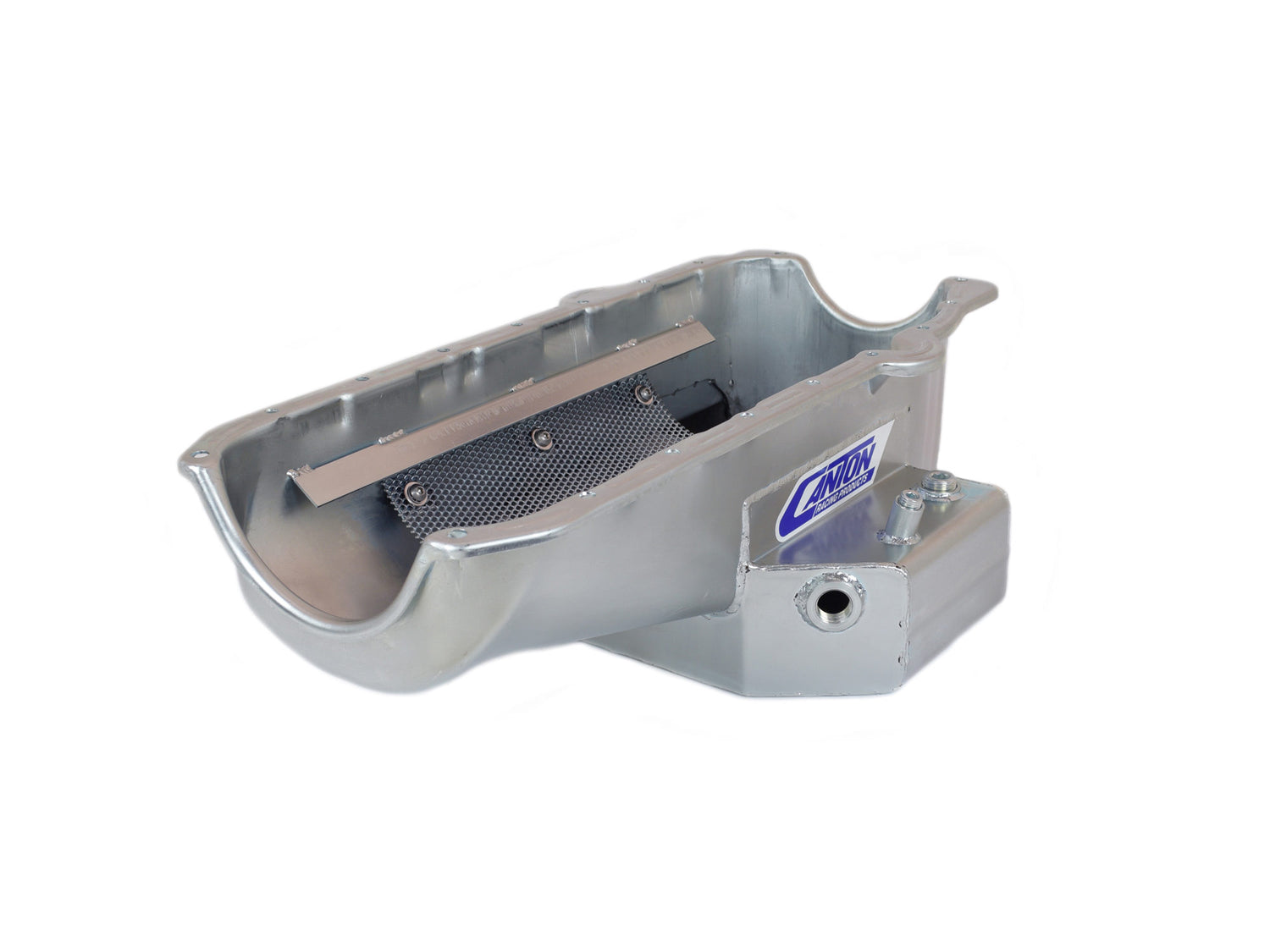

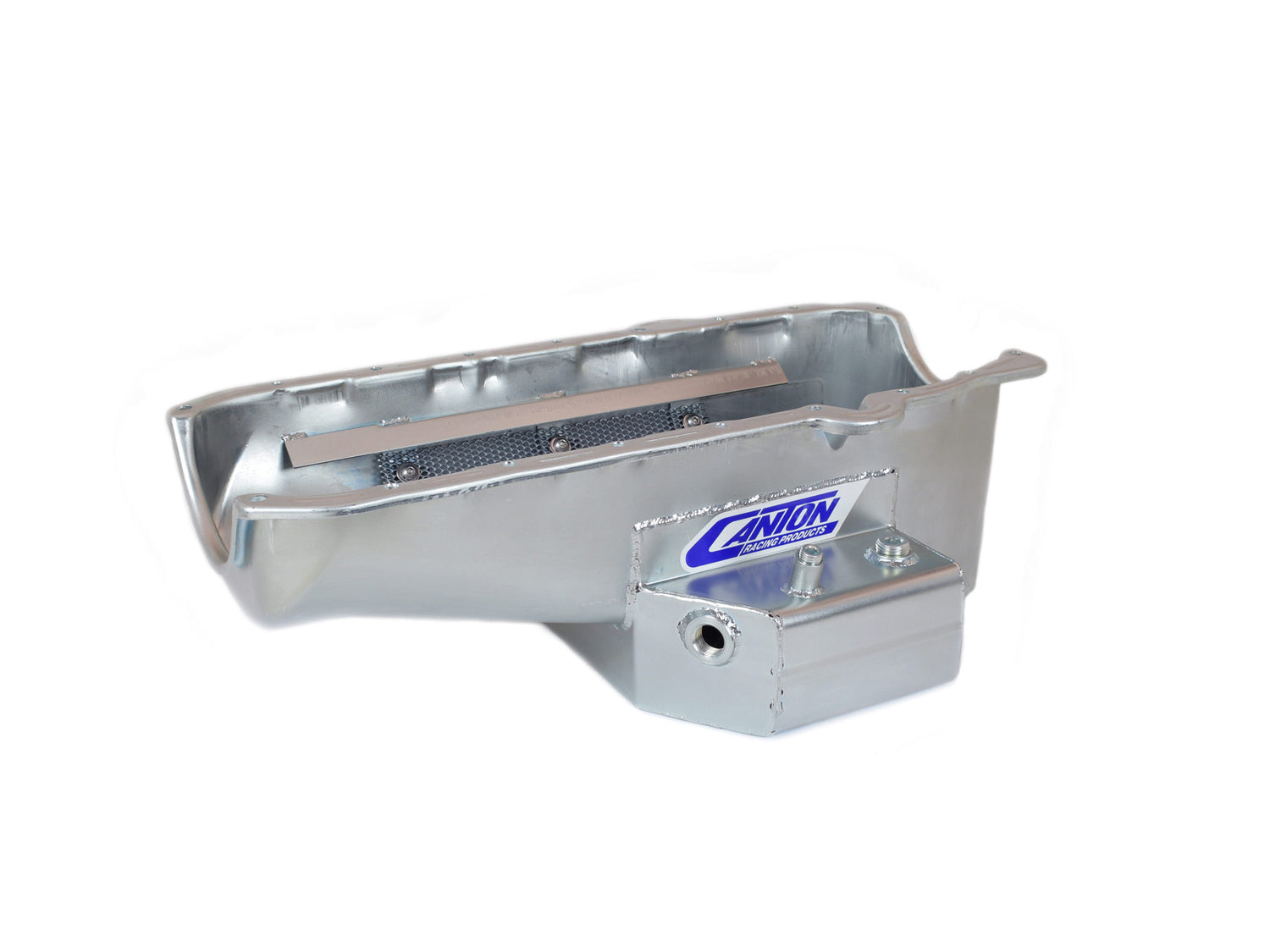

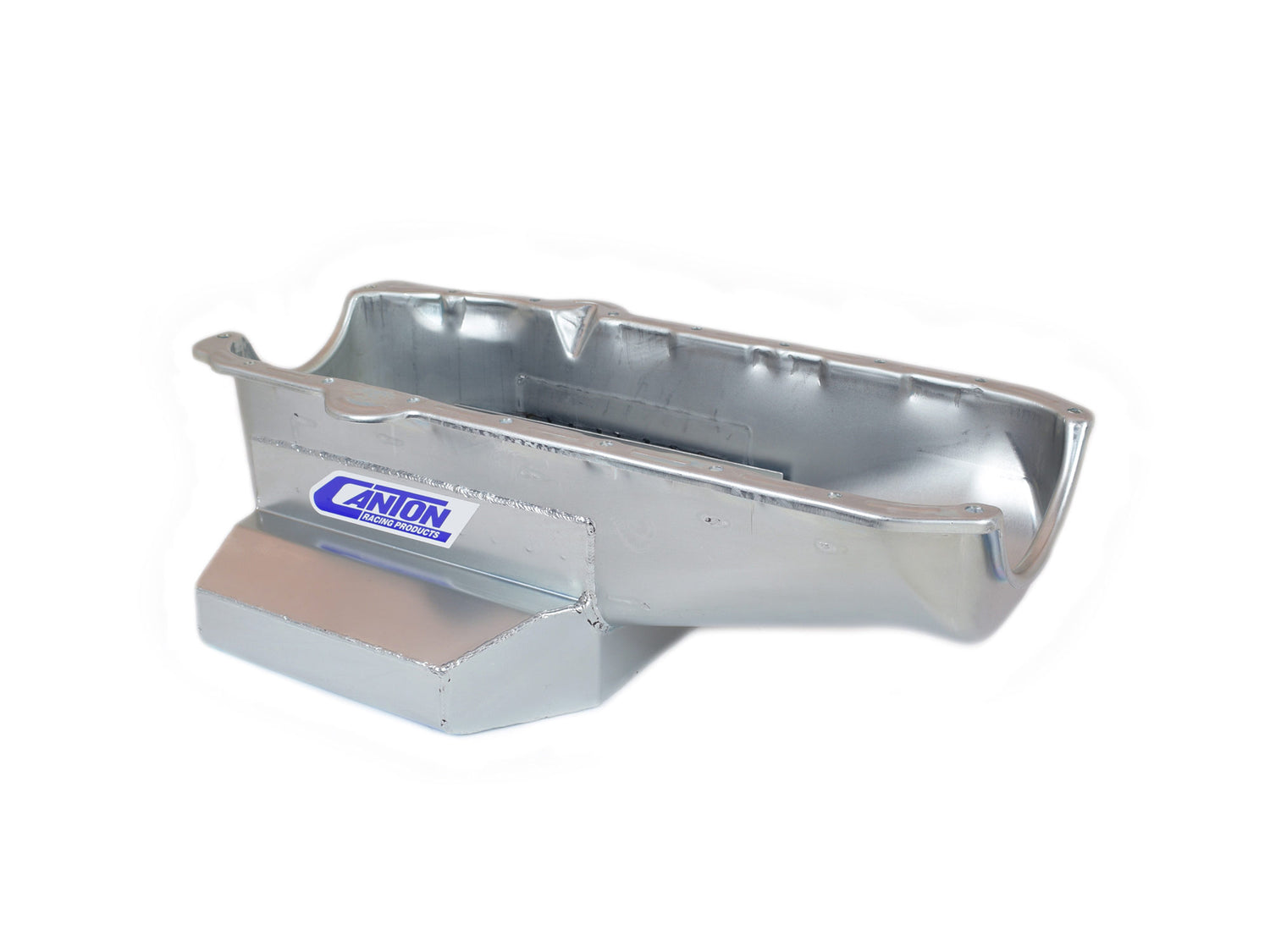

Canton 15-240 - Oil Pan Small Block Chevy Corvette Pre-1980 Road Race Pan
Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 7 qt - 7 in Deep - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Chevy Corvette 1984-96 - Each
Canton 15-240 Oil Pan Small Block Chevy Corvette Pre-1980 Road Race Pan

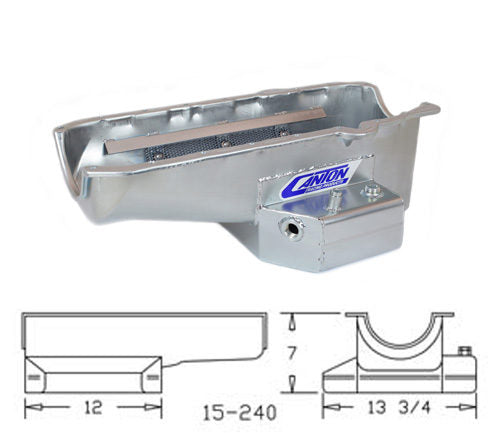

This SBC Corvette road race pan is for pre-?80 blocks with left side dipstick. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starters. This pan requires one of our pickups.
- Five Trap Door Baffles
- Crank Scraper
- Built In Screen Windage Tray
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Includes a 20MM fitting For A Low Oil Warning Sender (Purchase 22-405 Plug if not using sender)
Baffled: Yes
Material: 16 Gauge Steel
Sump Width: 13.75 inches
Sump Depth: 7 inches
Stoke: 3.75 inches
Recommended Accessory 6: 88-100 - SBC Pre '85 Oil Pan Gasket
Recommended Accessory 5: 22-405 - 20MM Plug for Oil Level Sender Port
Recommended Accessory 4: 20-079 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
Recommended Accessory 3: 20-074 - Pickup for SBC High Volume Oil Pump M55HV
Recommended Accessory 2: 20-049 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
Recommended Accessory 1: 20-044 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
Pickup Included: No
Kicked Out: Yes
Capacity: 7 Quart System Capacity
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 6: 20mm Fitting for GM Low Oil Warning Sender
Feature 5: Provision for Pan Mounted Dipstick
Feature 4: 1/2" NPT Temperature Bung
Feature 3: Bolt in Windage Tray
Feature 2: Crank Scraper
Feature 1: Trap Door Baffle for Oil Control
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
