Canton 15-010 - Oil Pan Small Block Chevy Stock Appearing Crate Engine Pan

Canton  |  SKU: BGTF-15-010
$23900 $28680


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

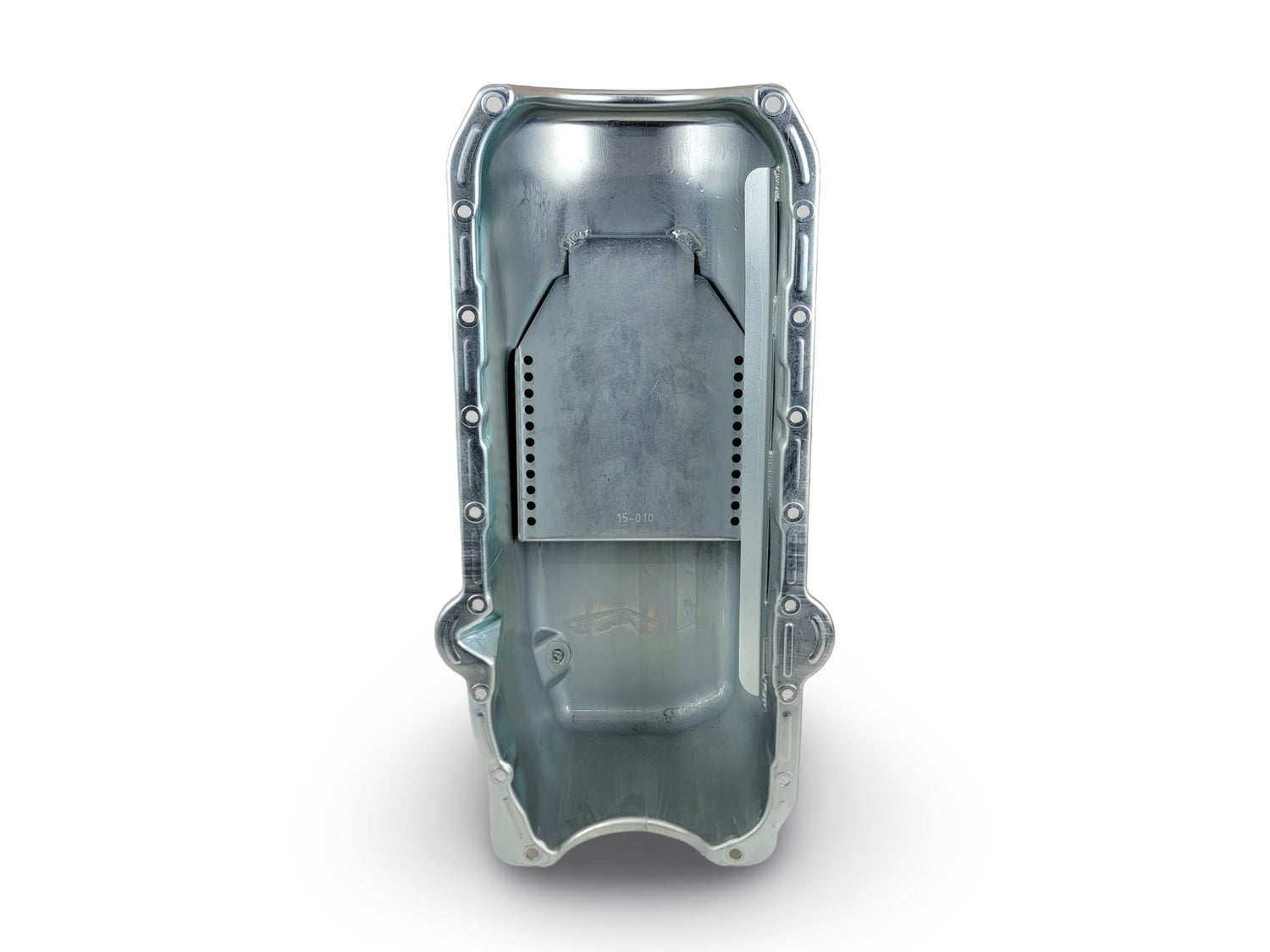

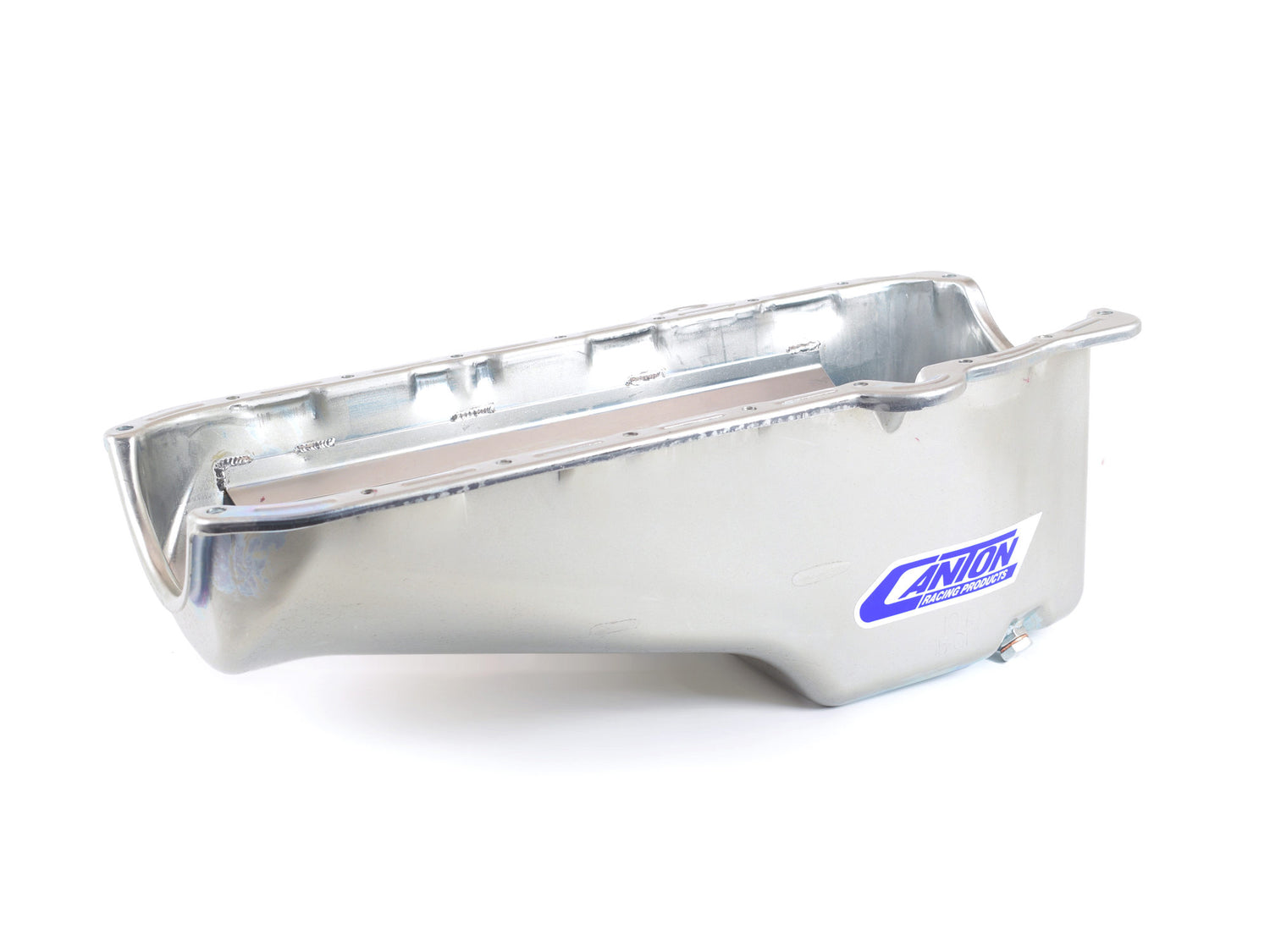

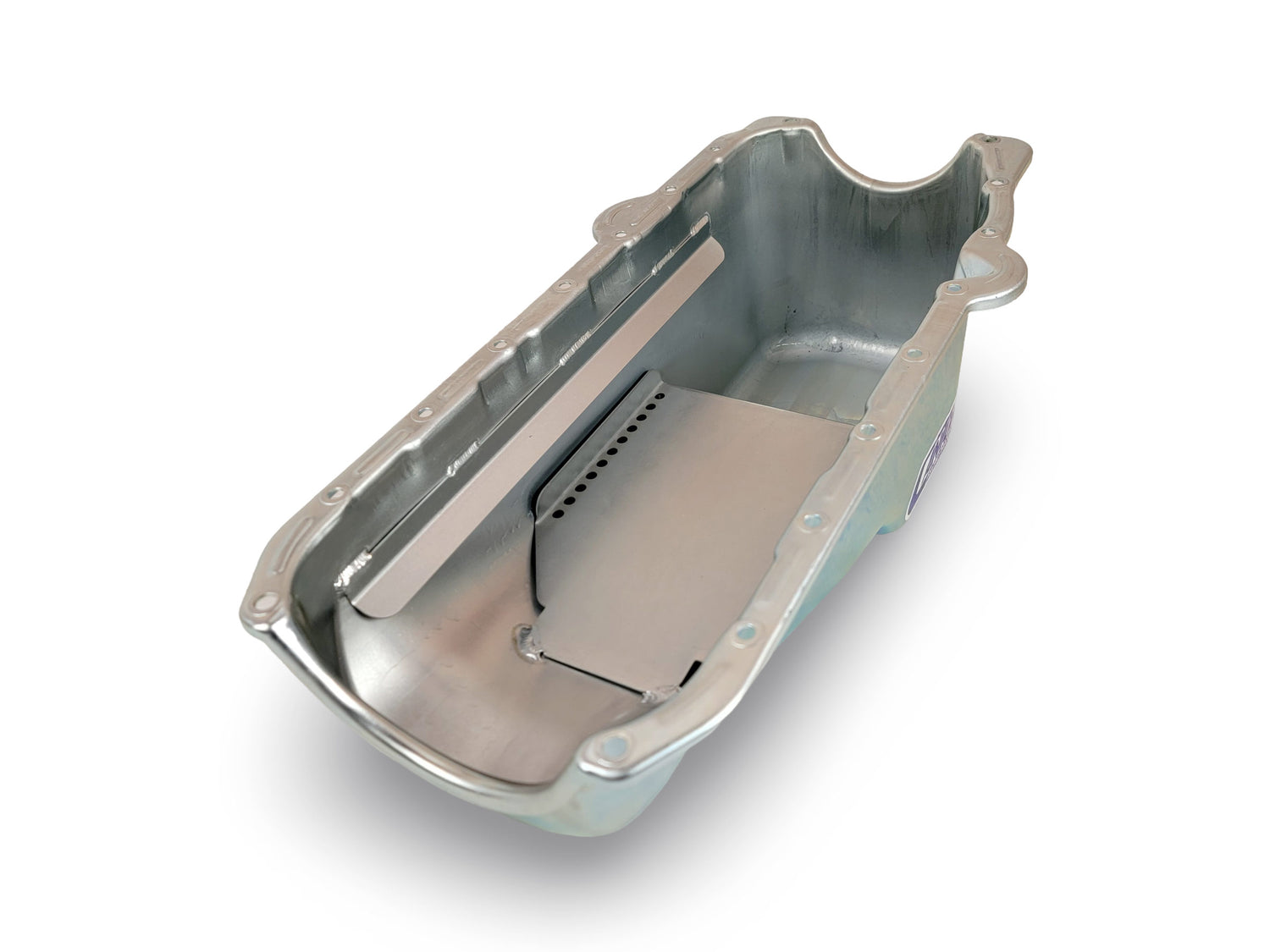

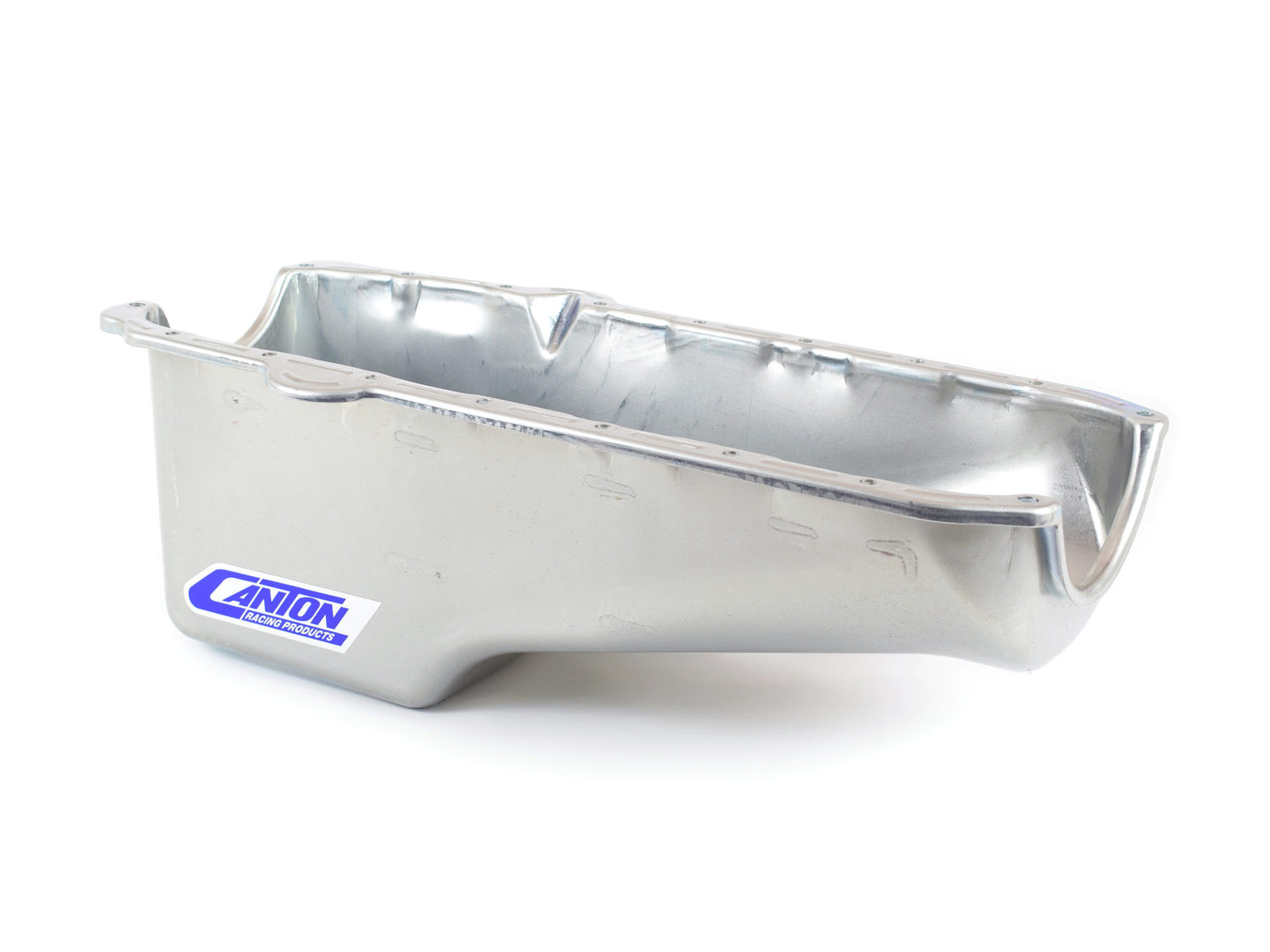

Canton 15-010 - Oil Pan Small Block Chevy Stock Appearing Crate Engine Pan

Engine Oil Pan - Stock Appearing - Rear Sump - 5 qt - Stock Depth - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Each

Canton 15-010 Oil Pan Small Block Chevy Stock Appearing Crate Engine Pan

This stock appearing oil pan is for pre-?80 SBC blocks with left side dipstick. It is designed for applications that only have room for a stock oil pan, but require better control. Retains all stock oil pan dimensions and capacity. Will work with all starter flywheel combinations. Requires one of our pickups.

  • 5 qt System Capacity
  • Clears 3.75" stroke
  • Trap Door Baffle
  • Crank Scraper
  • Bolt In Slosh Baffle
  • Magnetic Drain Plug
Baffled: Yes
Kicked Out: No
Stoke: 3.75 inches
Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 4: 20-023 - Pickup for High Volume Pump M-155HV with 3/4" Inlet
Recommended Accessory 3: 20-020 - Pickup for High Volume Pump M55HV
Recommended Accessory 2: 20-013 - Pickup for Standard Volume Pump M-155 w/3/4" Inlet
Recommended Accessory 1: 20-010 - Pickup for Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 5 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 3: Bolt in Slosh Baffle
Feature 2: Crank Scraper
Feature 1: Trap Door Baffle for Oil Control
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: Yes
Windage Tray Included: No
