Canton 13-672SV - Oil Pan For Ford 351W SVO Fox Body Drag Race Power Series Pan

Canton  |  SKU: BGTF-13-672SV
$67200 $80640
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

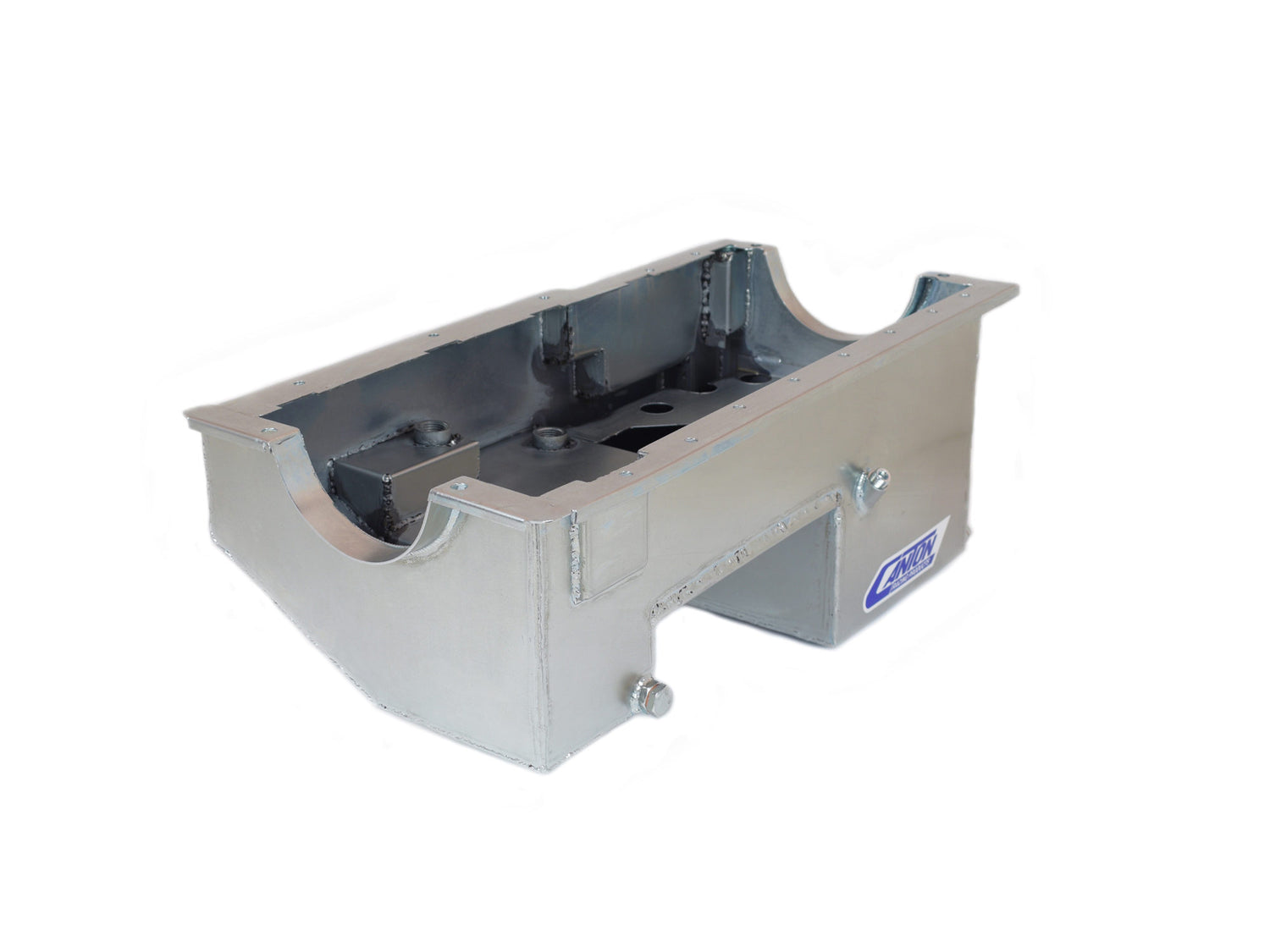

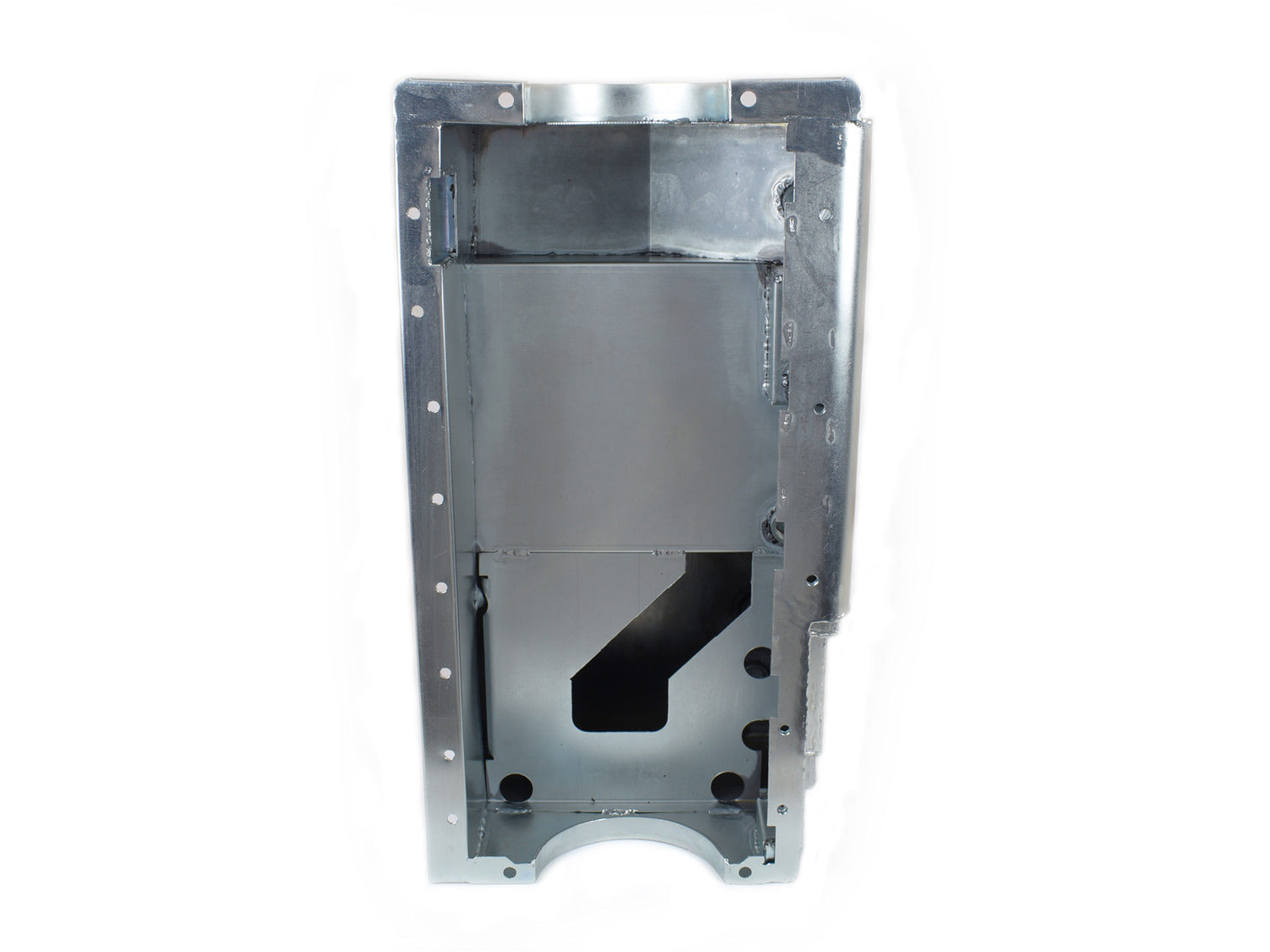

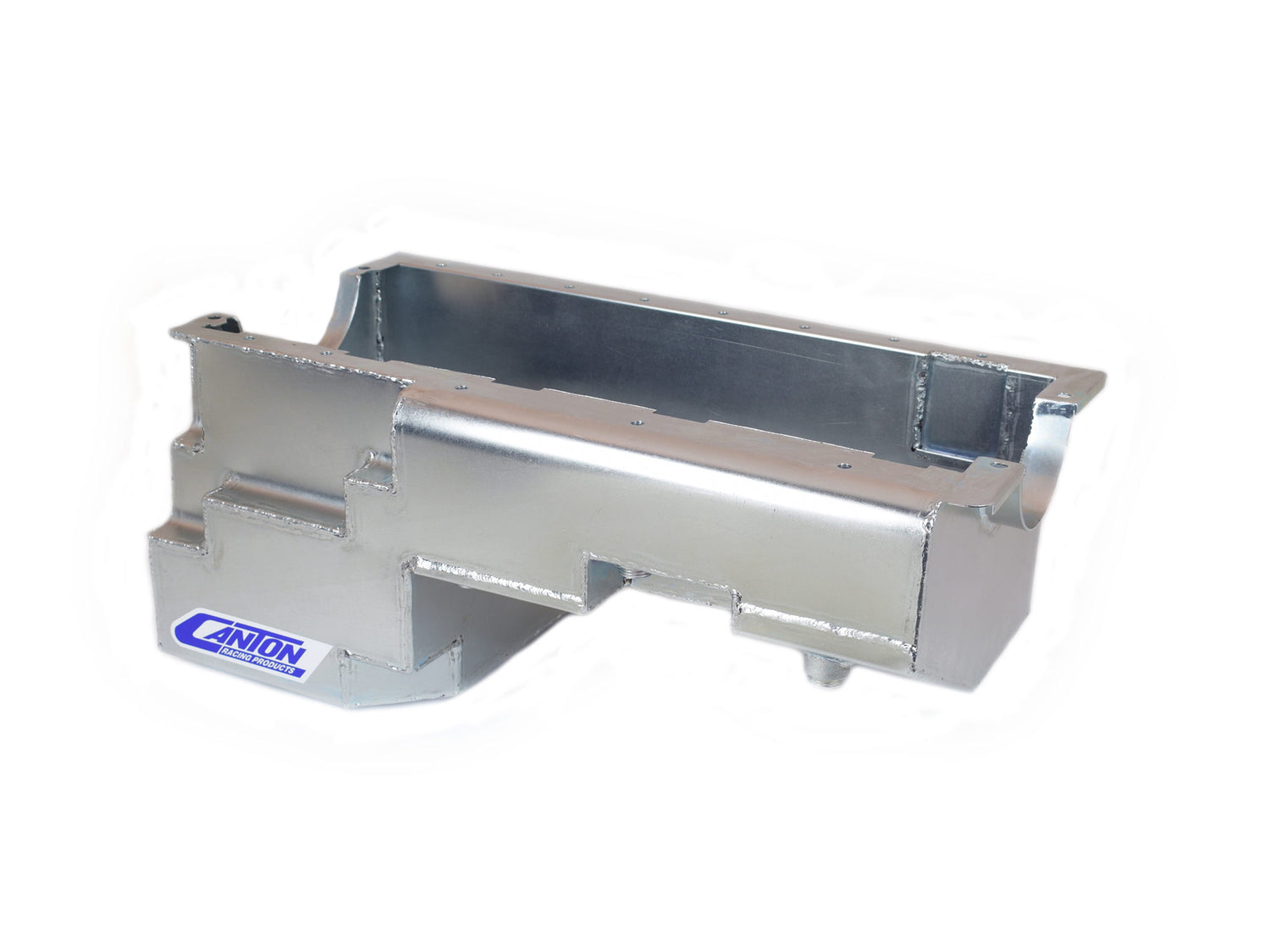

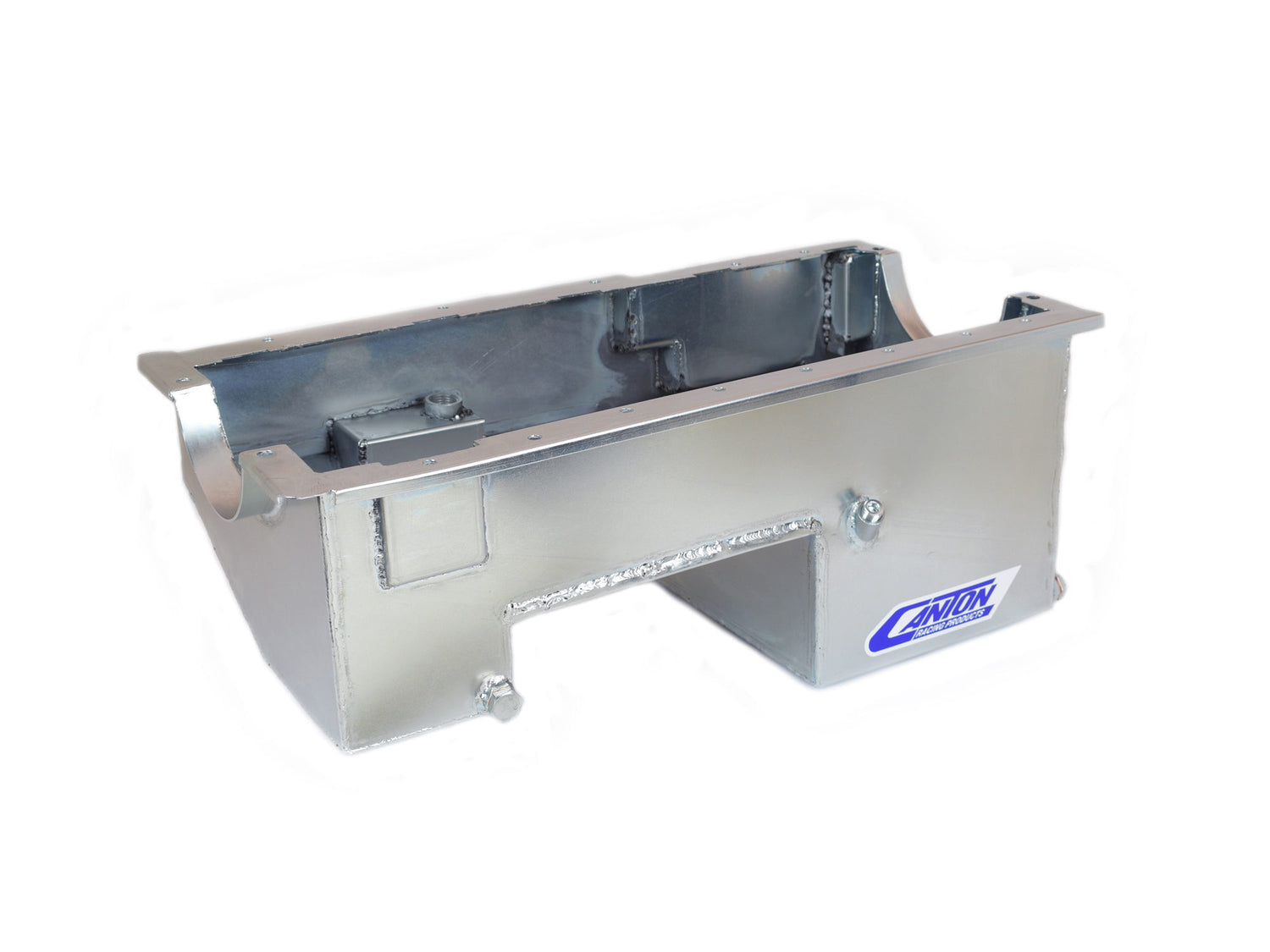

Canton 13-672SV - Oil Pan For Ford 351W SVO Fox Body Drag Race Power Series Pan

Engine Oil Pan - Drag Race - Rear Sump - 7 qt - 9 in Deep - Steel - Cadmium - Small Block Ford - Each

Canton 13-672SV Oil Pan For Ford 351W SVO Fox Body Drag Race Power Series Pan

This Fox body drag race pro-style power pan is for 351W with 2 or 4 bolt rear main caps & 164 or 157 tooth flywheel applications. It has a 9" deep rear sump and a 7 qt. system capacity. Designed to work with our one-way screen windage trays, which mount directly to the main caps studs. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.

  • 7 qt System Capacity
  • Pro Style Oil Recovery Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
Baffled: Yes
Material: 16 Gauge Steel
Sump Width: 10.5 inches
Sump Depth: 9 inches
Stoke: 4.0 inches
Recommended Accessory 7: 88-650 - Small Block Ford 351W Four Piece Oil Pan Gasket
Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 4: 20-953 - Oil Pump Pickup Stud for 351W Based Engines
Recommended Accessory 3: 15-675 - Pickup for Other Steel Main Support
Recommended Accessory 2: 15-673 - 7/8" Dia. Pickup for Engines Without Main Support
Recommended Accessory 1: 15-671 - 3/4" Dia. Pickup for use With or Without Canton Main Support
Pickup Included: No
Kicked Out: No
Capacity: 7 Quart System Capacity
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Provision for Canton Pan Mounted Dipstick
Feature 3: Slosh Baffle For Oil Control
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For Ford 351W Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
