Canton 13-344 - Oil Pan For Big Block Chevy Mark 4 Power Series Drag Race Pan
Canton | SKU:
BGTF-13-344
Sale price
$68800
Regular price
$82560
Unit price
/
Unavailable
$137.60 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

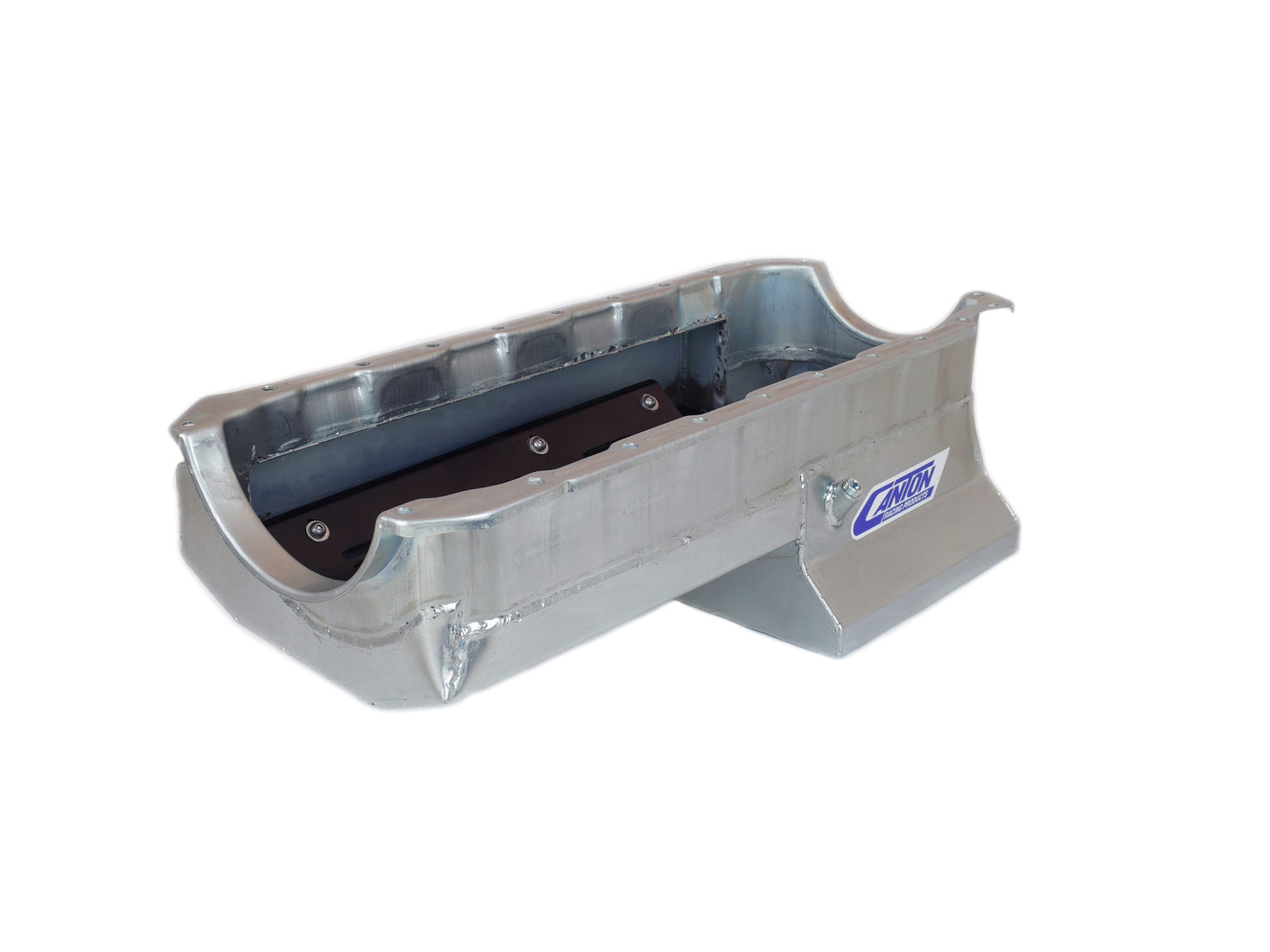

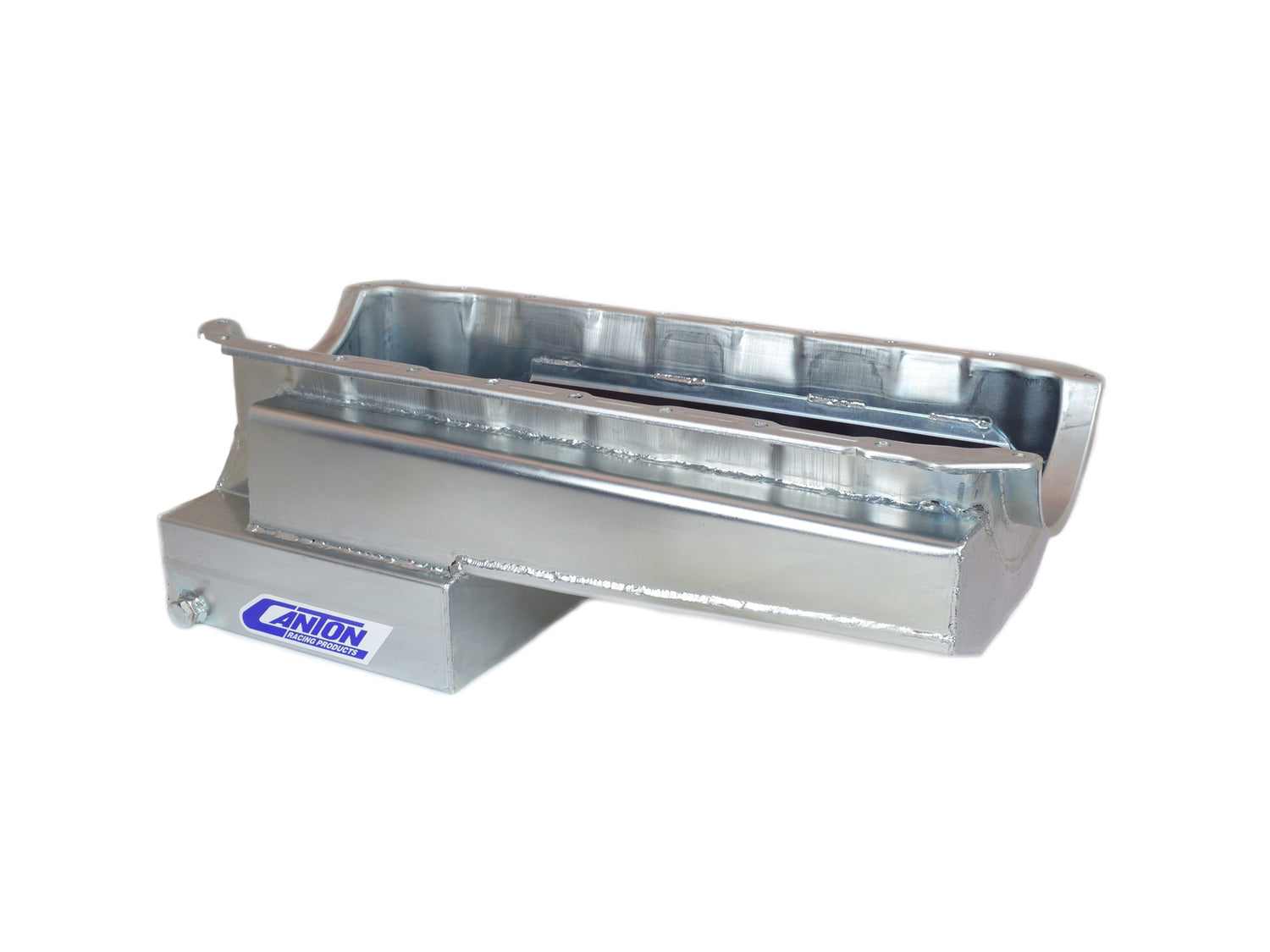

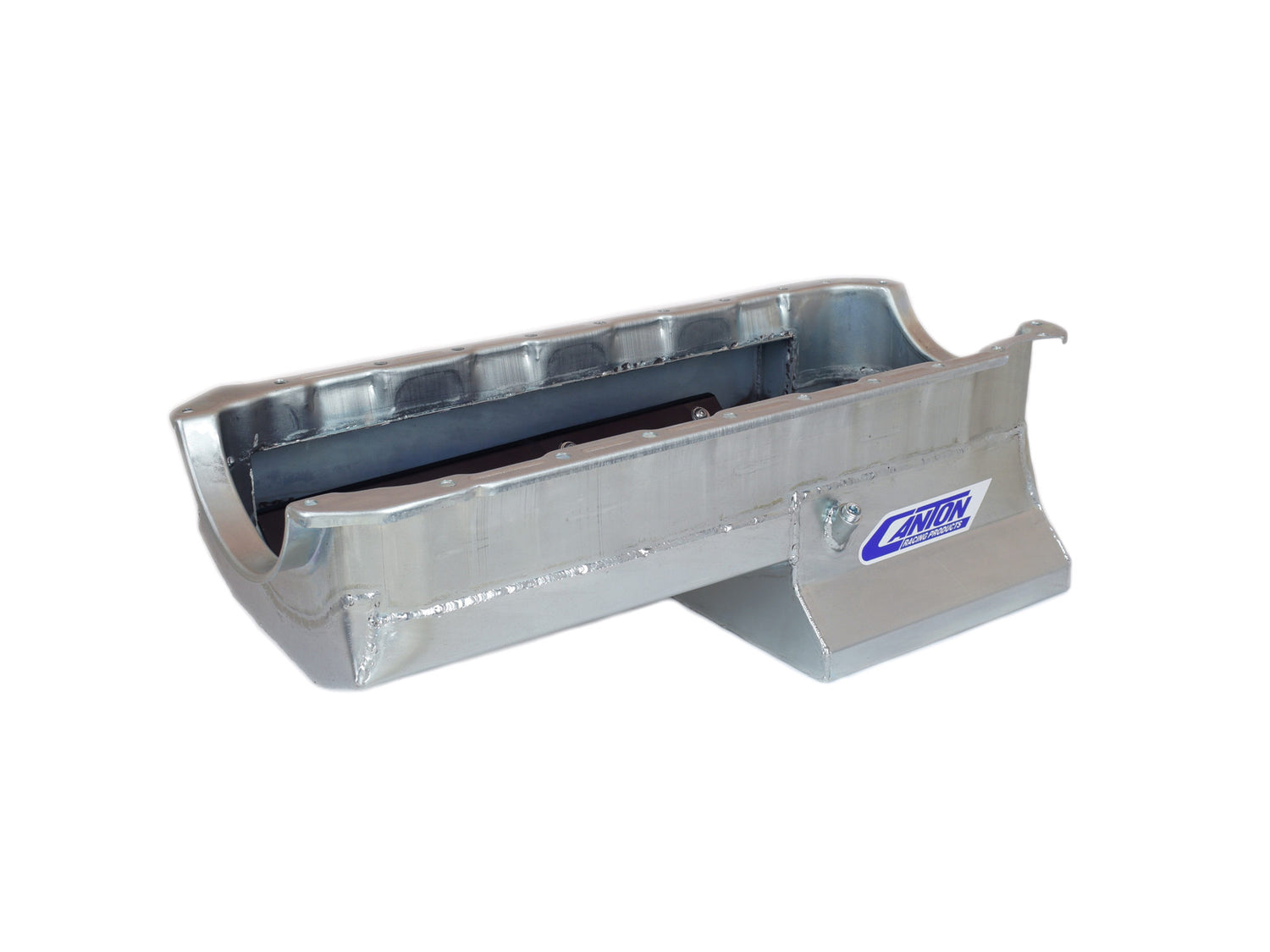

Canton 13-344 - Oil Pan For Big Block Chevy Mark 4 Power Series Drag Race Pan
Engine Oil Pan - Drag Race - Rear Sump - 7 qt - 8 in Deep - Steel - Cadmium - 2-Piece Seal - Big Block Chevy - Each
Canton 13-344 Oil Pan For Big Block Chevy Mark 4 Power Series Drag Race Pan
This drag race oil pan is for BBC Mark 4 blocks. It has an 8" deep by 10" long and 11-3/4" wide sump and an 8qt. system capacity. Takes up to a 4.5" stroke with a steel rod. This pan requires our 20-170 pickup. Will work with an aftermarket starter & a 168 tooth flywheel.
- 7 qt System Capacity
- Clears 4.5" Stroke
- Trap Door Baffle
- Oil Recovery Pouch
- Built In Louvered Windage Tray
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Feature 6: Magnetic Drain Plug
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Removable Louvered Windage Tray
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Baffled: Yes
Hardware Included: No
Windage Tray Included: Yes
Sump Width: 11.75 inches
Sump Depth: 8 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 1: 20-170 - Pickup for BBC Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Finish: Silver Plating
