Canton 13-330 - Oil Pan Big Block Chevy Drag Race Pan For Mark 4 Blocks
Canton | SKU:
BGTF-13-330
Sale price
$48800
Regular price
$58560
Unit price
/
Unavailable
$97.60 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

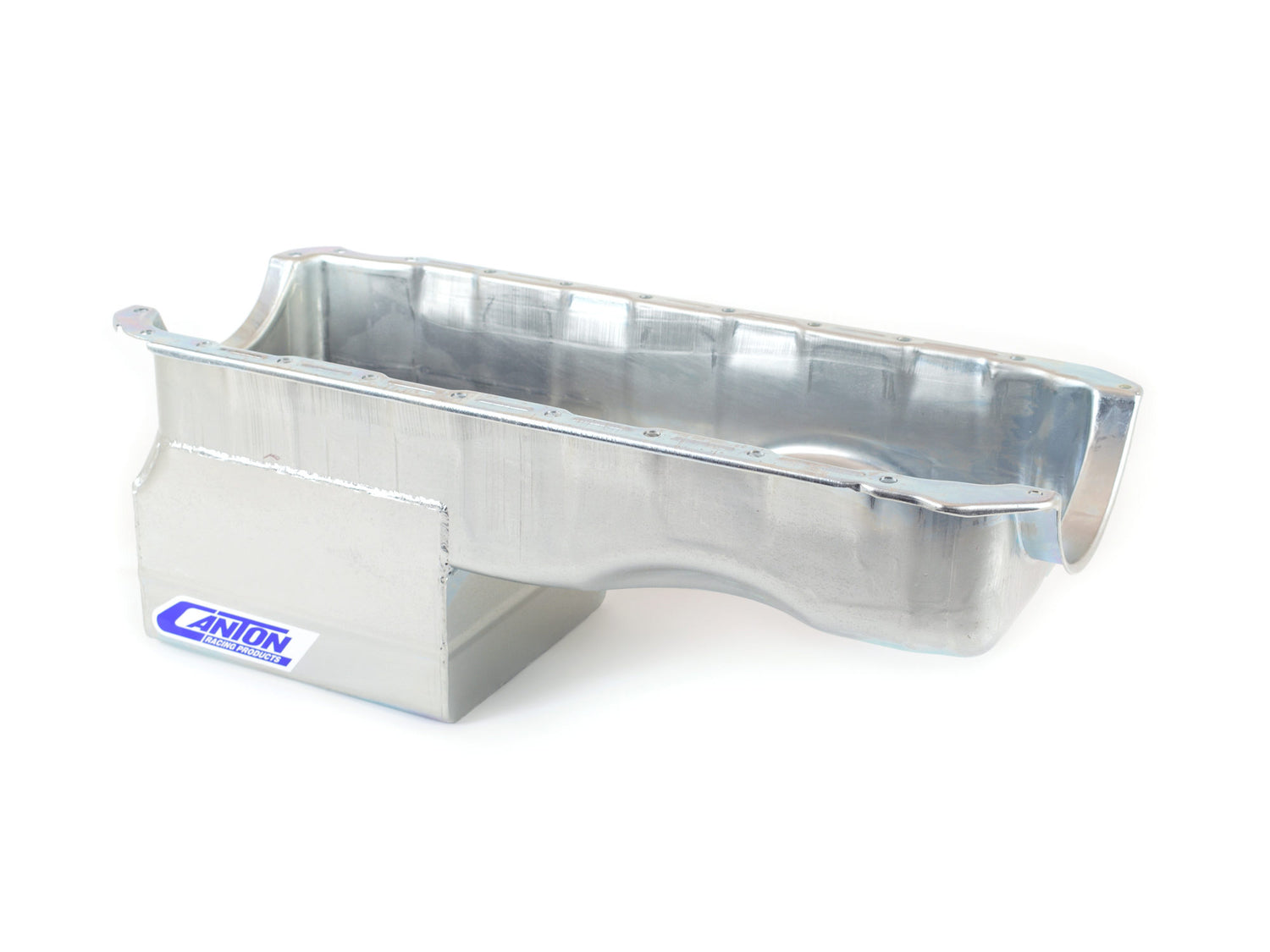

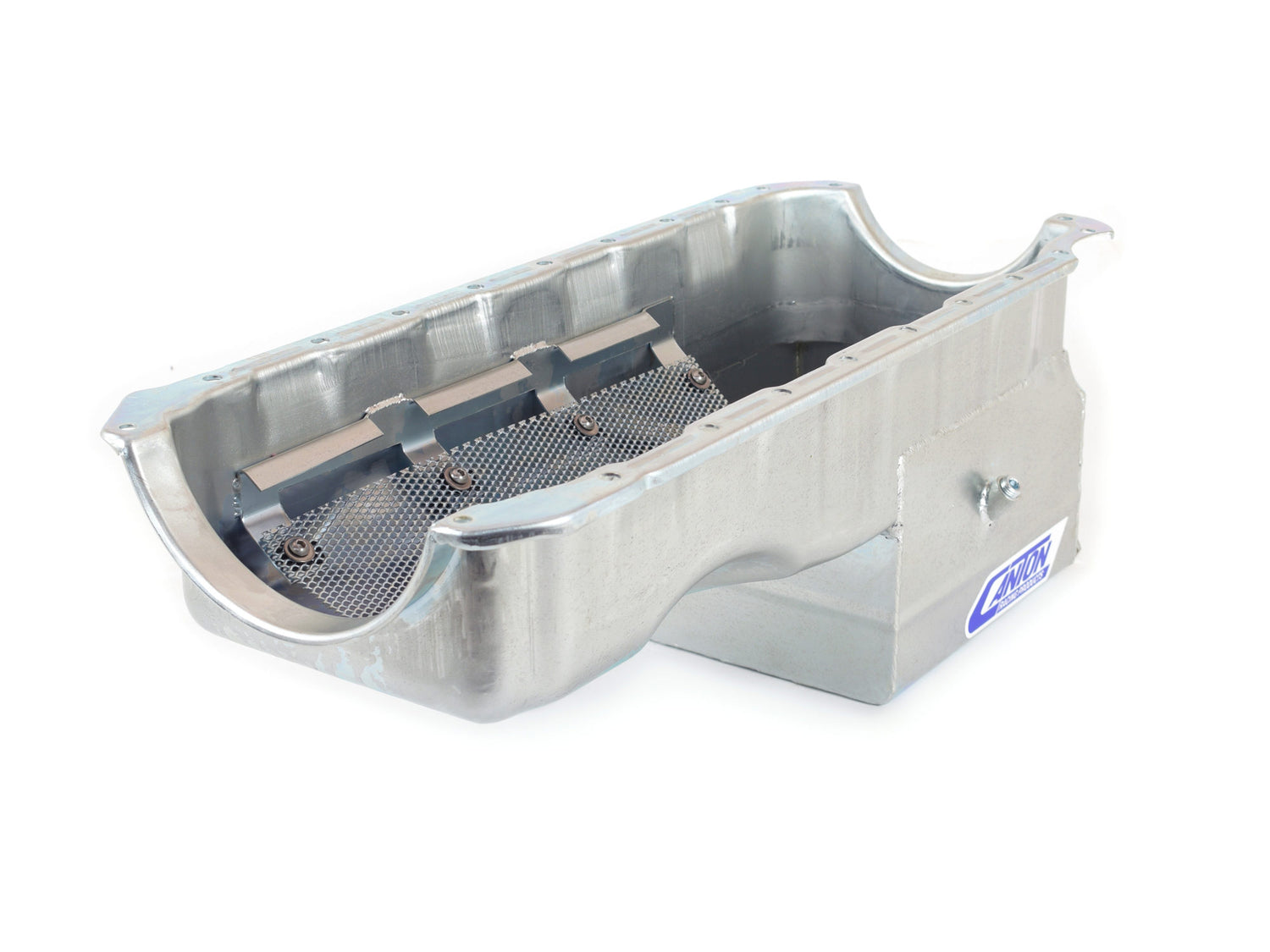

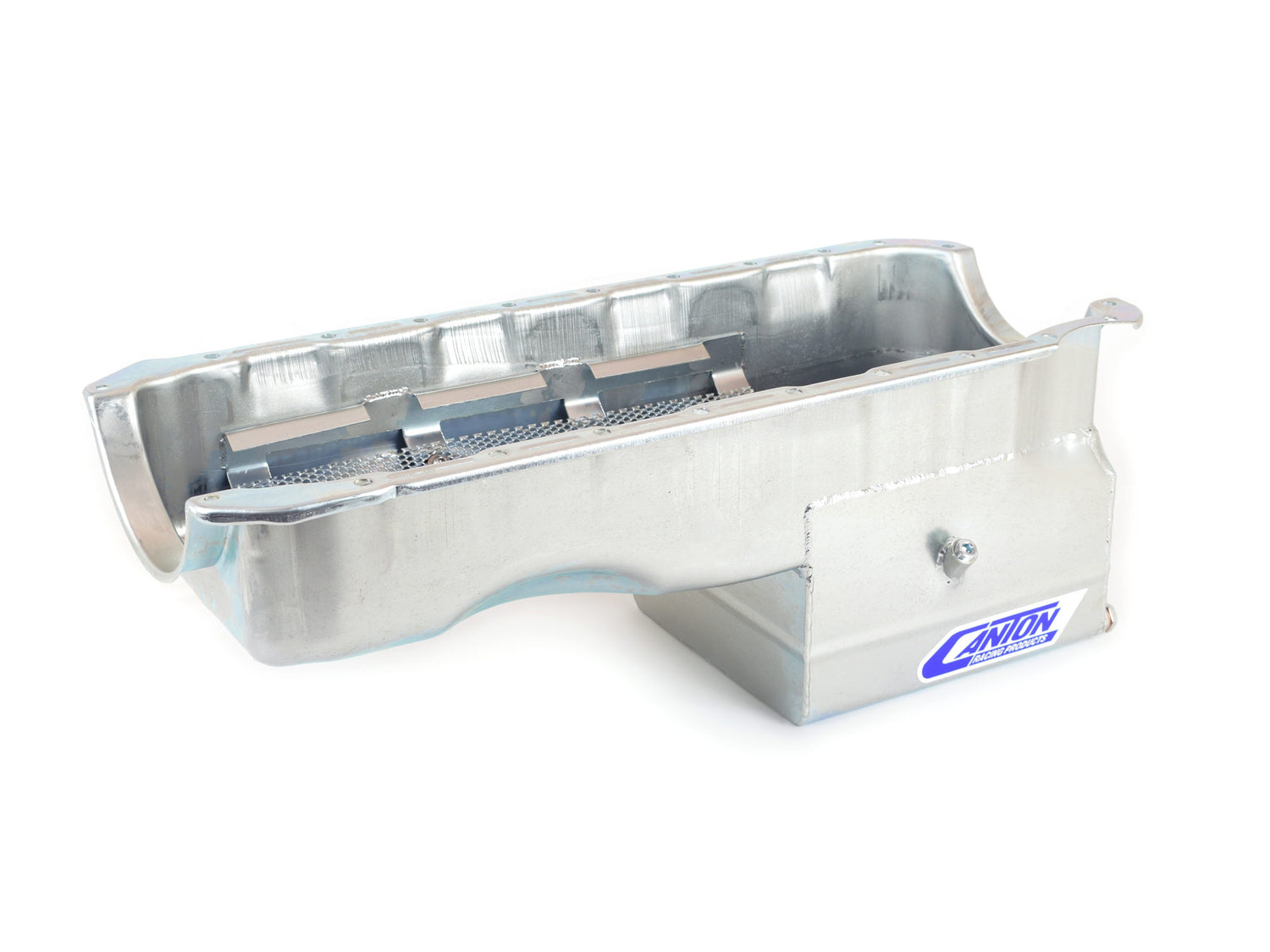

Canton 13-330 - Oil Pan Big Block Chevy Drag Race Pan For Mark 4 Blocks
Engine Oil Pan - Drag Race - Rear Sump - 7 qt - 9 in Deep - Steel - Cadmium - 2-Piece Seal - Big Block Chevy - Each
Canton 13-330 Oil Pan Big Block Chevy Drag Race Pan For Mark 4 Blocks
This BBC bracket drag oil pan is for Mark 4 blocks. It has a 9" deep by 9-1/2" long sump and a 7 qt. system capacity. Takes up to a 4.5" stroke with a steel rod. This pan requires our 20-190 pickup. Will work with stock or aftermarket starters.
- 7 qt System Capacity
- Drag Race Trap Door Baffle System
- Screen Windage Tray
- Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 8.375 inches
Sump Depth: 9 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 1: 20-190 - Pickup for BBC Pumps
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: No
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 6: Magnetic Drain Plug
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Built in Crank Scraper
Feature 2: Removable Screen Windage Tray
Feature 1: Features Competition Oil Recovery System
Engine: For B.B. Chevy Mark 4 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
