Canton 13-120 - Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan
Canton | SKU:
BGTF-13-120
Sale price
$35900
Regular price
$43080
Unit price
/
Unavailable
$71.80 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

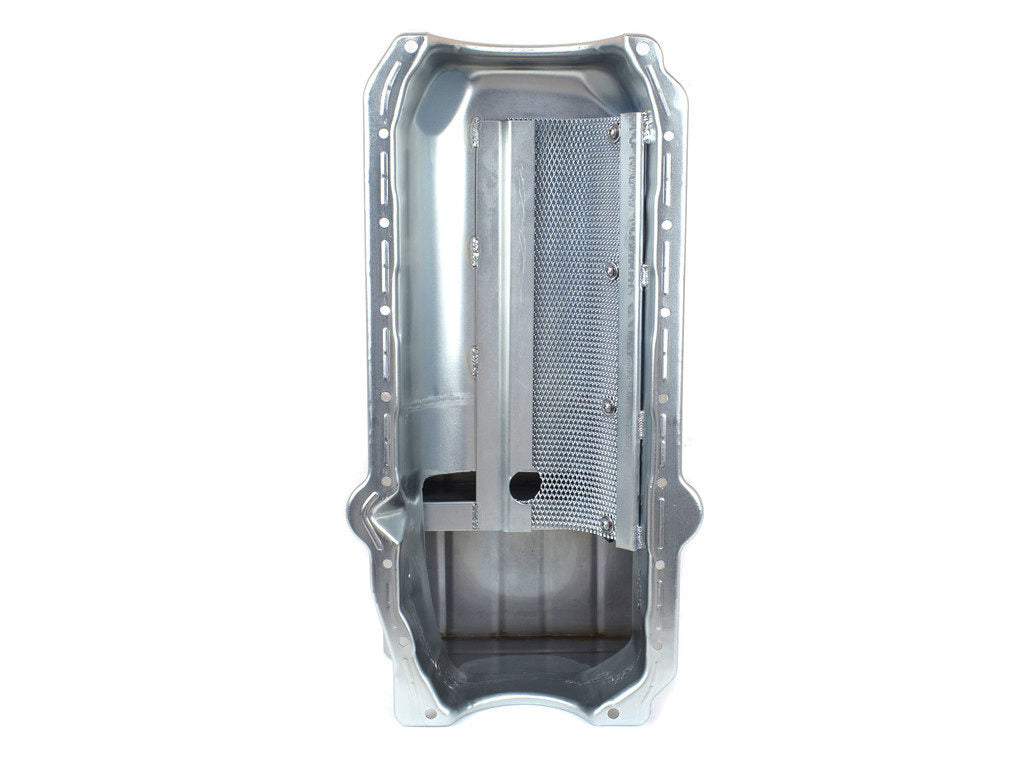

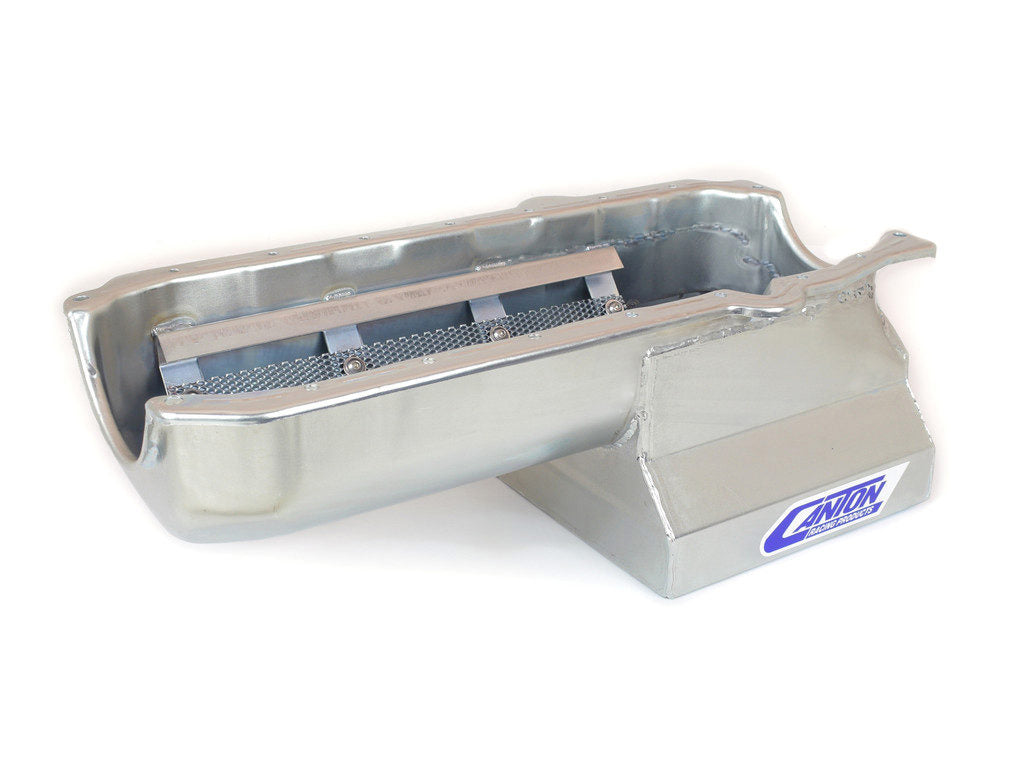

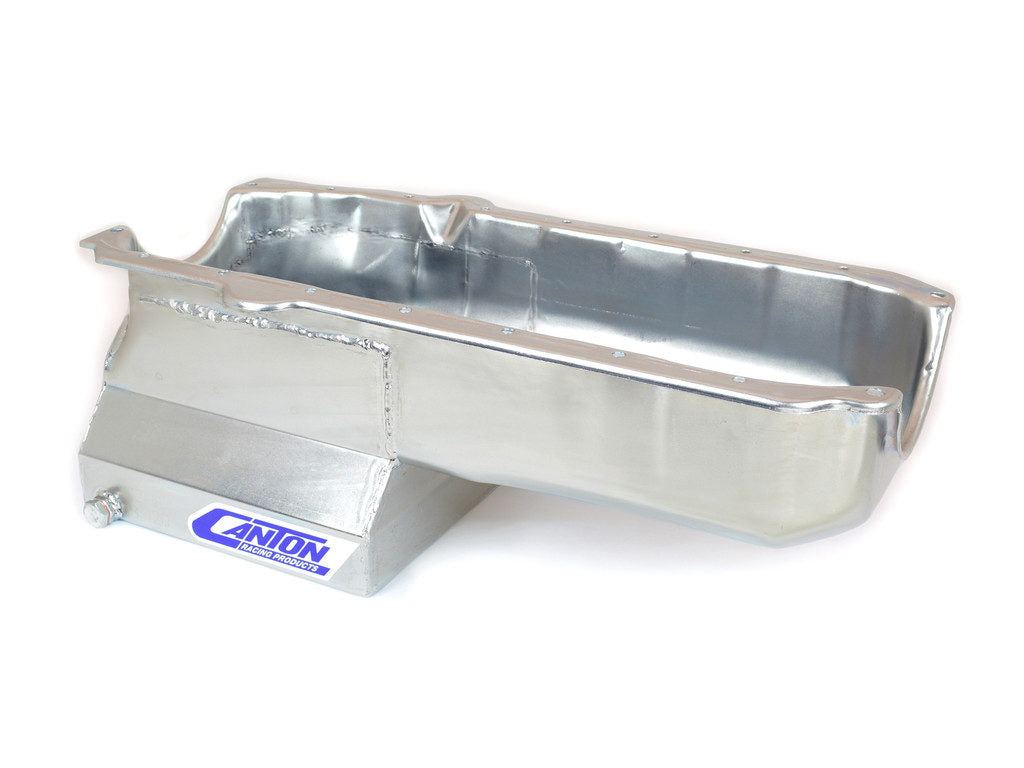

Canton 13-120 - Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan
Engine Oil Pan - Drag Race - Rear Sump - 7 qt - 7.5 in Deep - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Each
Canton 13-120 Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan
This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity. This pan requires a short oil filter, and one of our pickups. Will work with stock or aftermarket starters.
- 7 qt System Capacity
- Clears 3.875" Stroke
- Drag Race Trap Door Baffle System
- Screen Windage Tray
- Crank Scraper
- Magnetic Drain Plug
Baffled: Yes
Kicked Out: Yes
Sump Width: 10.5 inches
Sump Depth: 7.5 inches
Stoke: 3.875 inches
Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
Recommended Accessory 4: 20-023 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
Recommended Accessory 3: 20-020 - Pickup for Small Block High Volume M55HV Pump
Recommended Accessory 2: 20-013 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
Recommended Accessory 1: 20-010 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 6 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Built in Crank Scraper
Feature 2: Removable Screen Windage Tray
Feature 1: Features Competition Oil Recovery System
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: Yes
Windage Tray Included: Yes
