Canton 13-100 - Oil Pan Small Block Chevy Pre-1980 Drag Race T Sump Pan
Canton | SKU:
BGTF-13-100
Sale price
$35500
Regular price
$42600
Unit price
/
Unavailable
$71.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

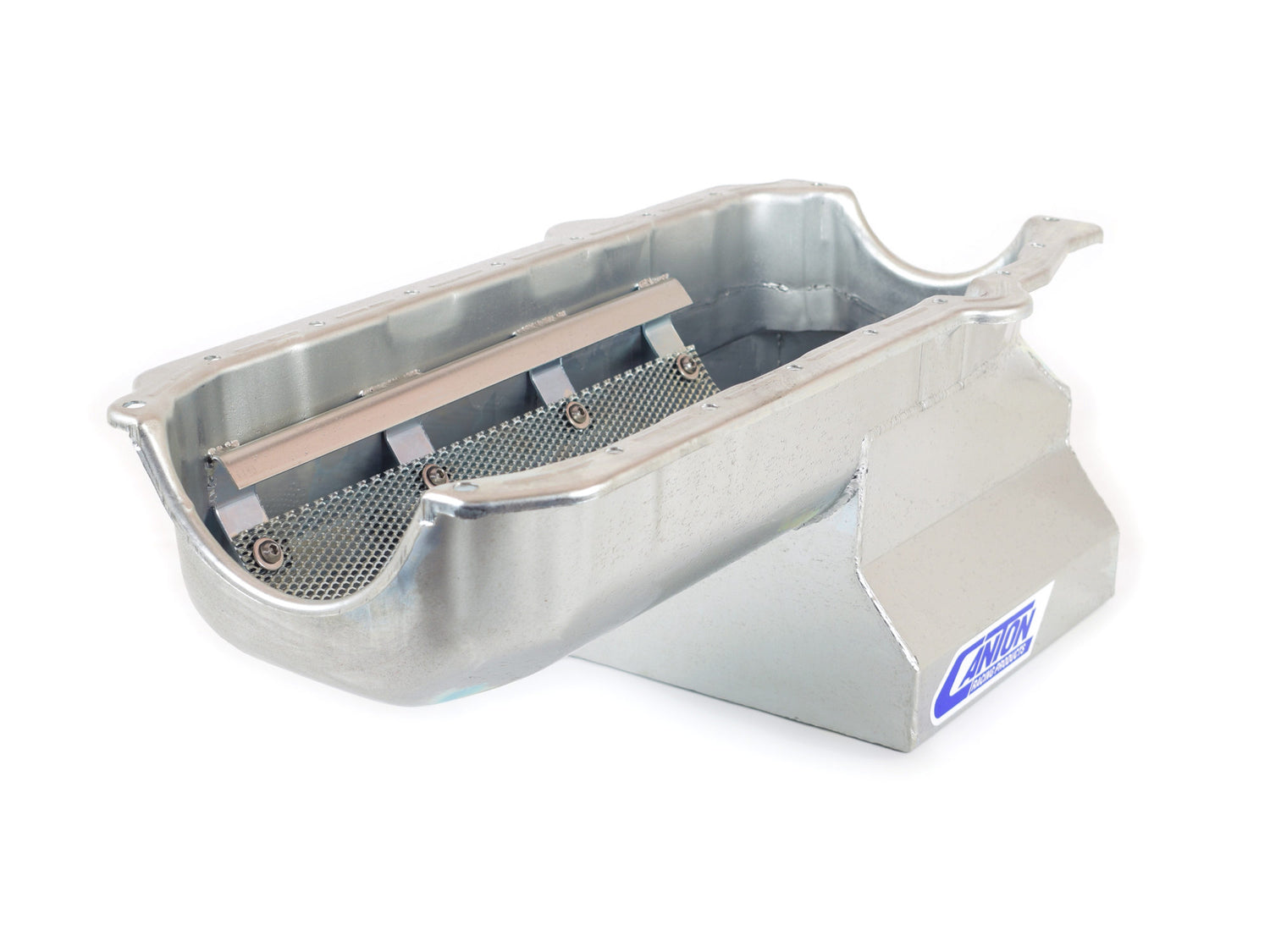

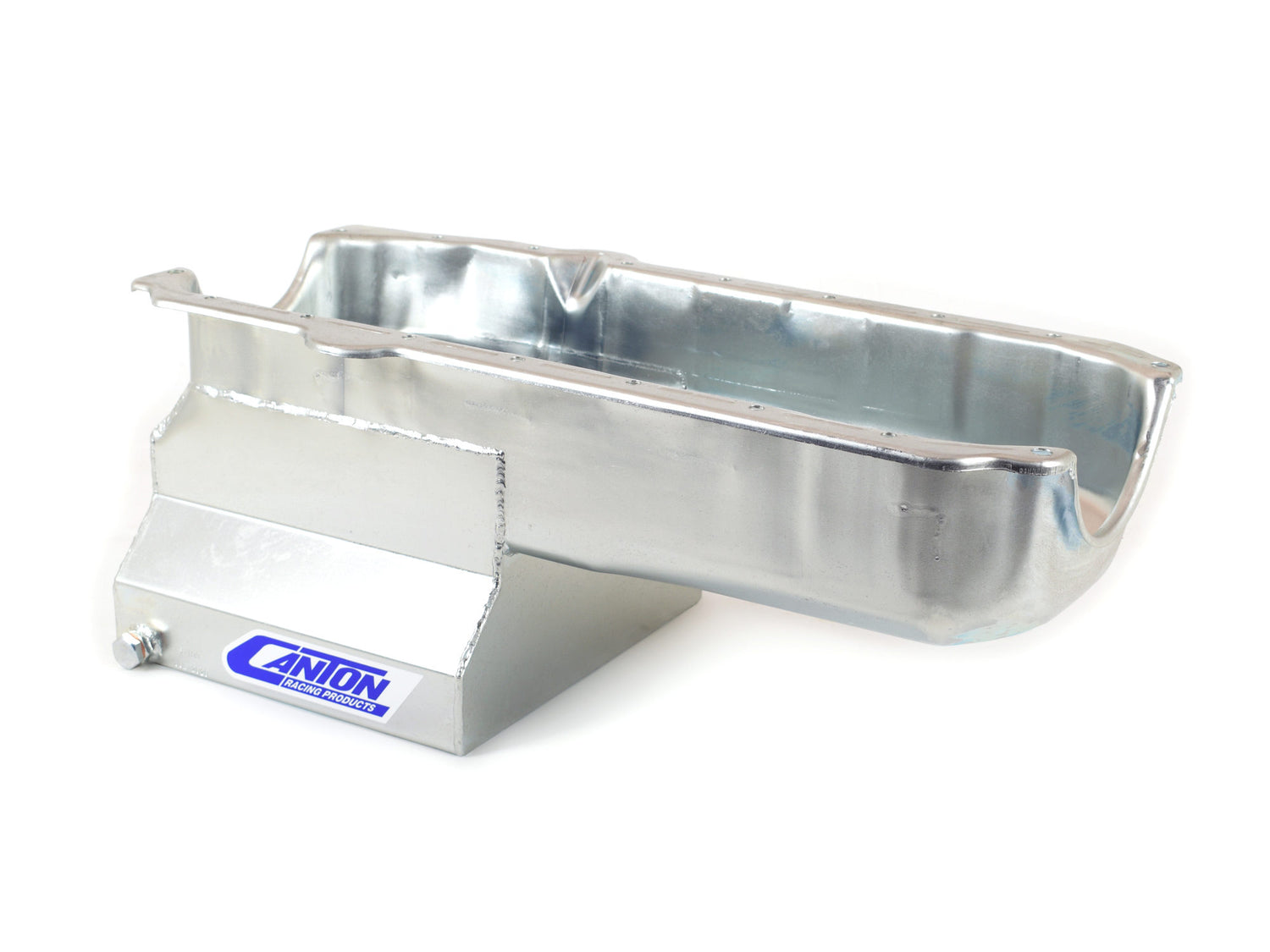

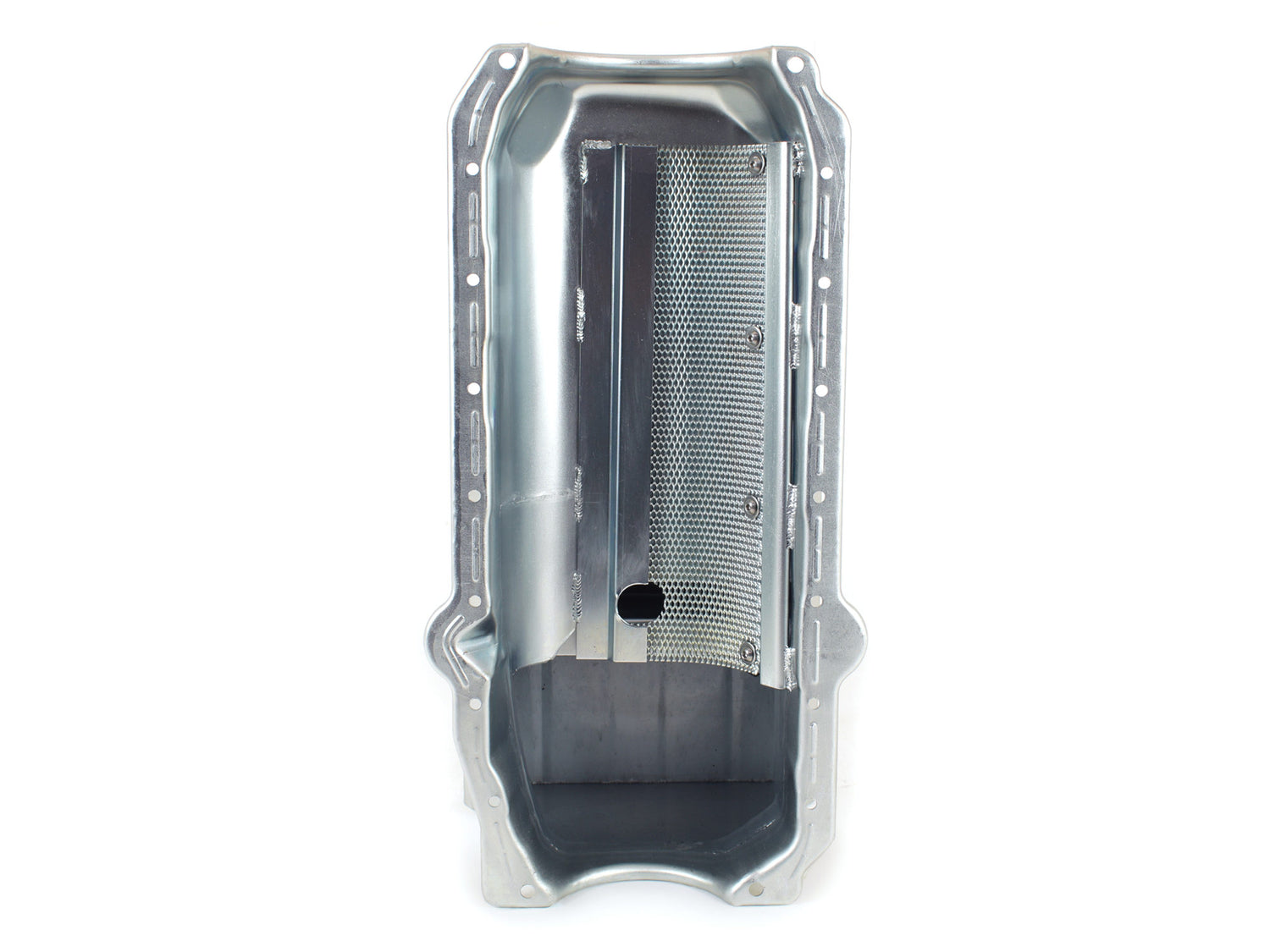

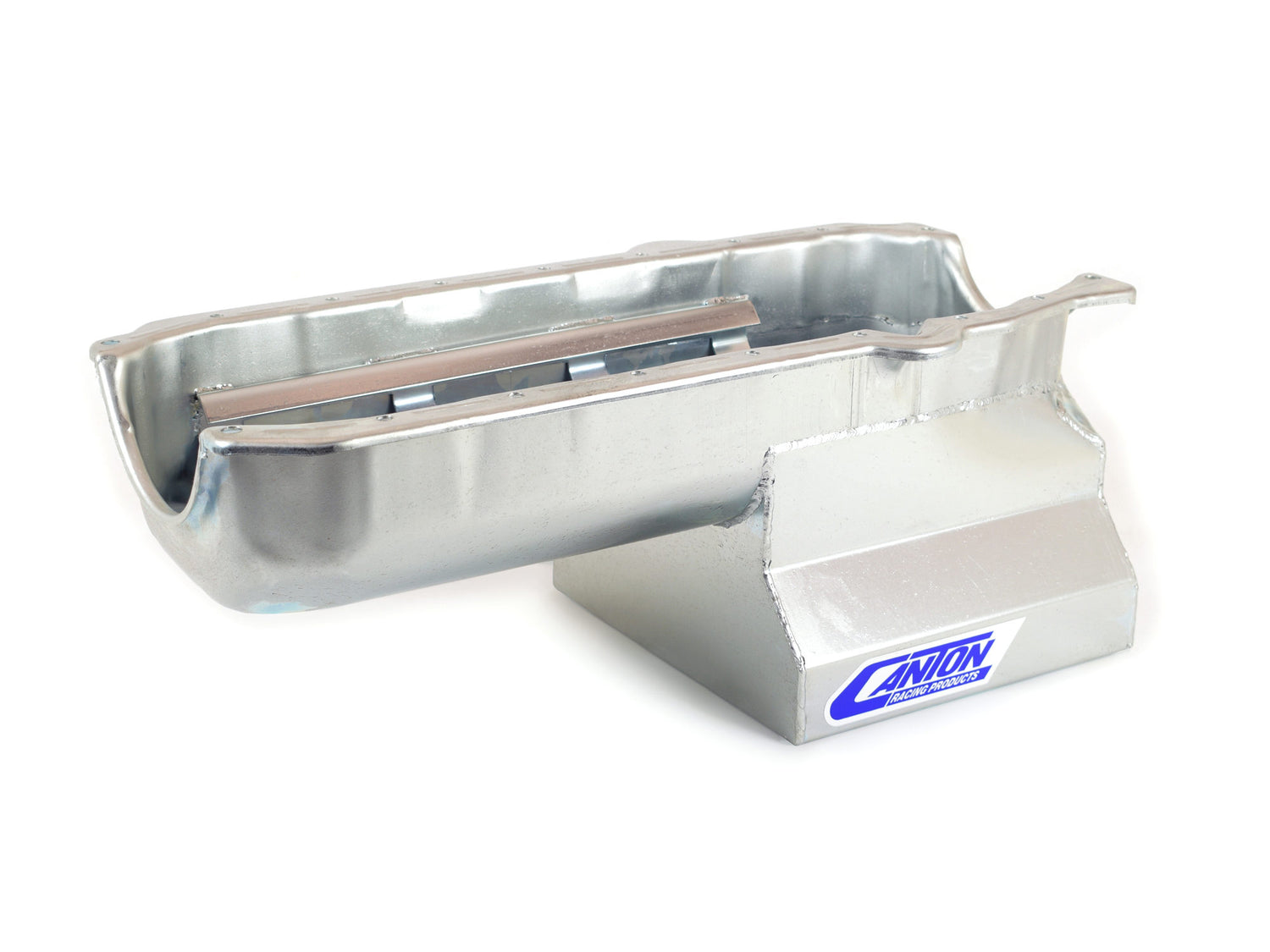

Canton 13-100 - Oil Pan Small Block Chevy Pre-1980 Drag Race T Sump Pan
Engine Oil Pan - Drag Race - Rear Sump - 8 qt - 8.5 in Deep - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Each
Canton 13-100 Oil Pan Small Block Chevy Pre-1980 Drag Race T Sump Pan
This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 8-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 8 qt system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
- Clears 3.875" Stroke
- 8 qt System Capacity
- Drag Racing Trap Door Baffle System
- Windage Tray
- Crank Scraper
- Magnetic Drain Plug
Baffled: Yes
Hardware Included: No
Sump Width: 10.5 inches
Sump Depth: 8.5 inches
Stoke: 3.875 inches
Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
Recommended Accessory 3: 20-095 - Pickup for Small Block High Volume Pump M155HV with 3/4" Inlet
Recommended Accessory 2: 20-090 - Pickup for Small Block High Volume Pump M55HV
Recommended Accessory 1: 20-060 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 8 Quart System Capacity
Finish: Silver Plating
Feature 5: Magnetic Drain Plug
Feature 4: Trap Door Baffle For Oil Control
Feature 3: Built in Crank Scraper
Feature 2: Removable Screen Windage Tray
Feature 1: Features Competition Oil Recovery System
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: Yes
Windage Tray Included: Yes
