Canton 12-200 - Oil Pan For GM LS1 LS6 Shallow Dry Sump Pan Drag and Road Race

Canton  |  SKU: BGTF-12-200
$49600 $59520


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

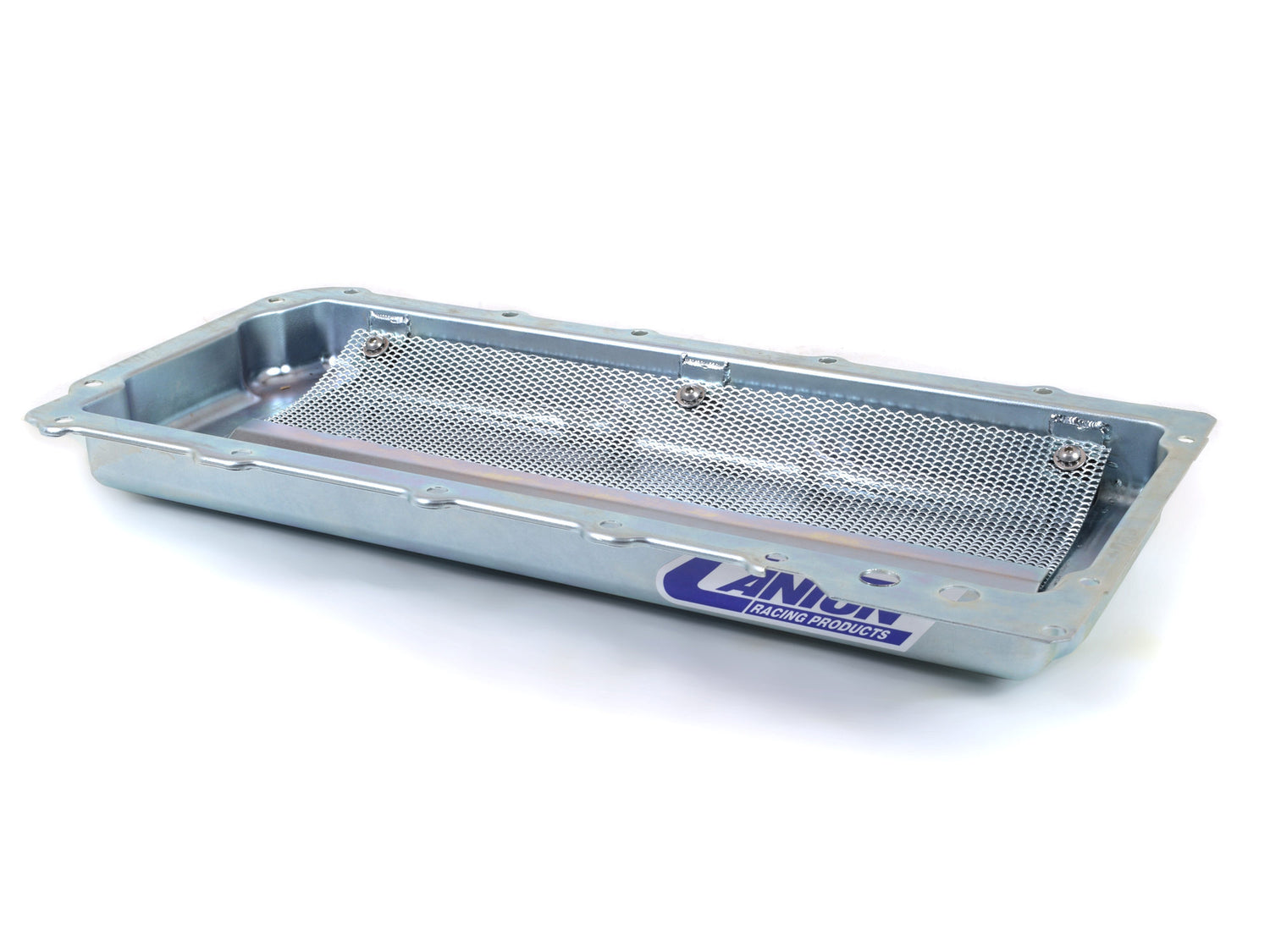

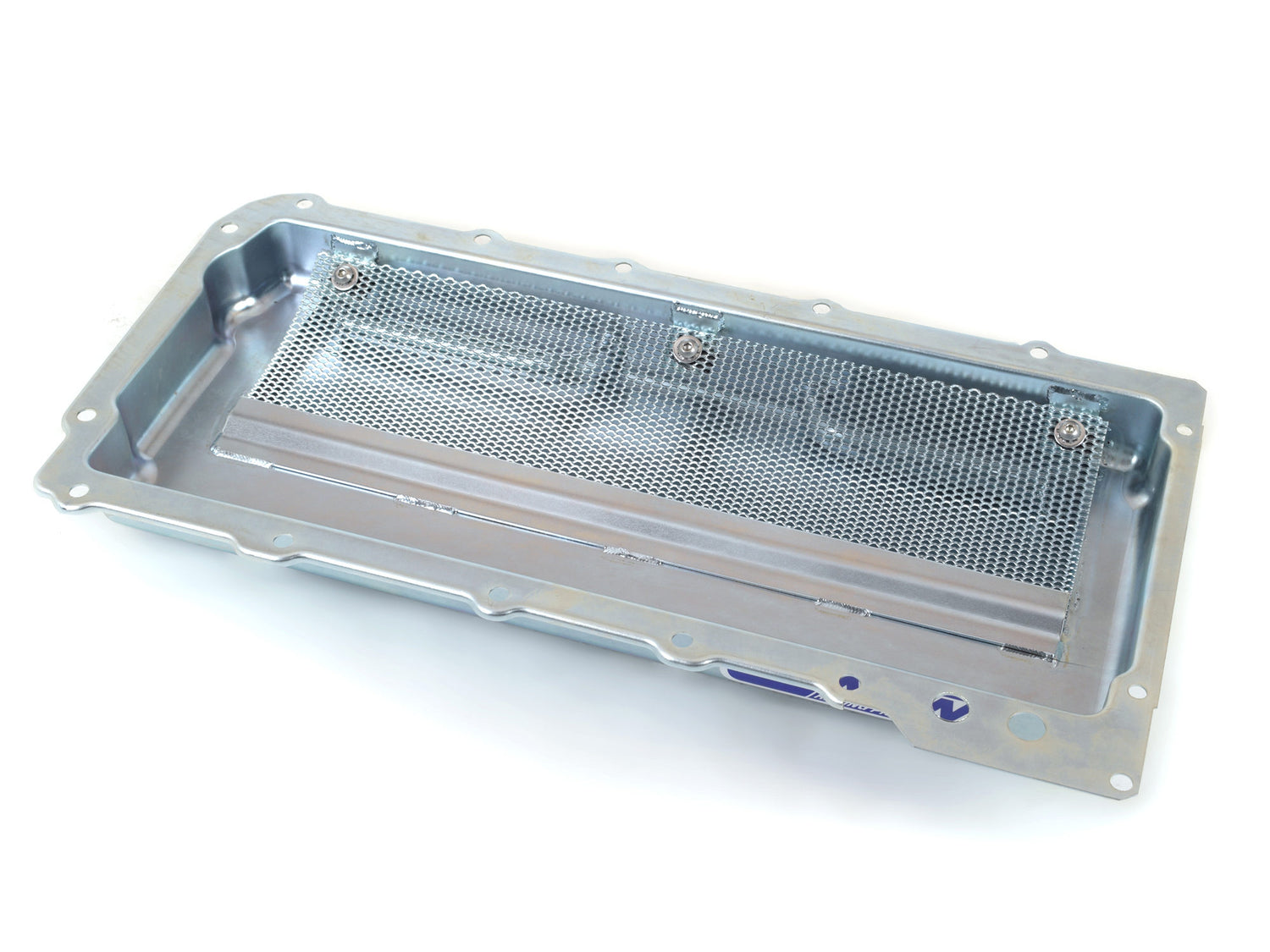

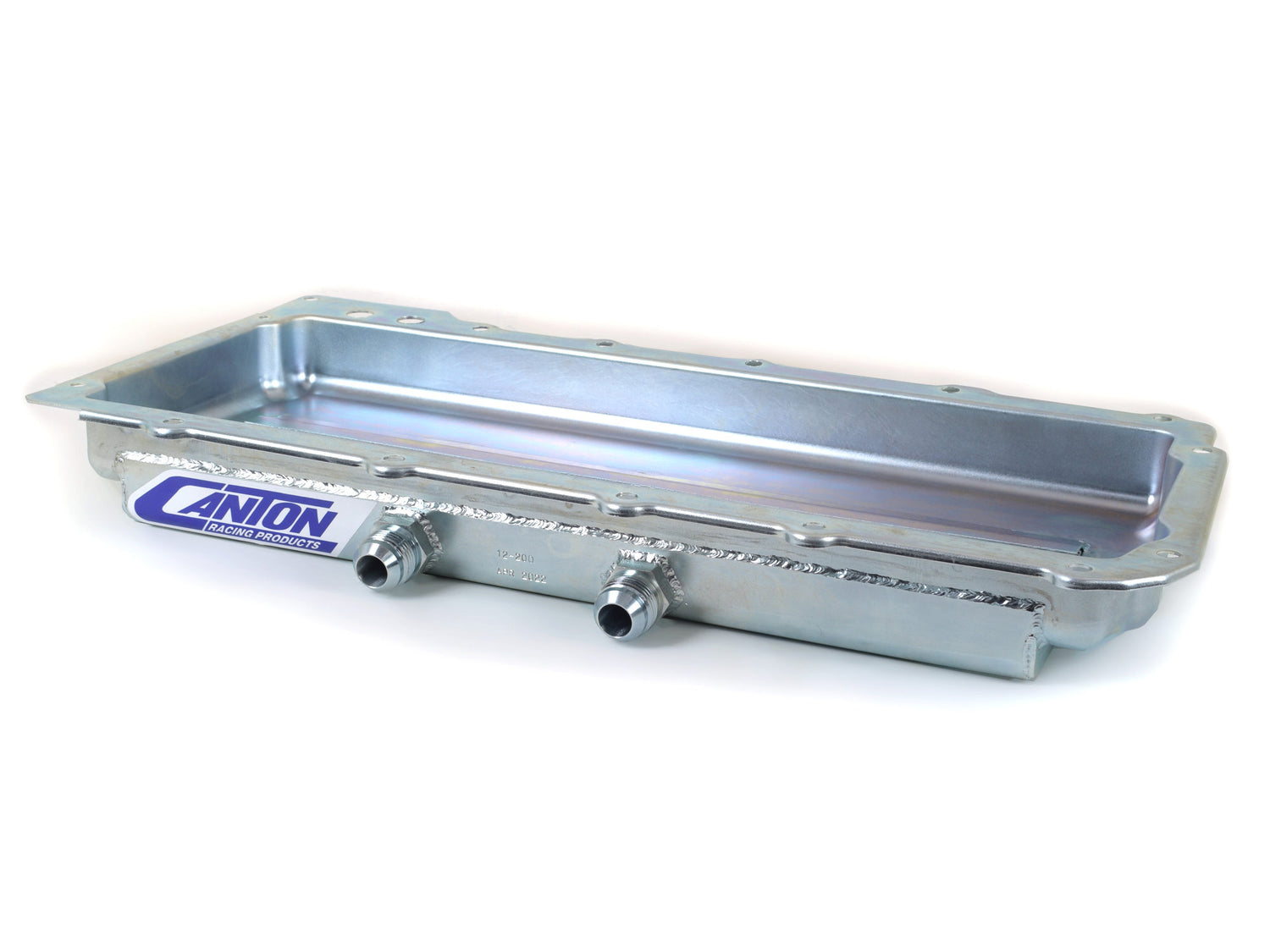

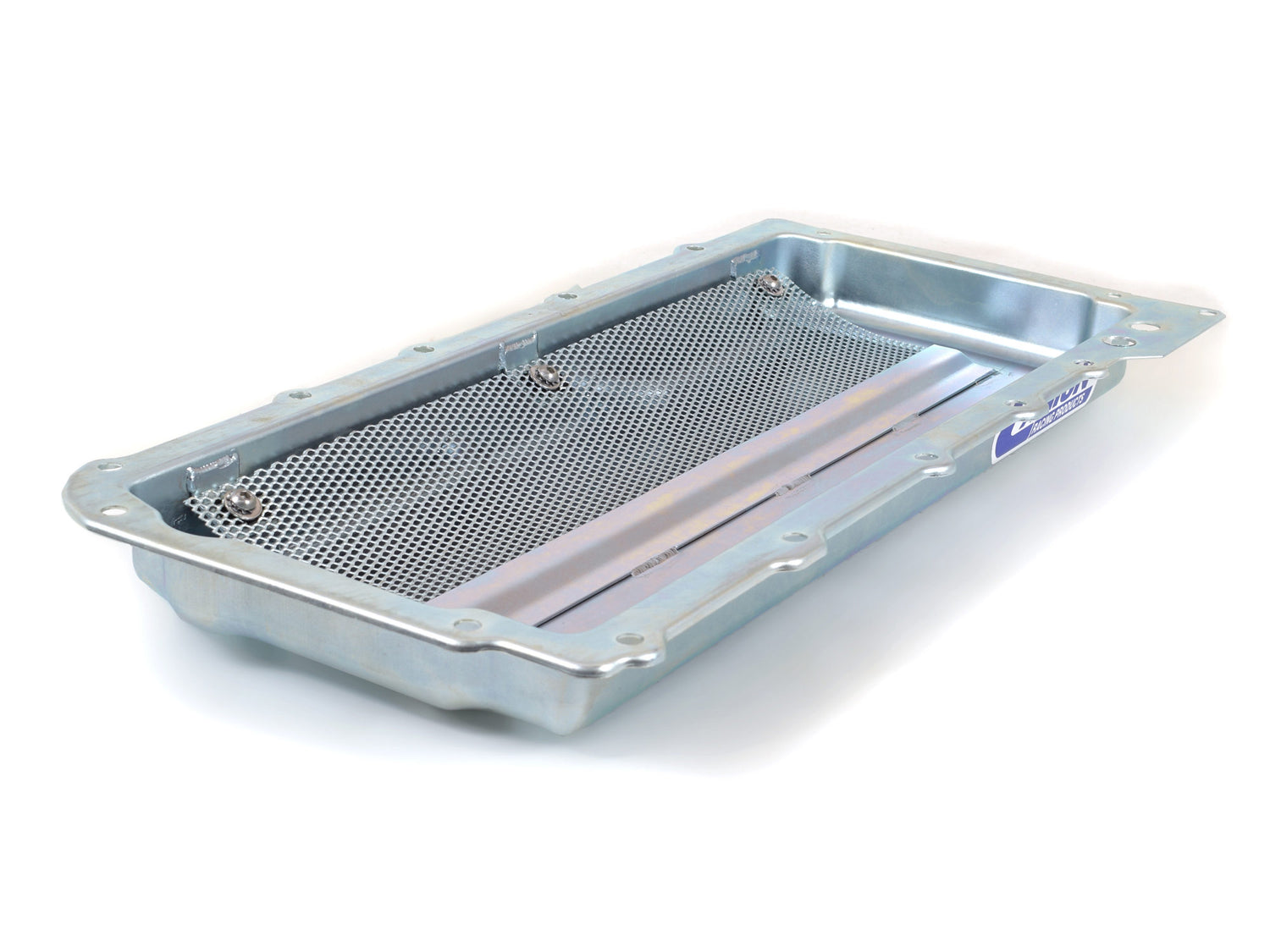

Canton 12-200 - Oil Pan For GM LS1 LS6 Shallow Dry Sump Pan Drag and Road Race

Engine Oil Pan - Dry Sump - 3.5 in Deep - Two 12 AN Male Passenger Side Pickups - Steel - Cadmium - GM LS-Series - Each

Canton 12-200 Oil Pan For GM LS1 LS6 Shallow Dry Sump Pan Drag and Road Race

This GM LS1/LS6 pan is specific for engines with dry sump oiling systems for use in drag or road racing. This oil pan is 2.5" deep.

  • Two -12AN Pickups Exiting on the Right Side
  • 1/2" deep oil collection trough which aids in oil scavenging
  • Provision for a third centrally mounted pickup
  • Built In Screen Windage Tray
  • 2.5" Deep Sump
Baffled: No
Recommended Accessory 1: 21-870 - LS Flywheel Cover for T56 Bellhousing
Recommended Accessory 9: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
Recommended Accessory 8: 22-750 - -12 AN Screen Pump Protector
Recommended Accessory 7: 22-660 - In-Line Screen Protector -12 AN Fittings
Recommended Accessory 6: 22-650 - In-Line Screen Protector -10 AN Fittings
Recommended Accessory 5: 22-640 - In-Line Screen Protector -8 AN Fittings
Recommended Accessory 4: 22-630 - GM LS1 Remote Oil Filter Adapter
Recommended Accessory 3: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
Recommended Accessory 10: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
Pickup Included: No
Crank Scraper Included: No
Material: 16 Gauge Steel
Kicked Out: No
Hardware Included: No
Gasket or Seal Included: No
Finish: Silver Plating
Feature 4: Built In Screen Windage Tray
Feature 3: Provision for a third centrally mounted pickup
Feature 2: 1/2" deep oil collection trough which aids in oil scavenging
Feature 1: Two -12AN Pickups Exiting on the Right Side
Windage Tray Included: Yes
