Canton 11-120M - Oil Pan Small Block Chevy 12" Circle Track Long Sump 7" Deep

Canton  |  SKU: BGTF-11-120M
$47900 $57480
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

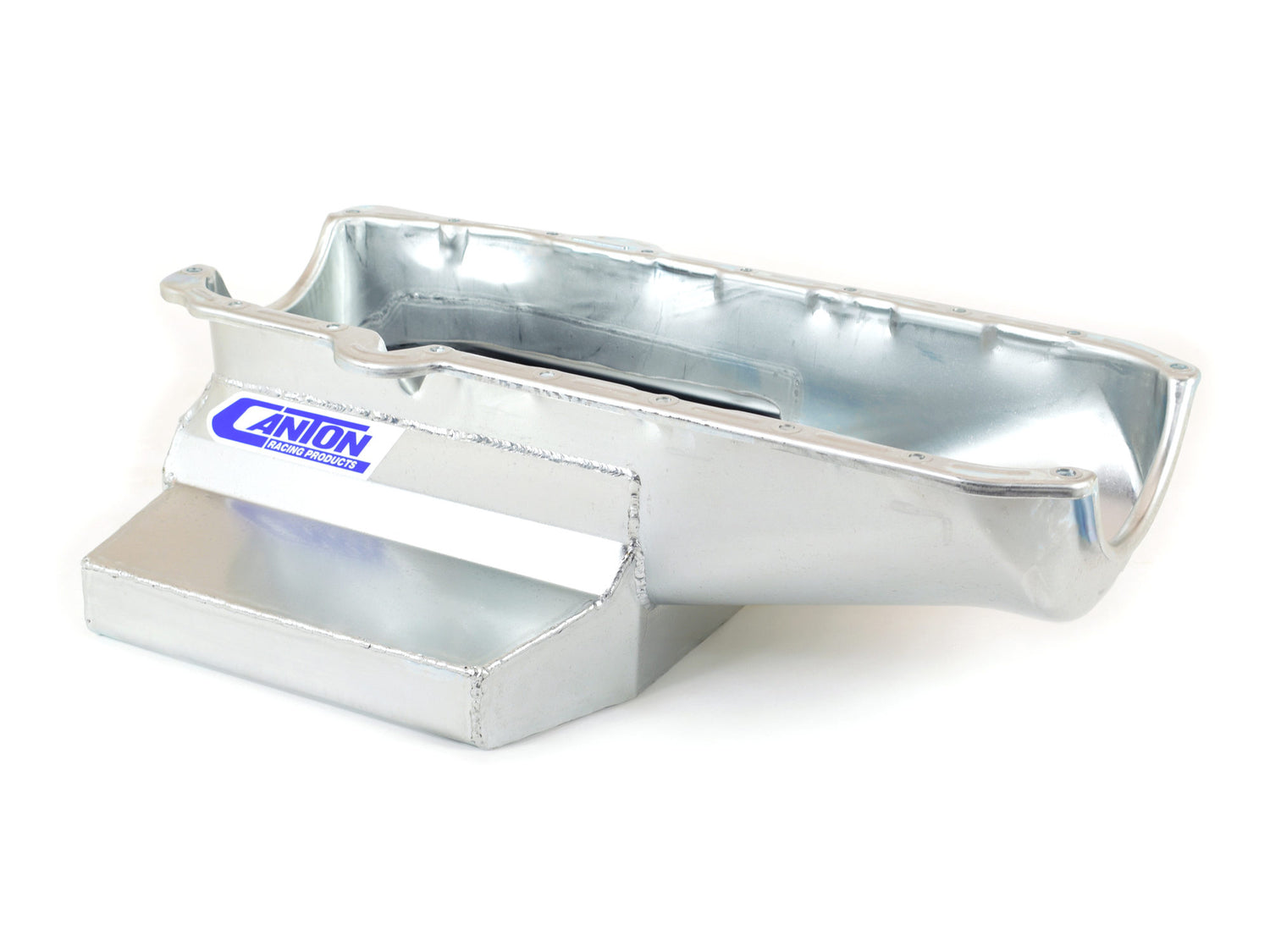

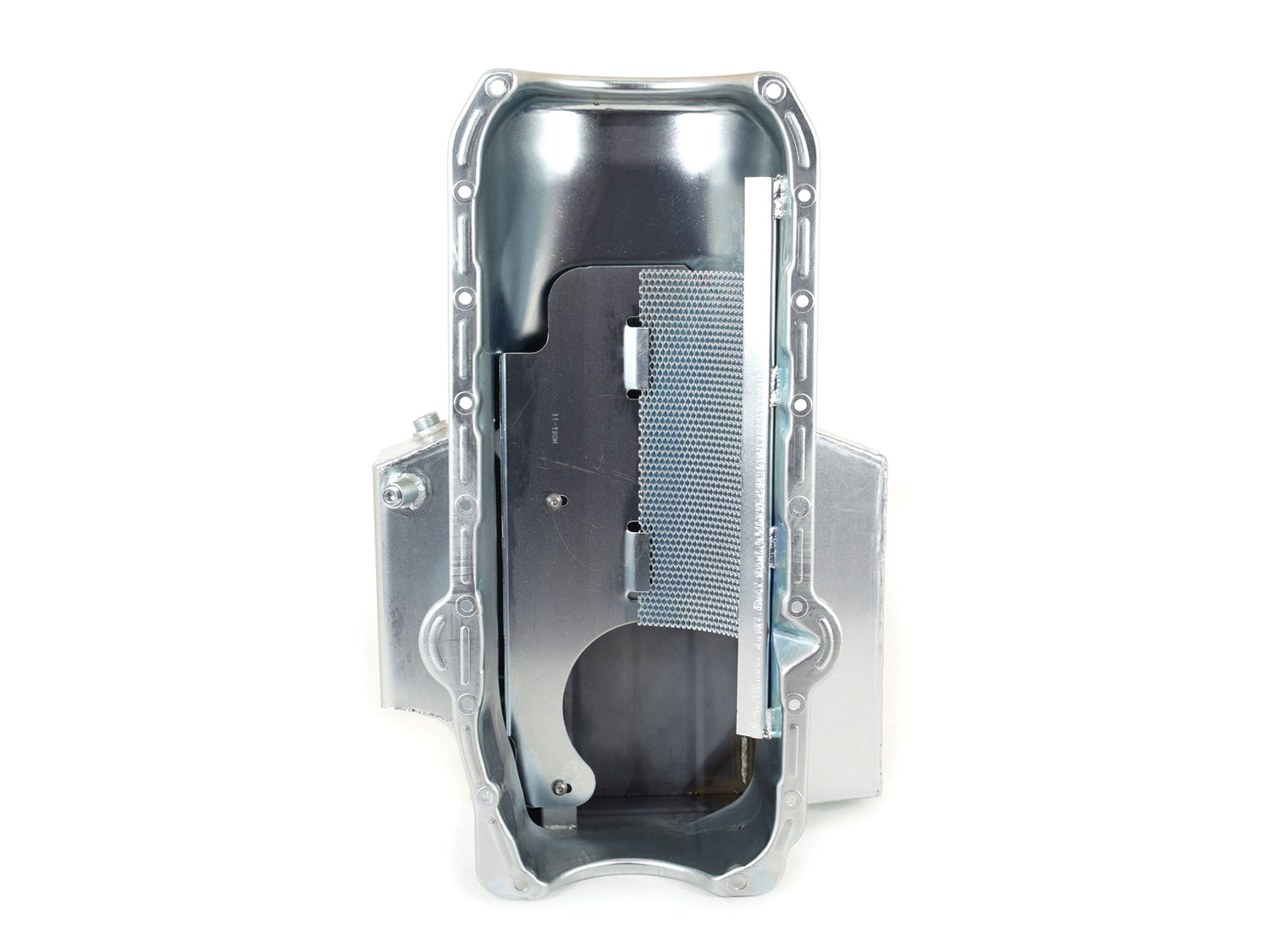

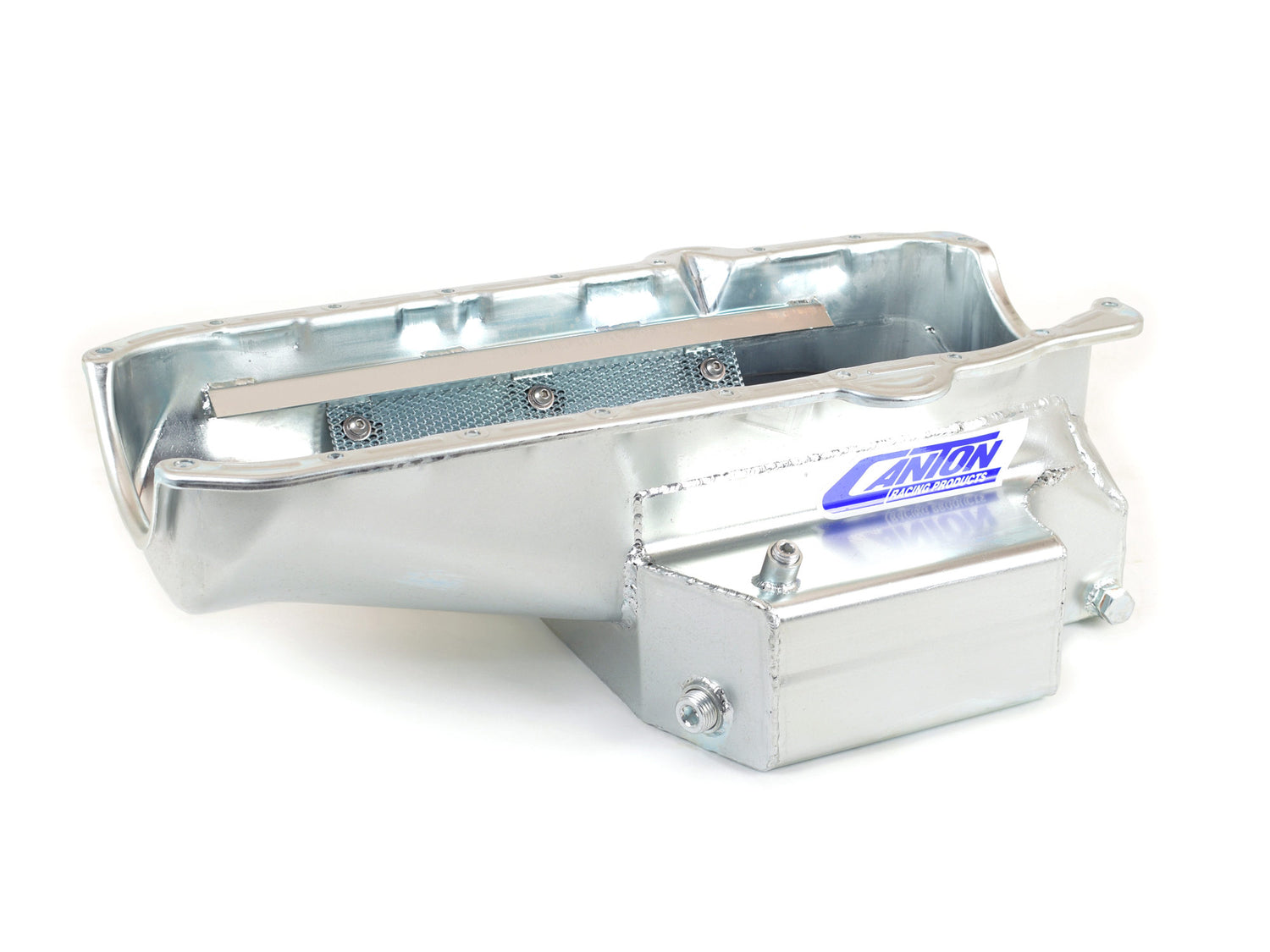

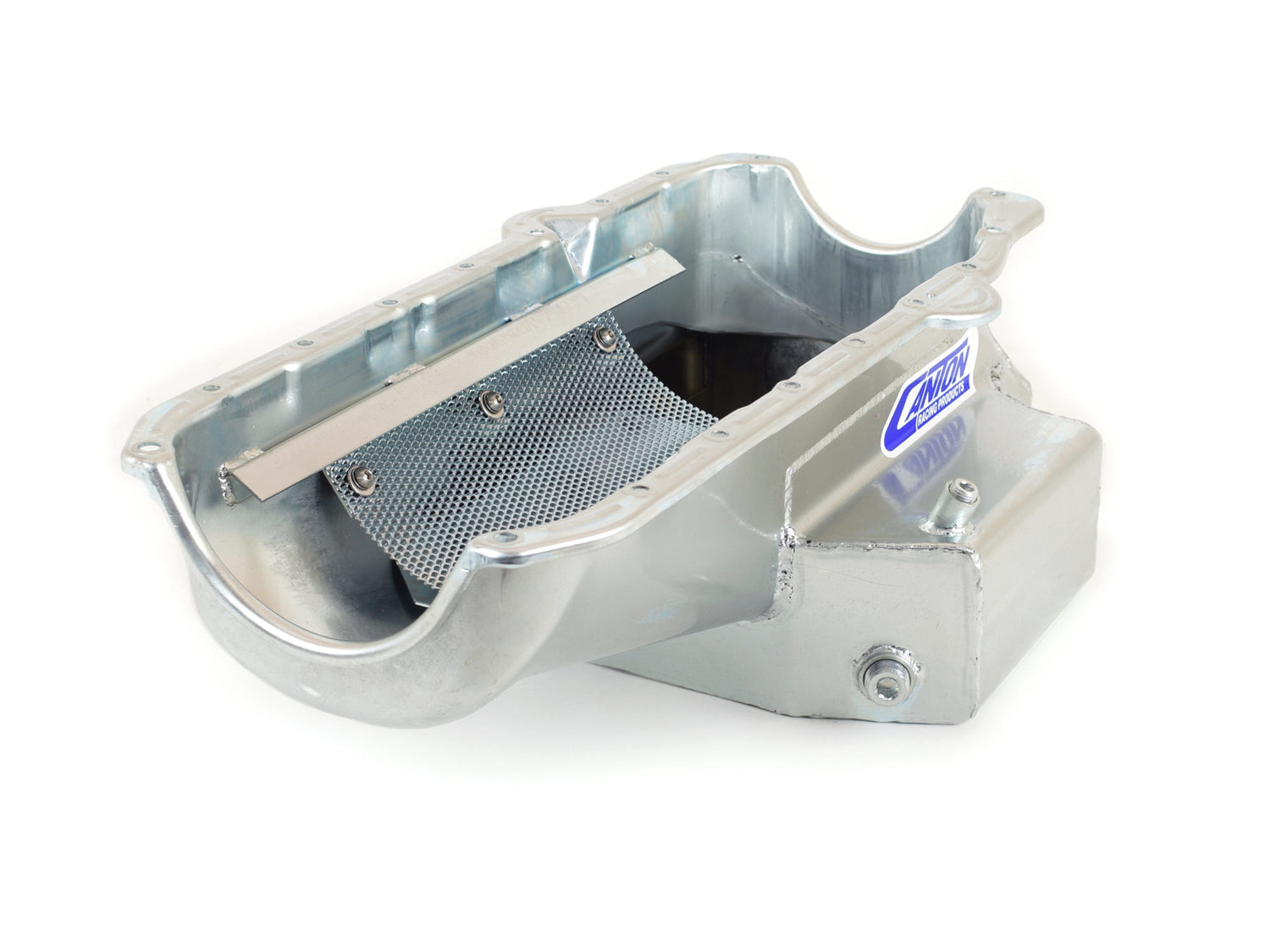

Canton 11-120M - Oil Pan Small Block Chevy 12" Circle Track Long Sump 7" Deep

Engine Oil Pan - Oval Track - Rear Sump - 8 qt - 7 in Deep - Steel - Cadmium - 2-Piece Seal - Small Block Chevy - Each

Canton 11-120M Oil Pan Small Block Chevy 12" Circle Track Long Sump 7" Deep

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.

  • 8 qt System Capacity
  • 3.75" Stroke Clearance
  • Six Trap Door Baffles & Three Runners
  • Crank Scraper
  • Bolt in Slosh Baffle
  • Built in Windage Tray
  • 1/2” NPT Temperature Bung
  • Provison for our Pan Mounted Dipstick
  • Magnetic Drain Plug
Baffled: Yes
Kicked Out: Yes
Stoke: 3.75 inches
Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Pickup Included: No
Material: 16 Gauge Steel
Hardware Included: No
Capacity: 8 Quart System Capacity
Gasket or Seal Included: No
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: 1/2 NPT Temp Sensor Bung
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Reduces Crank Windage And Saves Horsepower
Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
Feature 2: Bolt On Slosh Baffle For Oil Control
Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
