Camburg CAM-120028 - 17-20 Ford Raptor/ 15-24 F-150 TIG 4130 Shackles (1.5in. extended)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Camburg CAM-120028 - 17-20 Ford Raptor/ 15-24 F-150 TIG 4130 Shackles (1.5in. extended)
Extended Length TIG Shackles (1.50" Lift)
Camburg Ford Raptor '17-20 | F-150 '15-23 TIG 4130 Shackles (1.50" extended)

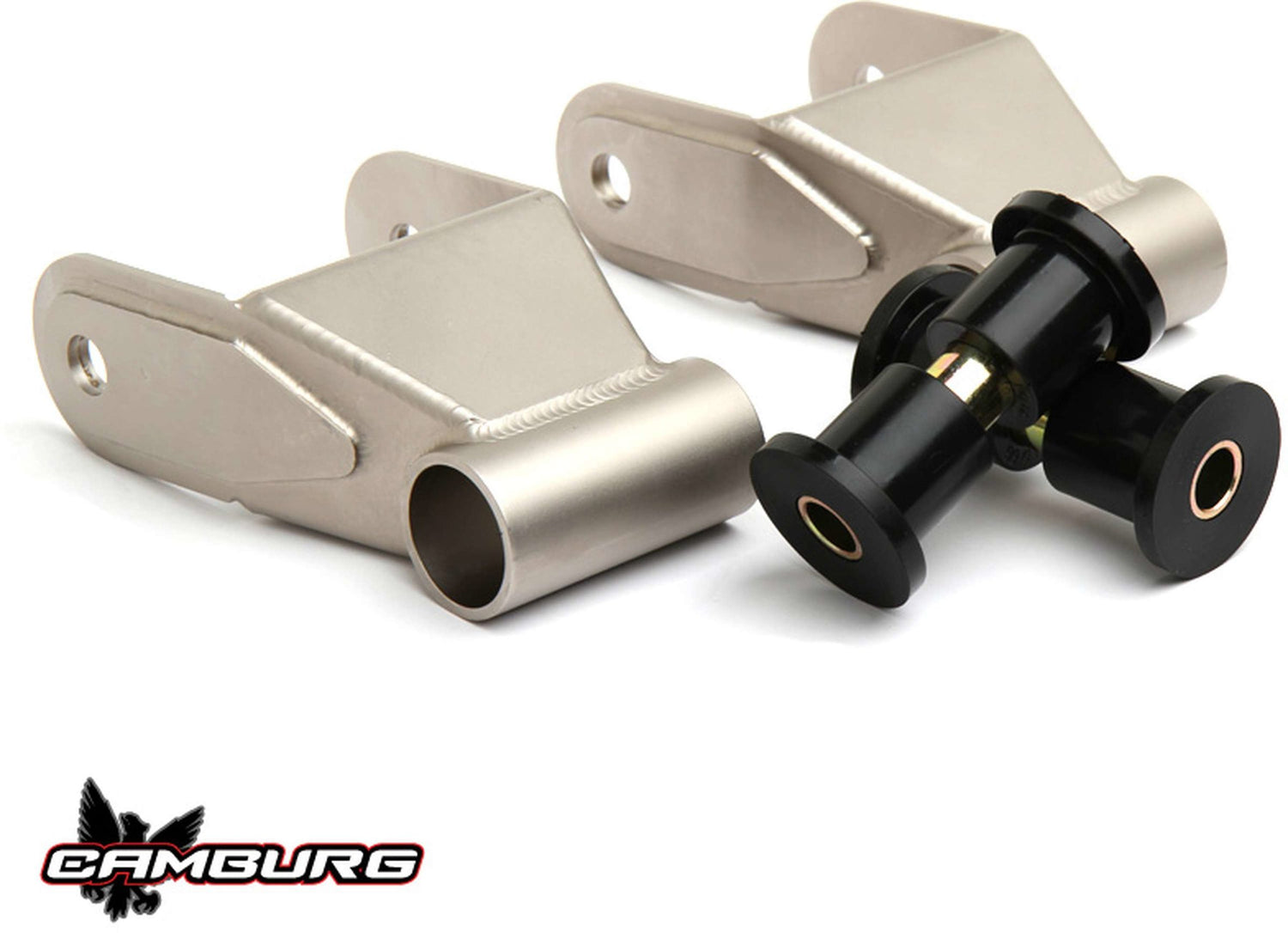

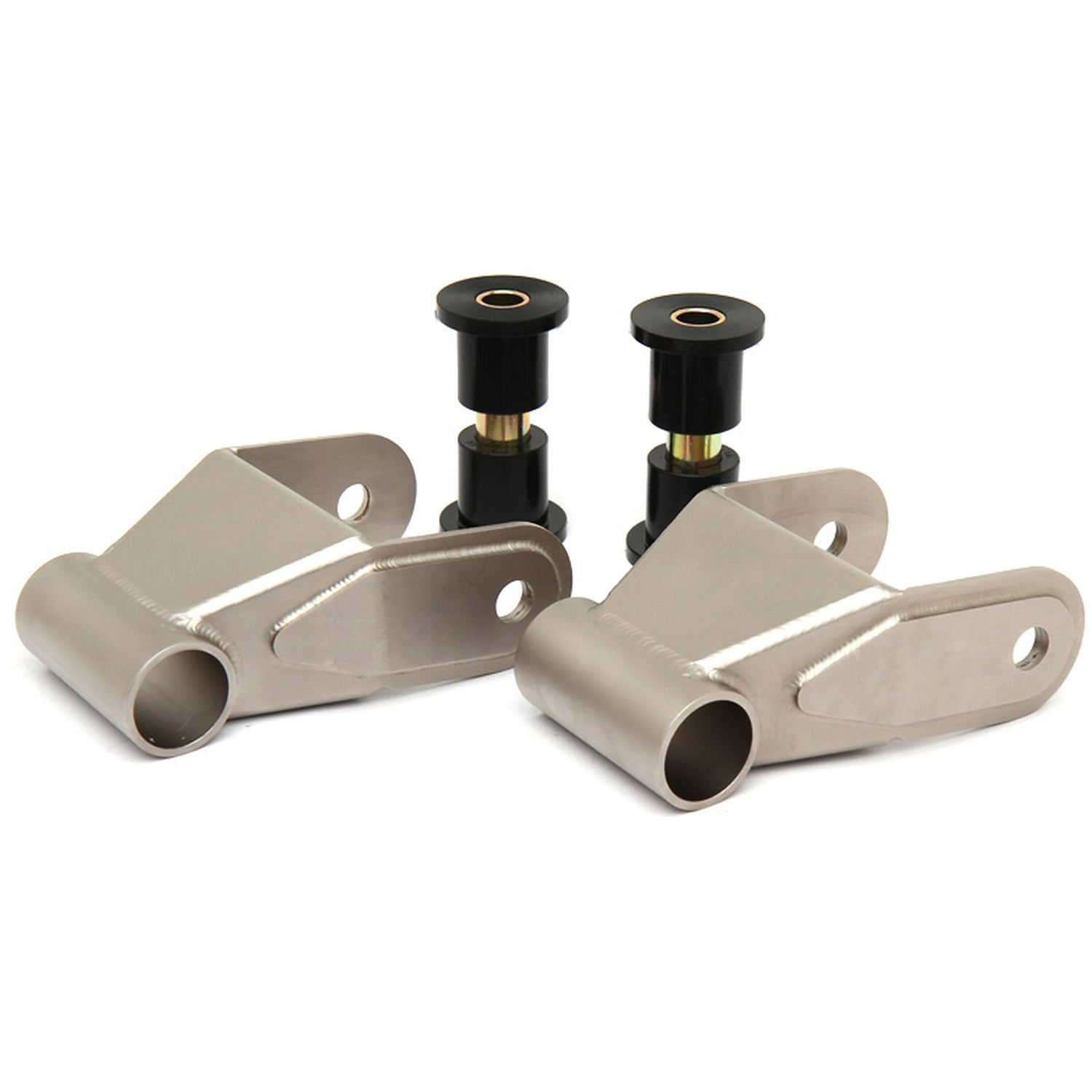

Looking for the best? Our Camburg TIG shackles replace the stock light-duty version on your F-150. The stock shackles are stamped out of thin metal and use a rubber bushing which both allow for a flexy component that also binds as it cycles since the rubber bushings are vulcanized into the shackle. Our TIG shackles are a fabricated boxed gusseted design from 4130 chromoly that is much stronger than mild steel and use polyurethane bushings that pivot smoother with less flex. We TIG weld them, bead blast the surfaces then powder coat them a textured gray to match our billet arms and the FOX shock hard anodize. They are ready to be bolted on using the factory hardware. These are available in a stock length, so they do not raise or lower the ride height or an 1.5" extended version that will lower the ride height about 1". Both are designed for stock and Deaver leaf springs, the "stock length" versions do not work with icon leaf springs. CAD Designed, CNC Laser Cut and Formed 4130 Chromoly TIG Welded Powder coated textured gray Polyurethane Bushings Made in the USA The stock length shackles are 4.5" eye to eye and the extended are 6".
- CAD Designed, CNC Laser Cut and Formed
- Smoother action and less deflection
- Made in the USA
