Camburg CAM-120005 - 10-14 Ford Raptor/ 04-14 F-150 / 80-96 F-150 4wd / 80-96 Bronco MIG Shackles (1.5in. extnd)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Camburg CAM-120005 - 10-14 Ford Raptor/ 04-14 F-150 / 80-96 F-150 4wd / 80-96 Bronco MIG Shackles (1.5in. extnd)
Extended Length MIG Shackles (1.50" Lift)
Camburg Ford Raptor '10-14 | F-150 '04-14 | F-150 4wd '80-96 | Bronco '80-96 MIG Shackles (1.50" extended)

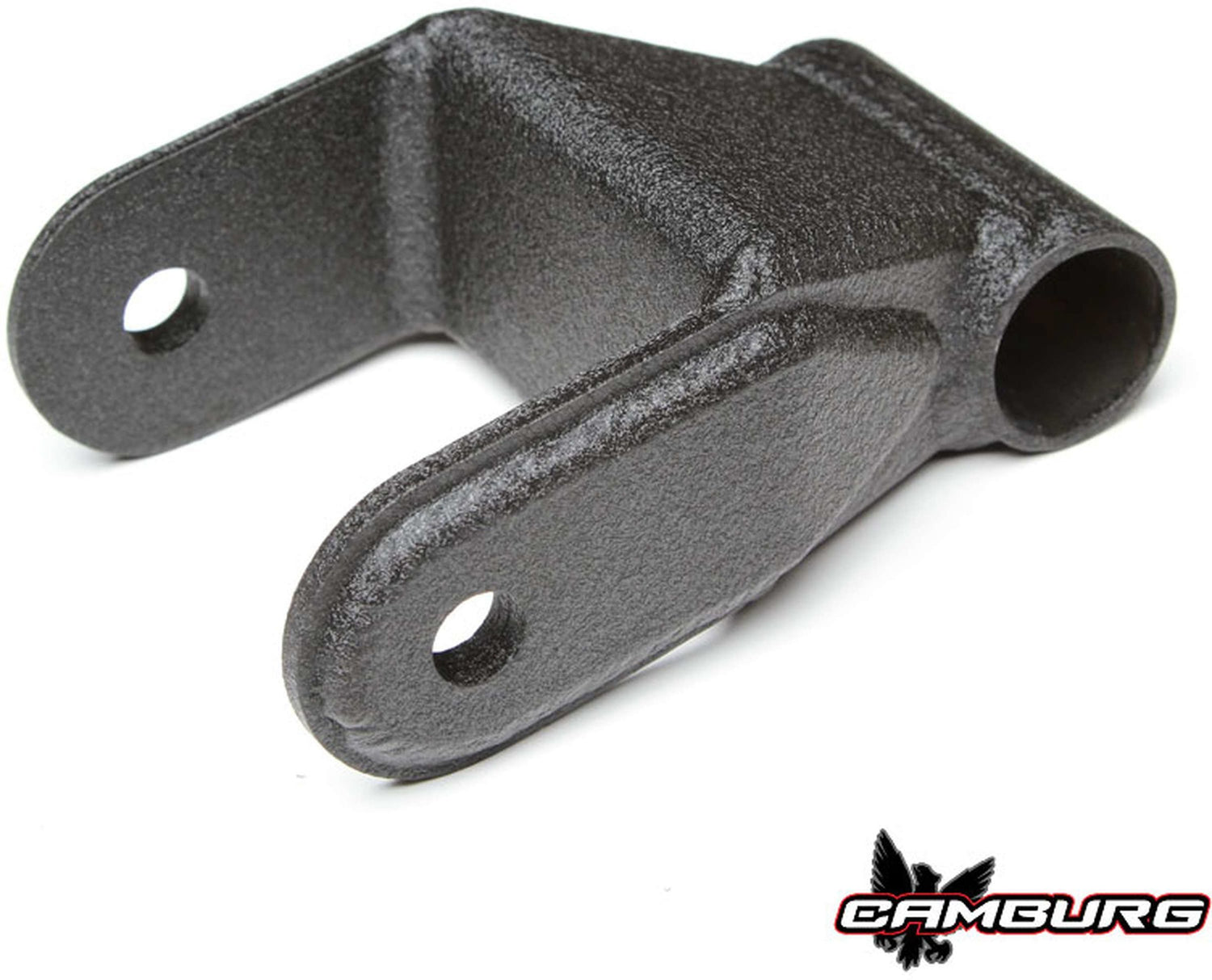

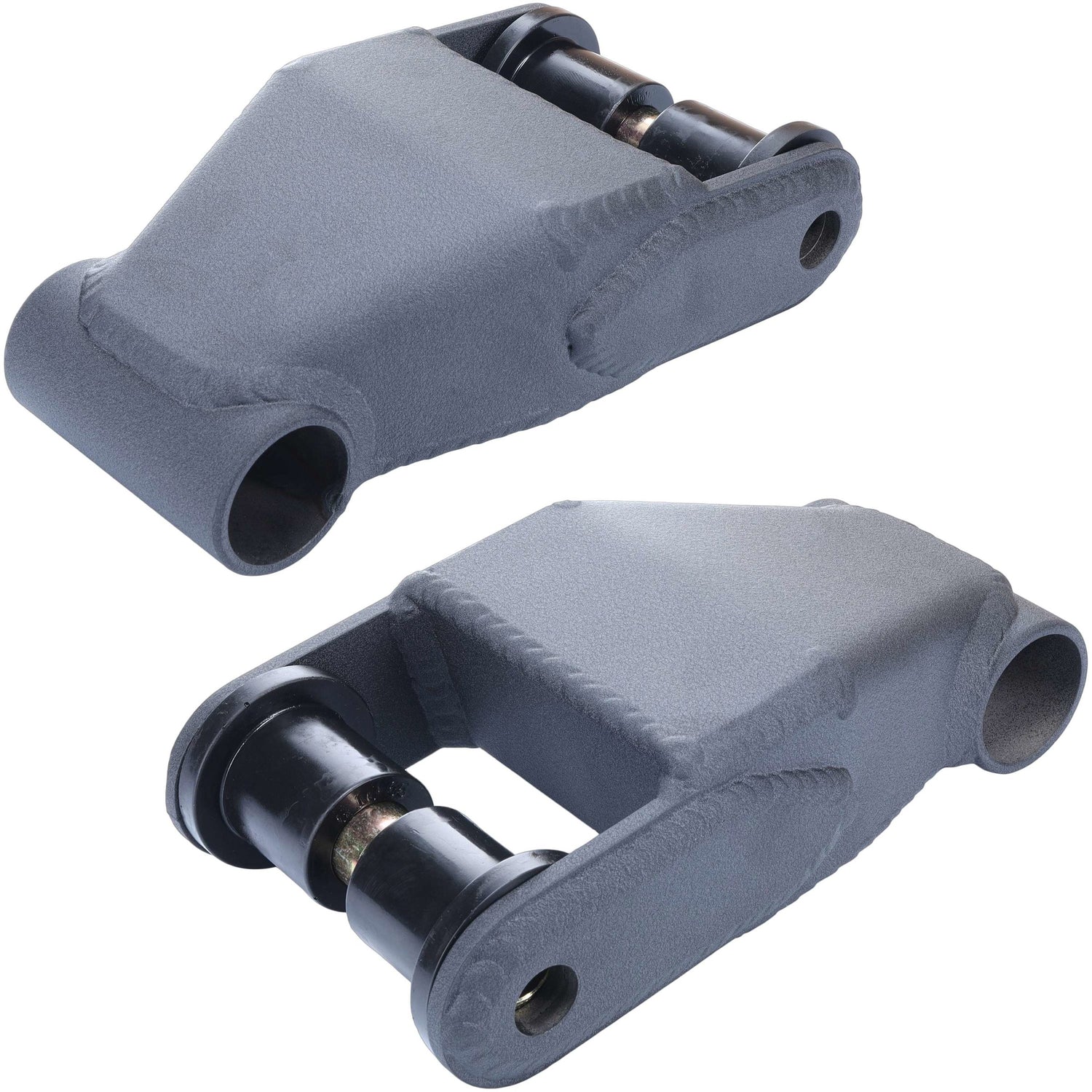

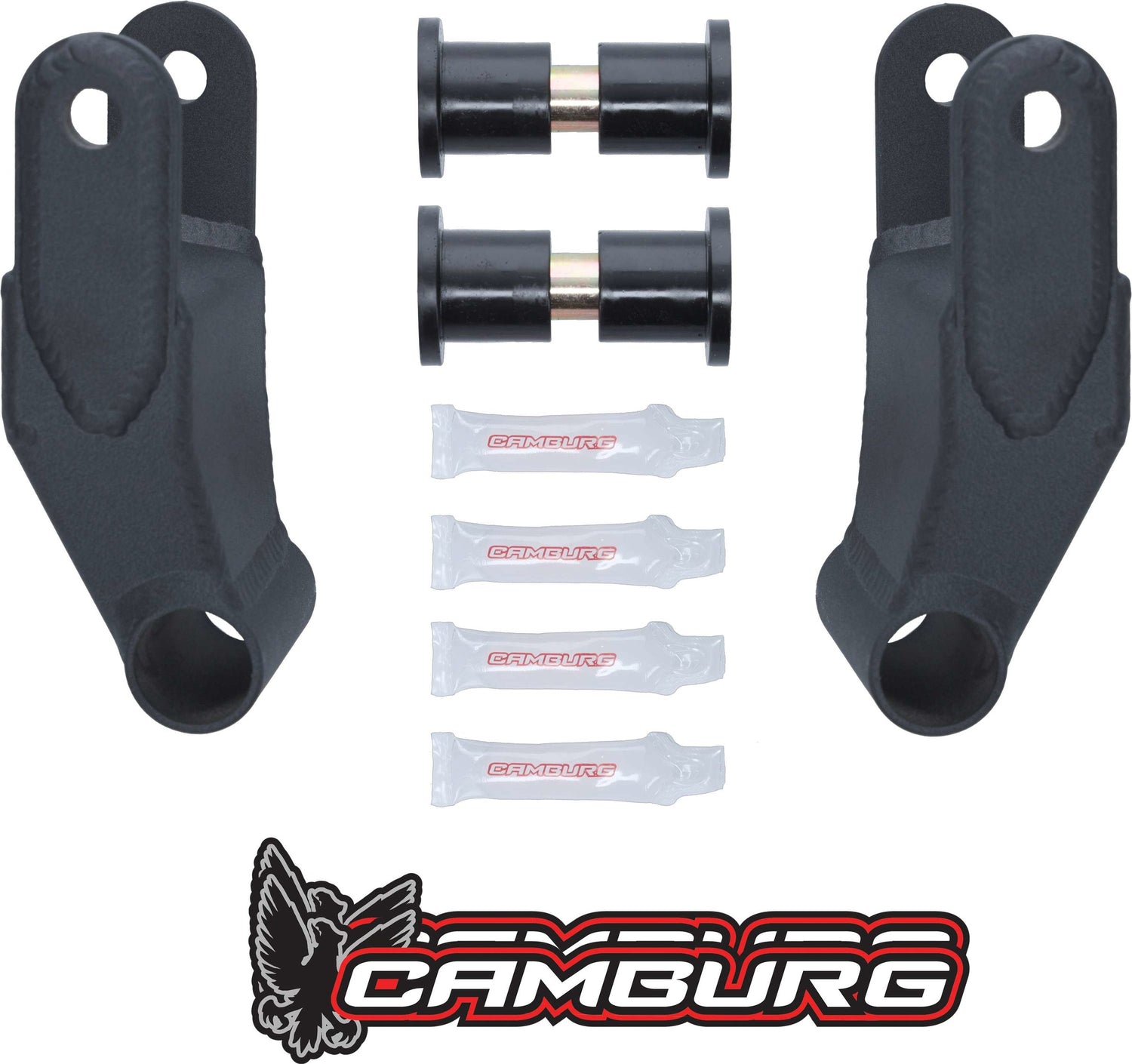

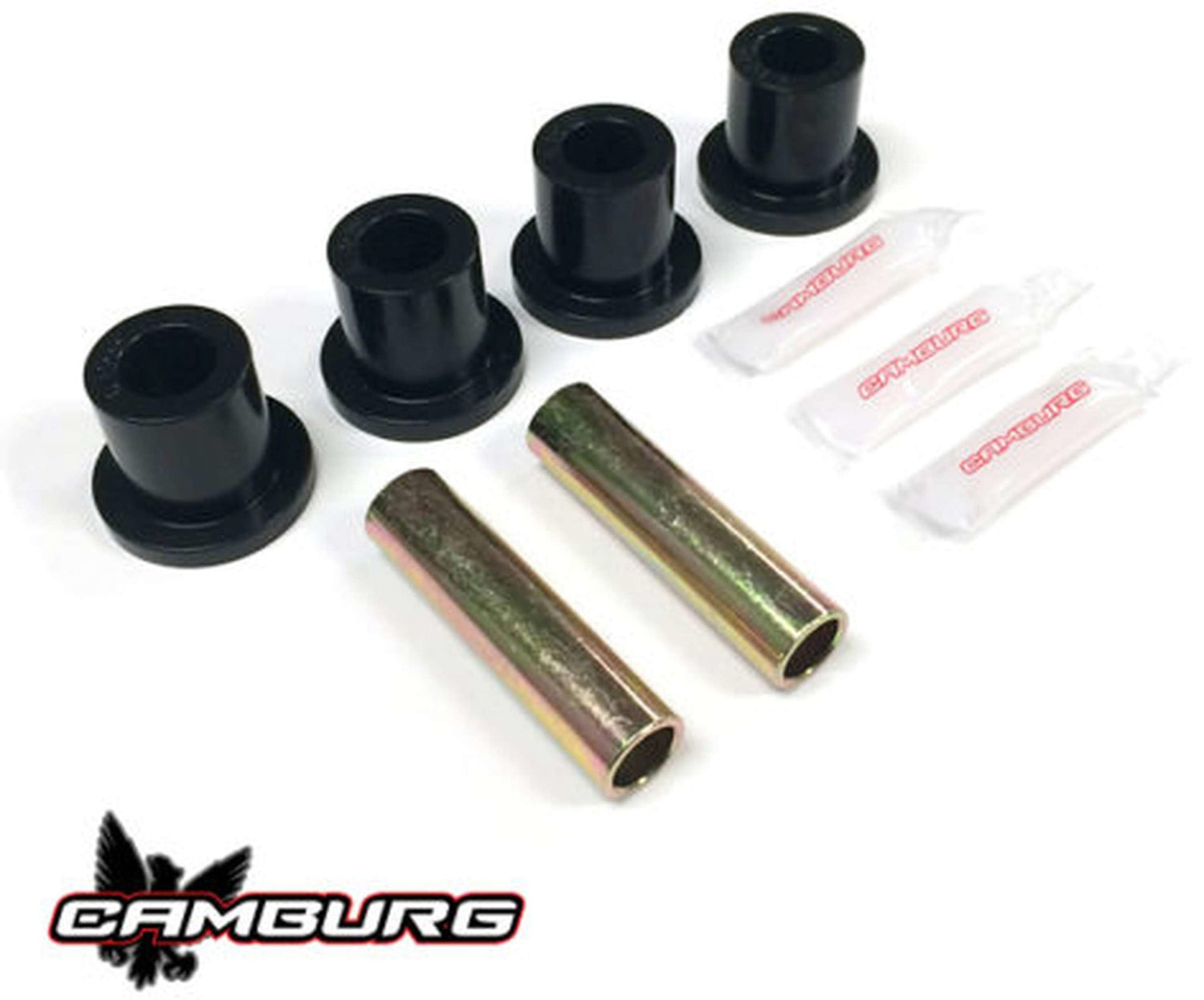

Our extended shackle is designed around using Deaver leaf springs but can also be used with stock springs. We’ve updated the design to a fully boxed/sealed version so they don’t have the dimple dies. These are longer length than the stock shackles and allow for maximum wheel travel. Using polyurethane bushings keeps them from deflecting under articulation like the stock ones and also allows them to pivot smoother and unrestricted. The stock shackles are too short and limit droop. These are 1.5" longer than stock. Since the shackles are longer, they will lower the ride height compared to the stock shackles. These fit the OEM 3" wide leaf springs (3.50" with bushings).On Bronco's you need to clearance the body seam behind the shackle to it doesn't hit it on compression unless you use a drop hanger which will raise the ride height back up. These are laser cut from HRPandO steel, CNC formed, MIG welded and powder coated textured black. These shackles are 6" eye to eye in length. Fully boxed design Extended length Increased wheel travel Smoother action and less deflection Made in the USA.
- Made in the USA
- Smoother action and less deflection
- CAD Designed, CNC Laser Cut and Formed
