Camburg CAM-020103 - 4.00 Rear Axle Housing Brake Caliper Tabs (13in. Rotor x 3.5in. Spacing) (pair)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Camburg CAM-020103 - 4.00 Rear Axle Housing Brake Caliper Tabs (13in. Rotor x 3.5in. Spacing) (pair)

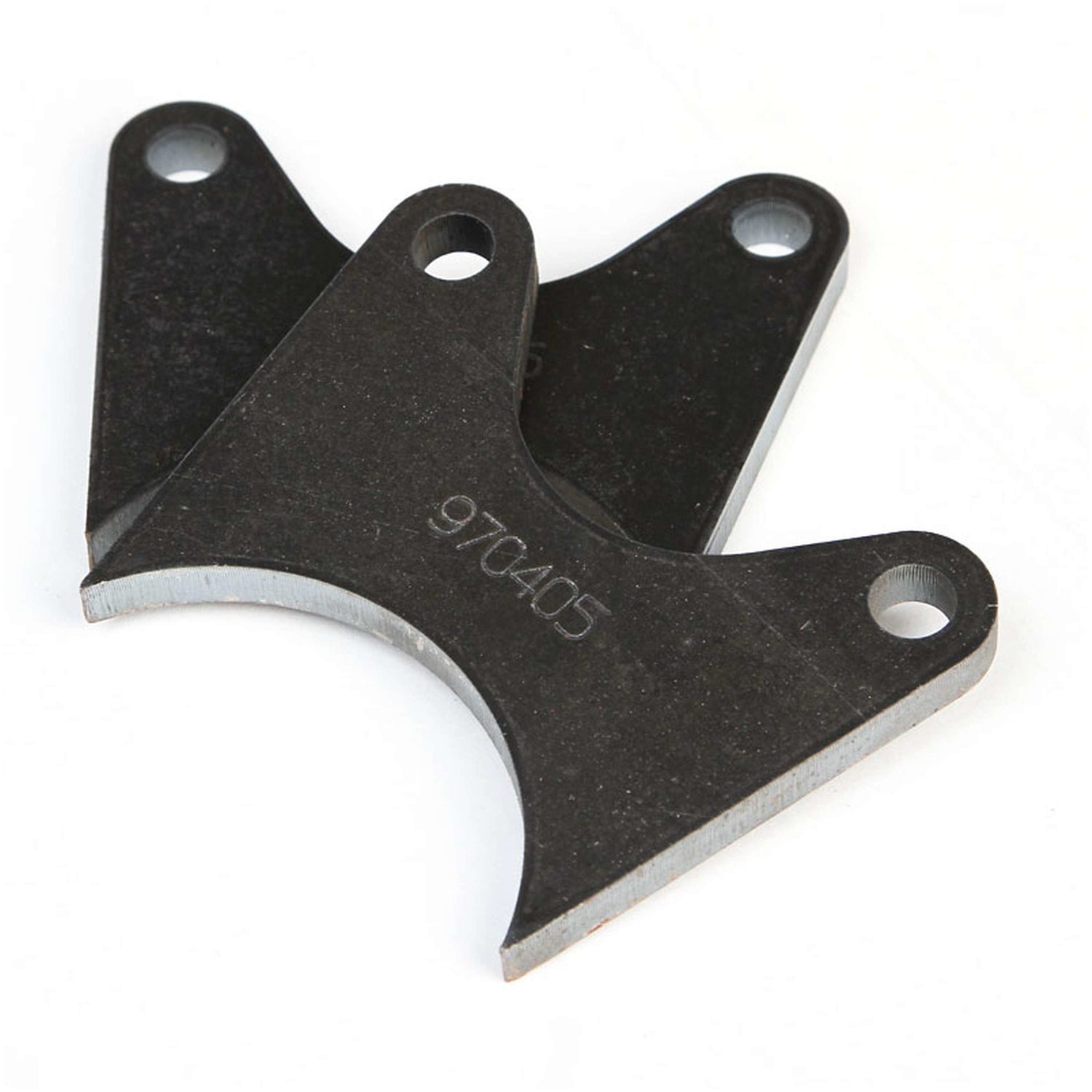

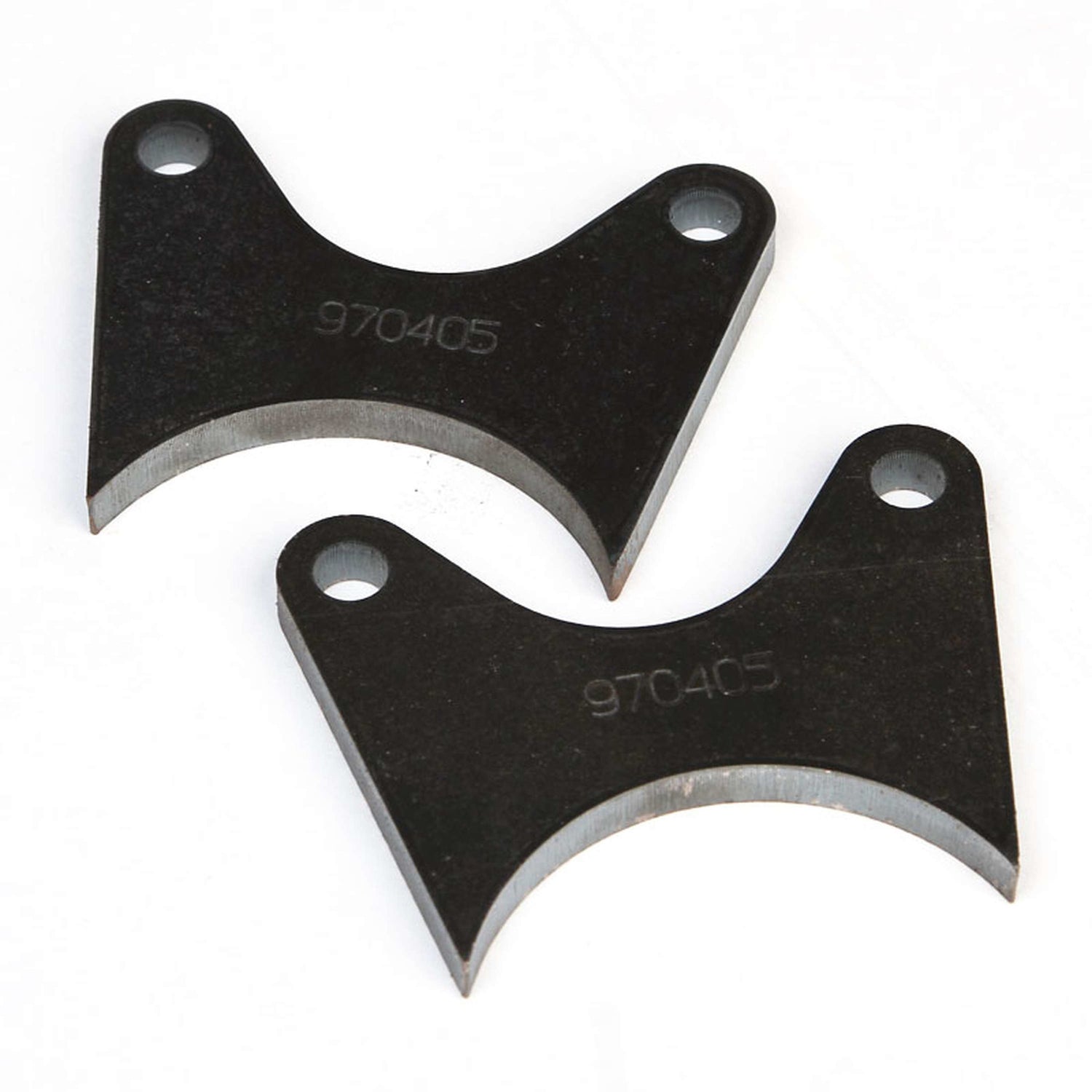

Camburg 4.00" Rear Axle housing Brake Caliper Tabs (13.00" Rotor x 3.50" Spacing)

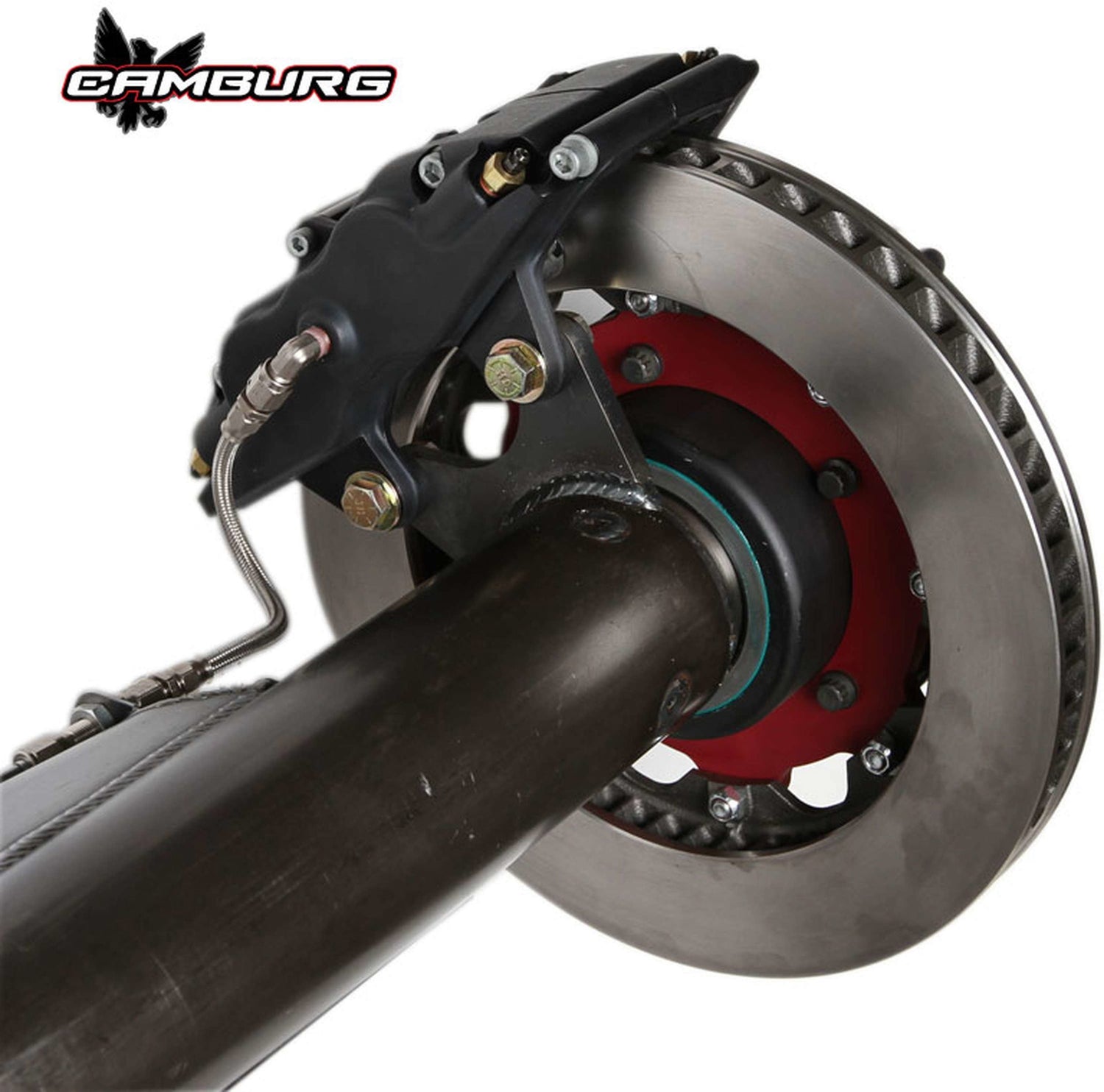

These are the brake caliper tabs we use when building a Camburg rear end. These are designed for Wilwood's 3.5" lug spacing. They also work with radial mount calipers with the proper machined adapters. These are CNC laser cut from thick 3/8" steel and are setup to be through bolted with a 7/16" bolt. These can be MIG or TIG welded. Select your axle housing tube size and the brake rotor diameter. These tabs work with the following calipers. Wilwood 4 Piston Superlite Wilwood 6 Piston Superlite with adapter #250-6309 Wilwood Aero6 with adapter #250-14046 Wilwood Aero6-ST with adapter #250-14046.
- 3/8" Steel
- CNC Laser cut
- Can be MIG or TIG welded
