Brothers Trucks HBU7200DISCDISC - Hydraulic Assist Conversion

Brothers Trucks HBU7200DISCDISC - Hydraulic Assist Conversion

Brothers Trucks Hydraulic Assist Conversion

Compatible with 1967-1972 Chevrolet/GMC C/K Series Truck, Blazer/Jimmy & Suburban

Hydraulic brake ssist units are powered by hydraulic pressure from the power steering pump. These units do not require a vacuum source and can generate between 1200 to 2000 psi to the calipers. This system has several advantages, such as not requiring a external vacuum pump for high performance motors, a small bore master cylinder is not required, and firewall & valve cover and/or frame mounted clearance is increased.

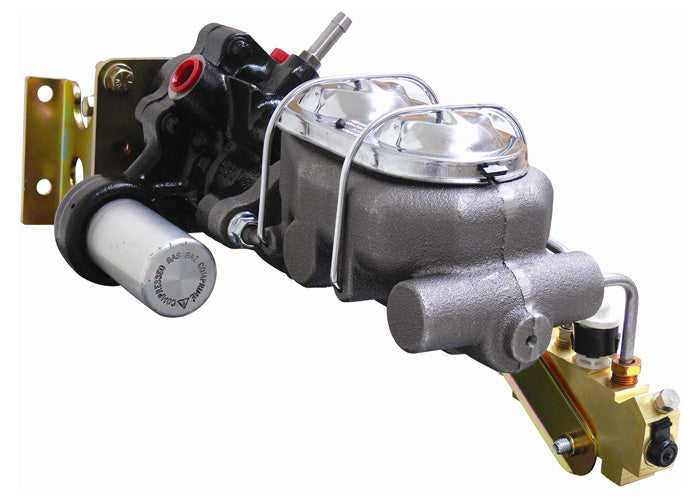

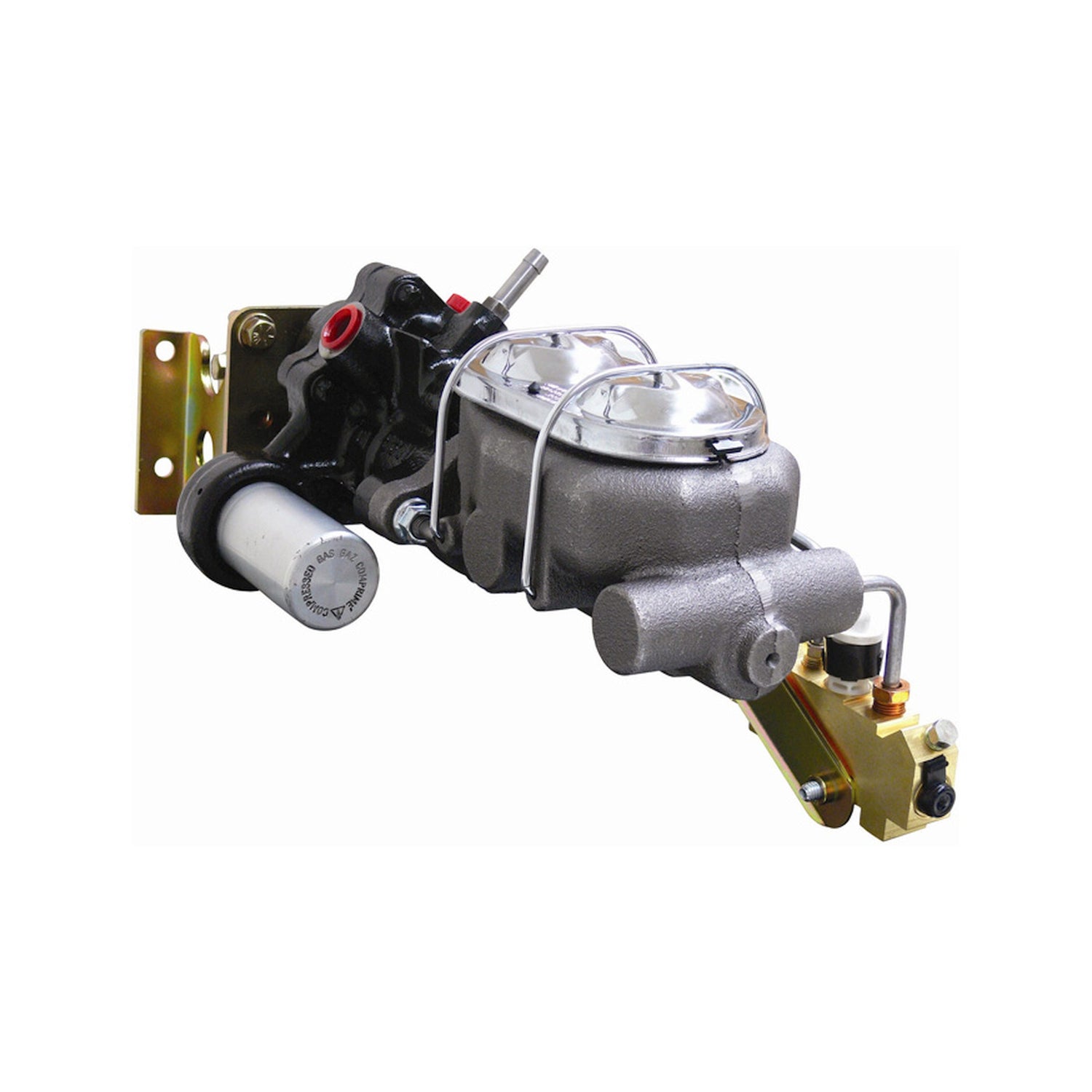

• Hydroboost Power Brake Conversion Kit
• Use with front and rear disc brake systems
• Includes hydroboost unit, master cylinder, brake proposioning valve, and mounting bracket to firewall
• Uses power steering hydraulic pressure to provide power brakes - does not require any engine vacuum, but must have power steering for hydrualic pressure to operate system
• Smaller size than typical vacuum operated brake booster - for extra valve cover and firewall clearance
