Brothers Trucks 5-5559-9-3 - 1955-59 CHEVY / GMC TRUCK RADIATOR
Brothers Trucks | SKU:
JNFW-5-5559-9-3
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

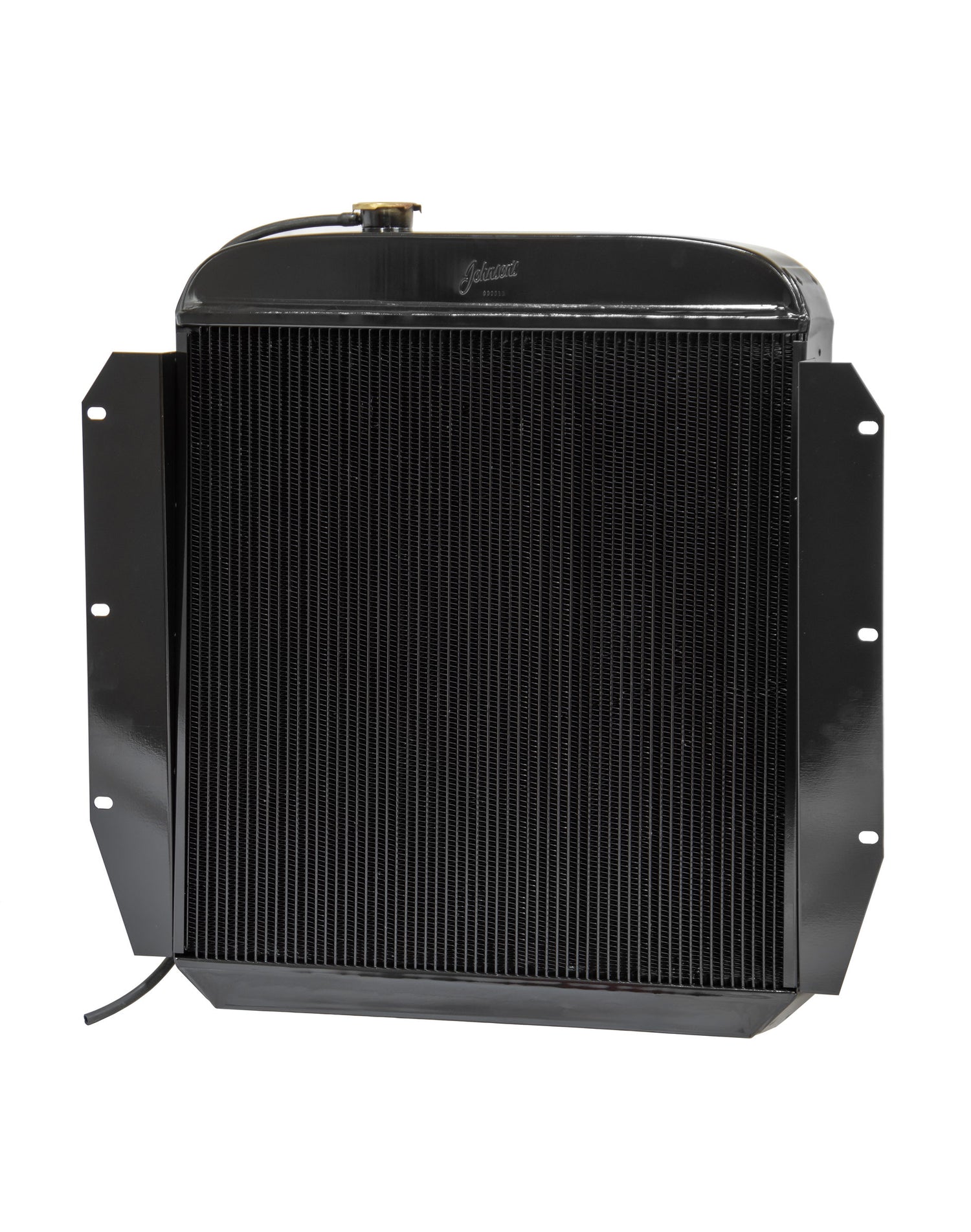

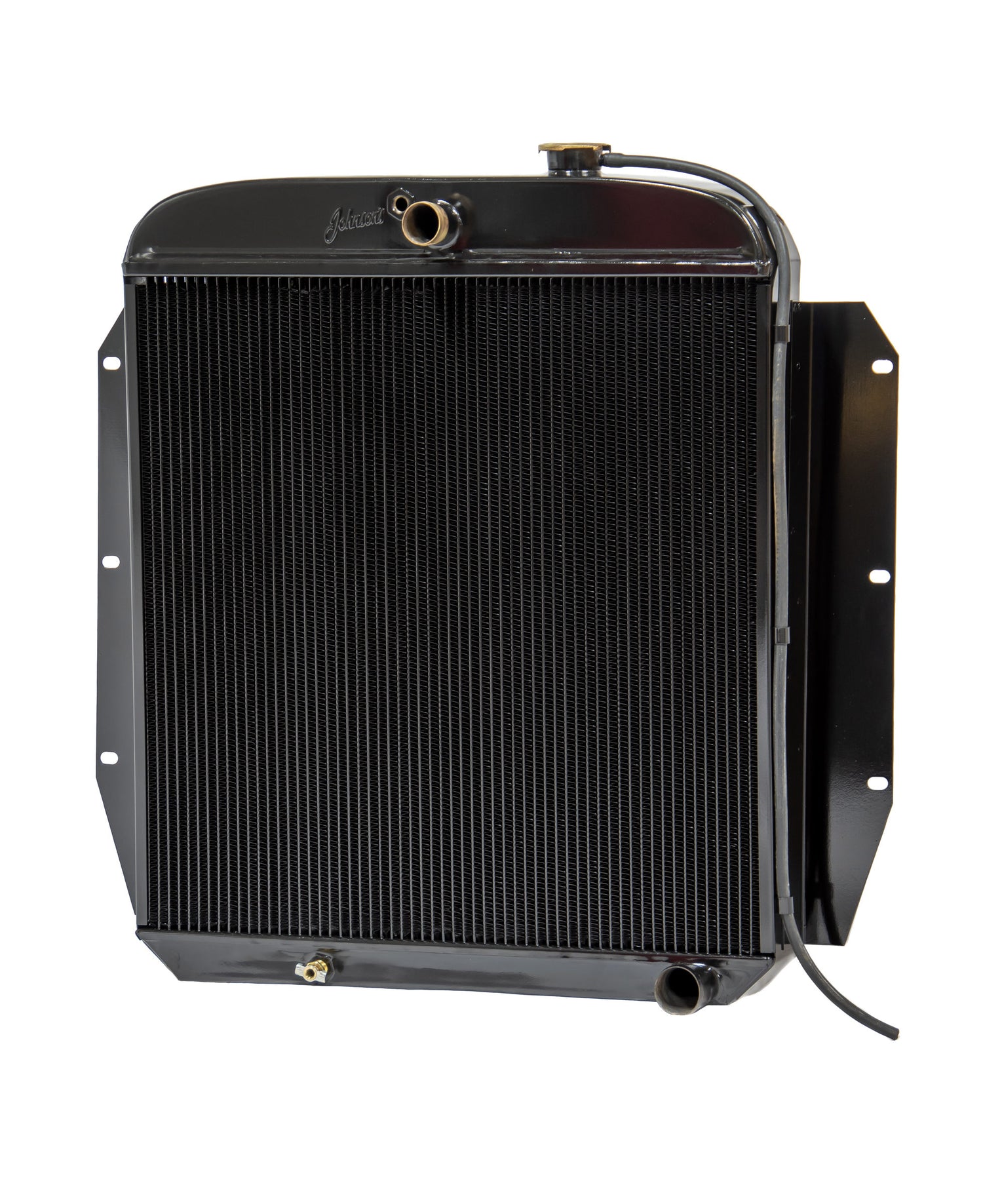

Brothers Trucks 5-5559-9-3 - 1955-59 CHEVY / GMC TRUCK RADIATOR
1955-59 CHEVY / GMC TRUCK RADIATOR
Johnson’s Radiator Works radiators feature a 1.250" top outlet and 1.500" bottom outlet, with 1/4" steam port ideal for the best cooling efficiency possible. Built as a direct fit for a stock replacement complete with the appropriate connections. Made with heavy gauge steel side brackets and mounting holes pre-stamped. Includes an optional built-in oil cooler for automatic transmissions. Johnsons has a 5 year full replacement warranty covering labor as well.
- Engine - LS
- A/C - No
- Transcooler - No
- Top Outlit - 1.250"
- Top Outlit Location - Center
- Bottom Outlit - 1.500"
- Bottom Outlit Location - Right
Brand: Brothers Trucks
Category: Belts and Cooling
Category: Cooling
Category: Exterior
Category: Restoration
Coolant Hose Inlet Connection Type: 1.250"
Coolant Hose Outlet Connection Type: N/A
Coolant Level Indicator Port: No
Core Color: Black
Core Construction: Copper
Core Construction: Tube-and-Fin
Core Dimension: 20.500 x 20.437
Core Fin Quantity: N/A
Core Finish: Powder Coated
Core Height: 26.187
Core Length: 25.875
Core Material: Brass
Core Material: Copper
Core Row Quantity: 4
Core Thickness: 2.955
Core Tube Inside Diameter: N/A
Core Type: N/A
Core Width: 3.250
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: N/A
Emission Code: 6
End Tank Color: N/A
End Tank Construction: Fabricated
End Tank Finish: Powder Coated
End Tank Material: Aluminum
Engine Oil Cooler Diameter: N/A
Engine Oil Cooler Fitting Diameter: N/A
Engine Oil Cooler Fitting Gender: N/A
Engine Oil Cooler Fitting Type: N/A
Engine Oil Cooler Fittings Distance Apart: N/A
Engine Oil Cooler Included: No
Engine Oil Cooler Length: N/A
Engine Oil Cooler Number of Plates: N/A
Engine Oil Cooler Type: N/A
External Transmission Oil Cooler Location: N/A
Fan Shroud Mount Hole Shape: Round
Fluid Capacity: N/A
Frame Included: Yes
Grade Type: Regular
Hose Location Inlet: Center
Hose Location Outlet: Passenger
Inlet Connector Type: Hose
Inlet Diameter: 1.250
Inlet Header Length: N/A
Inlet Header Width: N/A
Inlet Location: Top Center
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Bolt On
Mounting Type: Bolted
Mounting Type: Bracket Mount
Outlet Connector Type: Hose
Outlet Diameter: 1.500
Outlet Header Length: N/A
Outlet Header Width: N/A
Outlet Location: Bottom Right
Overall Height: 26.187
Overall Length: 26.187
Overall Width: 3.250
part type: Radiator
Pass Quantity: Single Pass
Product Type: Radiator
Radiator Cap Included: Yes
steam port: 1/4
Sub Category: Radiators, Coolers and Related Components
Tank Material: Brass
Tank Material: Copper
Thermostat Included: No
Transmission Oil Cooler Diameter: N/A
Transmission Oil Cooler Distance between Fittings: N/A
Transmission Oil Cooler Fitting Diameter: N/A
Transmission Oil Cooler Fitting Gender: N/A
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
Transmission Oil Cooler Length: N/A
Transmission Oil Cooler Plate Quantity: N/A
Transmission Oil Cooler Type: N/A
