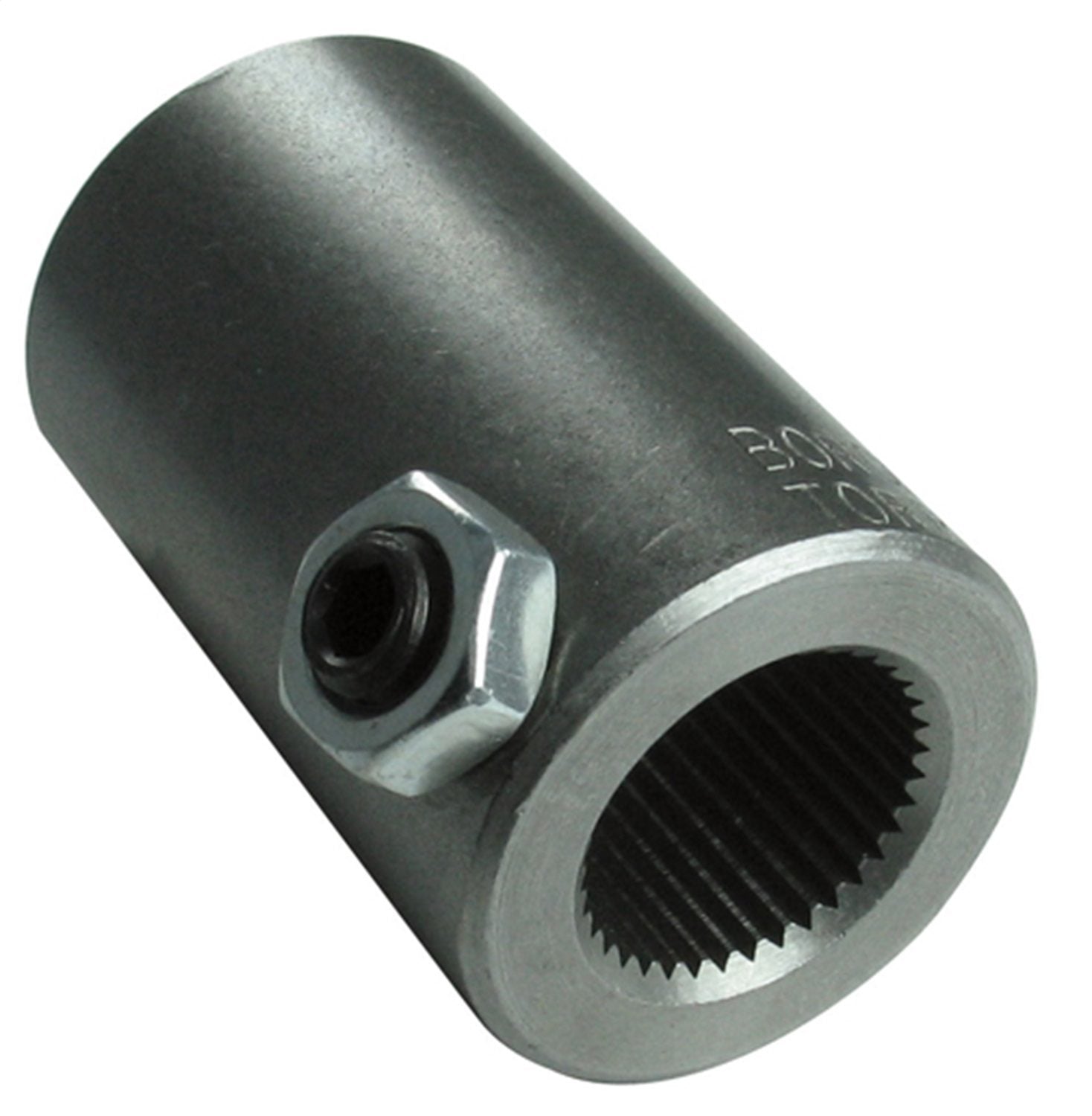

Borgeson 313434 - - Steering Coupler - P/N: - Steel steering coupler. Fits 3/4 in.-36 Spline X 3/4 in.-36 Spline

Borgeson 313434 - - Steering Coupler - P/N: - Steel steering coupler. Fits 3/4 in.-36 Spline X 3/4 in.-36 Spline

Steering Shaft Coupler - 3/4 in 36 Spline to 3/4 in 36 Spline - Steel - Natural - Universal - Each

Steel steering coupler. Fits 3/4in.-36 Spline X 3/4in.-36 Spline.

Using a 2 in. straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1 in.- 48 and 1 in. DD couplers have a 1-1?4 in. hole that will accept either an adapter to reduce inside diameter to 3/4 in. smooth or another splined or 3/4 in. DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler's steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.

• Smaller diameter than a universal joint. Rigid steel couplings do not count as a pivot point. Joins two shafts to create an extension. Safe to weld. Precision machined from solid billet steel. Made in the USA.
