BMR SB039R - 13-15 5th Gen Camaro Front & Rear Sway Bar Kit w/ Bushings - Red

BMR SB039R - 13-15 5th Gen Camaro Front & Rear Sway Bar Kit w/ Bushings - Red

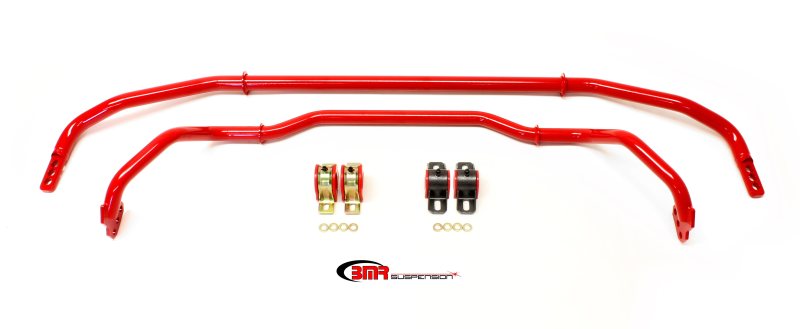

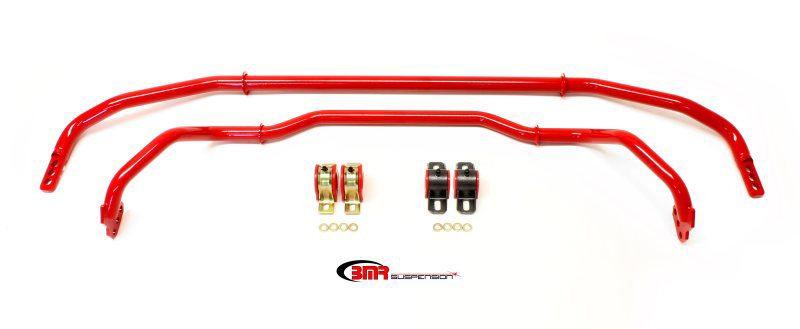

Sway Bar Kit With Bushings, Front (SB038) And Rear (SB033)

BMR's suspension designed the SB039 sway bar kit for street performance, autocross, and road race applications.

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB039 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 29mm (front) and 32mm (rear) DOM tubing, the SB039 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.
