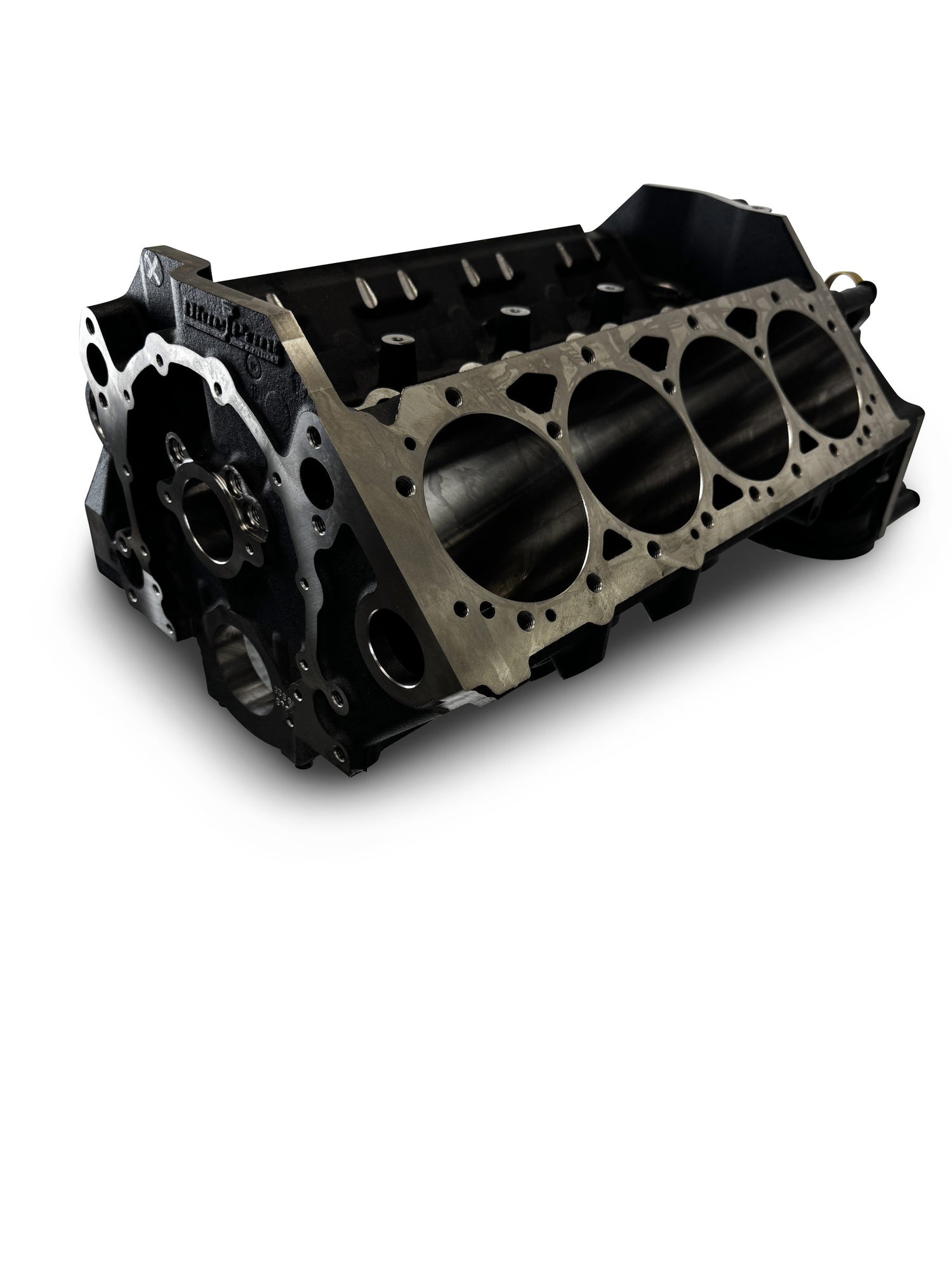

Blueprint Engines BPP12110344 - GM Small Block Compatible Bare Block – 9.025 Deck x 4.000 Bore, 2-Piece Seal, 350 Main, SIAM, Ductile Cast Main Caps
Blueprint Engines | SKU:
FMKG-BPP12110344
Sale price
$2,29999
Regular price
$2,52999
Unit price
/
Unavailable
$230.00 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Blueprint Engines BPP12110344 - GM Small Block Compatible Bare Block – 9.025 Deck x 4.000 Bore, 2-Piece Seal, 350 Main, SIAM, Ductile Cast Main Caps
Engine - Bar Block - 4.000 in Bore - 9.025 in Deck - 350 Main - 4-Bolt Main - 2-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Small Block Chevy - Each
BluePrint Engines GM Small Block Compatible Bare Block – 9.025 Deck x 4.000 Bore, 2-Piece Seal, 350 Main, SIAM, Ductile Cast Main Caps
BluePrint Engines Bare Block - 454 c.i. - SBC, 2PC, SIAM, 9.025 x 4.000, 350MAIN, CAST MC
- BluePrint Engines Bare Block - 454 c.i. - SBC, 2PC, SIAM, 9.025 x 4.000, 350MAIN, CAST MC
Cylinder Bore (Rough): 3.995" to 3.997"
Cylinder Bore (Max): 4.250"
Cam Bearing Bore Id: 2.000"+/- .001"
Cam Bearings: Durabond GMP-8
Camshaft Position: OEM
Cam Drive / Timing Set: OEM equivalent
Cam Retaining Plate: OEM
Cubic Inch (Max): 454
Cylinder Wall Thickness: .230" Nominal @ Max Bore
Water Jacket Style: Siamese
Cylinder Skirt Length: 5.800" Nominal
Deck Height: 9.025" +.005" / -.000"
Deck Thickness:: .600" Nominal
Freeze / Core Plugs: 1-5/8" x 10
Head Bolt Threads: 7/16-14 UNC
Lifter Bores: .8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters): OEM W/Roller Provisions
Main Bearing Bore (Line Honed): 350 Main - 2.6402" - 2.6410"
Main Bearing Caps: Ductile Cast Iron 4-Bolt Splayed
Main Cap Bolts: 7/16-14 Inner / 3/8-16 splayed
Main Fastener Tensile Strength: 180,000 to 210,000 PSI
P1 Main Stud Kit P/N:: TBD
Arp Main Stud Kit P/N:: TBD
Material (Block): EN-GJL-250 Iron
Oil System: Priority Main
Oil Pump: OEM
Oil Filter: OEM
Oil Pan: OEM
Fuel Pump: OEM
Rear Main Seal: 2 piece
Starter: OEM
Stroke (Max): Cast in clearance 3.875"
Timing Cover: OEM
Weight With Main Caps: 170-190lbs
Quantity: Sold Individually
