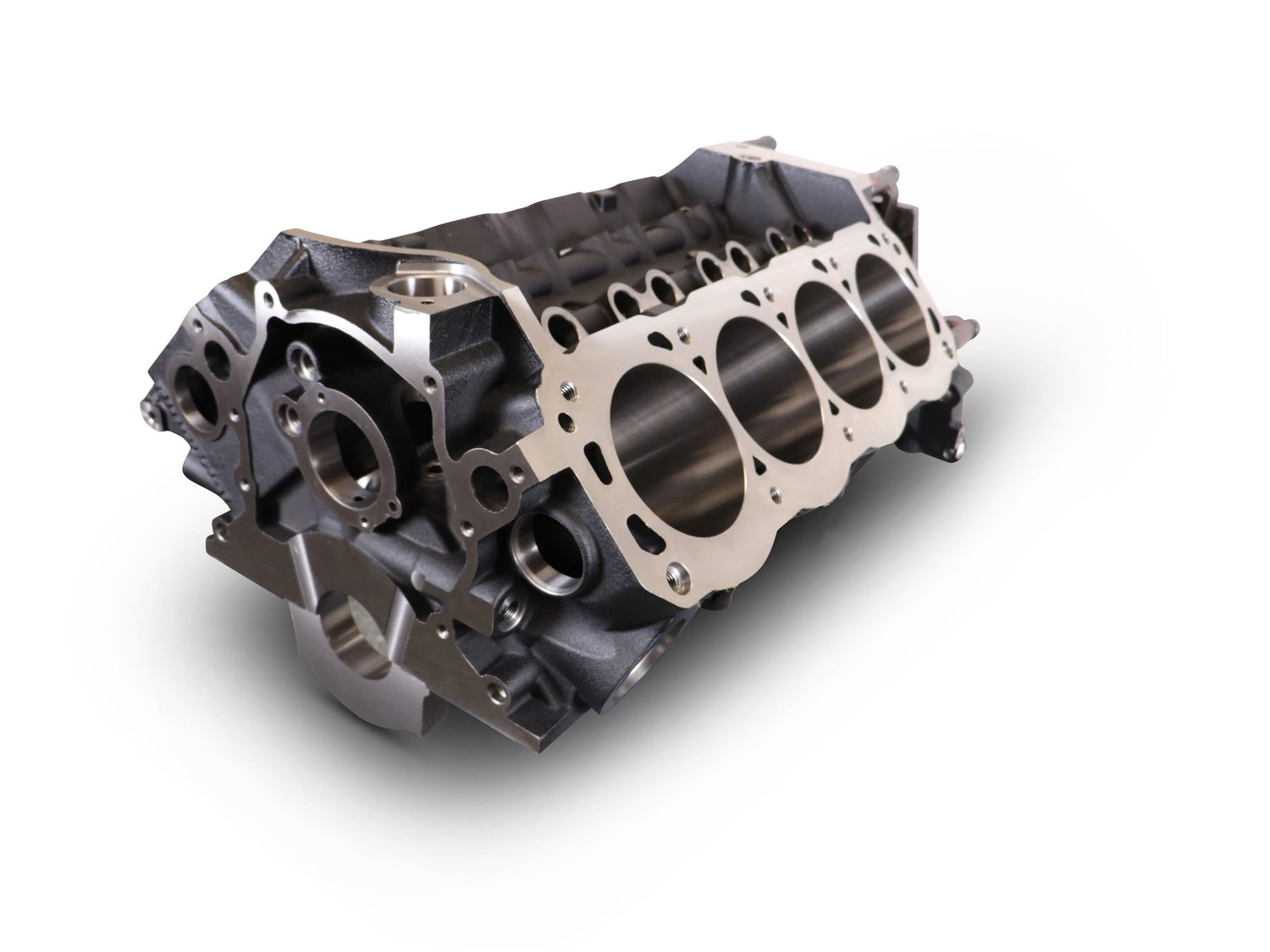

Blueprint Engines BPP12110335 - Small Block Ford Compatible 351 Bare Block – 9.500 Deck x 4.125 Bore, SIAM, Steel Billet Main Caps
Blueprint Engines | SKU:
FMKG-BPP12110335
Sale price
$4,39999
Regular price
$4,83999
Unit price
/
Unavailable
$440.00 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Blueprint Engines BPP12110335 - Small Block Ford Compatible 351 Bare Block – 9.500 Deck x 4.125 Bore, SIAM, Steel Billet Main Caps
Engine - Bare Block - 4.125 in Bore - 9.500 in Deck - 4 Bolt Main - 2-Piece Seal - Billet Steel Main Caps - Cast Iron - Natural - Ford Cleveland - Each
BluePrint Engines Small Block Ford Compatible 351 Cleveland Bare Block – 9.500 Deck x 4.125 Bore, SIAM, Steel Billet Main Caps
BluePrint Engines Bare Block - 460 c.i. - SBF 351, SIAM, CLEV, 9.500 x 4.125, BILLET MC
- BluePrint Engines Bare Block - 460 c.i. - SBF 351, SIAM, CLEV, 9.500 x 4.125, BILLET MC
Configuration: 351
Cylinder Bore (Rough): 4.120" to 4.122"
Cylinder Bore (Max): 4.165"
Cam Bearing Bore Id: 2.2046"+/- .0005"
Cam Bearings: Durabond 351HP
Camshaft Position: OEM
Cam Drive / Timing Set: OEM equivalent
Cam Retaining Plate: OEM
Cubic Inch (Max): 460
Cylinder Wall Thickness: .160" nominal @ 4.165" bore
Water Jacket Style: Siamese
Cylinder Skirt Length: 5.800" Nominal
Deck Height: 9.500" +.005" / -.000"
Deck Thickness:: .600" Nominal
Freeze / Core Plugs: 1-5/8" x 10 BPE # 10110016
Head Bolt Threads: 1/2-13 UNC x 1.35 deep
Lifter Bores: .8757" +/- .0005"
Lifter Retainer (If Not Using Tie Bar Lifters): OEM W/Roller Provisions
Main Bearing Bore (Line Honed): 2.9417"-2.9425" (Cleveland)
Main Bearing Caps: Billet Steel 4-Bolt splayed
Main Cap Bolts: 1/2-13 Inner / 3/8-16 splayed
Main Fastener Tensile Strength: 180,000 to 210,000 PSI
P1 Main Stud Kit P/N:: TBD
Arp Main Stud Kit P/N:: TBD
Material (Block): EN-GJL-250 Iron
Oil System: Priority Main
Oil Pump: OEM
Oil Filter: OEM
Oil Pan: OEM
Fuel Pump: OEM
Starter: OEM
Stroke (Max): 4.250"
Timing Cover: OEM
Weight With Main Caps: 200 to 220lbs
Quantity: Sold Individually
