Bilstein F4-BE5-F135-M2 - Motorsport AK Series GM G/H Body Rear Monotube Shock Absorber

Bilstein  |  SKU: BIL-F4-BE5-F135-M2
$12516 $13768
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

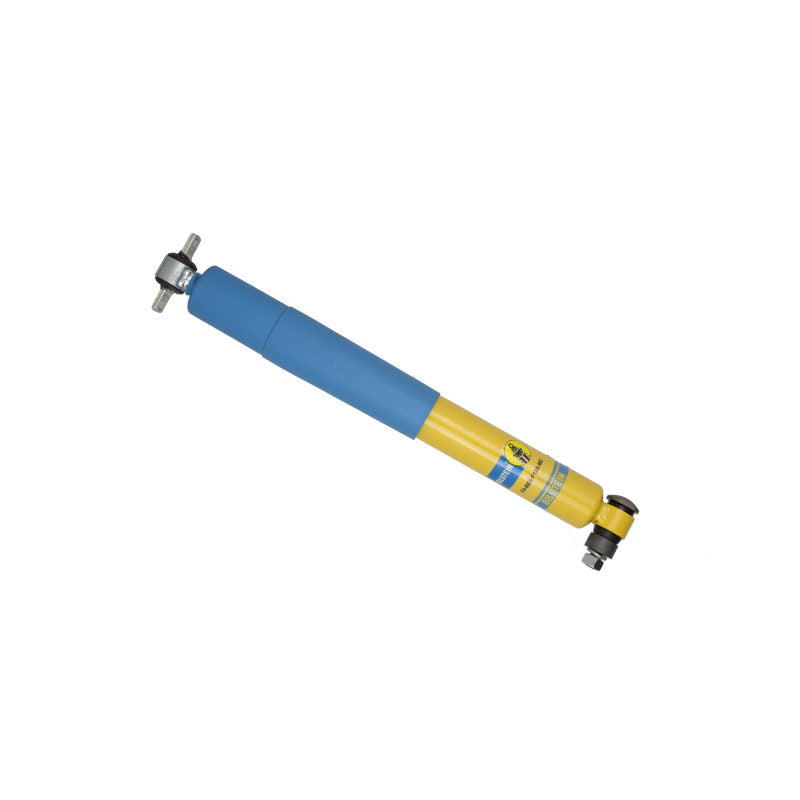

Bilstein F4-BE5-F135-M2 - Motorsport AK Series GM G/H Body Rear Monotube Shock Absorber

Shock - AK Series - Monotube - 13.11 in Compressed / 20.28 in Extended - 1.81 in OD - Digressive - Steel - Yellow Paint - Rear - Street Stock - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
PartType: Shocks / Struts
Lower Mount Type: Cantilever
Upper Mount Type: Bar Pin
Extended Length (IN): 20.28
Spring Seat Included: No
Extended Length (MM): 515.0
Rebound @0.26m/s: 785
Segment: Motorsports
Body Design: Stock Mount Smooth Body
Internal Design: Monotube
Piston Type: Digressive
Adjustable Damping: Non-Adjustable
Boot Included: Blue Straight
Spring Max Travel (IN): 7.17
Finish: Yellow Paint
Collapsed Length (IN): 13.11
Body Diameter (ID): 46mm
Collapsed Length (MM): 333.0
Body Material: Steel
Series: AK Series
Compression @0.26m/s: 295
