Bilstein F4-BE5-F132-M0 - Shock Absorbers
Bilstein | SKU:
BIL-F4-BE5-F132-M0
Sale price
$12516
Regular price
$13768
Unit price
/
Unavailable
$12.52 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

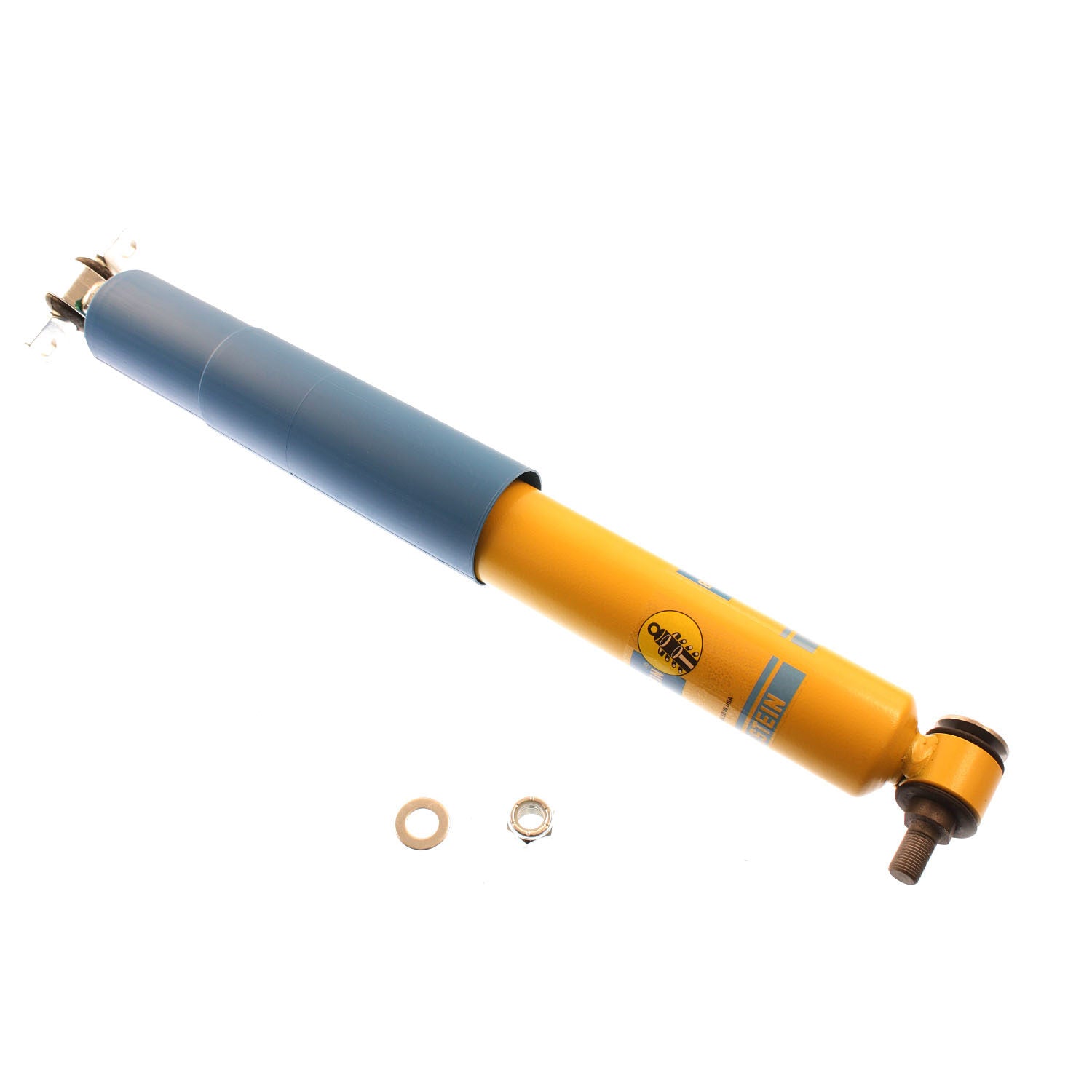

Bilstein F4-BE5-F132-M0 - Shock Absorbers
Shock - AK Series - Monotube - 13.11 in Compressed / 20.28 in Extended - Linear - Steel - Yellow Paint - Each
46mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Compression @0.52m/s: 520
Extended Length (MM): 515.0
Boot Included: Blue Straight
Internal Design: Monotube
Rebound @0.26m/s: 430
Collapsed Length (MM): 333.0
Piston Diameter: 46mm
Rebound @0.52m/s: 670
Series: AK Series
Spring Seat Included: No
Body Design: Stock Mount Smooth Body
Body Material: Steel
Finish: Yellow Paint
Stroke/Travel Length (IN): 7.17
Adjustable Damping: Non-Adjustable
Piston Type: Digressive
Extended Length (IN): 20.28
Upper Mount Type: Bar Pin
PartType: Shocks / Struts
Shaft Diameter: 11mm
Segment: Motorsports
Lower Mount Type: Cantilever
Collapsed Length (IN): 13.11
Stroke/Travel Length (mm): 182.1
Compression @0.26m/s: 335
