Bilstein F4-BE3-H035-M0 - Shock Absorbers

Bilstein  |  SKU: BIL-F4-BE3-H035-M0
$12516 $13768

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

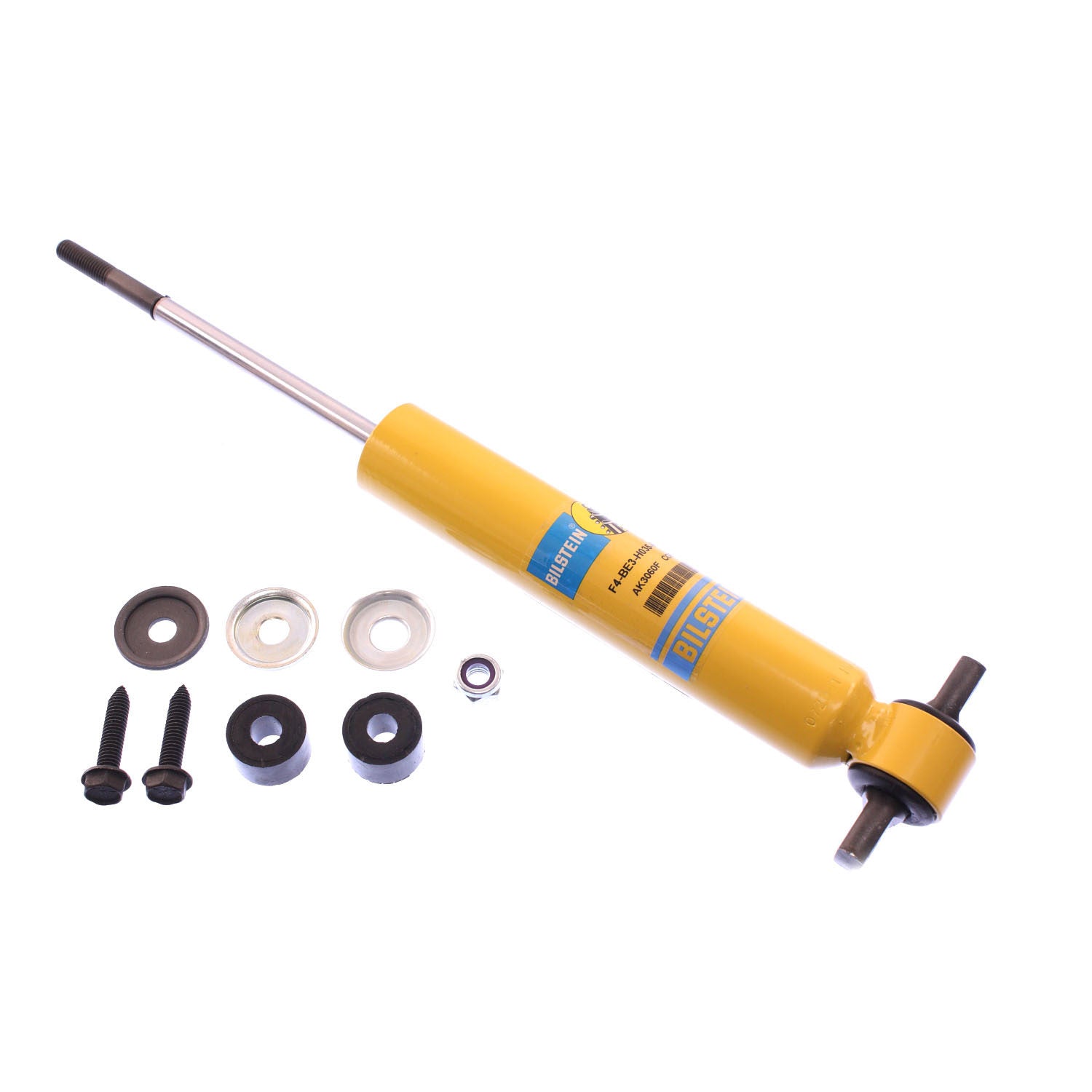

Bilstein F4-BE3-H035-M0 - Shock Absorbers

AK Series - Suspension Shock Absorber

36mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Extended Length (MM): 342.0
Internal Design: Monotube
Piston Diameter: 36mm
Series: AK Series
Spring Seat Included: No
Body Material: Steel
Stroke/Travel Length (IN): 4.73
Adjustable Damping: Non-Adjustable
Extended Length (IN): 13.46
PartType: Shocks / Struts
Segment: Motorsports
Stroke/Travel Length (mm): 120.1
Compression @0.52m/s: 1150
Rebound @0.26m/s: 565
Rebound @0.52m/s: 770
Body Design: Stock Mount Smooth Body
Finish: Yellow Paint
Collapsed Length (IN): 8.73
Piston Type: Digressive
Upper Mount Type: Stem
Shaft Diameter: 11mm
Lower Mount Type: Bar Pin
Compression @0.26m/s: 980
Boot Included: No
Collapsed Length (MM): 221.8
