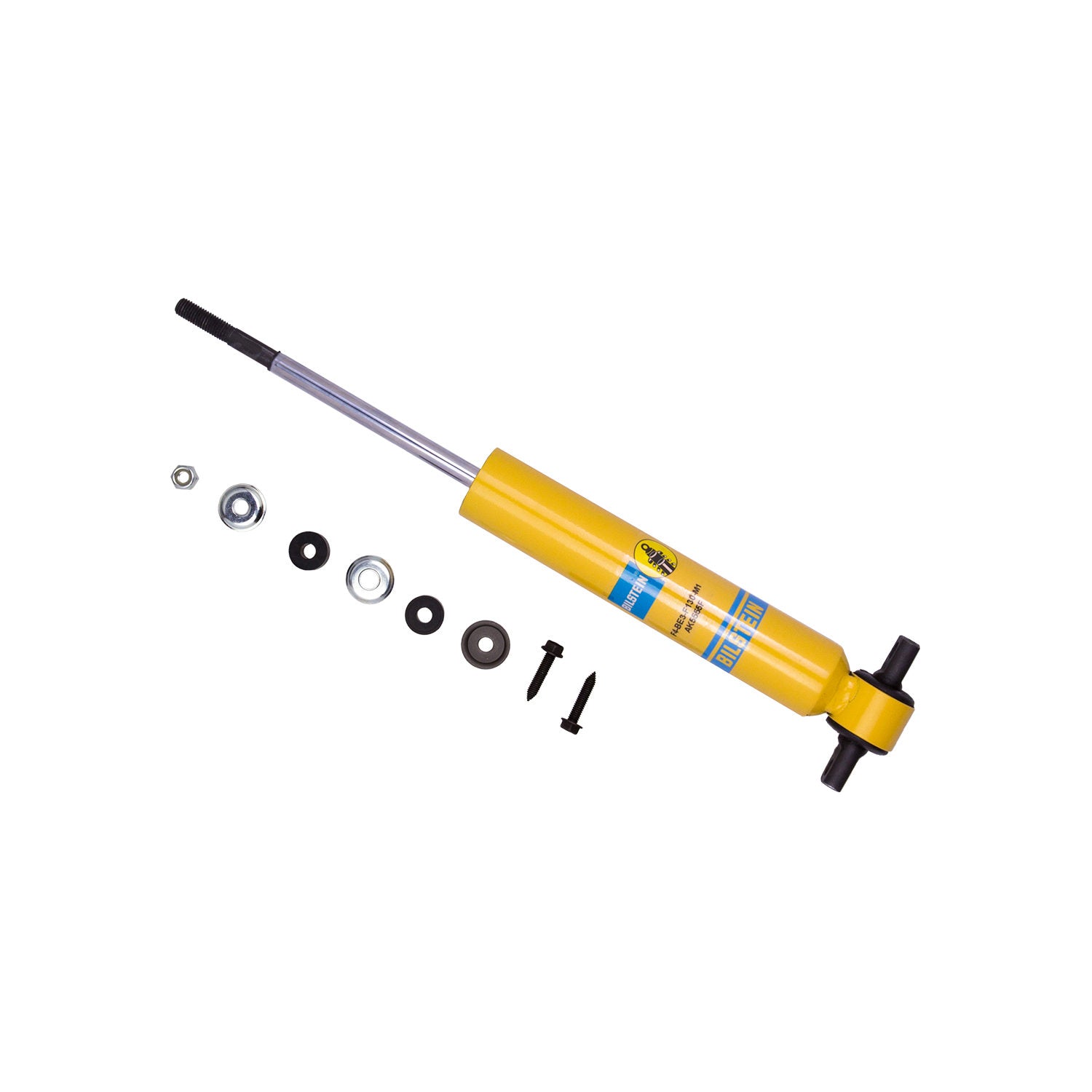

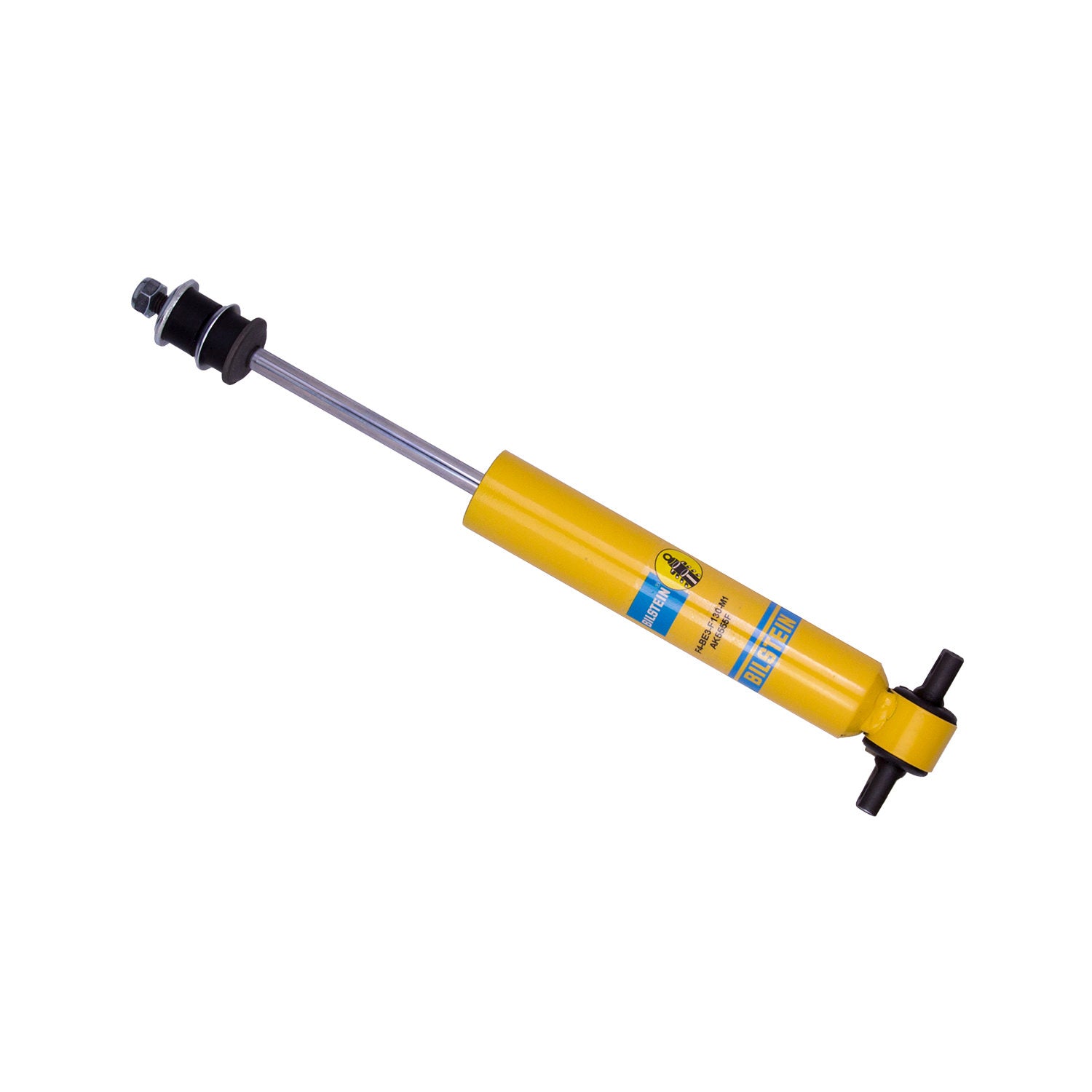

Bilstein F4-BE3-F130-M1 - AK Series Motorsport 36mm Monotube Shock Absorber
Bilstein | SKU:
BIL-F4-BE3-F130-M1
Sale price
$12516
Regular price
$13768
Unit price
/
Unavailable
$12.52 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Bilstein F4-BE3-F130-M1 - AK Series Motorsport 36mm Monotube Shock Absorber
Shock - AK Series - Monotube - 8.73 in Compressed / 13.46 in Extended - 1.42 in OD - Digressive - Steel - Yellow Paint - Front - Street Stock - Each
36mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Segment: Motorsports
Extended Length (IN): 13.46
Collapsed Length (IN): 8.73
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Internal Design: Monotube
Upper Mount Type: Stem
Extended Length (MM): 342.0
Stroke/Travel Length (IN): 4.73
Body Design: Stock Mount Smooth Body
PartType: Shocks / Struts
Series: AK Series
Body Material: Steel
Stroke/Travel Length (mm): 120.1
Rebound @0.26m/s: 1395
Collapsed Length (MM): 221.8
Compression @0.26m/s: 875
Boot Included: No
Finish: Yellow Paint
Shaft Diameter: 11mm
Piston Diameter: 36mm
Lower Mount Type: Bar Pin
Piston Type: Digressive
