Bilstein F4-BE3-C231-H1 - Motorsport 7in S7G-1090 STD Body 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-F4-BE3-C231-H1
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

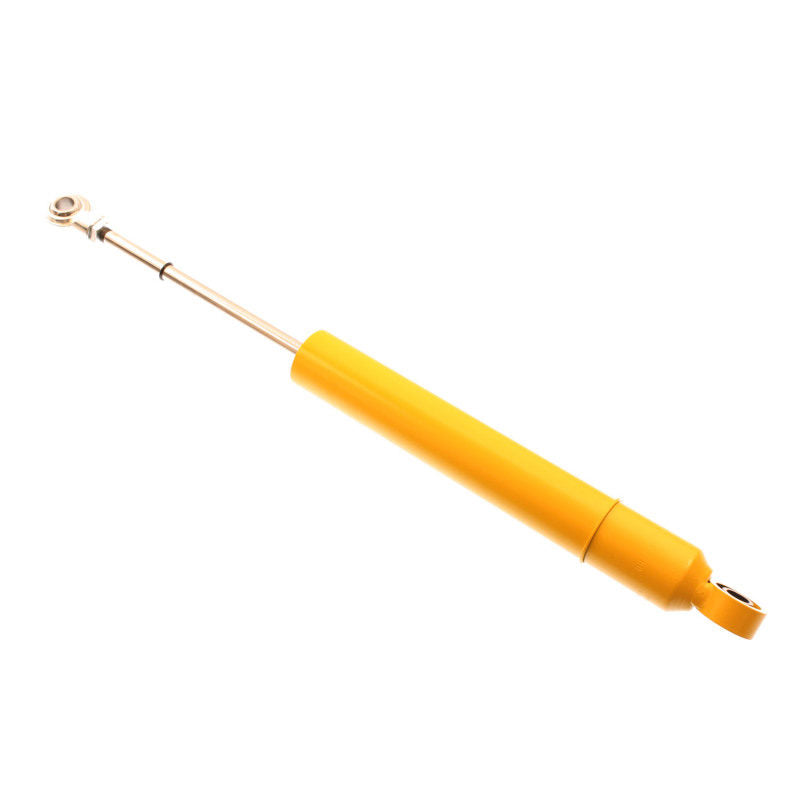

Bilstein F4-BE3-C231-H1 - Motorsport 7in S7G-1090 STD Body 46mm Monotube Shock Absorber

Shock - G Series - Monotube - 12.67 in Compressed / 19.86 in Extended - 1.42 in OD - 1-9 Valve - Digressive - Steel - Yellow Paint - Each

36mm Monotube Shock Absorber

Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.

  • 36mm monotube design ensures consistent, fade-free performance in all conditions
  • Available for standard and coilover applications
  • Designed for Stock Cars, IMCA/UMP Modified, Midgets, Mini-Sprints, Modified Lites and Dwarf Cars
Segment: Motorsports
Extended Length (IN): 19.86
Collapsed Length (IN): 12.68
Adjustable Damping: Non-Adjustable
Spring Seat Included: No
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
Extended Length (MM): 504.5
Stroke/Travel Length (IN): 7.19
Body Design: Smooth Body (Non-coilover)
PartType: Shocks / Struts
Series: G Series
Body Material: Steel
Stroke/Travel Length (mm): 182.6
Rebound @0.26m/s: 865
Collapsed Length (MM): 322.0
Valving Identifier: 1090
Compression @0.26m/s: 670
Boot Included: No
Finish: Yellow Paint
Shaft Diameter: 11mm
Piston Diameter: 36mm
Lower Mount Type: 1/2in Heim
Spring Hardware: B4-BOA-0000187
Piston Type: Digressive
