Bilstein F4-B46-0930-H0 - 7100 Classic Series 46mm 16.24in Length Monotube Shock Absorber
Bilstein | SKU:
BIL-F4-B46-0930-H0
Sale price
$17679
Regular price
$19447
Unit price
/
Unavailable
$17.68 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

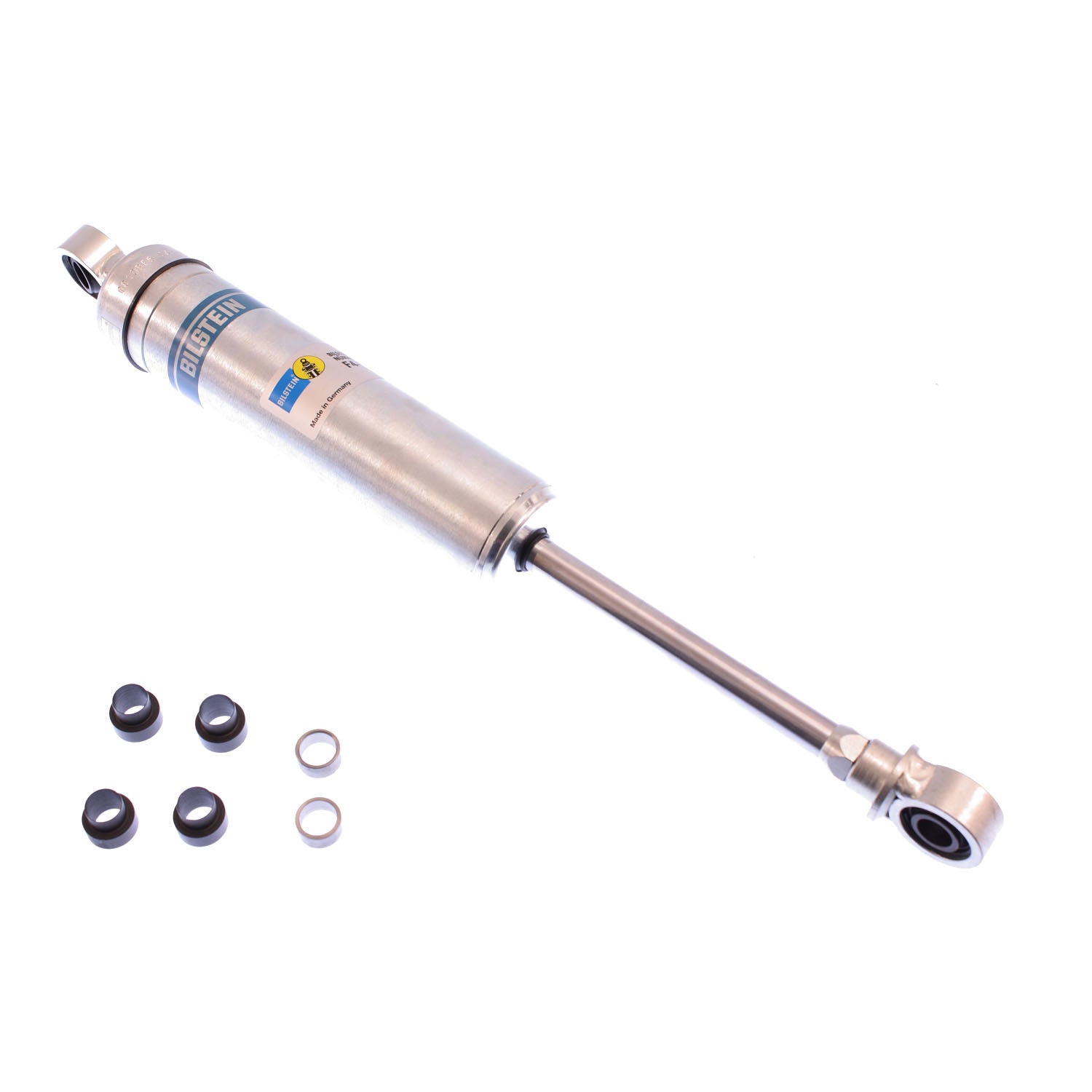

Bilstein F4-B46-0930-H0 - 7100 Classic Series 46mm 16.24in Length Monotube Shock Absorber
M 7100 Classic - Suspension Shock Absorber
46mm Monotube Shock Absorber
Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Upper Mount Type: 1/2in Heim
Extended Length (IN): 16.24
Spring Seat Included: No
Extended Length (IN) Rounded: 16
Extended Length (MM): 412.5
Mount Type: Eye-to-Eye
Rebound @0.52m/s: 3500
Segment: Motorsports
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Spring Max Travel (IN): 5.00
Reservoir: No
Finish: Zinc Plated
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 11.24
Collapsed Length (IN) Rounded: 11
Body Diameter (ID): 46mm
Collapsed Length (MM): 285.5
Series: M 7100 Classic
Compression @0.52m/s: 1600
