Bilstein F4-B46-0204-H0 - Motorsport 5in Coilover Off-Road 46mm Monotube Shock Absorber (Cstm Order Specs Req.)

Bilstein  |  SKU: BIL-F4-B46-0204-H0
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

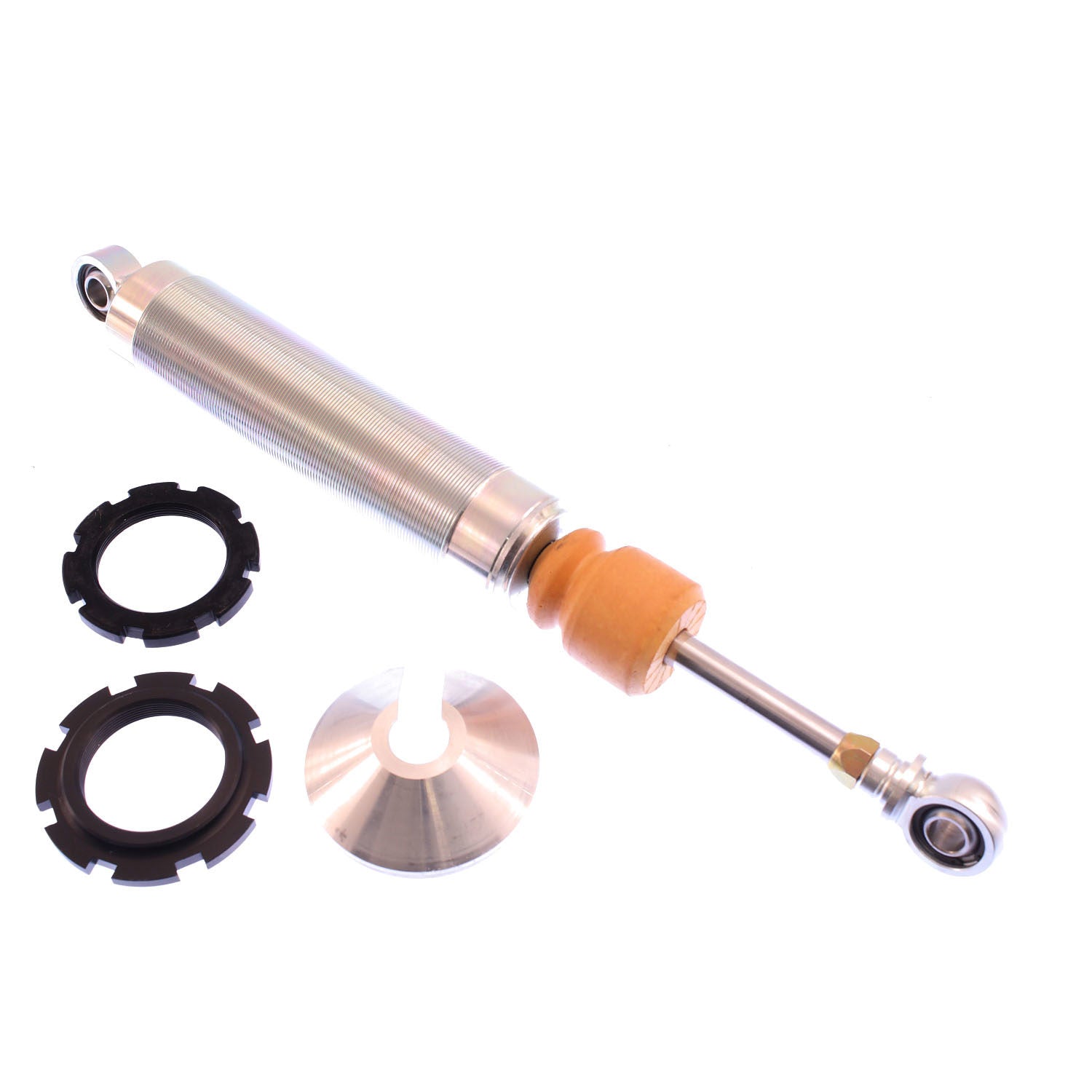

Bilstein F4-B46-0204-H0 - Motorsport 5in Coilover Off-Road 46mm Monotube Shock Absorber (Cstm Order Specs Req.)

M 7100 Classic (Coilover) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Available for standard and coilover applications in a wide variety of lengths
  • Self-adjusting deflective disc valving
Lower Mount Type: 1/2in Heim
Upper Mount Type: 1/2in Heim
Spring Seat Included: Yes
Extended Length (MM): 412.8
Rebound @0.52m/s: Custom
Body Design: Threaded Body (Coilover)
Spring Max Travel (IN): 5.00
Finish: Zinc Plated
Optional Reservoir Clamp: N/A
Collapsed Length (IN) Rounded: 11
Collapsed Length (MM): 285.8
Compression @0.52m/s: Custom
PartType: Shocks / Struts
Extended Length (IN): 16.25
Extended Length (IN) Rounded: 16
Mount Type: Eye-to-Eye
Segment: Motorsports
Spring Hardware: Single Rate (2.5in)
Internal Design: Monotube
Reservoir: No
Collapsed Length (IN): 11.25
Body Diameter (ID): 46mm
Series: M 7100 Classic (Coilover)
