Bilstein B46-1353R - Motorsport 12in. TRVL RSRVR SHK PLTD 170/60 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-B46-1353R
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

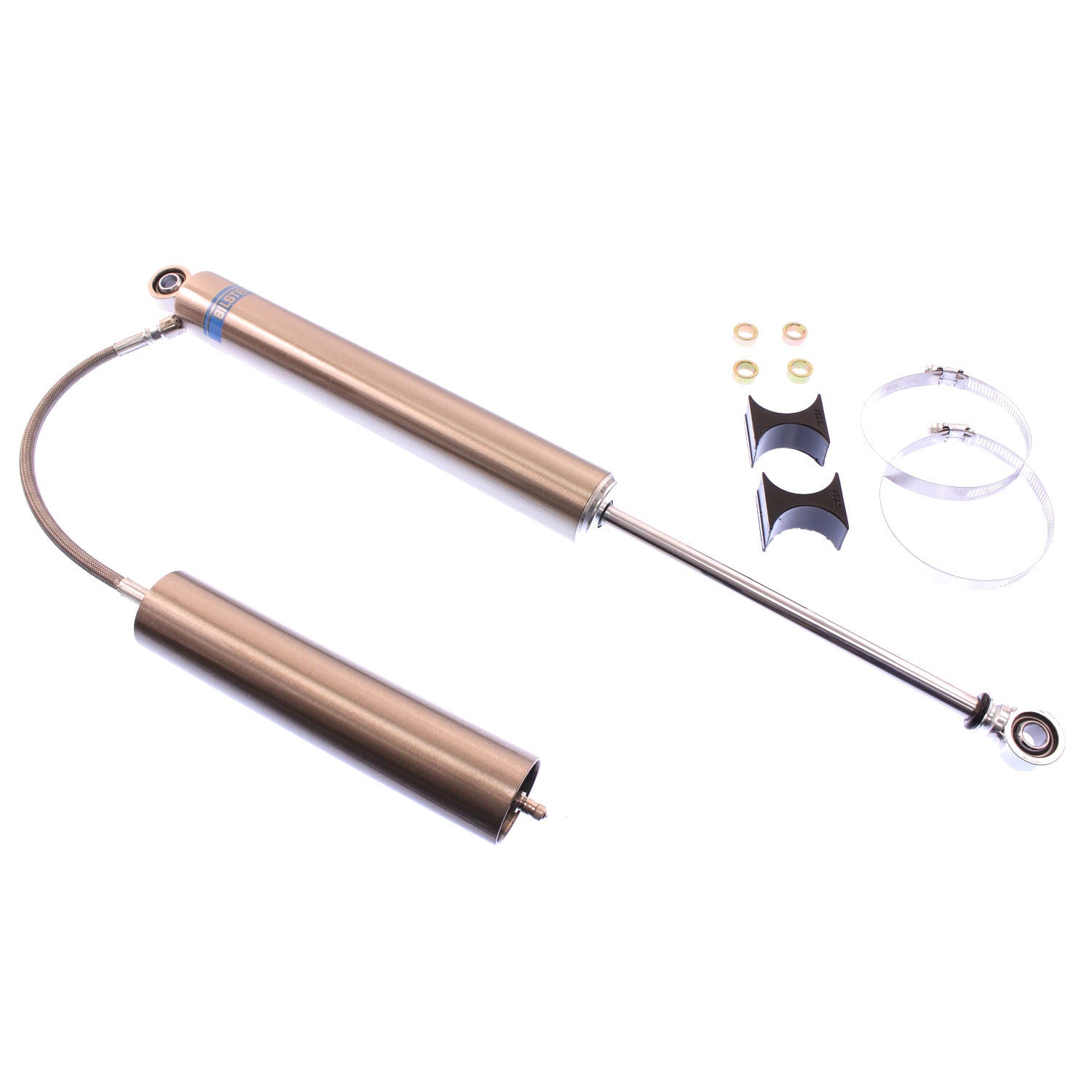

Bilstein B46-1353R - Motorsport 12in. TRVL RSRVR SHK PLTD 170/60 46mm Monotube Shock Absorber

M 7100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Lower Mount Type: 1/2in Heim
Upper Mount Type: 1/2in Heim
Spring Seat Included: No
Extended Length (MM): 789.9
Rebound @0.52m/s: 1700
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Reservoir: Yes
Collapsed Length (IN): 19.53
Body Diameter (ID): 46mm
Series: M 7100
PartType: Shocks / Struts
Extended Length (IN): 31.10
Extended Length (IN) Rounded: 31
Mount Type: Eye-to-Eye
Segment: Motorsports
Spring Max Travel (IN): 11.57
Finish: Nickel Plated with Clear Powder Coat
Optional Reservoir Clamp: N/A
Collapsed Length (IN) Rounded: 20
Collapsed Length (MM): 496.1
Compression @0.52m/s: 600
