Bilstein B46-1103S - Motorsport 10in. Coilover W/SCHRDER 255/100 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-B46-1103S
Sale price $22999 Regular price $25299

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

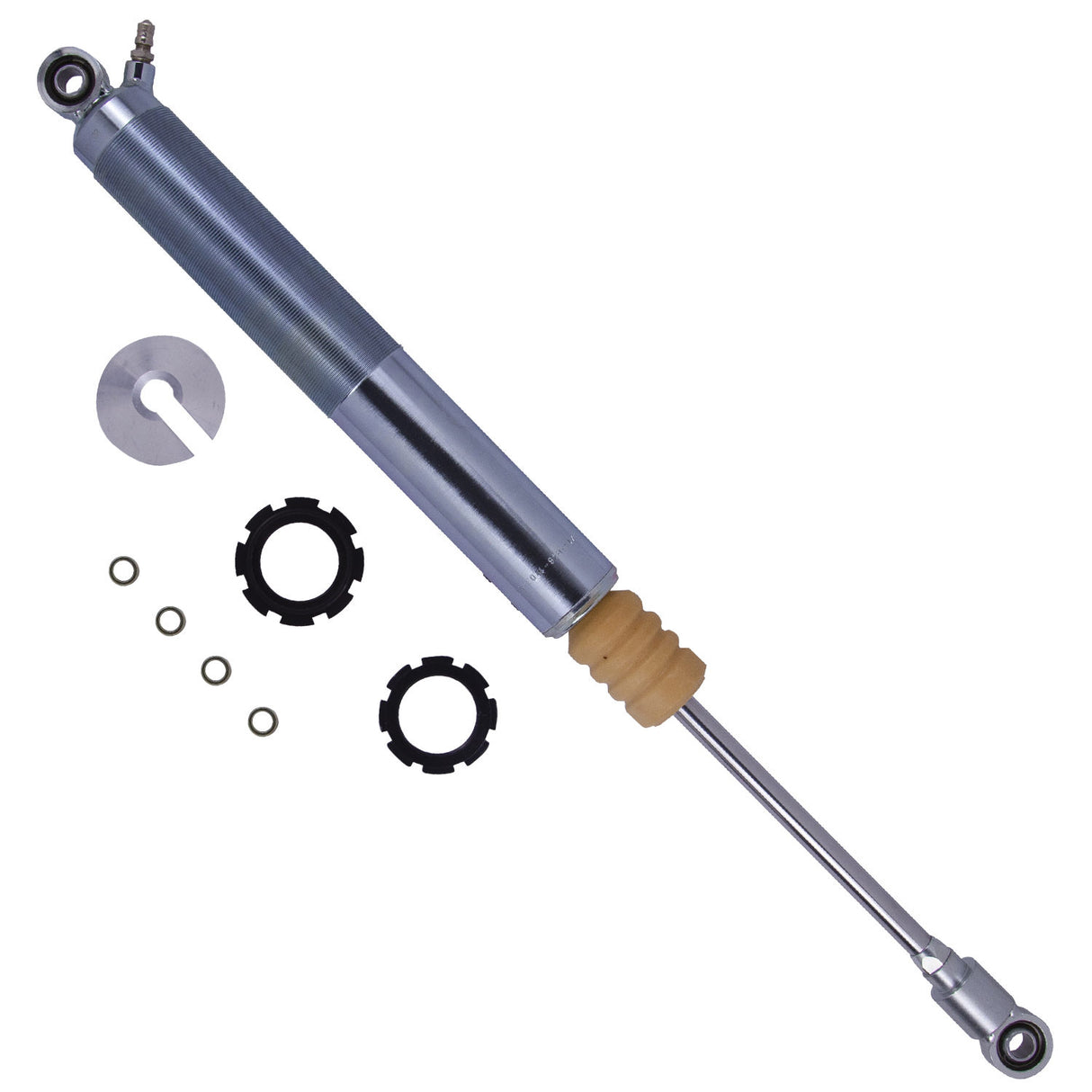

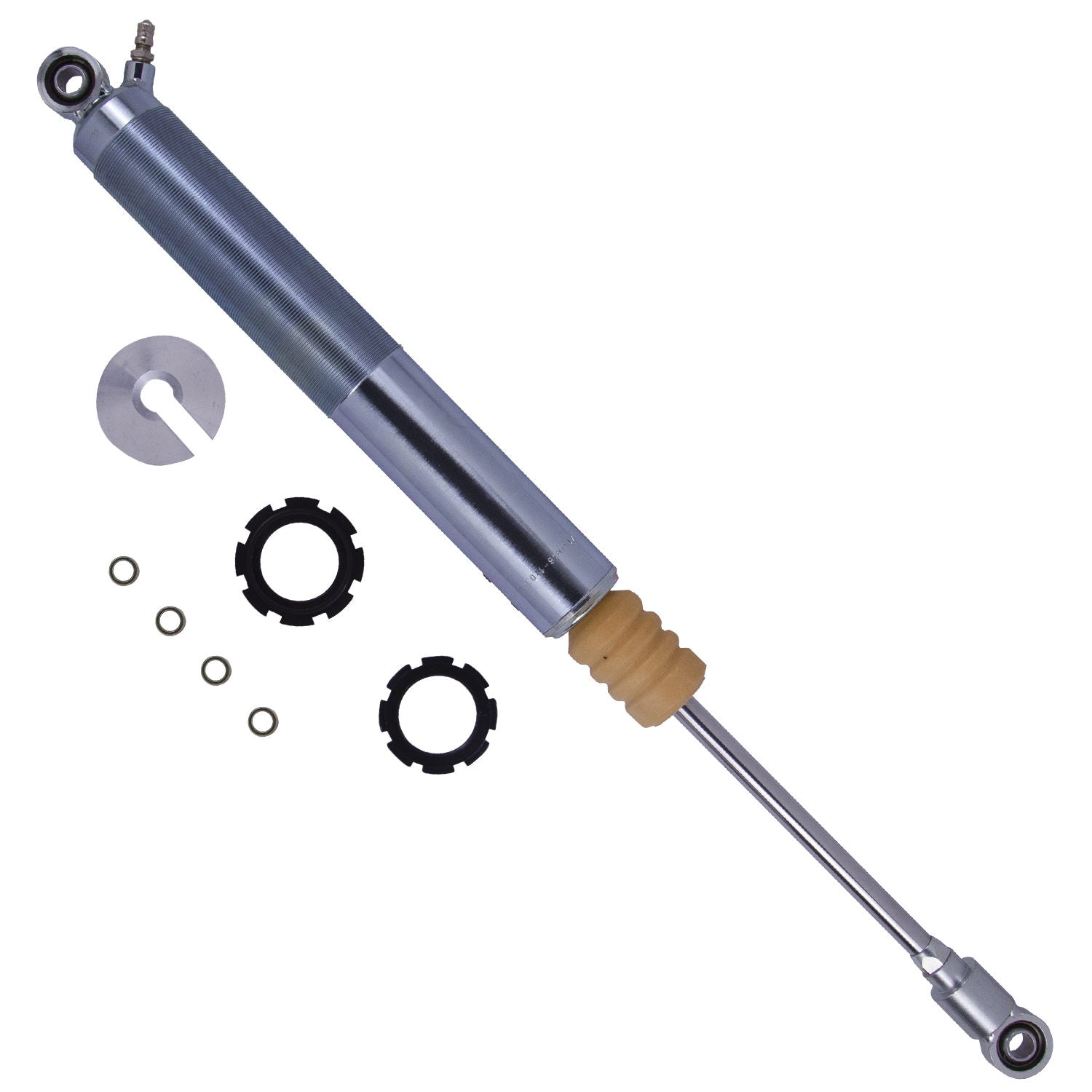

Bilstein B46-1103S - Motorsport 10in. Coilover W/SCHRDER 255/100 46mm Monotube Shock Absorber

M 7100 (Coilover) - Suspension Shock Absorber

46mm Monotube Shock Absorber

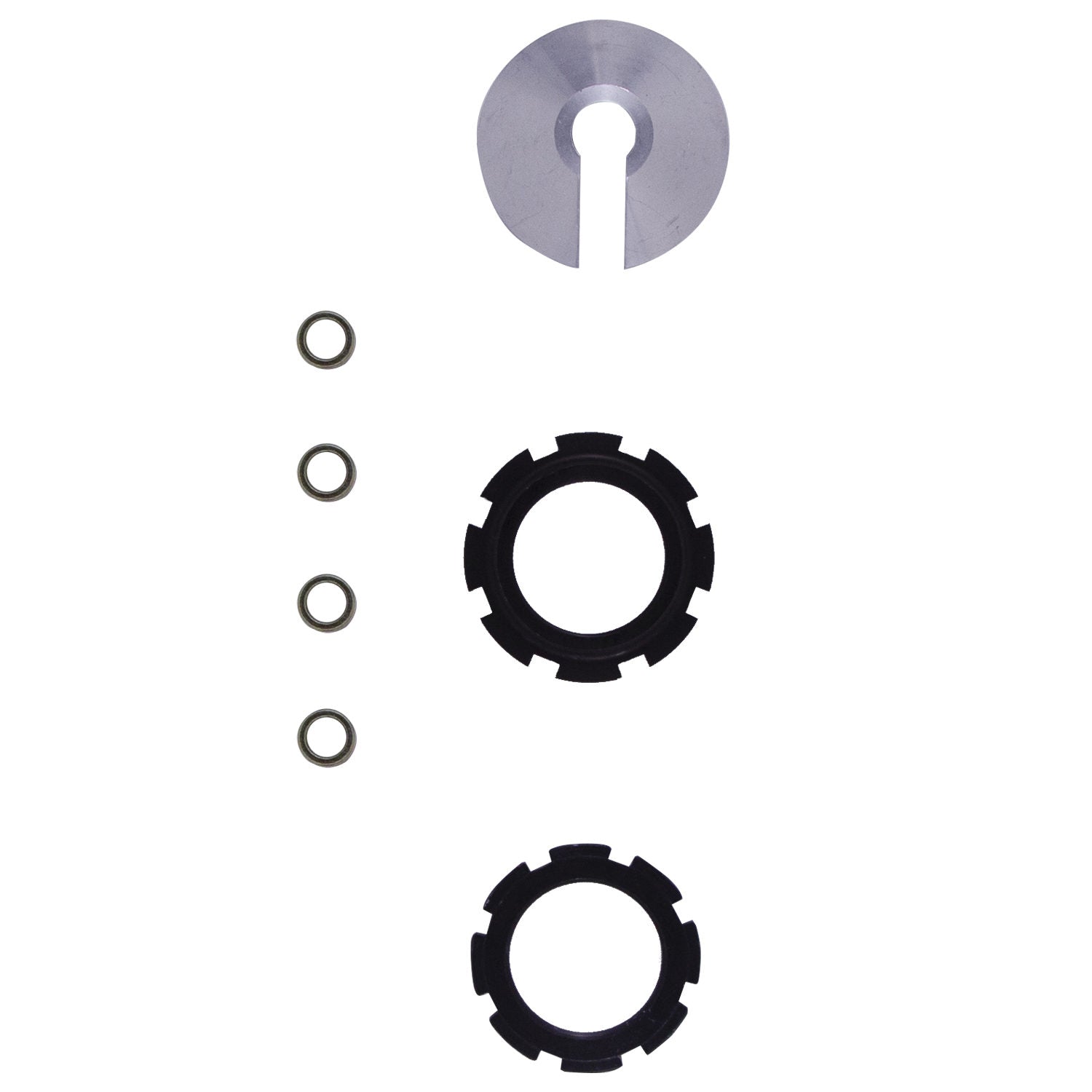

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Stroke/Travel Length (mm): 233.9
Rebound @0.52m/s: 2550
Collapsed Length (MM): 443.0
Reservoir: No
Compression @0.52m/s: 1000
Finish: Nickel Plated with Clear Powder Coat
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Shaft Diameter (mm): 14.0
Spring Hardware: Single Rate (2.5in)
Segment: Motorsports
Extended Length (IN): 26.65
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 17.44
Spring Seat Included: Yes
Extended Length (MM): 676.9
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
Stroke/Travel Length (IN): 9.21
Body Design: Threaded Body (Coilover)
PartType: Shocks / Struts
Series: M 7100 (Coilover)
