Bilstein B46-0360S - Motorsport 10in. TRAVEL W/SCHRADER 275/78 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-B46-0360S
Sale price $23999 Regular price $26399

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

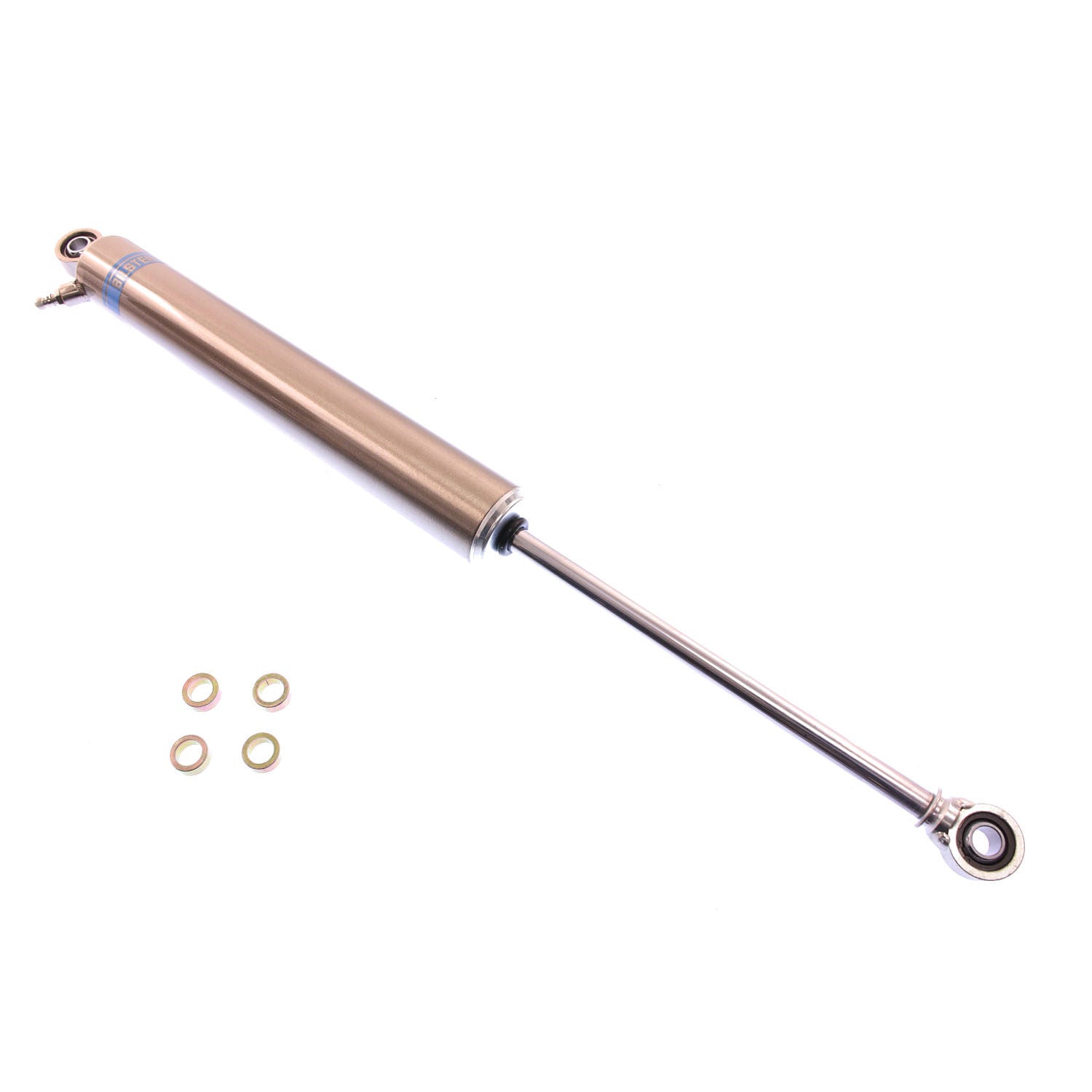

Bilstein B46-0360S - Motorsport 10in. TRAVEL W/SCHRADER 275/78 46mm Monotube Shock Absorber

Shock - M7100 Series - Monotube - 16.10 in Compressed / 25.77 in Extended - 1.811 in OD - 275-78 Valve - Steel - Nickel Plated Clear Powder Coat - Each

46mm Monotube Shock Absorber

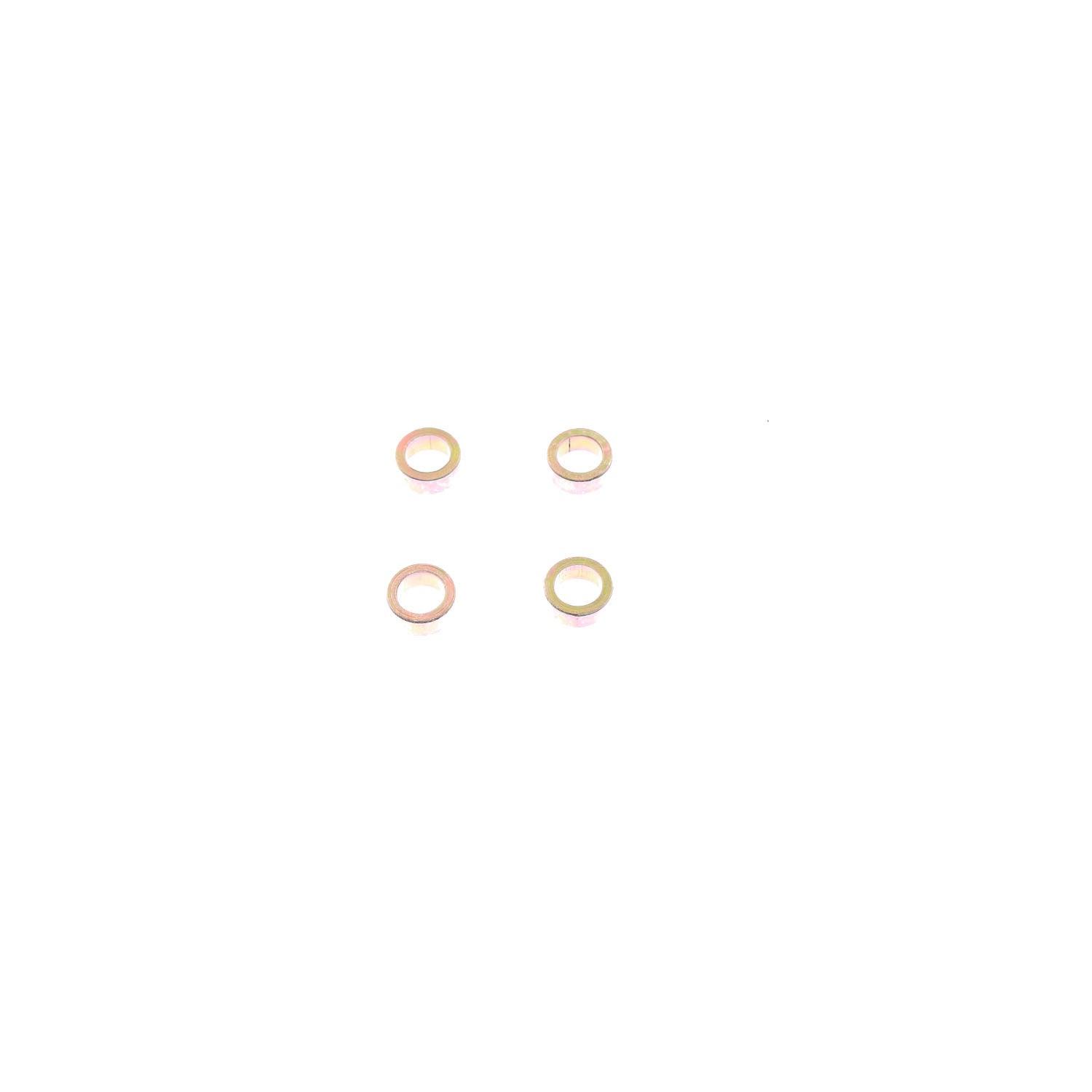

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Spring Max Travel (IN): 9.67
Reservoir: No
Finish: Nickel Plated with Clear Powder Coat
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 16.10
Collapsed Length (IN) Rounded: 16
Body Diameter (ID): 46mm
Collapsed Length (MM): 408.9
Series: M 7100
Compression @0.52m/s: 780
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Extended Length (IN): 25.77
Extended Length (IN) Rounded: 26
Extended Length (MM): 654.6
Mount Type: Eye-to-Eye
Rebound @0.52m/s: 2750
Segment: Motorsports
