Bilstein B46-0206W - Motorsport 8in. Mini Magnum Rear CUSTOM 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-B46-0206W
Sale price $25110 Regular price $27621

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

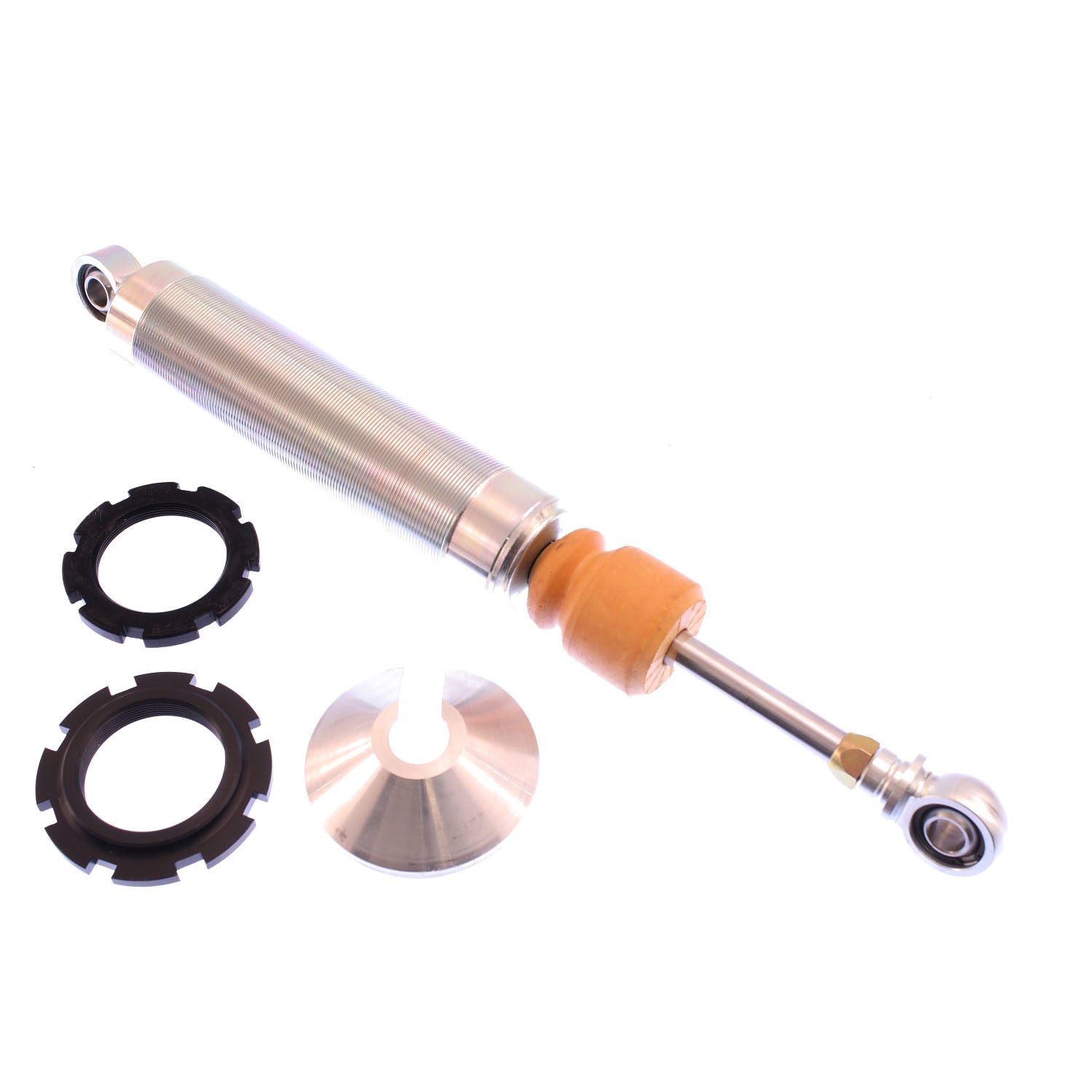

Bilstein B46-0206W - Motorsport 8in. Mini Magnum Rear CUSTOM 46mm Monotube Shock Absorber

M 7100 Classic (Coilover) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Available for standard and coilover applications in a wide variety of lengths
  • Self-adjusting deflective disc valving
Segment: Motorsports
Extended Length (IN): 22.25
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 14.00

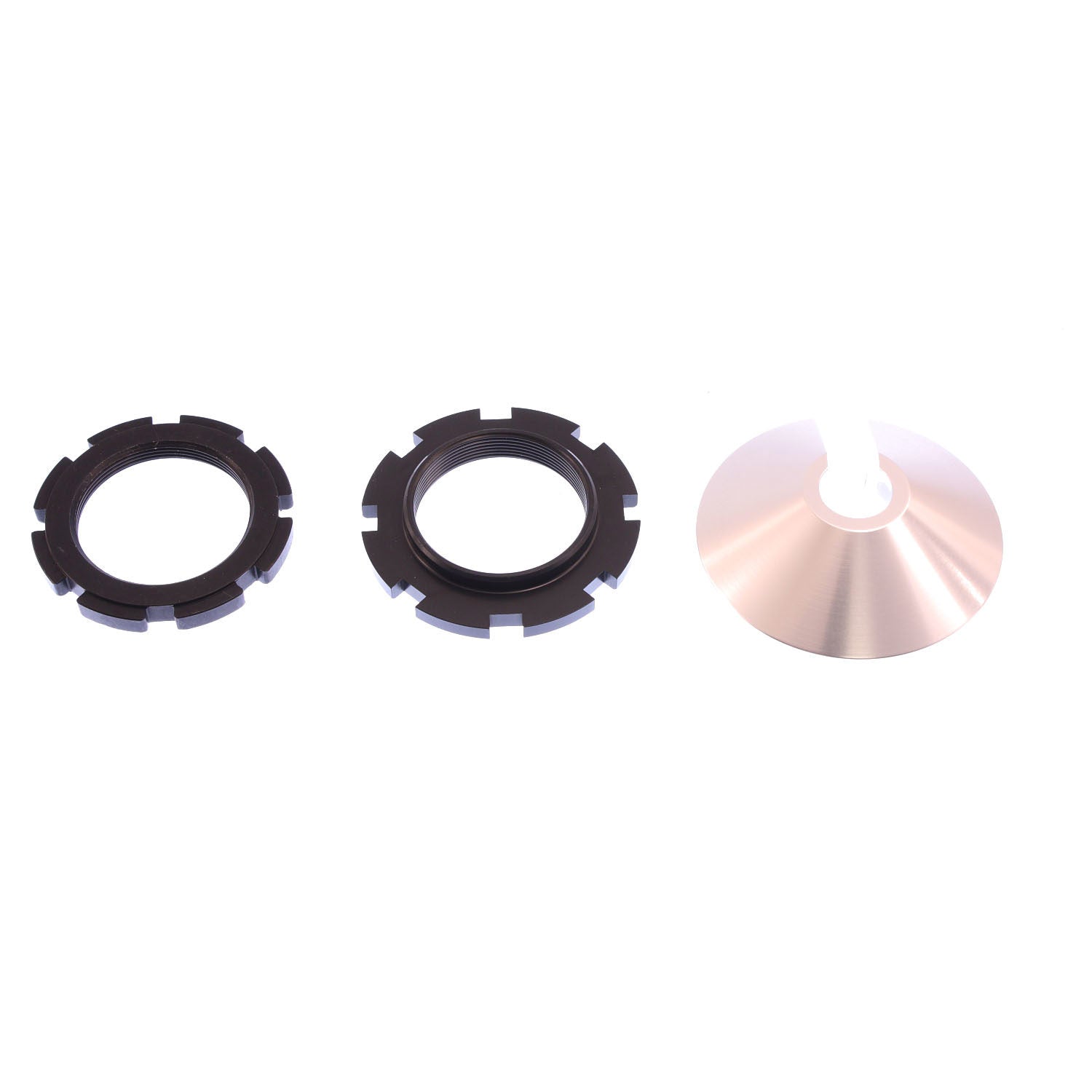

Spring Seat Included: Yes
Extended Length (MM): 565.2
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
Stroke/Travel Length (IN): 8.25
Body Design: Threaded Body (Coilover)
PartType: Shocks / Struts
Series: M 7100 Classic (Coilover)
Stroke/Travel Length (mm): 209.6
Rebound @0.52m/s: Custom
Collapsed Length (MM): 355.6
Reservoir: No
Compression @0.52m/s: Custom
Finish: Zinc Plated
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Shaft Diameter (mm): 14.0
Spring Hardware: Single Rate (2.5in)
