Bilstein AK7114R06 - Motorsport 14in. TRAVL RESVR SHK PTD 360/80 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-AK7114R06
Sale price $26899 Regular price $29589

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

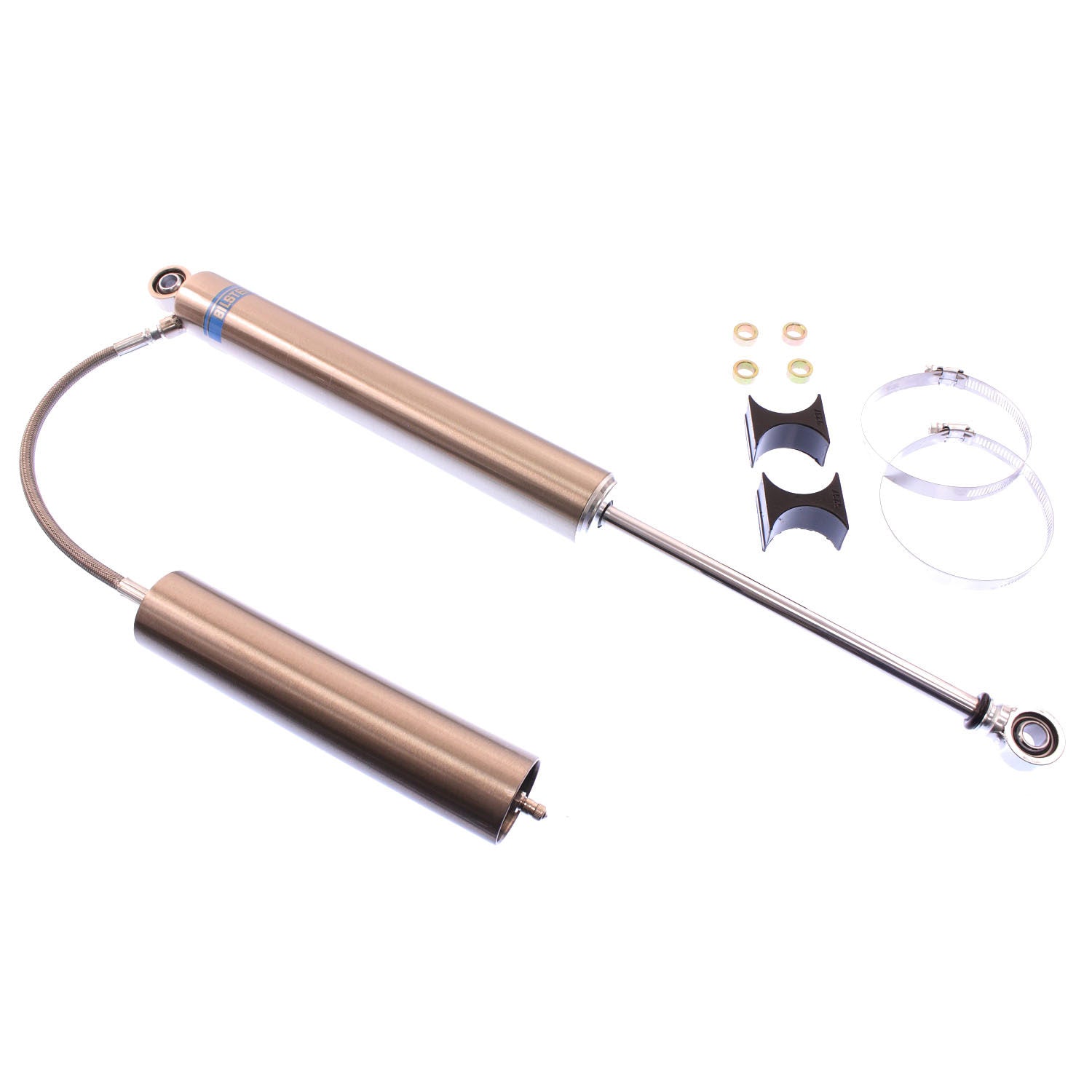

Bilstein AK7114R06 - Motorsport 14in. TRAVL RESVR SHK PTD 360/80 46mm Monotube Shock Absorber

Shock - 7100 Series - Monotube - Reservoir - 20.83 in Compressed / 35.22 in Extended - 2.00 in OD - 360-80 Valve - Steel - Nickel Plated - Each

46mm Monotube Shock Absorber

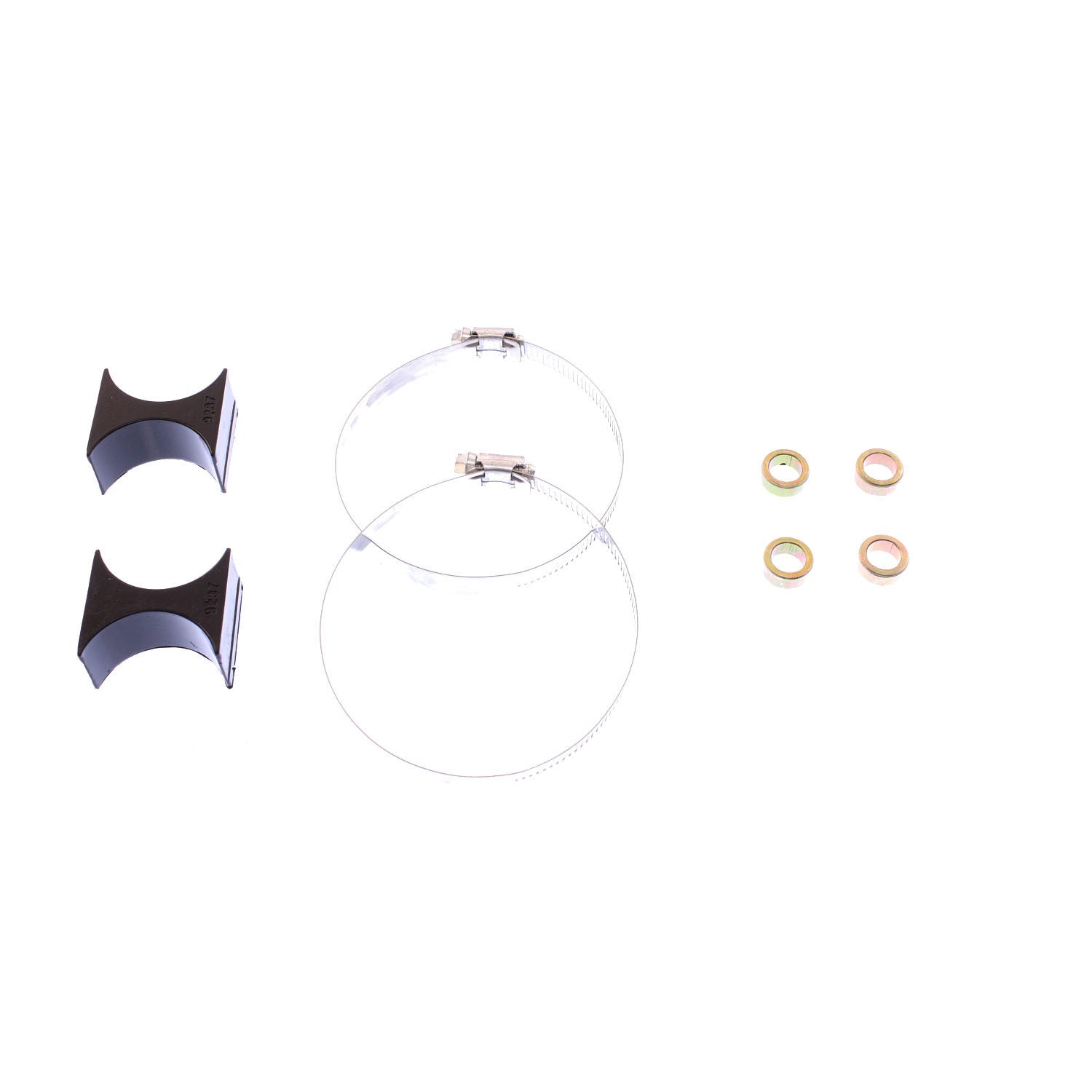

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
PartType: Shocks / Struts
Lower Mount Type: 1/2in Heim
Spring Seat Included: No
Upper Mount Type: 1/2in Heim
Extended Length (IN): 35.22
Extended Length (IN) Rounded: 35
Extended Length (MM): 894.6
Mount Type: Eye-to-Eye
Rebound @0.52m/s: 3600
Segment: Motorsports
Internal Design: Monotube
Spring Max Travel (IN): 14.39
Reservoir: Yes
Finish: Nickel Plated with Clear Powder Coat
Optional Reservoir Clamp: N/A
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 20.83
Collapsed Length (IN) Rounded: 21
Body Diameter (ID): 46mm
Collapsed Length (MM): 529.1
Series: M 7100
Compression @0.52m/s: 800
