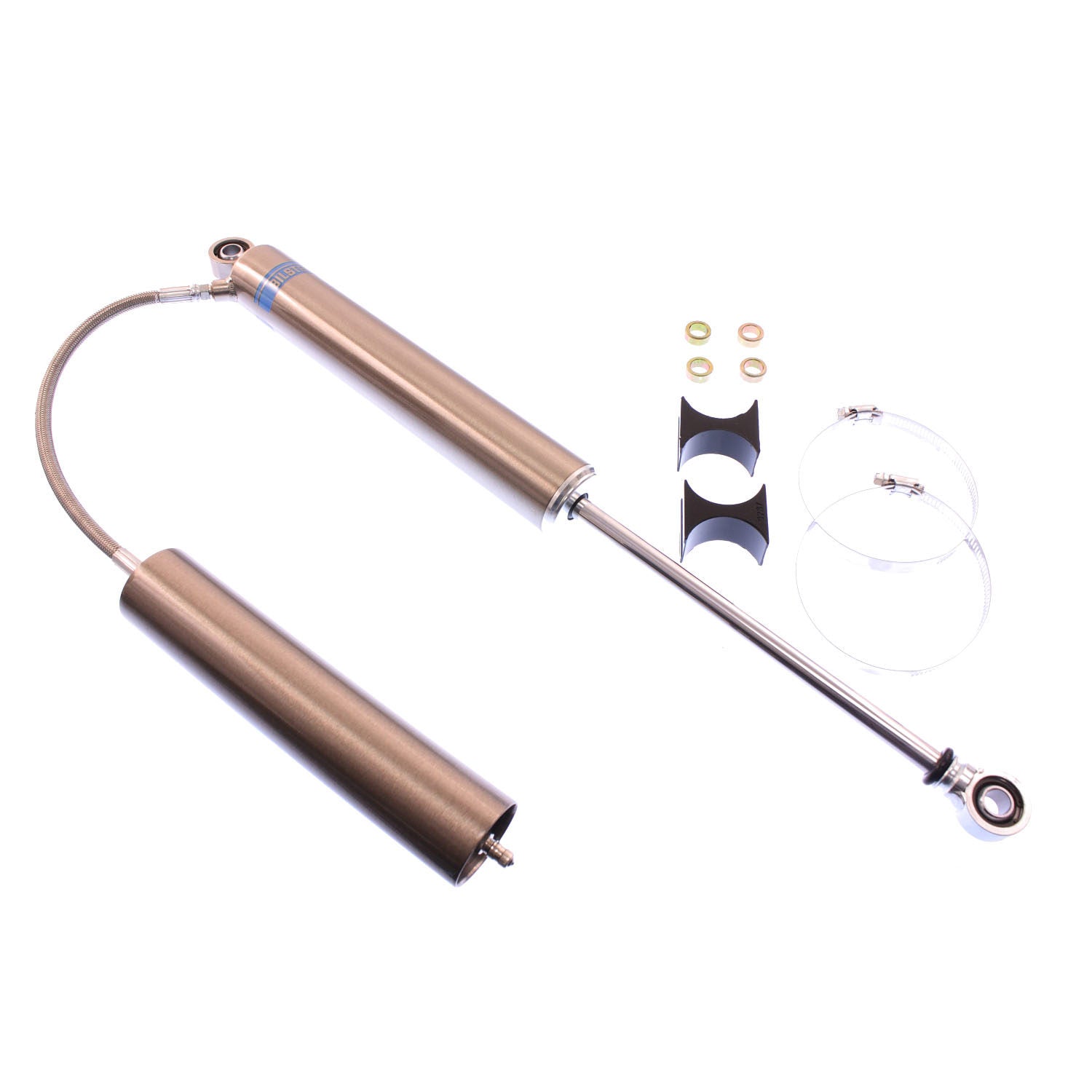

Bilstein AK7112SB06 - Motorsport RSVR. 10in. BODY 12in.ROD 360/80 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-AK7112SB06
Sale price $27459 Regular price $30205

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein AK7112SB06 - Motorsport RSVR. 10in. BODY 12in.ROD 360/80 46mm Monotube Shock Absorber

Shock - 7100 Series - Monotube - Reservoir - 16.10 in Compressed / 27.68 in Extended - 2.00 in OD - R360-C80 Valve - Steel - Nickel Plated - Each

46mm Monotube Shock Absorber

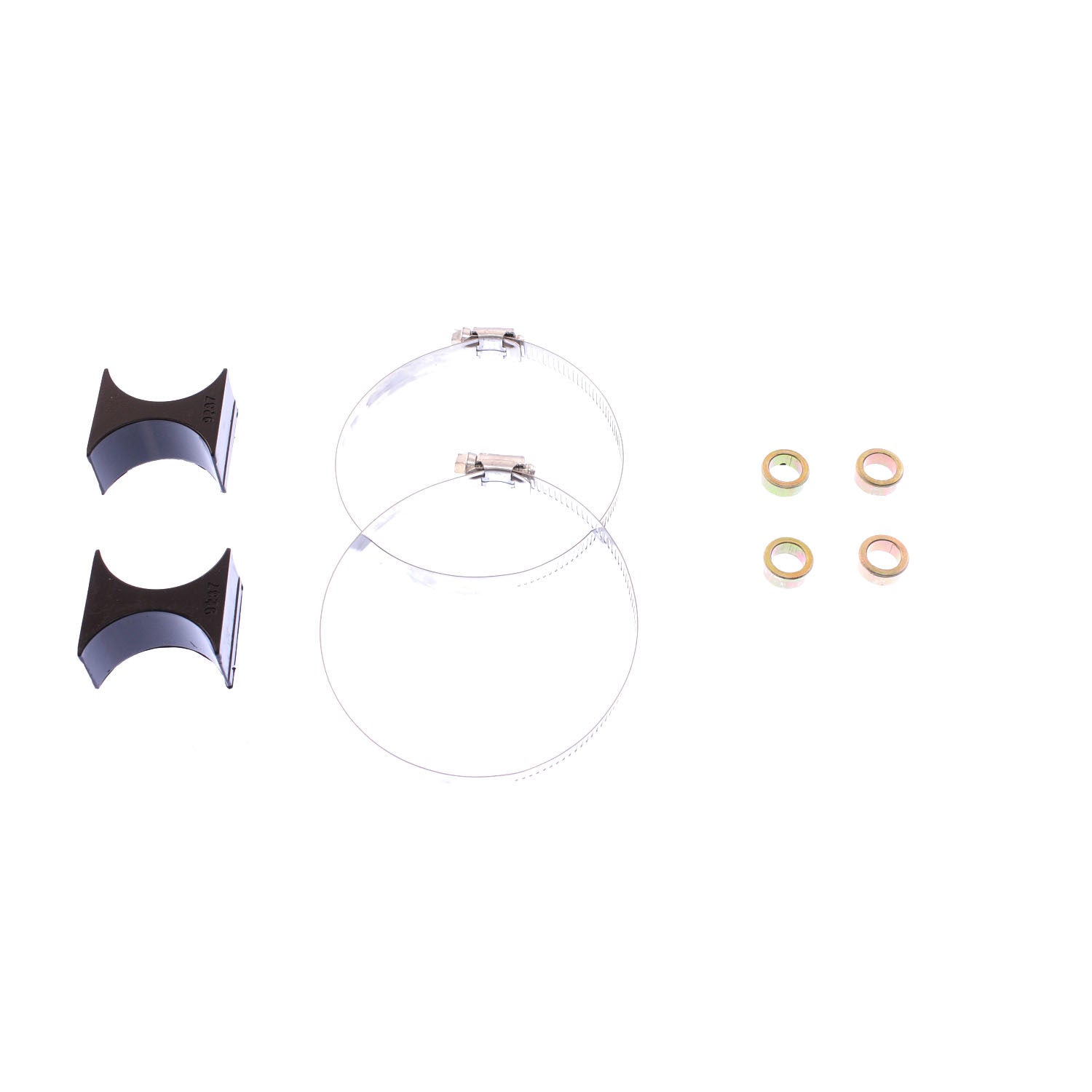

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Stroke/Travel Length (IN): 11.58
Body Design: Smooth Body (Non-Coilover)
PartType: Shocks / Struts
Series: M 7100
Stroke/Travel Length (mm): 294.1
Rebound @0.52m/s: 3600
Collapsed Length (MM): 408.9
Reservoir: Yes
Compression @0.52m/s: 800
Finish: Nickel Plated with Clear Powder Coat
Piston Diameter: 46mm
Lower Mount Type: 1/2in Heim
Shaft Diameter (mm): 14.0
Segment: Motorsports
Extended Length (IN): 27.68
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
Collapsed Length (IN): 16.10
Spring Seat Included: No
Extended Length (MM): 703.1
Internal Design: Monotube
Upper Mount Type: 1/2in Heim
