Bilstein AK7108R05 - Motorsport 8in. TRVL.RSRVR.SHK.PLTD 275/78 46mm Monotube Shock Absorber

Bilstein  |  SKU: BIL-AK7108R05
Sale price $32599 Regular price $35859

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

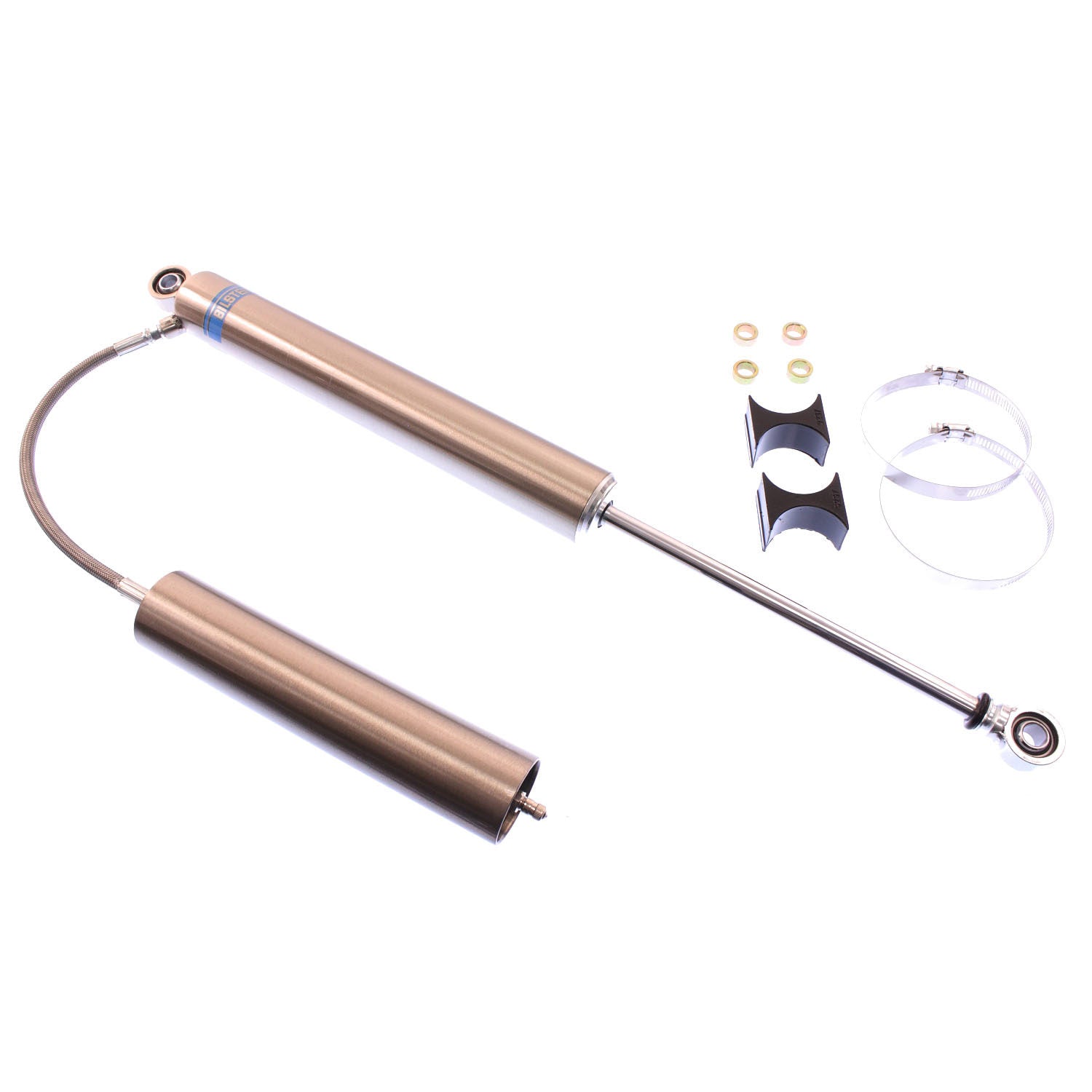

Bilstein AK7108R05 - Motorsport 8in. TRVL.RSRVR.SHK.PLTD 275/78 46mm Monotube Shock Absorber

M 7100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

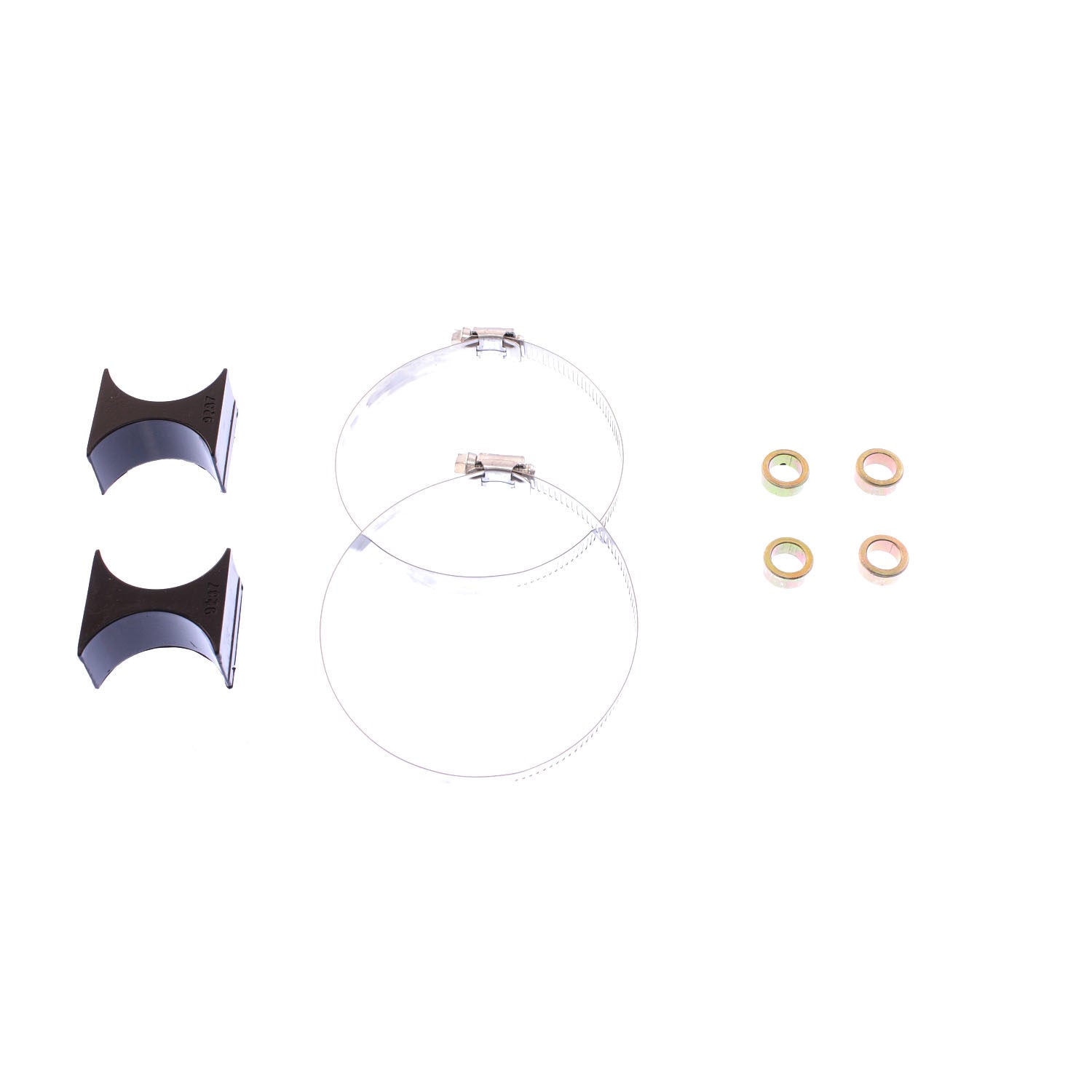

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness
Spring Seat Included: No
Extended Length (IN): 22.29
Extended Length (IN) Rounded: 22
Extended Length (MM): 566.2
Rebound @0.52m/s: 2750
Internal Design: Monotube
Reservoir: Yes
Collapsed Length (IN): 14.06
Body Diameter (ID): 46mm
Series: M 7100
Compression @0.52m/s: 780
PartType: Shocks / Struts
Upper Mount Type: 1/2in Heim
Body Design: Smooth Body (Non-Coilover)
Mount Type: Eye-to-Eye
Segment: Motorsports
Spring Max Travel (IN): 8.23
Finish: Nickel Plated with Clear Powder Coat
Optional Reservoir Clamp: N/A
Collapsed Length (IN) Rounded: 14
Collapsed Length (MM): 357.1
Lower Mount Type: 1/2in Heim
