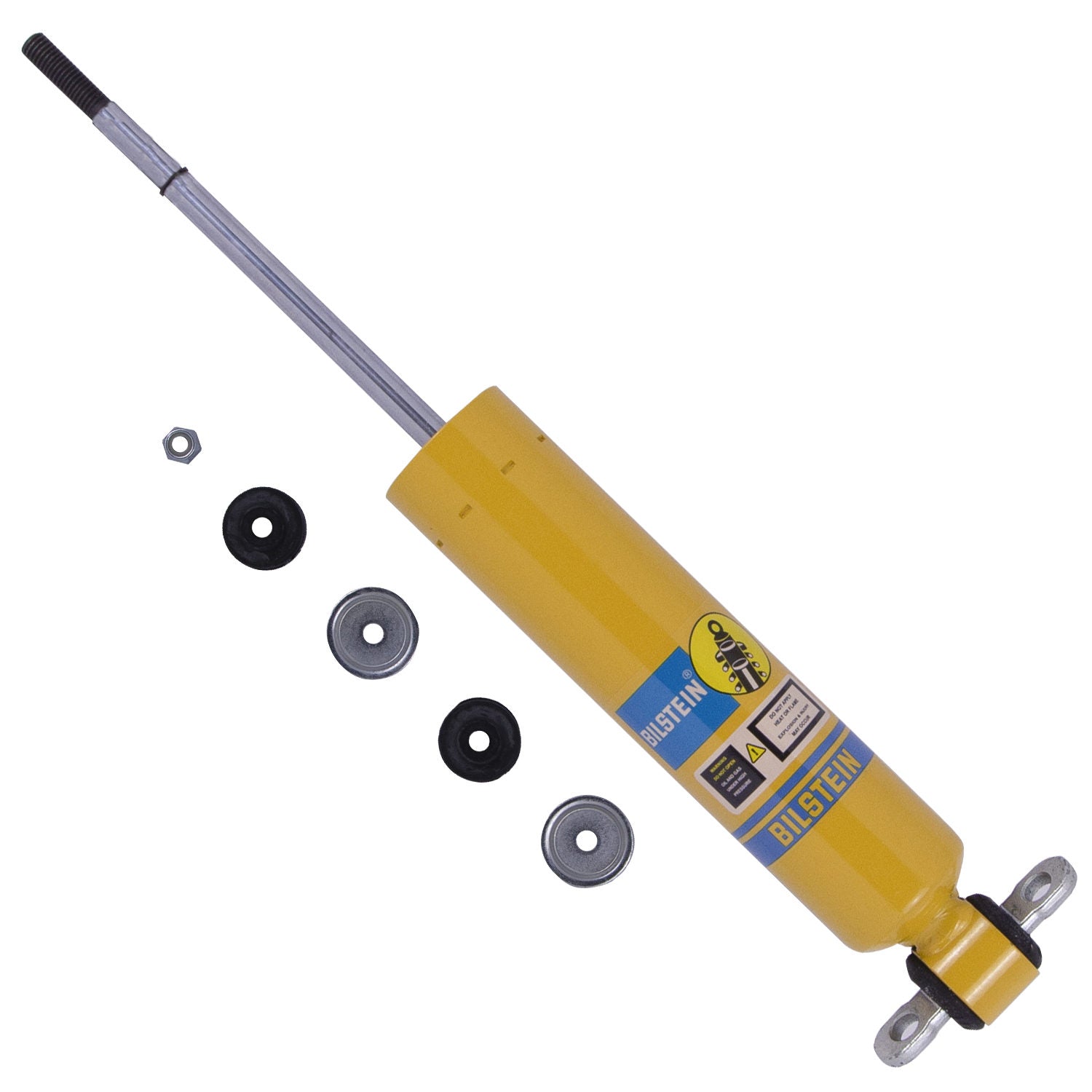

Bilstein AK1195 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 13.94in Extended Length

Bilstein  |  SKU: BIL-AK1195
$000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein AK1195 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 13.94in Extended Length

Shock - AK Series - Monotube - 9.29 in Compressed / 13.86 in Extended - Digressive - Steel - Yellow Paint - Front - Ford 1979-93 - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Boot Included: No
Internal Design: Monotube
Body Material: Steel
Spring Seat Included: No
Compression @0.26m/s: 1600
Collapsed Length (MM): 236.0
Rebound @0.26m/s: 2570
Stroke/Travel Length (IN): 4.57
Stroke/Travel Length (mm): 116.1
Piston Type: Digressive
Extended Length (MM): 354.0
Series: AK Series
Upper Mount Type: Stem
Shaft Diameter: 11mm
Collapsed Length (IN): 9.29
Finish: Yellow Paint
Compression @0.52m/s: 2000
Extended Length (IN): 13.94
Adjustable Damping: Non-Adjustable
Lower Mount Type: Bar Pin
Segment: Motorsports
Rebound @0.52m/s: 3090
PartType: Shocks / Struts
Piston Diameter: 46mm
Body Design: Stock Mount Smooth Body
