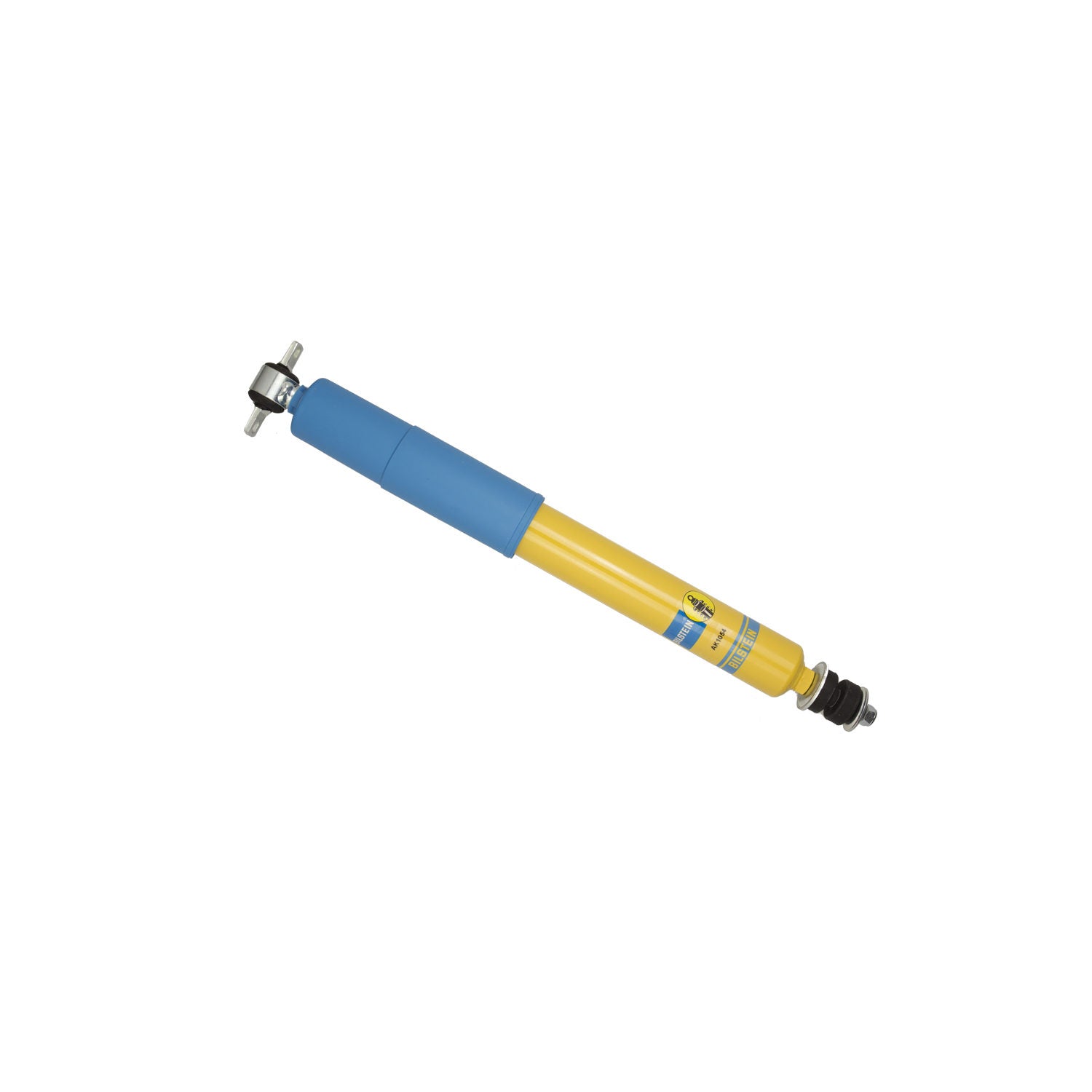

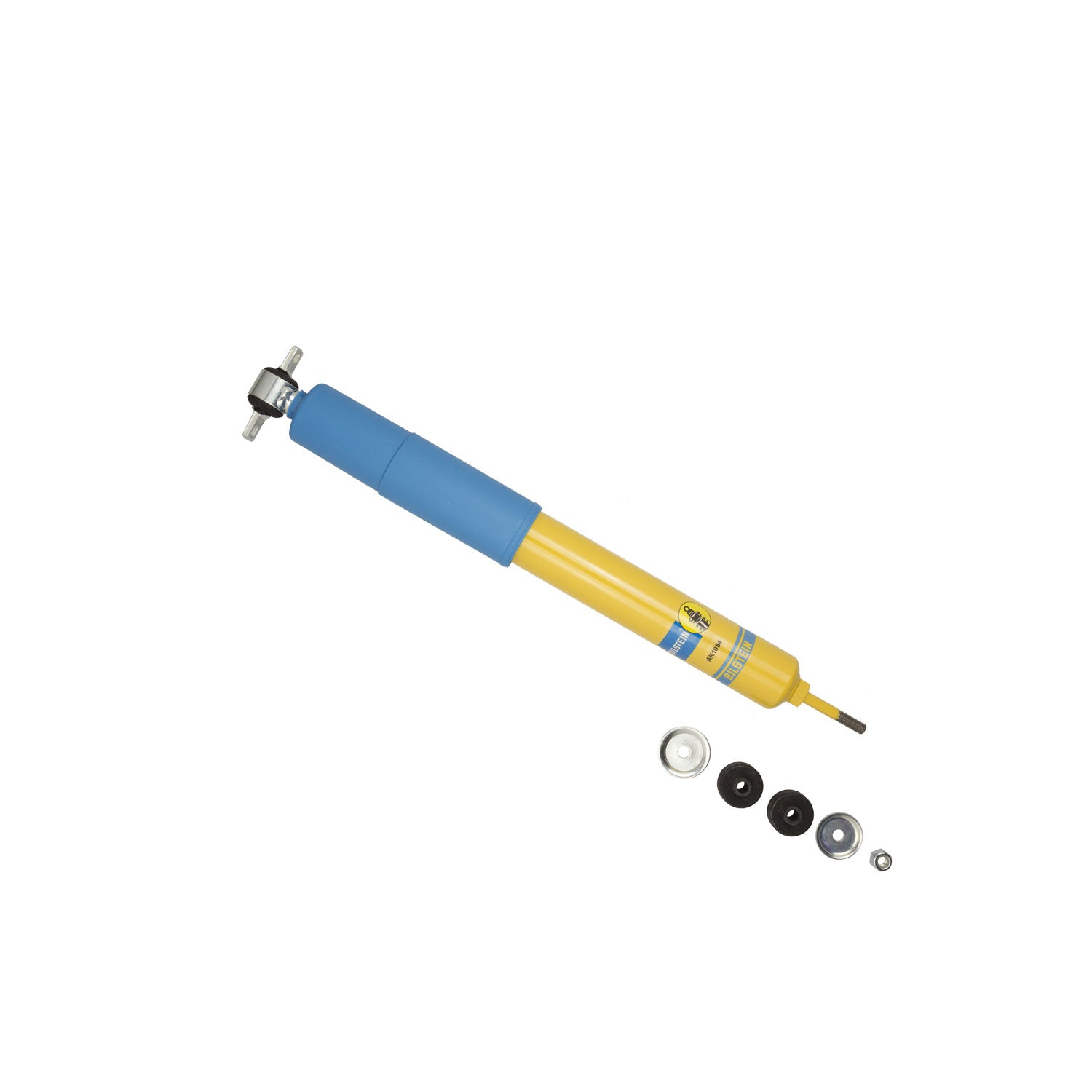

Bilstein AK1054 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 20.47in Extended Length

Bilstein  |  SKU: BIL-AK1054
Sale price $13689 Regular price $15058

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein AK1054 - Motorsport AK Series Monotube Shock Absorber - 46mm Diameter 20.47in Extended Length

Shock - AK Series - Monotube - 12.72 in Compressed / 20.39 in Extended - Linear - Steel - Yellow Paint - Rear - GM F-Body 1970-81 - Each

46mm Monotube Shock Absorber

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Direct fit (OE) mounting design
  • Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
Body Material: Steel
Rebound @0.52m/s: 1365
Stroke/Travel Length (IN): 7.67
Piston Type: Linear
Extended Length (MM): 520.0
Internal Design: Monotube
Spring Seat Included: No
Collapsed Length (MM): 328.1
Series: AK Series
Lower Mount Type: Stem
Piston Diameter: 46mm
Body Design: Stock Mount Smooth Body
Adjustable Damping: Non-Adjustable
Upper Mount Type: Bar Pin
Segment: Motorsports
Boot Included: Blue Straight
Collapsed Length (IN): 12.92
Finish: Yellow Paint
Extended Length (IN): 20.47
PartType: Shocks / Struts
Stroke/Travel Length (mm): 194.8
Compression @0.52m/s: 500
Shaft Diameter: 11mm
