Bilstein 47-325654 - B8 6112 Series 07-13 Chevrolet Silverado 1500 Front Suspension Kit

Bilstein  |  SKU: BIL-47-325654
Sale price $92300 Regular price $1,00685

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 47-325654 - B8 6112 Series 07-13 Chevrolet Silverado 1500 Front Suspension Kit

B8 6112 - Suspension Kit

Front Suspension Kit

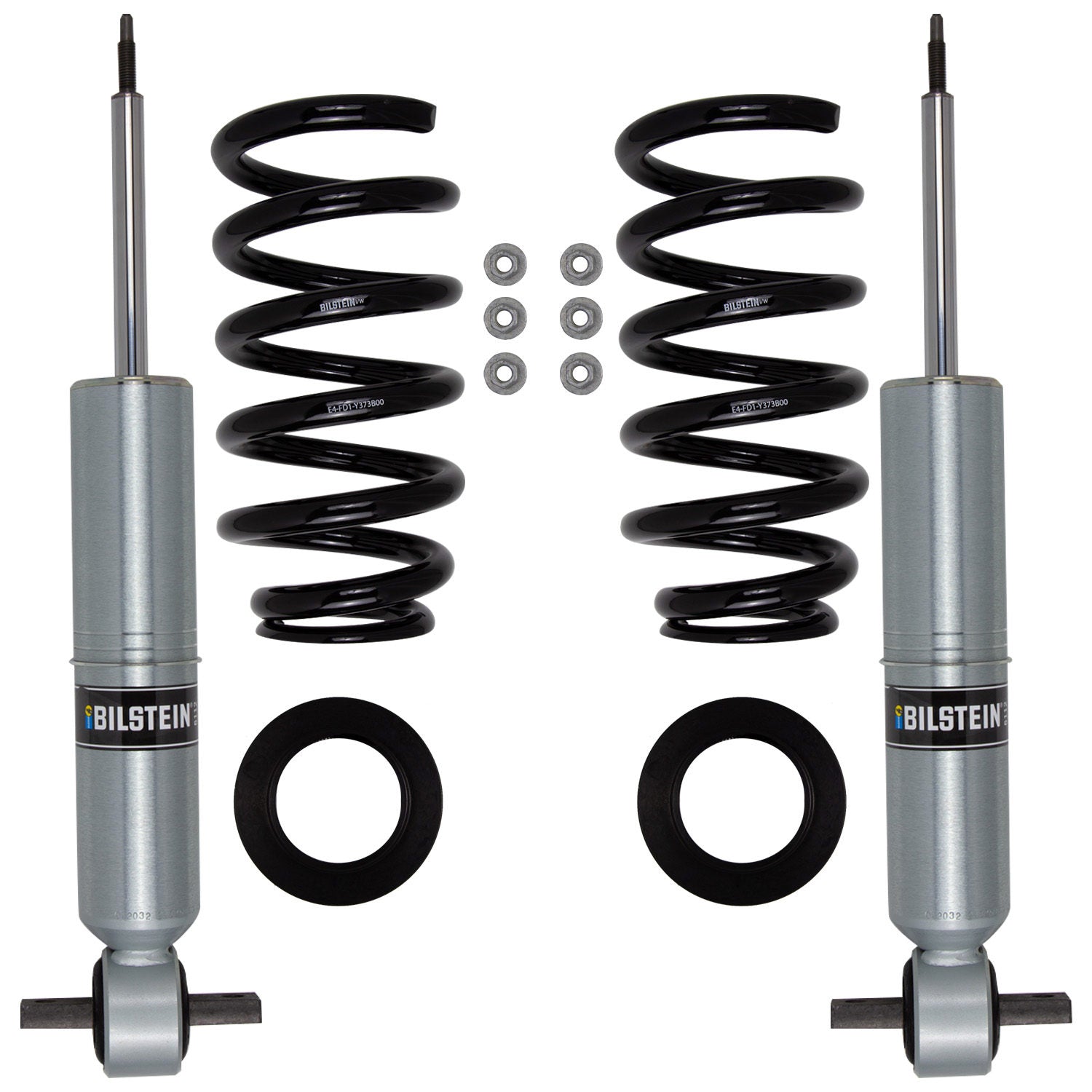

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Segment: Light Truck
Aftermarket Upper Arms Required: Yes
Series: B8 6112
Body Design: Snap Ring Grooved Body (Coilover)
Shaft Diameter: 18mm
Adjustable Damping: Non-Adjustable
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Stroke/Travel Length (mm): 145.2
Collapsed Length (IN): 13.46
Extended Length (mm): 487.2
Internal Design: Monotube
Extended Length (IN): 19.18
Piston Diameter: 60mm
Boot Included: No
Spring Seat Included: Yes
Stroke/Travel Length (IN): 5.72
PartType: Suspension Kit
Front Main Spring Rate (lbs/in): 750
Collapsed Length (mm): 342.0
