Bilstein 47-314009 - 21-22 Ford Bronco B8 6112 60mm Shock Absorber Suspension Kit - Rear

Bilstein  |  SKU: BIL-47-314009
Sale price $92300 Regular price $1,00685

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 47-314009 - 21-22 Ford Bronco B8 6112 60mm Shock Absorber Suspension Kit - Rear

B8 6112 - Suspension Kit

Front Suspension Kit

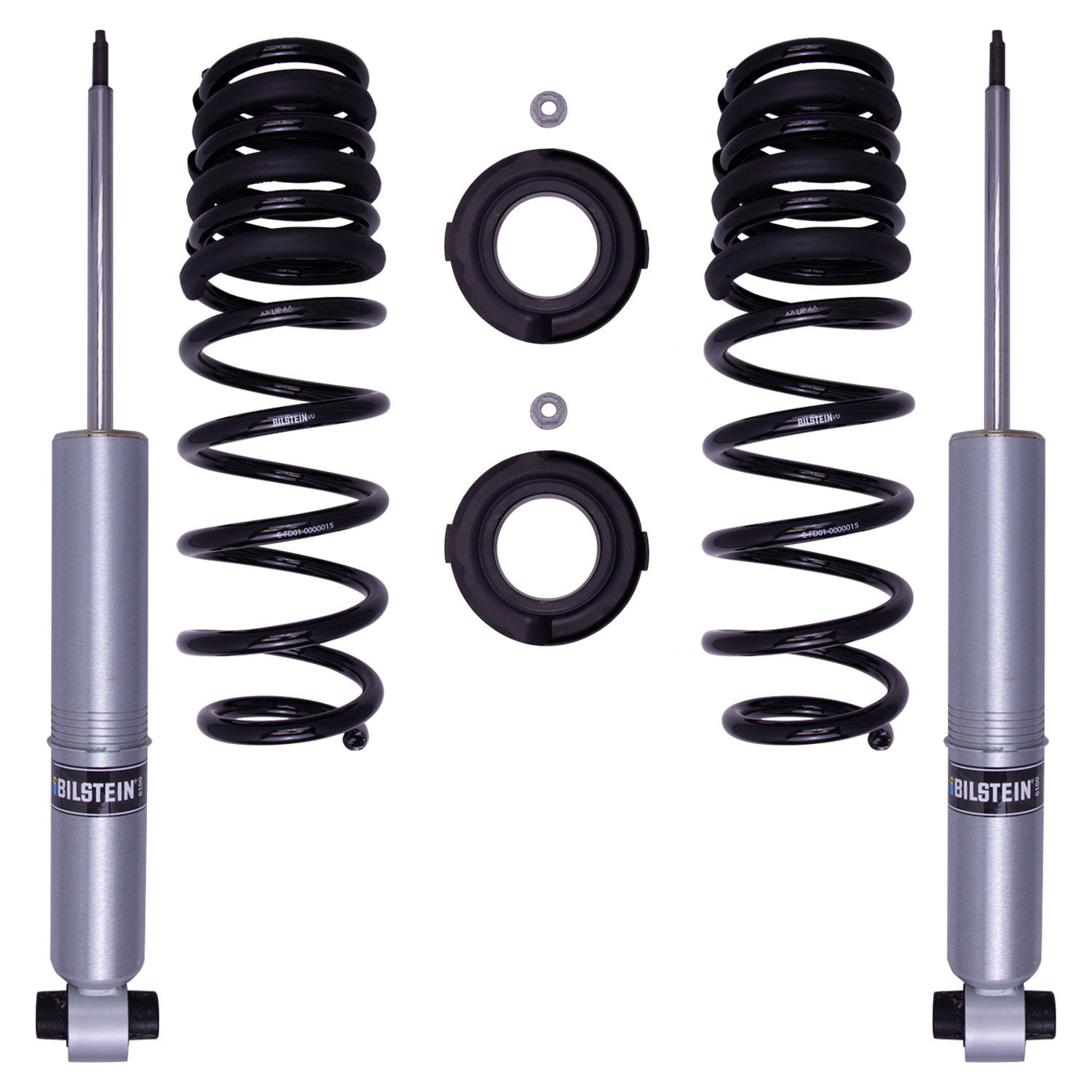

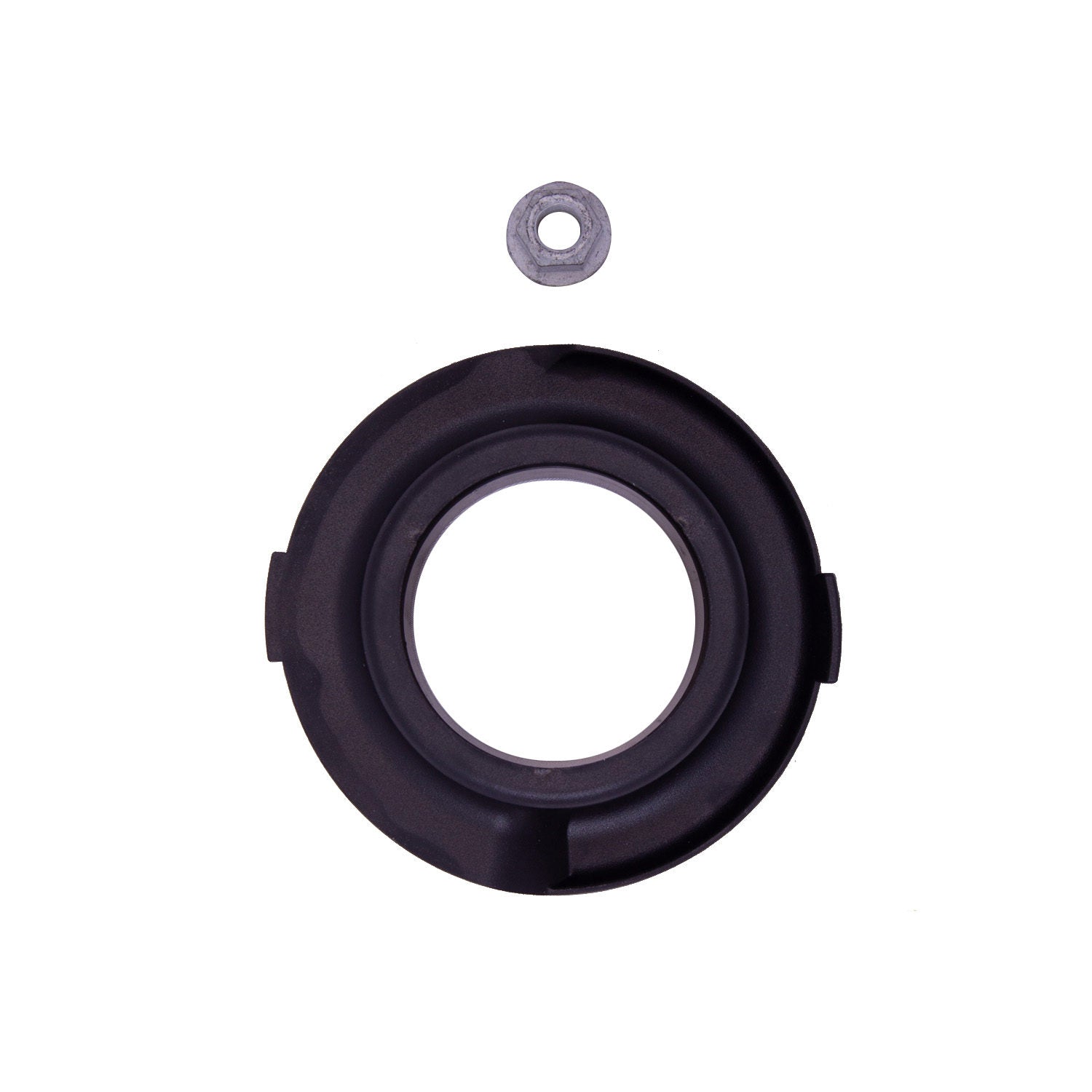

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Rear Main Spring Rate (lbs/in): 288
Adjustable Damping: Non-Adjustable
Series: B8 6112
Stroke/Travel Length (mm): 214.7
Body Design: Snap Ring Grooved Body (Coilover)
Piston Diameter: 60mm
Shaft Diameter: 18mm
Extended Length (mm): 649.3
Segment: Light Truck
Internal Design: Monotube
Spring Seat Included: Yes
Stroke/Travel Length (IN): 8.45
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
PartType: Suspension Kit
Extended Length (IN): 25.56
Collapsed Length (IN): 17.11
Collapsed Length (mm): 434.6
Boot Included: No
