Bilstein 47-313996 - 21-22 Ford Bronco B8 6112 60mm Shock Absorber Suspension Kit - Front

Bilstein  |  SKU: BIL-47-313996
Sale price $92300 Regular price $1,00685

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 47-313996 - 21-22 Ford Bronco B8 6112 60mm Shock Absorber Suspension Kit - Front

B8 6112 - Suspension Kit

Front Suspension Kit

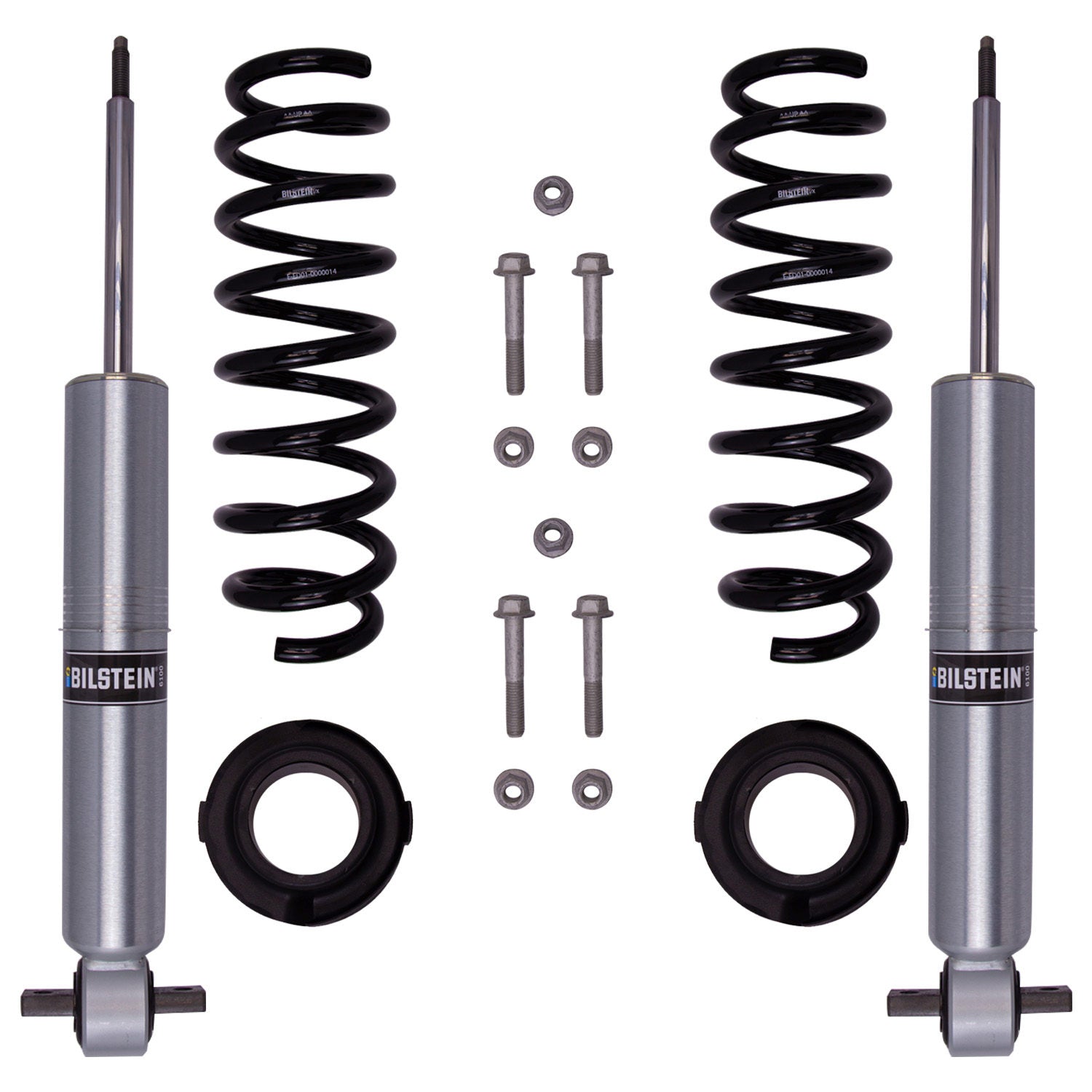

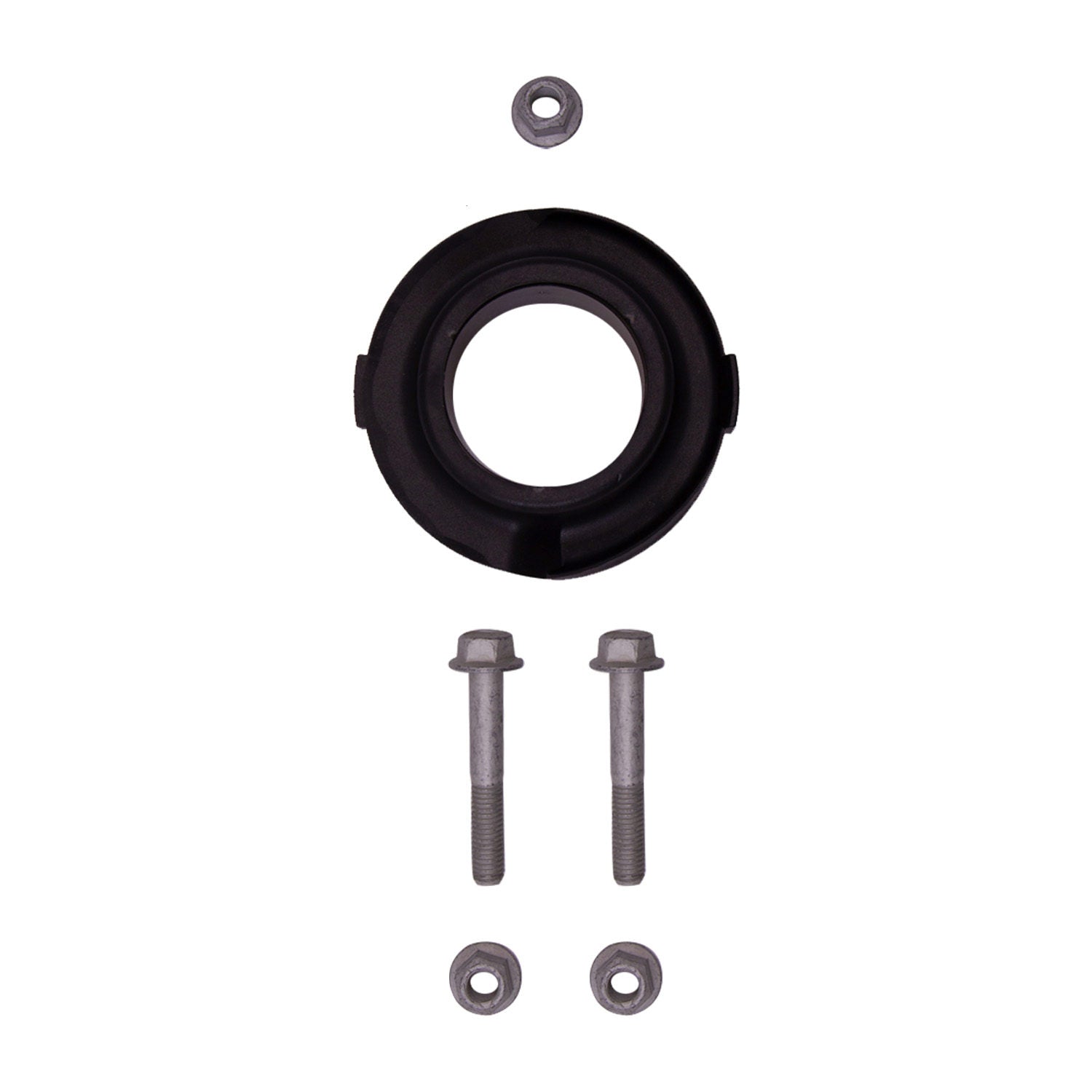

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Internal Design: Monotube
Spring Seat Included: Yes
Aftermarket Upper Arms Required: Yes
Stroke/Travel Length (IN): 6.18
Series: B8 6112
PartType: Suspension Kit
Body Design: Snap Ring Grooved Body (Coilover)
Collapsed Length (IN): 16.62
Collapsed Length (mm): 422.2
Boot Included: No
Segment: Light Truck
Adjustable Damping: Non-Adjustable
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Stroke/Travel Length (mm): 157.0
Extended Length (IN): 22.80
Front Main Spring Rate (lbs/in): 374
Piston Diameter: 60mm
Shaft Diameter: 18mm
Extended Length (mm): 579.2
