Bilstein 47-311039 - B8 6112 2010+ Toyota 4Runner/FJ 6112 Heavy Load Suspension Kit

Bilstein  |  SKU: BIL-47-311039
Sale price $92300 Regular price $1,00685

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Bilstein 47-311039 - B8 6112 2010+ Toyota 4Runner/FJ 6112 Heavy Load Suspension Kit

B8 6112 - Suspension Kit

Front Suspension Kit

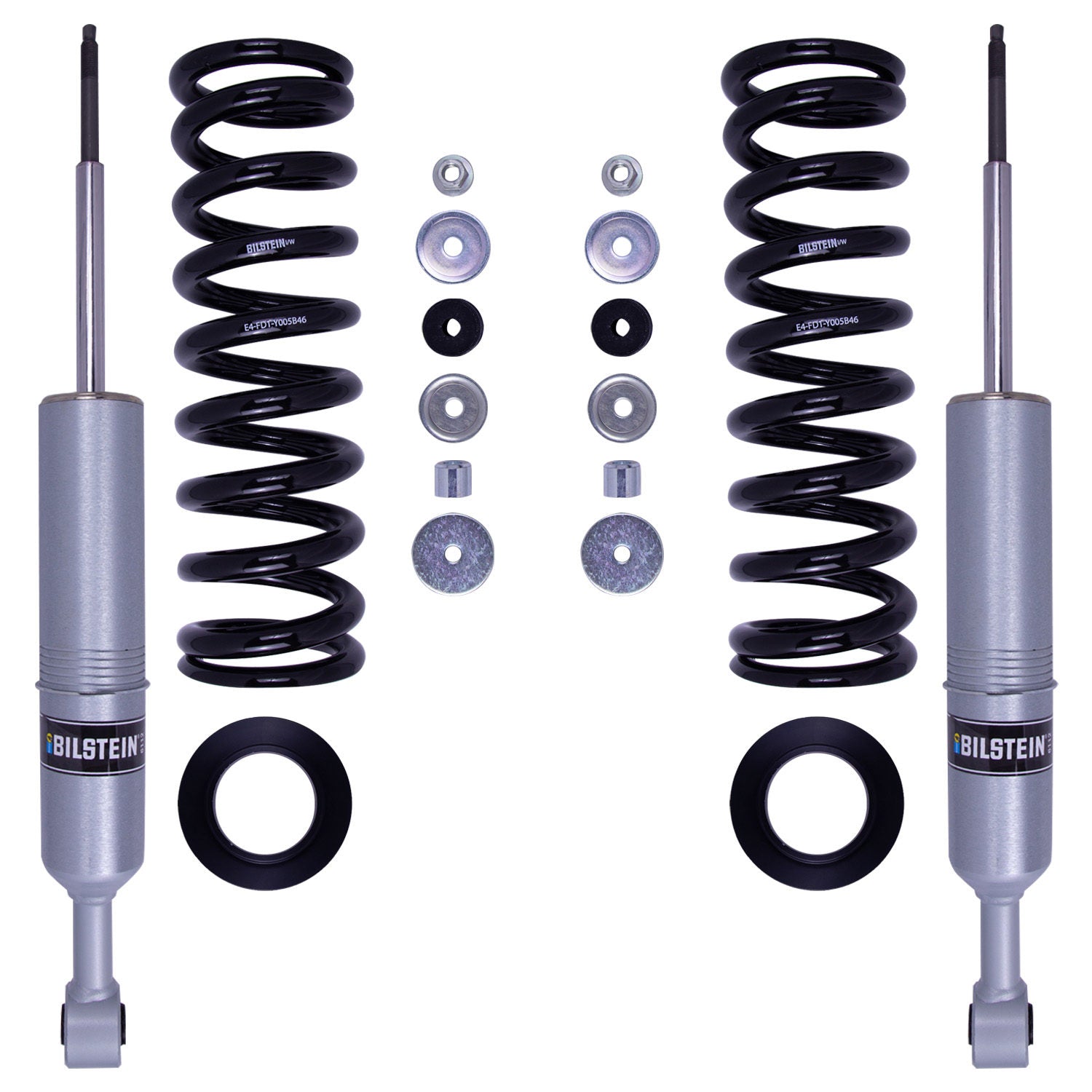

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Spring Seat Included: Yes
Stroke/Travel Length (IN): 4.79
Reservoir: No
Stroke/Travel Length (mm): 121.7
Segment: Light Truck
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Series: B8 6112
PartType: Suspension Kit
Extended Length (IN): 21.65
Body Design: Snap Ring Grooved Body (Coilover)
Front Main Spring Rate (lbs/in): 700
Collapsed Length (IN): 16.86
Piston Diameter: 60mm
Collapsed Length (mm): 428.3
Shaft Diameter: 18mm
Boot Included: No
Extended Length (mm): 550.0
