Bilstein 41-338131 - 22-24 Can-Am Maverick X3 Max RS Turbo Black Hawk Powersports Shock & Coil Spring Ass. - RL

Bilstein  |  SKU: BIL-41-338131
Sale price $1,62500 Regular price $1,78750

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

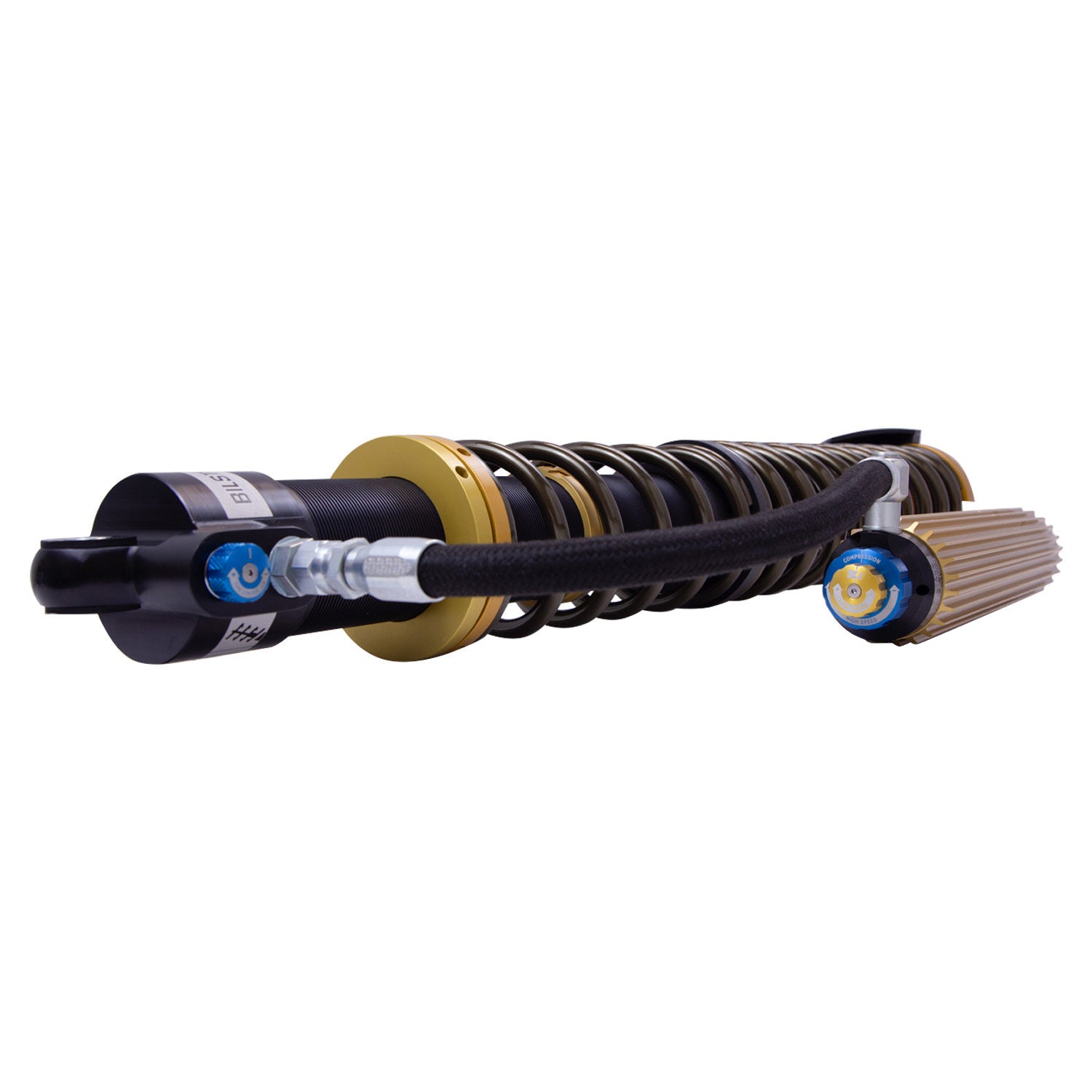

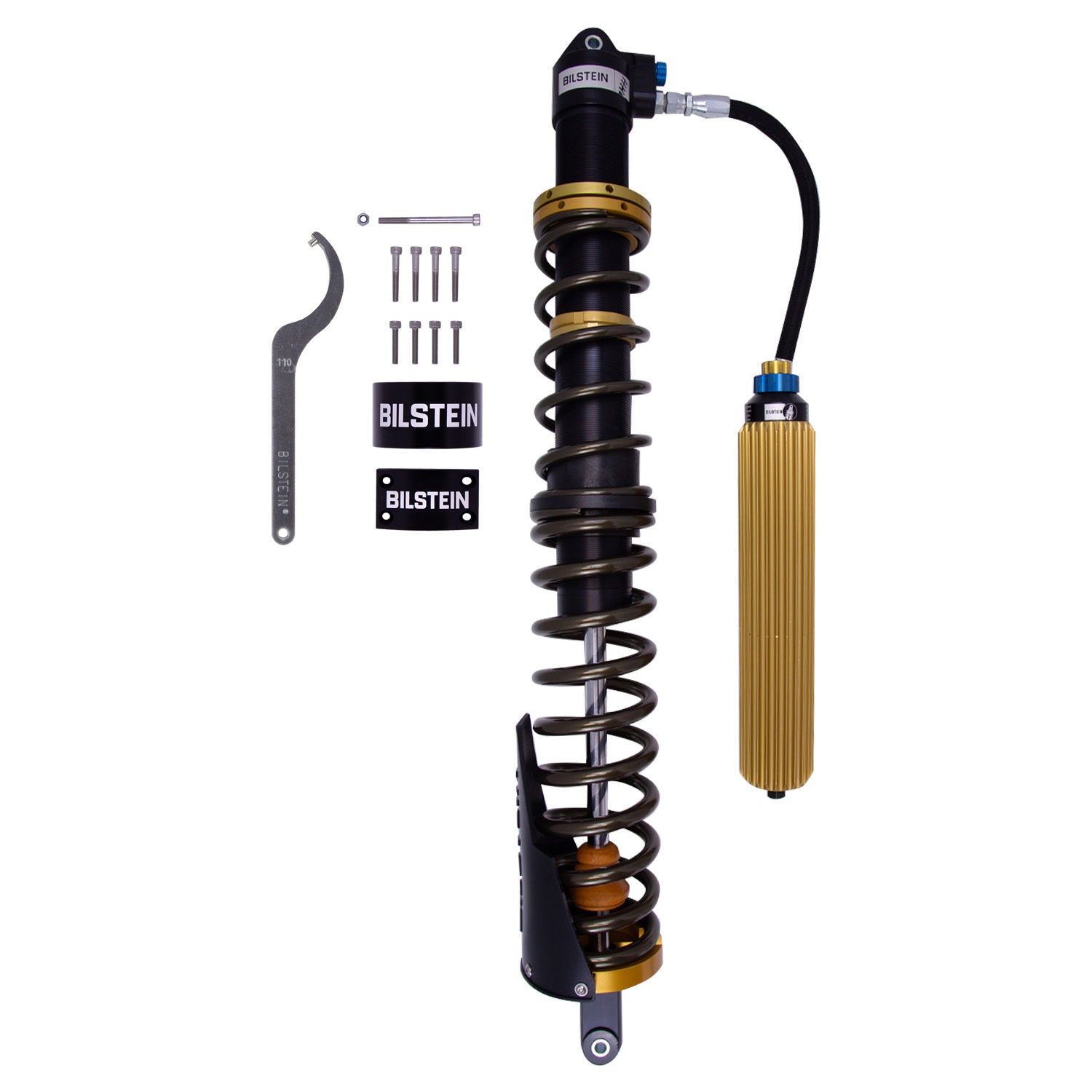

Bilstein 41-338131 - 22-24 Can-Am Maverick X3 Max RS Turbo Black Hawk Powersports Shock & Coil Spring Ass. - RL

Black Hawk Powersports - Rear Left Corner Module

70mm Rear Left Corner Module

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

  • Zone Control CR - Position Sensitive Damping
  • 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound
  • Direct Fit Motorsports Package
Body Material: Aluminum alloy
Finish: Type III Hard Anodized
PartType: Shocks / Struts
Lower Mount Type: Eye 12mm (ID)
Model: Maverick X3
Compression @0.52m/s: Adjustable
Collapsed Length (IN): 27.98
Collapsed Length (MM): 710.8
Segment: Motorsports
Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Stroke/Travel Length (mm): 346.2
Extended Length (IN): 41.61
Extended Length (MM): 1056.8
Boot Included: No
Rebound @0.52m/s: Adjustable
Stroke/Travel Length (IN): 13.63
Reservoir: Yes
Make: Can-Am
Body Design: Threaded Body
Upper Mount Type: Eye 12mm (ID)
Piston Diameter: 70mm
Position: Rear Left
Internal Design: Monotube
Series: Black Hawk Powersports
Shaft Diameter (mm): 22.0
Billet Reservoir Clamp Included: Yes
