Bilstein 41-314319 - 21-24 Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly - Front Left

Bilstein  |  SKU: BIL-41-314319
Sale price $1,58400 Regular price $1,72685

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

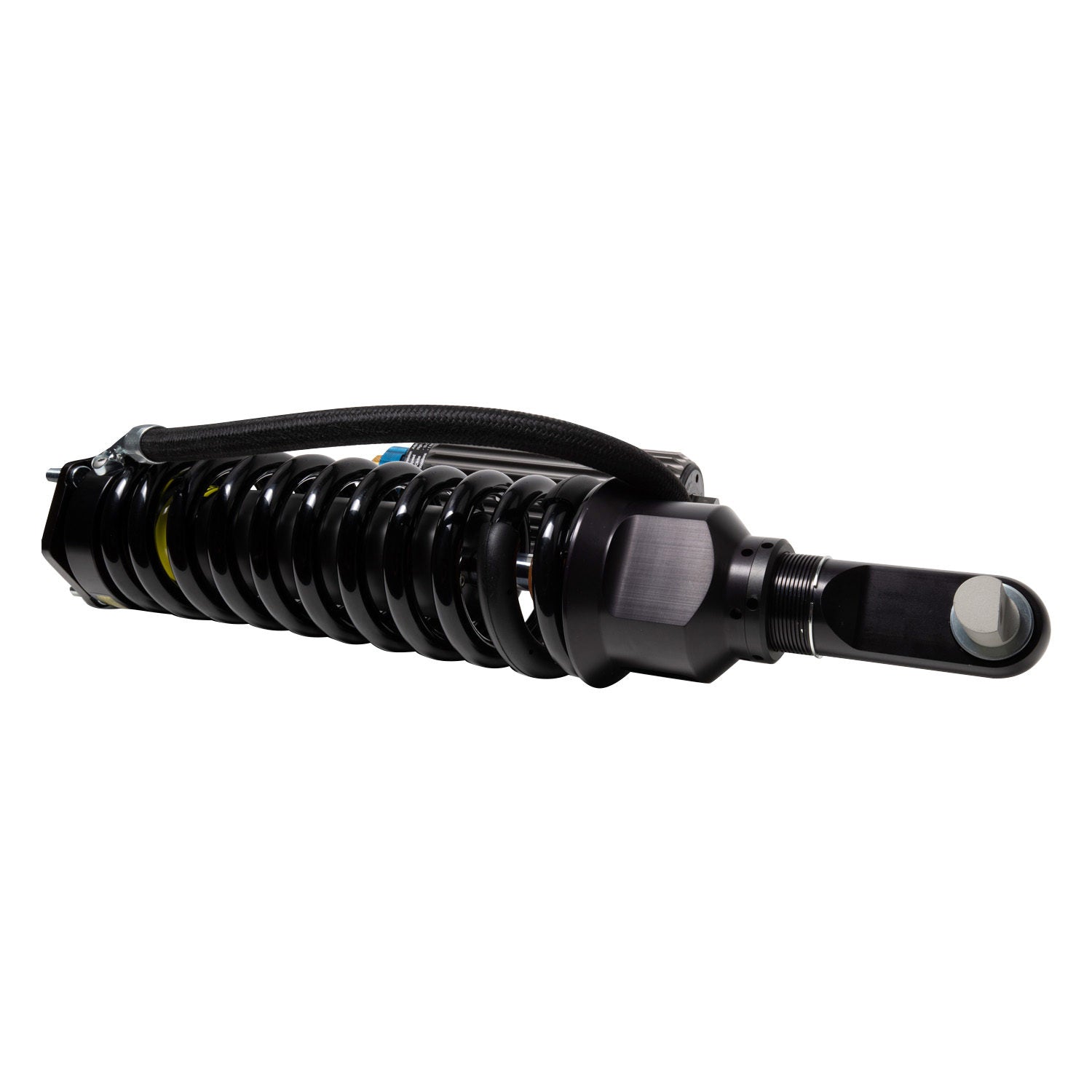

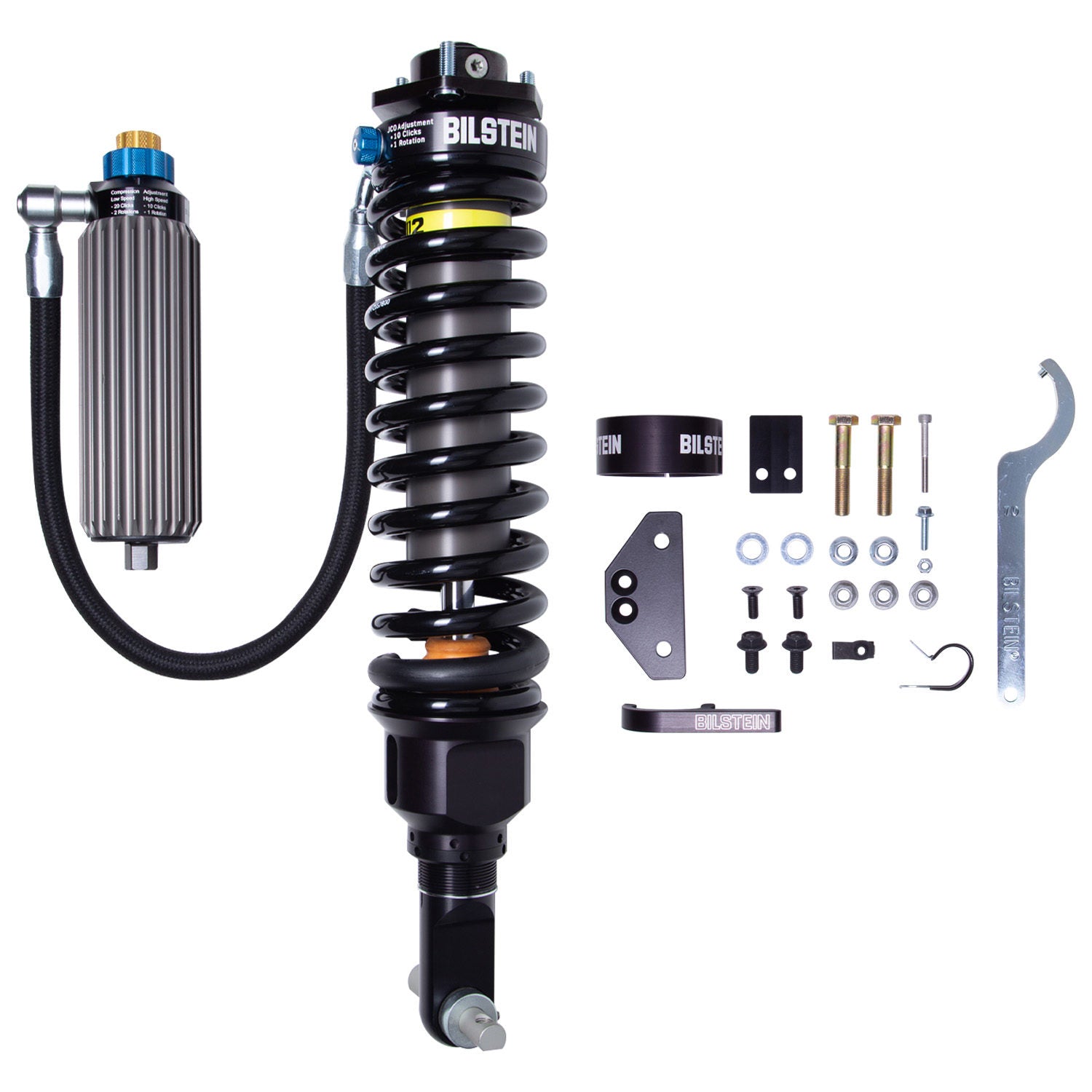

Bilstein 41-314319 - 21-24 Ford Bronco B8 8112 Suspension Shock Absorber and Coil Spring Assembly - Front Left

B8 8112 Black Hawk - Front Left Corner Module

60mm Front Left Corner Module

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

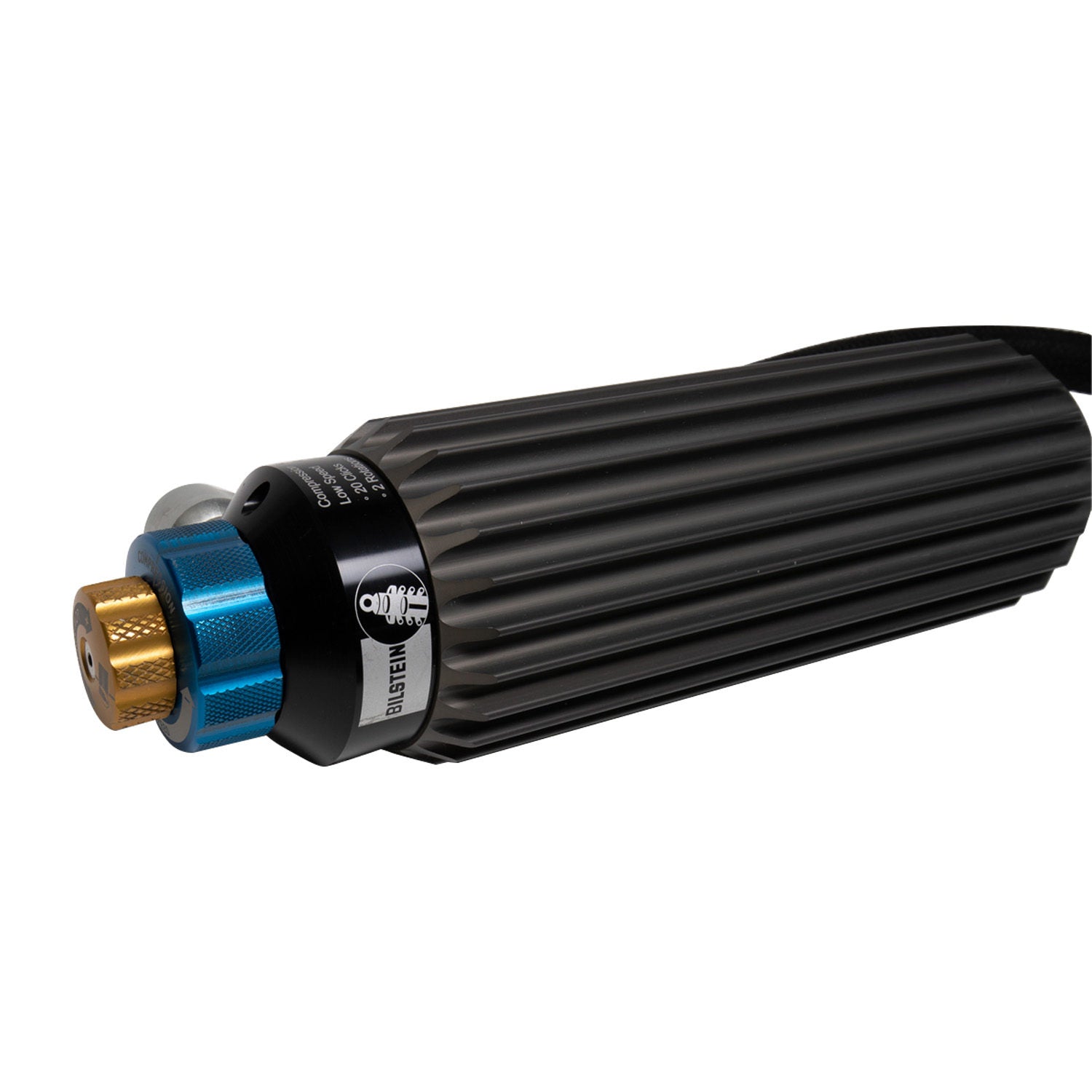

  • Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Segment: Light Truck
Body Material: Aluminum
Internal Design: Monotube
Spring Seat Included: Yes
Finish: Dampers: EVO Grey/Springs: Black
PartType: Shocks / Struts
Lower Mount Type: Crossbar
Extended Length (IN): 23.40
Boot Included: No
Collapsed Length (IN): 17.59
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required: Yes
Series: B8 8112 Black Hawk
Reservoir: Yes - Finned Aluminum
Body Design: Smooth Body (Coilover)
Front Main Spring Rate (lbs/in): 400
Upper Mount Type: Special
Extended Length (MM): 594.7
Piston Diameter: 60mm
Collapsed Length (MM): 446.2
Shaft Diameter (mm): 22.0
